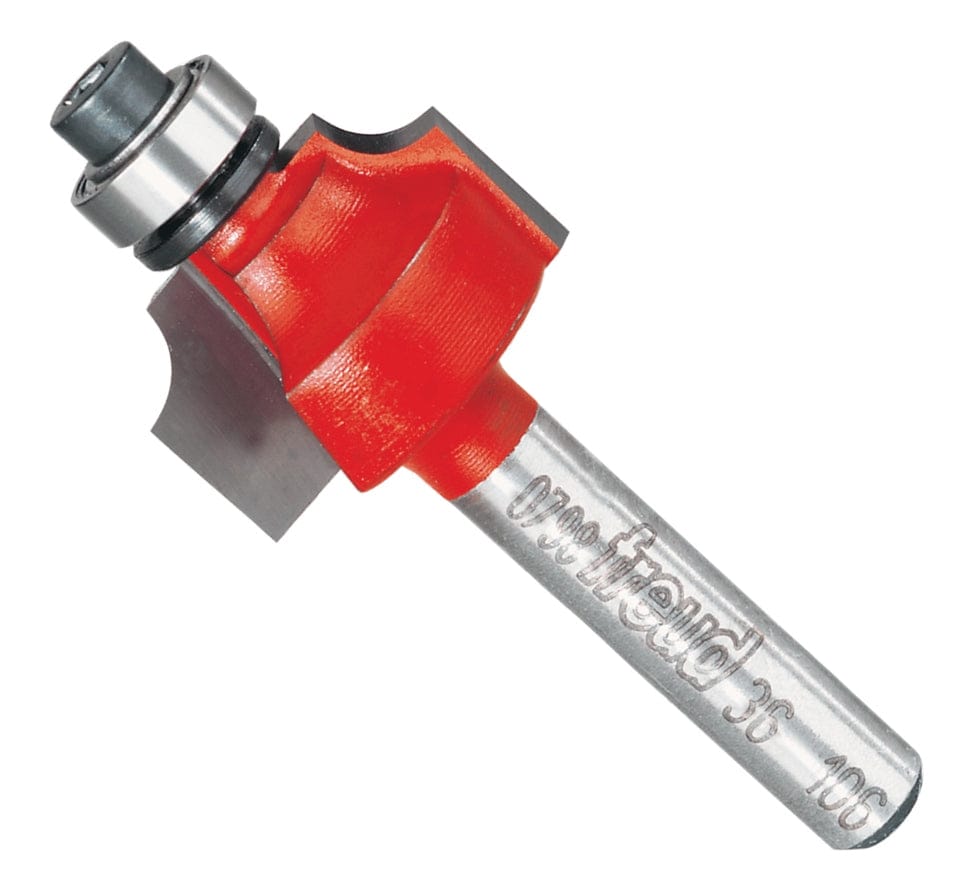

A studio product photograph of the Freud 36-106 Beading router bit featuring a red Perma-SHIELD body, two carbide cutting flutes, a top-mounted ball bearing pilot, and a 1/4 inch silver shank.

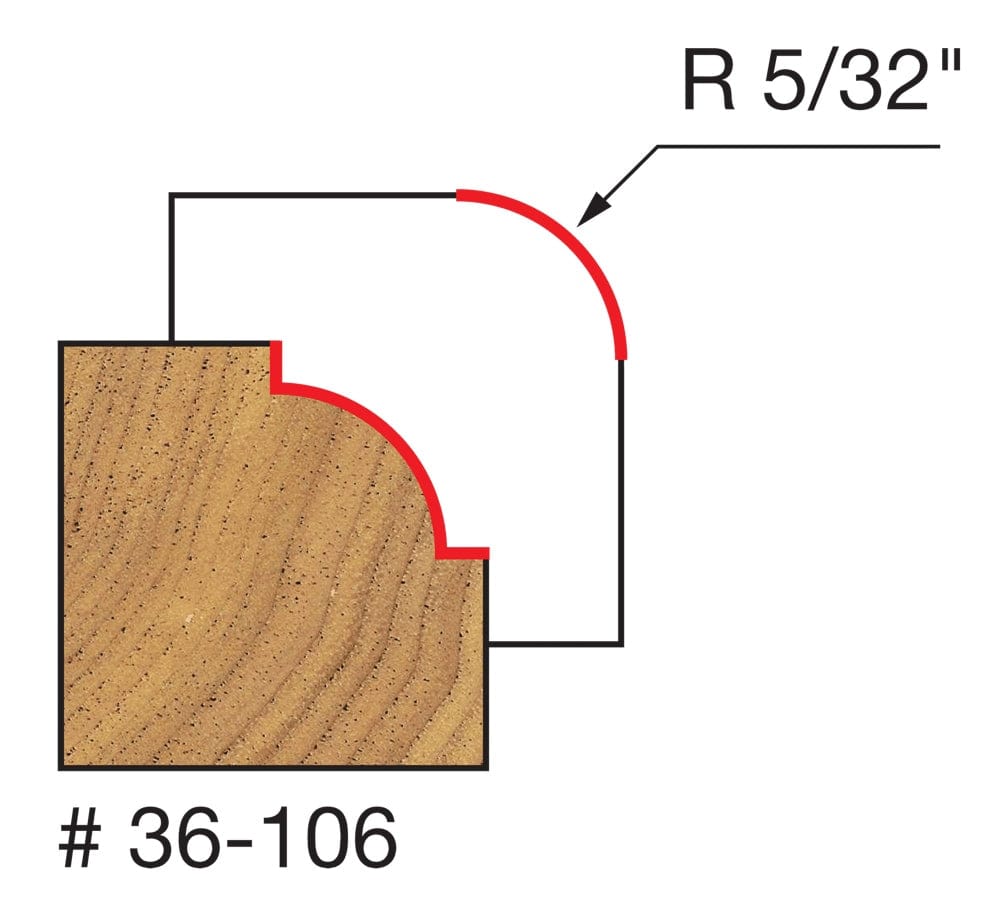

A technical profile diagram for the Freud 36-106 bit illustrating a decorative beading edge cut into a wood corner with a specified 5/32 inch radius.

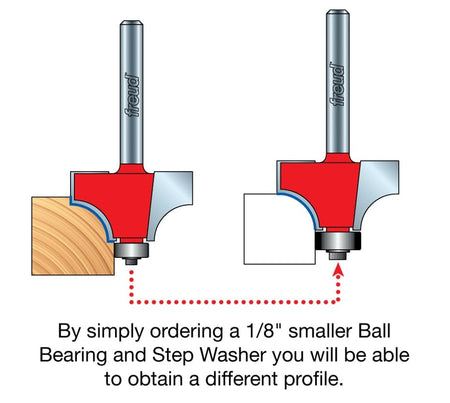

A diagram demonstrating how the beading bit can be converted to a standard round-over profile by replacing the ball bearing and step washer with parts that are 1/8 inch smaller.
A studio product photograph of the Freud 36-106 Beading router bit featuring a red Perma-SHIELD body, two carbide cutting flutes, a top-mounted ball bearing pilot, and a 1/4 inch silver shank.
A studio product photograph of the Freud 36-106 Beading router bit featuring a red Perma-SHIELD body, two carbide cutting flutes, a top-mounted ball bearing pilot, and a 1/4 inch silver shank.
A technical profile diagram for the Freud 36-106 bit illustrating a decorative beading edge cut into a wood corner with a specified 5/32 inch radius.
A diagram demonstrating how the beading bit can be converted to a standard round-over profile by replacing the ball bearing and step washer with parts that are 1/8 inch smaller.
A studio product photograph of the Freud 36-106 Beading router bit featuring a red Perma-SHIELD body, two carbide cutting flutes, a top-mounted ball bearing pilot, and a 1/4 inch silver shank.
Freud

Freud 36-106 5/32 Inch Radius Beading Router Bit 1/4 Inch Shank TiCo Carbide Quadra-Cut Edging Tool for Decorative Millwork and Furniture Profiles

Only 1 left
SKU: 36-106
$25.95 USD

Description

Freud precisely the best logo Logout

Add Sophisticated Architectural Detail with Precision Beading and Edge Softening

Enhance the visual appeal of your woodworking projects with the Freud 36-106 5/32" Radius Beading Router Bit. This high-performance tool is specifically designed to add an attractive bead profile to furniture and custom millwork, providing a classic, decorative touch to any edge. The bit includes a specialized pilot bearing that creates a distinct inset bead at the bottom of the radius, distinguishing it from standard round-over bits. Whether you are crafting intricate cabinetry or simply softening the sharp corners of square stock, this bit provides the versatility needed for professional-grade results.

Engineered for maximum durability and a glass-smooth finish, the 36-106 features Freud’s exclusive TiCo™ Hi-Density Carbide and a precision-balanced 1/4" shank. The tool is protected by the signature Red Perma-SHIELD® Non-Stick Coating, which dramatically reduces friction, heat buildup, and resin accumulation to extend the life of the bit. For added flexibility, this bit can be converted for standard rounding-over work without the inset bead by simply adding a Freud 62-104 bearing and 62-313 step washer (sold separately). Perfectly suited for use with hand-held or table-mounted routers, it effortlessly slices through solid wood, plywood, and composites.

Key Features

  • Decorative Bead Profile: Creates a beautiful round profile with a signature inset bead for a classic look.
  • Multi-Material Mastery: Cuts cleanly through all composition materials, plywood, hardwood, and softwoods.
  • Perma-SHIELD® Coating: Non-stick red coating protects the bit from heat, rust, and pitch accumulation.
  • Versatile Compatibility: Engineered for peak performance on both hand-held and table-mounted portable routers.
  • Precision Engineering: Ideal for creating decorative rounded edges on any high-end furniture or millwork project.

What's Included

(1) Freud 36-106 5/32" Radius Beading Router Bit with 1/4" Shank

Specifications

Radius (R) 5/32"
Shank Diameter (A) 1/4"
Overall Diameter (D) 13/16"
Carbide Height (h) 1/2"
Overall Length (H) 2-3/16"
Bearing Diameter (B) 3/8"
Number of Cutters 2
Max RPM 24,000
Bit Coating Perma-SHIELD® Red Non-Stick
Material TiCo™ Hi-Density Carbide

Pro-Tip: To achieve a flawless finish on delicate hardwoods, always rout in the direction of the grain and use a steady, consistent feed rate. If you find the inset bead is burning the wood, check the bearing for resin buildup and ensure your router speed is set appropriately—high-speed bits like this 5/32" radius cutter perform best when they aren't forced through the material too slowly.
