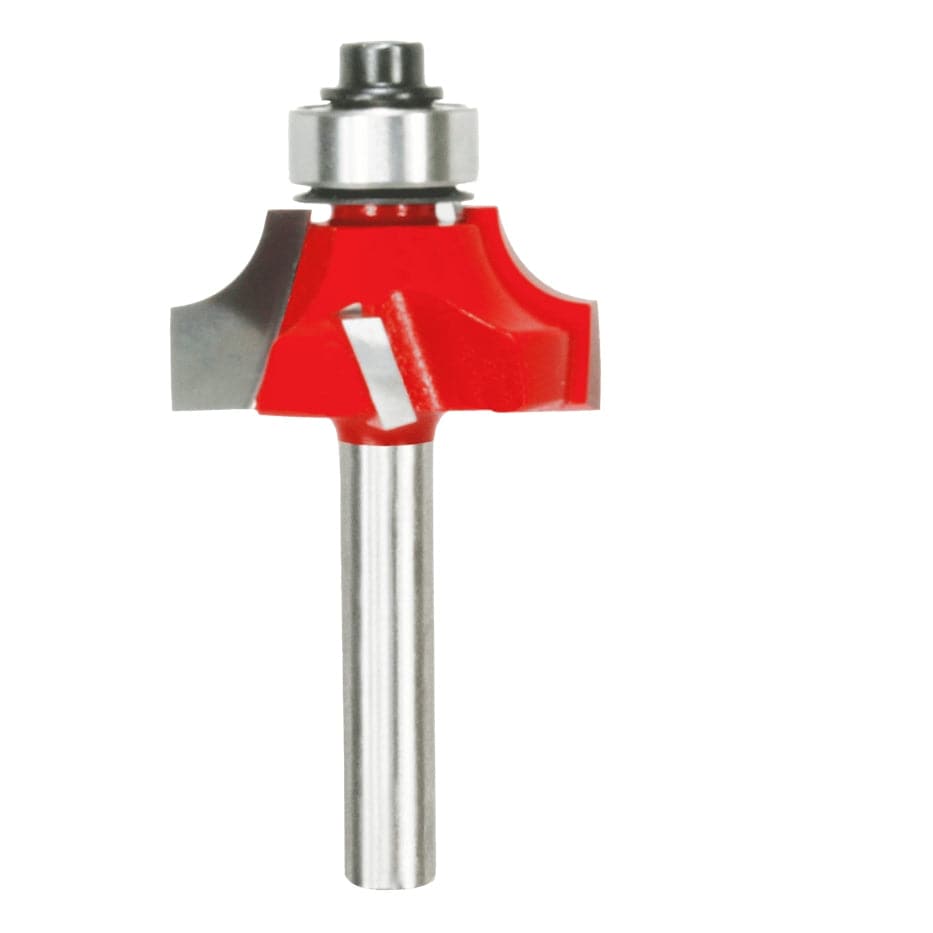

A detailed product view of the Freud 36-110 beading router bit, showing the red carbide cutter, the $1/4$ inch shank, and the guide bearing at the top.

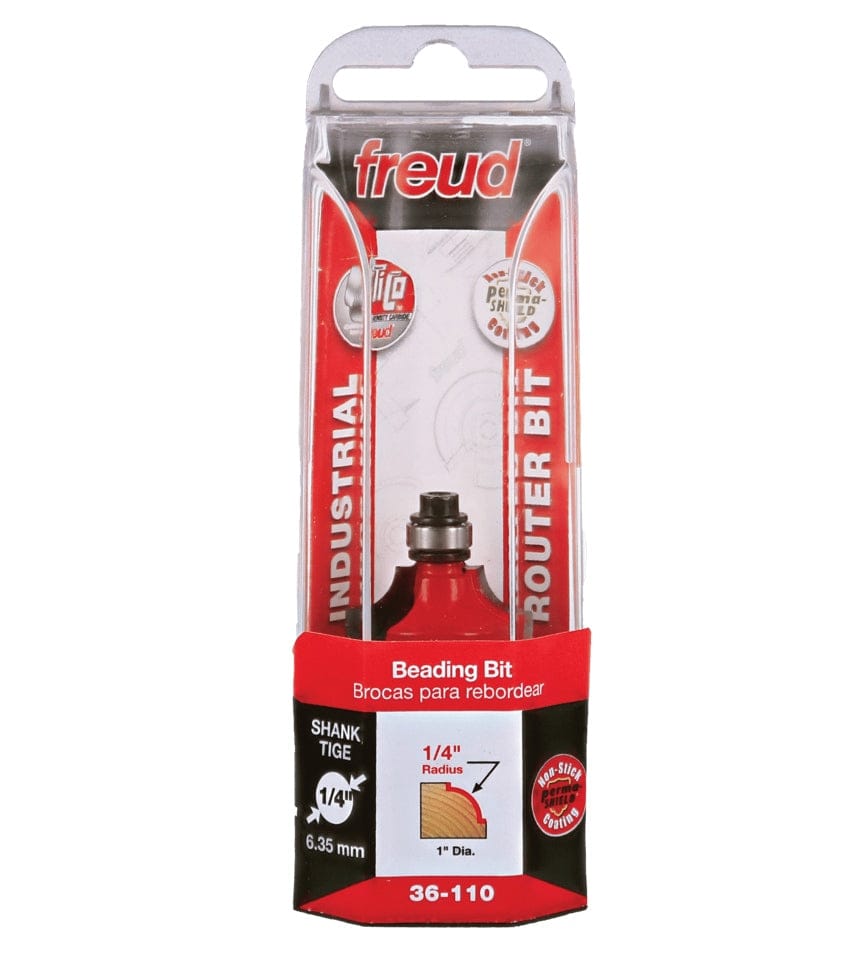

The Freud 36-110 1/4 inch radius beading router bit in its clear plastic retail packaging, highlighting the 1/4 inch shank and 1 inch diameter.

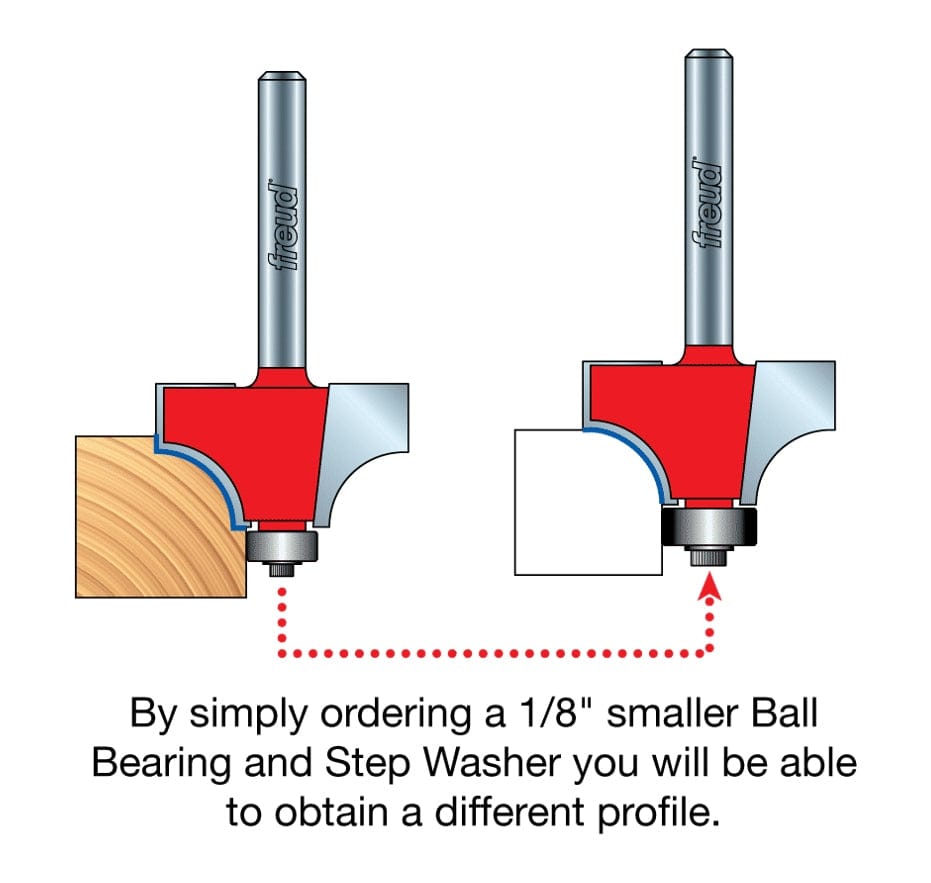

A diagram showing two rounding over router bits, illustrating how changing the ball bearing and step washer obtains a different edge profile.

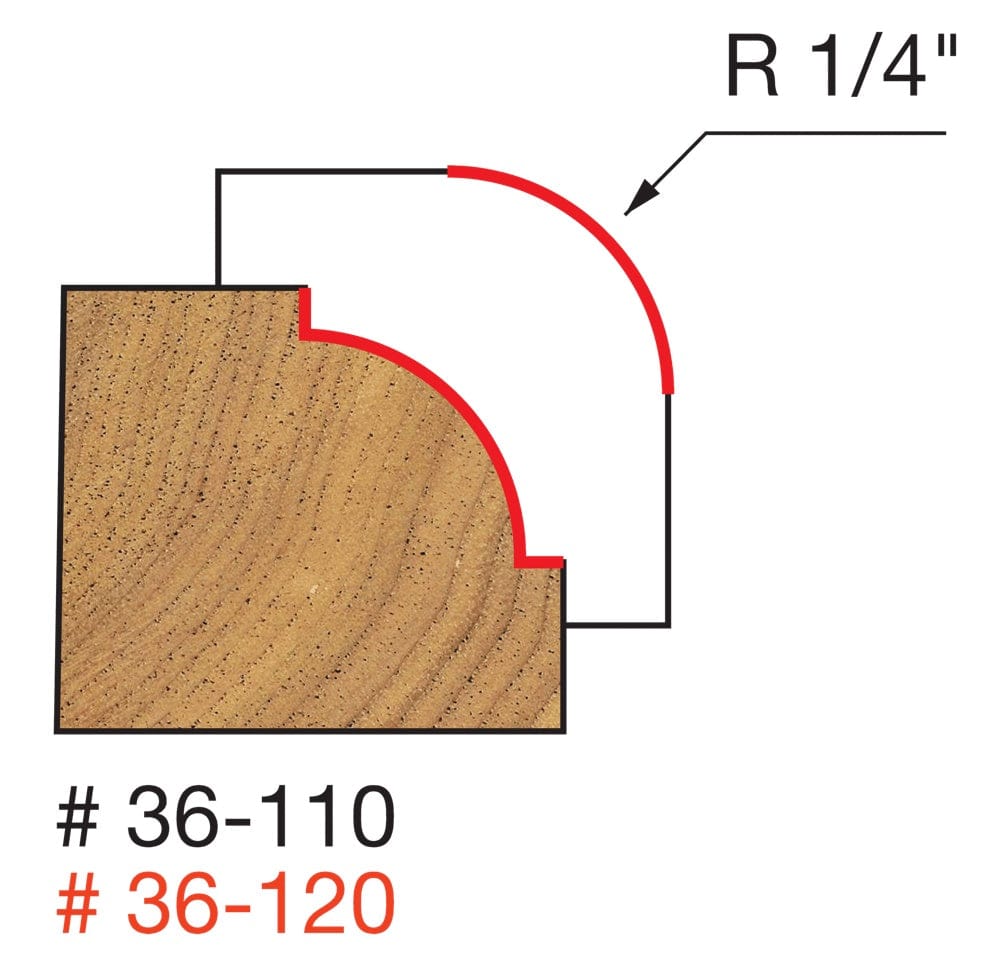

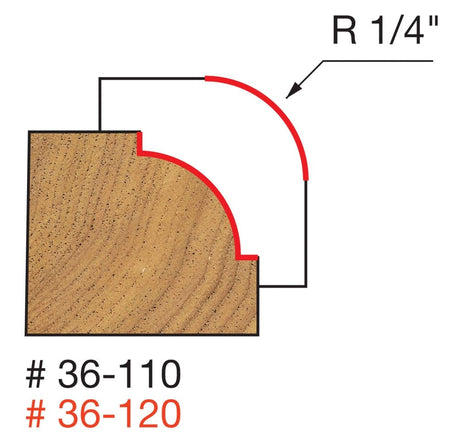

A profile diagram illustrating the 1/4 inch radius 1/4 beading cut on a piece of wood, showing the final shape of the decorative edge.

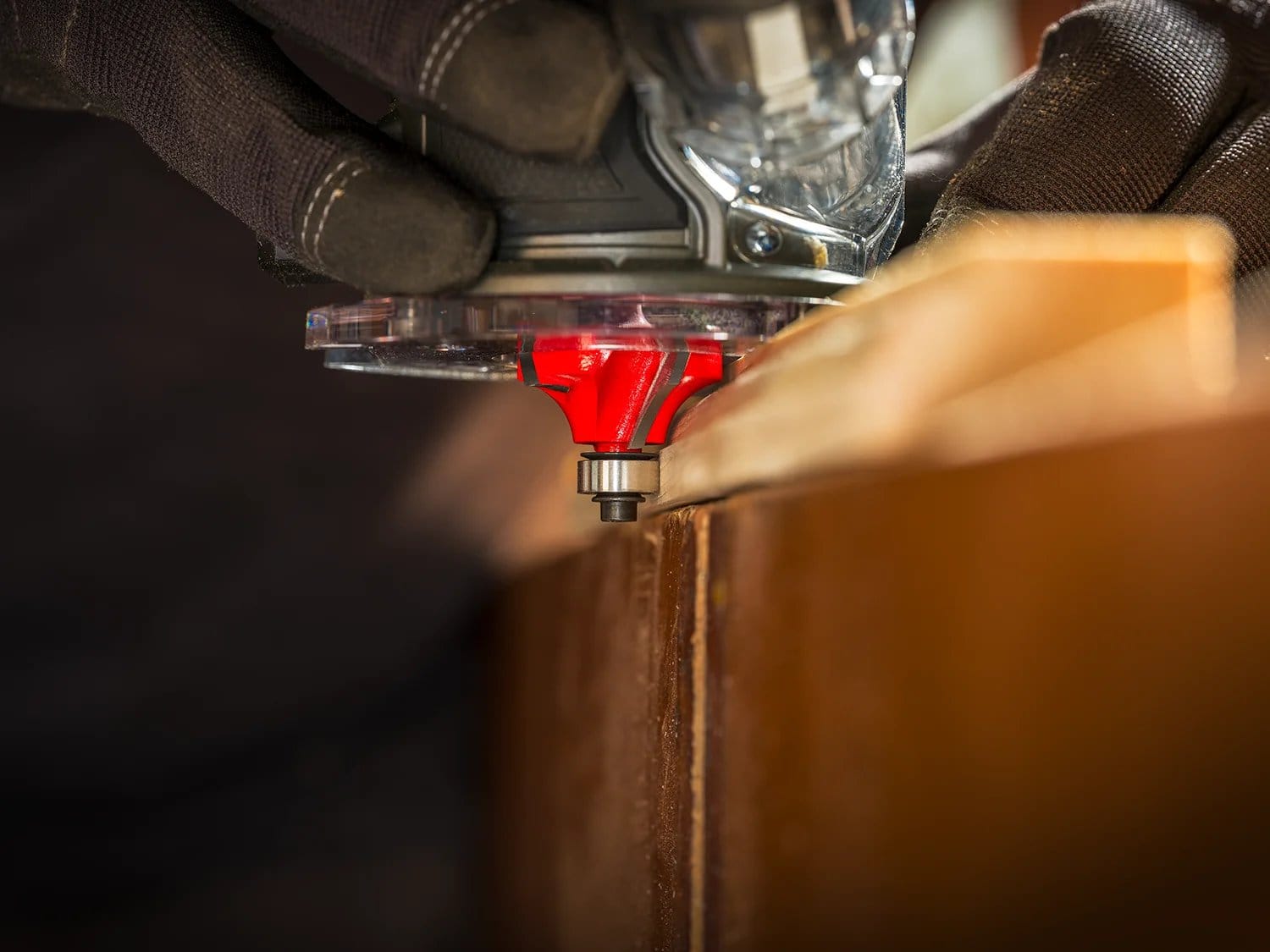

A close-up of a worker wearing gloves using a handheld router with the red Freud beading bit to rout a decorative edge on a wooden workpiece.
A detailed product view of the Freud 36-110 beading router bit, showing the red carbide cutter, the $1/4$ inch shank, and the guide bearing at the top.
The Freud 36-110 1/4 inch radius beading router bit in its clear plastic retail packaging, highlighting the 1/4 inch shank and 1 inch diameter.
A diagram showing two rounding over router bits, illustrating how changing the ball bearing and step washer obtains a different edge profile.
A profile diagram illustrating the 1/4 inch radius 1/4 beading cut on a piece of wood, showing the final shape of the decorative edge.
A close-up of a worker wearing gloves using a handheld router with the red Freud beading bit to rout a decorative edge on a wooden workpiece.
Freud

Freud Router Bit 36-110 1/4 Inch Radius (Beading Decorative Profile Inset Bead Perma SHIELD Coating 1/4 Inch Shank 18000 RPM Millwork)

Only 3 left
SKU: 36-110
$29.00 USD

Description

Freud precisely the best logo Logout

Freud 36-110 1/4-Inch Radius Decorative Beading Router Bit

The Freud 36-110 1/4-Inch Radius Decorative Beading Router Bit is a precision edge-shaping woodworking tool engineered to mill rounded 1/4-inch radius profiles featuring a distinct decorative inset bead along cabinet edges, table tops, and architectural millwork. Operating at rotational speeds up to 18,000 RPM with a 1/4-inch shank, 1-1/8-inch overall diameter, and 1/2-inch carbide cutting height, this 4-cutter bit features Perma-SHIELD non-stick coating and a pilot guide bearing. Designed for handheld and table-mounted routers, this dual-function profile bit solves sharp edge hazards, thermal pitch buildup, and rough grain tear-out challenges across hardwood, softwood, plywood, and composite wood projects.

Best Used For:

  • Custom Cabinetry & Millwork Inset Beading: Milling decorative 1/4-inch radius rounded edges with an inset shoulder on stile and rail cabinet doors.
  • Furniture & Tabletop Edge Softening: Shaping smooth, comfortable beaded profiles on solid hardwood dining tables, chair arms, and shelving units.
  • Dual-Function Convertible Rounding Over: Swapping pilot bearings to convert the cutter from a decorative beading bit into a standard round-over profile.

Key Performance & Safety Features

  • Decorative Inset Bead Profile: Specialized pilot bearing alignment routs a classic rounded profile with a pronounced lower inset bead shoulder.
  • 4-Cutter Carbide Geometry: Quad-flute cutting layout delivers smoother material removal and superior surface finish quality compared to standard 2-flute bits.
  • Perma-SHIELD Non-Stick Coating: Protective red thermal coating shields the bit body from heat buildup, resin adhesion, and pitch accumulation.
  • Convertible Bearing Functionality: Pilot bearing can be replaced with standard accessory bearings to convert the bit into a flush round-over cutter.
  • High-Speed 18,000 RPM Rating: Dynamically balanced cutter body ensures stable, chatter-free operation in compact handheld and table routers.

What's Included

  • (1) Freud 36-110 1/4 in. Radius Decorative Beading Router Bit (1/4 in. Shank)
  • (1) Pilot Guide Bearing (Pre-Installed)

Technical Specifications

Manufacturer Brand Freud Tools
Model Part Number (OEM) 36-110
Profile Cutting Radius (R) 1/4 in. (6.35 mm) Radius
Shank Interface Diameter (A) 1/4 in. (6.35 mm) Round Shank
Overall Bit Cutting Diameter (D) 1-1/8 in. (28.58 mm)
Carbide Cutting Height (h) 1/2 in. (12.7 mm)
Total Overall Bit Length (H) 2-3/16 in. (55.56 mm)
Total Flute Cutter Count 4 Carbide Cutters
Maximum Safe Operating Speed 18,000 RPM
Surface Thermal Shield Coating Perma-SHIELD Non-Stick Red Fluoropolymer
Approved Power Tool Equipment Handheld Portable Routers & Router Tables
Primary Target Substrates Hardwoods, Softwoods, Plywood, Composition Materials
Pro-Tip: To rout a standard flush round-over edge without the inset bead shoulder, replace the stock pilot bearing with a slightly larger 1/2-inch outer diameter bearing.
