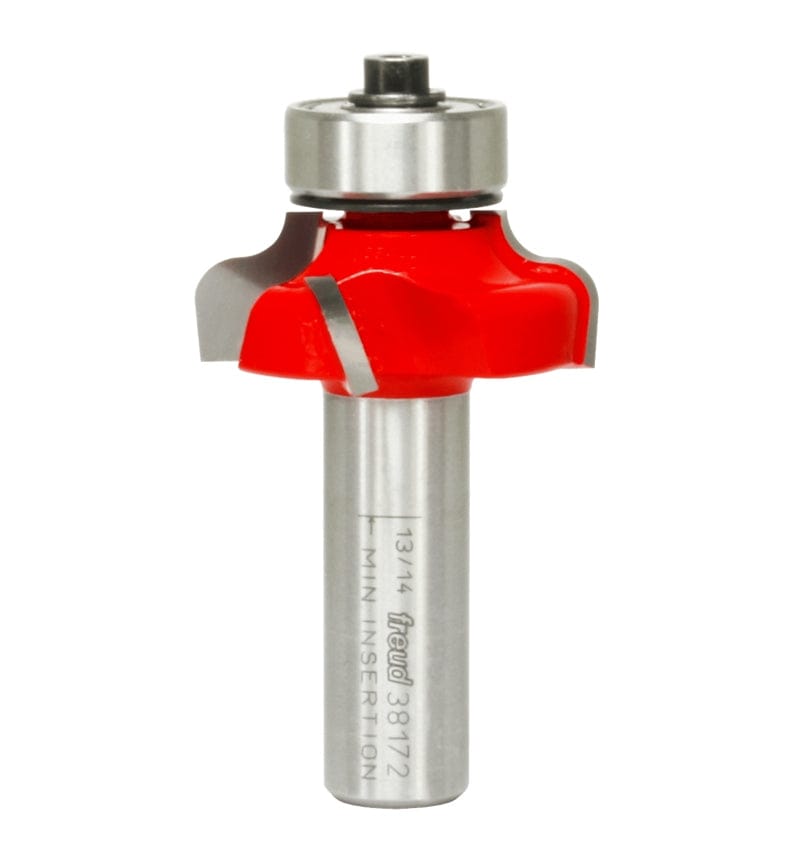

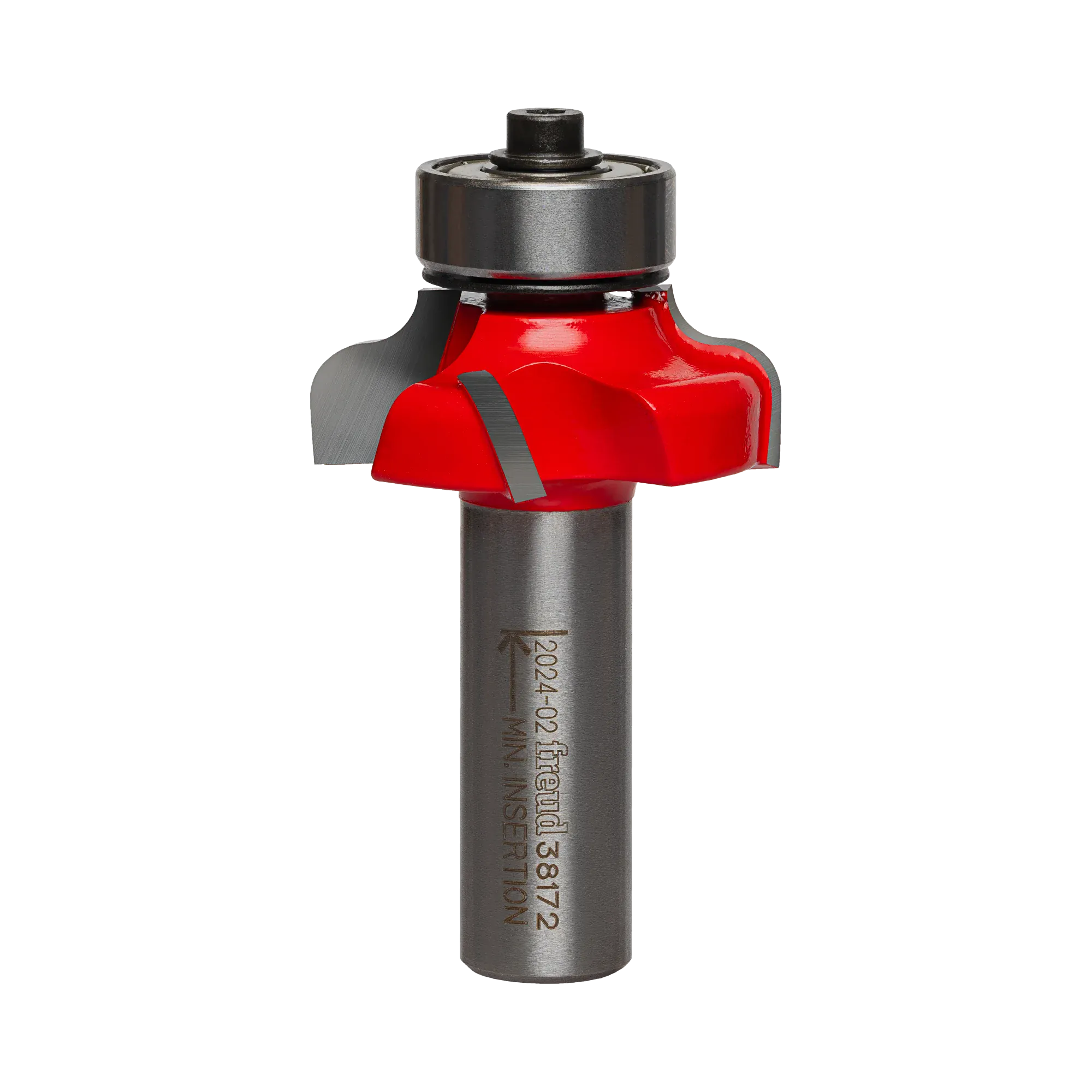

Studio shot of the Freud 38-172 Roman Ogee router bit featuring a red Perma-SHIELD body, four Quadra-Cut carbide cutters, 1/2 inch silver shank, and top bearing guide.

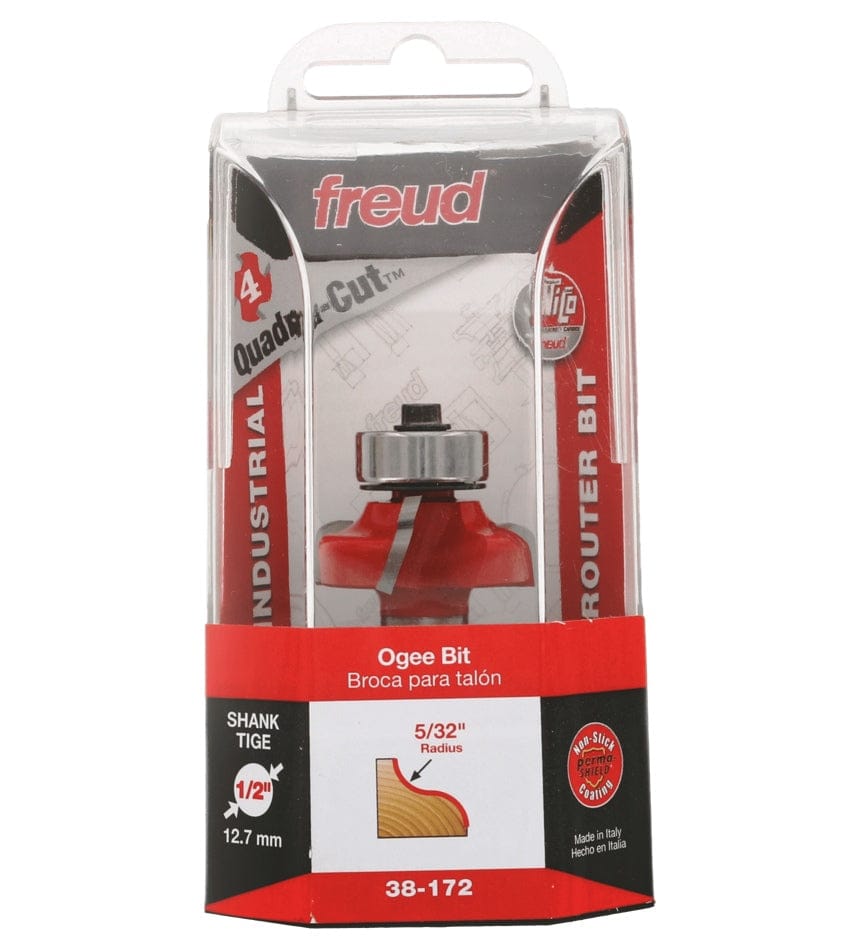

Retail packaging for the Freud 38-172 Industrial Router Bit, displaying the bit inside a plastic case with text indicating an Ogee profile, 5/32 inch radius, and 1/2 inch shank.

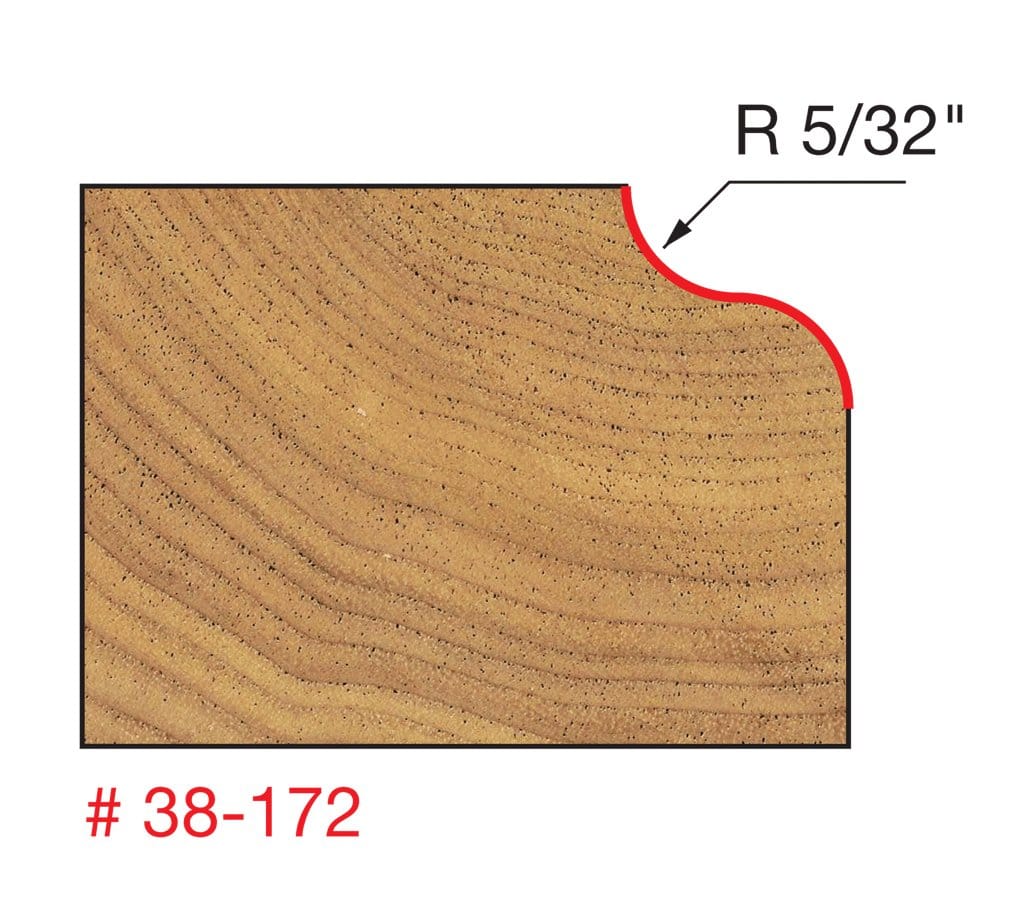

Technical diagram illustrating the Roman Ogee profile cut made by the Freud 38-172 bit into a wood edge, specifying a 5/32 inch radius.

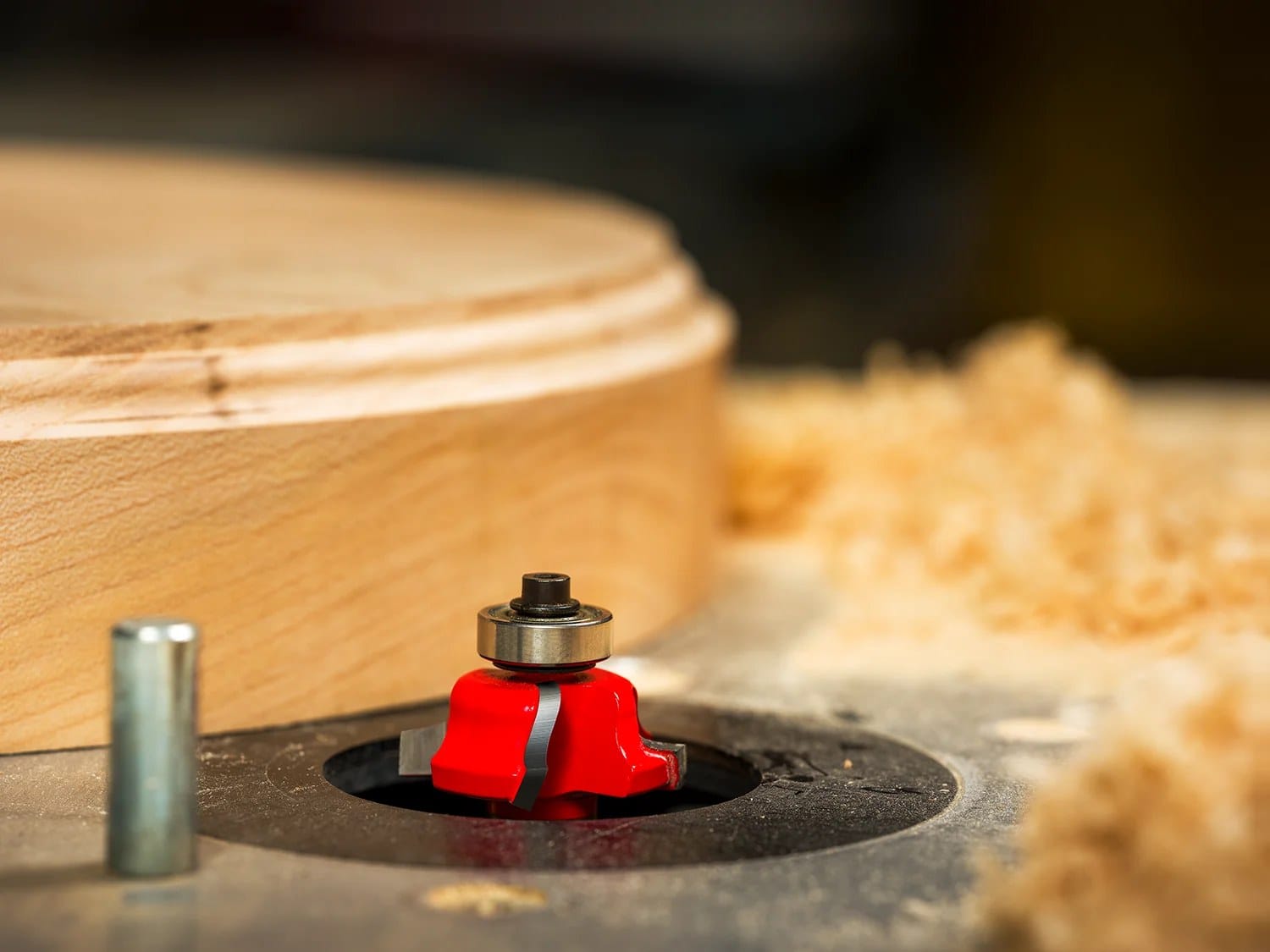

Action view of the red Freud 38-172 Ogee router bit mounted in a table, actively cutting a decorative profile onto the edge of a wooden workpiece with visible wood shavings.
Studio shot of the Freud 38-172 Roman Ogee router bit featuring a red Perma-SHIELD body, four Quadra-Cut carbide cutters, 1/2 inch silver shank, and top bearing guide.
Freud Quadra Cut Router Bits promotional video
Studio shot of the Freud 38-172 Roman Ogee router bit featuring a red Perma-SHIELD body, four Quadra-Cut carbide cutters, 1/2 inch silver shank, and top bearing guide.
Retail packaging for the Freud 38-172 Industrial Router Bit, displaying the bit inside a plastic case with text indicating an Ogee profile, 5/32 inch radius, and 1/2 inch shank.
Technical diagram illustrating the Roman Ogee profile cut made by the Freud 38-172 bit into a wood edge, specifying a 5/32 inch radius.
Action view of the red Freud 38-172 Ogee router bit mounted in a table, actively cutting a decorative profile onto the edge of a wooden workpiece with visible wood shavings.
Studio shot of the Freud 38-172 Roman Ogee router bit featuring a red Perma-SHIELD body, four Quadra-Cut carbide cutters, 1/2 inch silver shank, and top bearing guide.
Freud Quadra Cut Router Bits promotional video
Freud

Freud Router Bit 38-172 1-3/8 In Dia 1/2 In Shank Quadra-Cut Roman Ogee (16000 RPM TiCo Carbide Perma-SHIELD 4 Cutter Cabinet Furniture Edging Tool)

Only 2 left
SKU: 38-172
$37.29 USD

Description

Freud precisely the best logo Logout

Precision Freud 1-3/8 Inch Quadra-Cut Roman Ogee Router Bit 38-172 with 1/2 Inch Shank

The Freud 38-172 1-3/8-Inch Diameter Quadra-Cut Roman Ogee Router Bit operates as a commercial-grade decorative profiling tool engineered to execute classic 5/32-inch radius Roman Ogee edges with an inset bead profile on solid hardwoods, softwoods, cabinet plywood, and wood composites. Manufactured with four micrograin TiCo High-Density Carbide cutters coated in friction-reducing Red Perma-SHIELD non-stick coating, this heavy-duty 1/2-inch shank bit features a 3/4-inch pilot ball bearing, a 1/2-inch carbide height, and a 16,000 RPM maximum speed rating. Compatible with handheld portable routers and router table setups, this patented four-cutter profile bit utilizes two up-shear wings to clear core material and two down-shear wings to slice top surface fibers, delivering a splinter-free, hand-planed surface finish across cabinet doors, drawer fronts, and architectural millwork.

Best Used For:

  • Architectural Cabinet Door Edging: Milling classic 5/32-inch radiused Roman Ogee decorative borders along solid wood cabinet door stiles, face frames, and drawer fronts.
  • Tabletop & Furniture Edge Profiling: Shaping clean Roman Ogee edge profiles with an inset bead on tabletop perimeters, display plaques, and furniture trim.
  • Guided Substrate Edge Duplication: Tracing straight or curved workpiece edges using the integrated 3/4-inch pilot ball bearing to produce uniform architectural moldings.

Key Performance & Safety Features

  • Patented Quadra-Cut 4-Cutter Technology: Combines two up-shear cutters and two down-shear cutters to eliminate top-surface cross-grain tearing and fuzzing.
  • TiCo High-Density Micrograin Carbide: Proprietary titanium-cobalt carbide formulation maintains razor-sharp edges up to four times longer than standard carbide.
  • Red Perma-SHIELD Thermal Barrier Coating: Non-stick red fluoropolymer coating insulates the bit body against heat buildup, pitch accumulation, and rust corrosion.
  • Heavy-Duty 1/2-Inch Steel Shank: Provides maximum anti-flex structural stability and vibration resistance during deep 1-3/8-inch diameter profile cuts.
  • Integrated 3/4-Inch Pilot Ball Bearing: Smooth-rolling guide bearing tracks substrate faces accurately to prevent workpiece scoring or friction burning.
  • Computer-Balanced Dynamically Balanced Body: Precision-balanced tool body eliminates vibration and chatter marks at regulated speeds up to 16,000 RPM.

What's Included

  • (1) Freud 38-172 1-3/8" Quadra-Cut Roman Ogee Router Bit (1/2" Shank)
  • (1) Pre-Installed 3/4" Pilot Ball Bearing Assembly

Technical Specifications

Brand Name Freud
Model Number SKU 38-172
Product Tool Classification Quadra-Cut Roman Ogee Decorative Edging Router Bit
Overall Cut Diameter (D) 1.375 in. (1-3/8 in.)
Shank Diameter (A) 0.500 in. (1/2 in.)
Carbide Cutting Height (h) 0.500 in. (1/2 in.)
Overall Bit Length (H) 2.250 in. (2-1/4 in.)
Pilot Ball Bearing Diameter (B) 0.750 in. (3/4 in.)
Large Radiused Curve (R1) 0.15625 in. (5/32 in.)
Number of Cutting Wings 4 Cutters (2 Up-Shear, 2 Down-Shear)
Maximum Rotational Speed 16,000 RPM (Speed Adjustment Required)
Protective Body Finish Red Perma-SHIELD Non-Stick Coating
Carbide Grade Composition TiCo High-Density Micrograin Carbide
Machine Equipment Compatibility Handheld Routers and Router Tables with 1/2" Collet
Country of Origin Italy

Pro-Tip: When routing 1-3/8 inch wide Quadra-Cut Roman ogee profiles in dense hardwoods, adjust your router speed setting to a maximum of 16,000 RPM to prevent friction burning. Make two light passes rather than a single heavy pass, allowing the down-shear wings on the final pass to glide across the top shoulder for an ultra-clean finish that requires no hand sanding.
