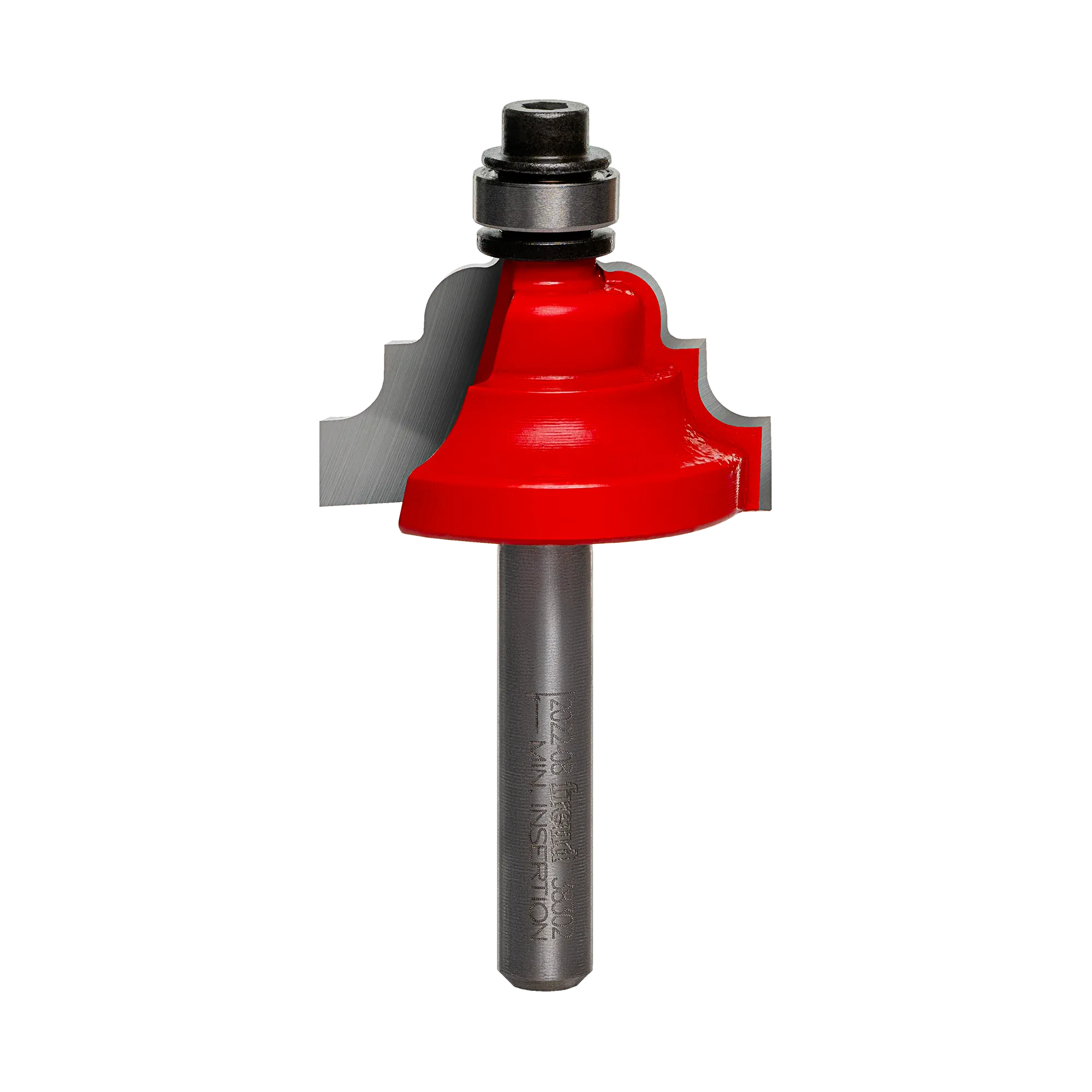

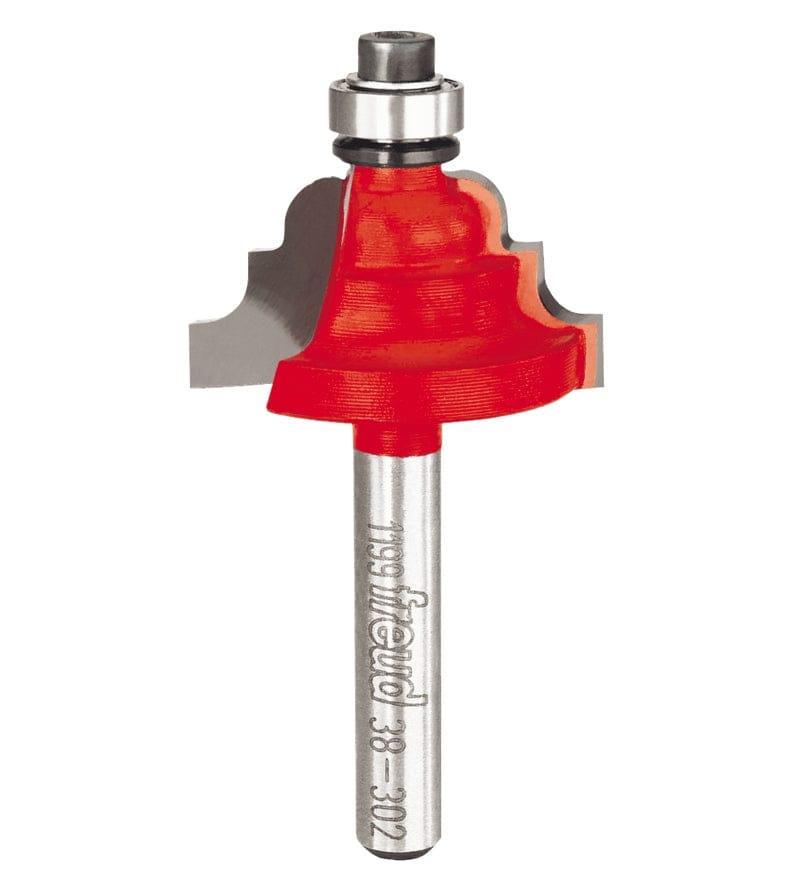

Studio shot of the Freud 38-302 Cove and Bead router bit featuring a red Perma-SHIELD body, two carbide cutters, 1/4 inch silver shank, and top ball bearing guide.

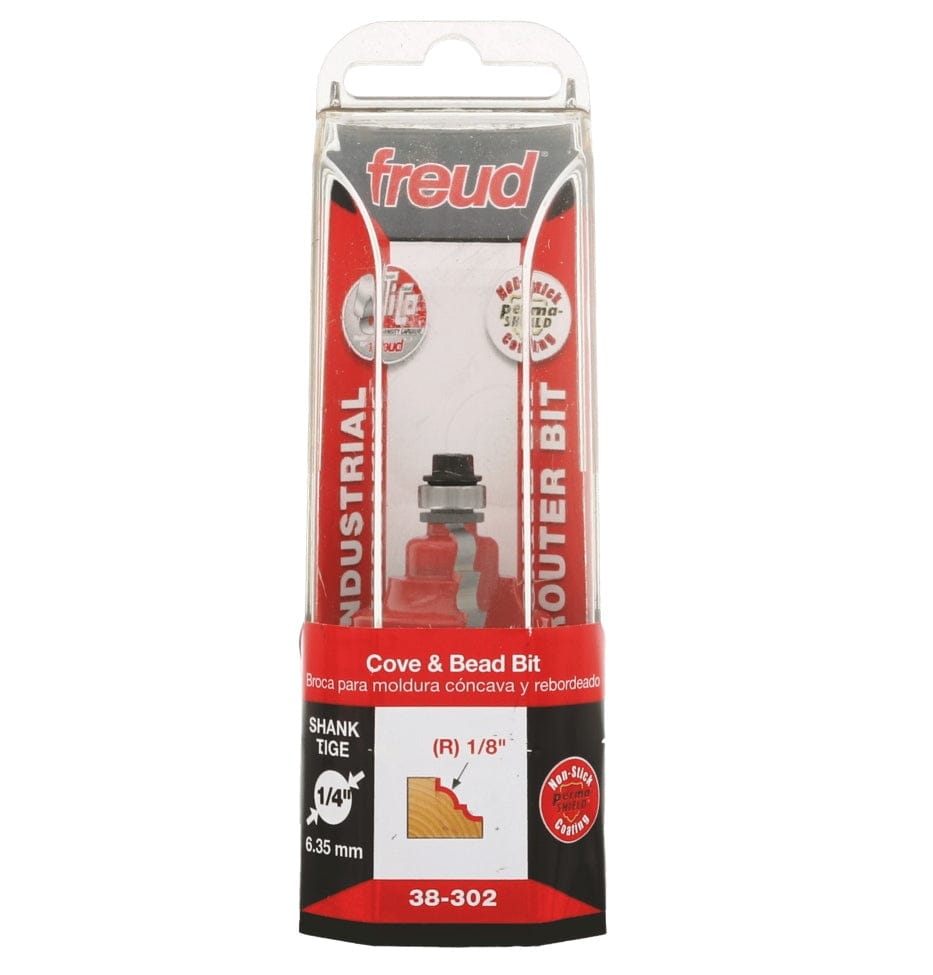

Retail packaging for the Freud 38-302 Industrial Router Bit, displaying the bit inside a plastic case with text indicating a Cove & Bead profile, 1/8 inch radius, and 1/4 inch shank.

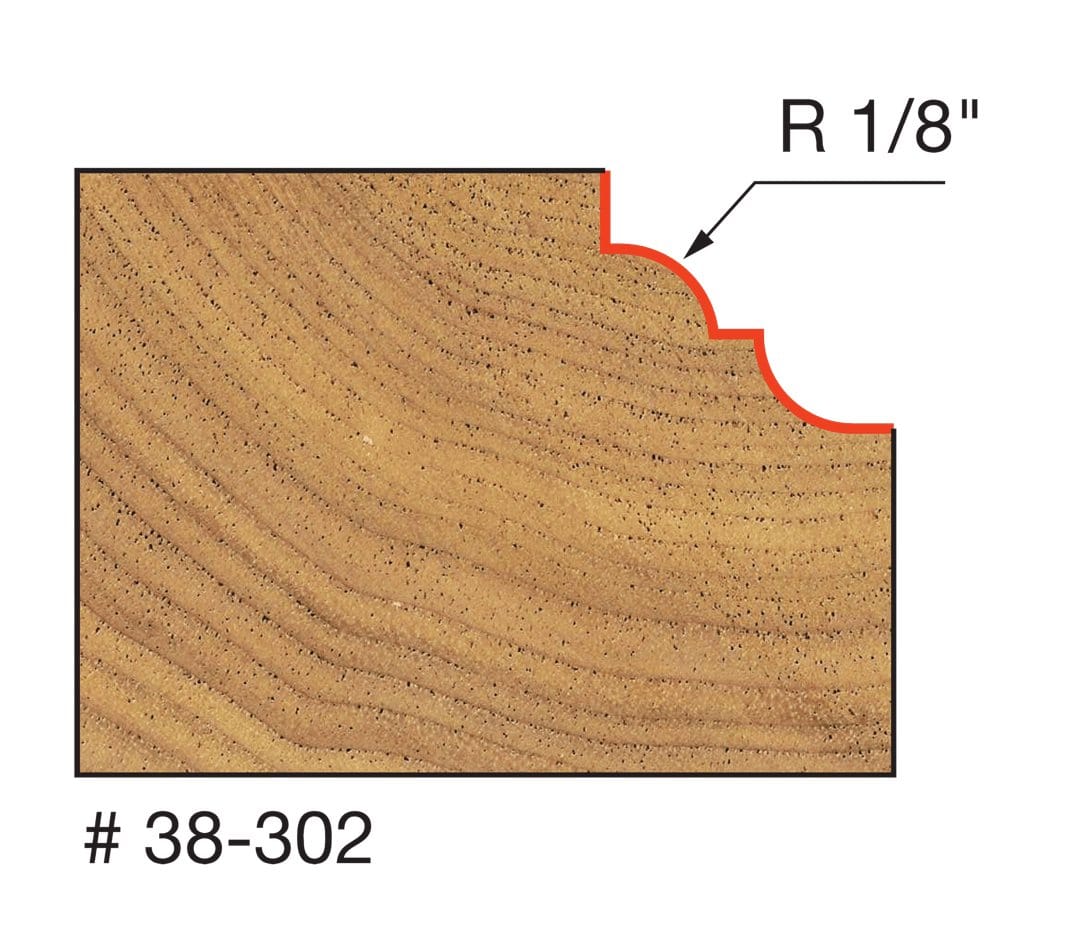

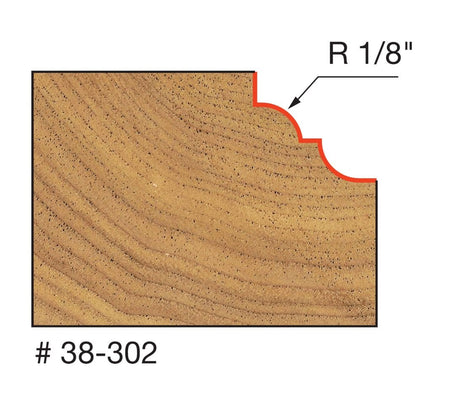

Technical profile diagram illustrating the Cove and Bead shape cut into a wood edge by the Freud 38-302 bit, specifying a 1/8 inch radius.
Studio shot of the Freud 38-302 Cove and Bead router bit featuring a red Perma-SHIELD body, two carbide cutters, 1/4 inch silver shank, and top ball bearing guide.
Studio shot of the Freud 38-302 Cove and Bead router bit featuring a red Perma-SHIELD body, two carbide cutters, 1/4 inch silver shank, and top ball bearing guide.
Retail packaging for the Freud 38-302 Industrial Router Bit, displaying the bit inside a plastic case with text indicating a Cove & Bead profile, 1/8 inch radius, and 1/4 inch shank.
Technical profile diagram illustrating the Cove and Bead shape cut into a wood edge by the Freud 38-302 bit, specifying a 1/8 inch radius.
Studio shot of the Freud 38-302 Cove and Bead router bit featuring a red Perma-SHIELD body, two carbide cutters, 1/4 inch silver shank, and top ball bearing guide.
Freud

Freud 38-302 1-5/32 Inch Dia Cove and Bead Router Bit 1/4 Inch Shank Decorative Edging Tool for Woodworking Cabinets Furniture and Millwork

Only 1 left
SKU: 38-302
$36.49 USD

Description

Freud precisely the best logo Logout

Add Sophisticated Detail with the Freud Cove and Bead Router Bit

Elevate the aesthetic of your carpentry projects with the Freud 38-302 1-5/32" Cove and Bead Router Bit. This classic decorative edging tool is engineered to produce a smooth concave radius (cove) followed by a rounded convex edge (bead), creating a timeless profile that adds depth and character to any workpiece. It is the perfect solution for crafting distinctive cabinet doors, enhancing furniture edges, finishing plaques, and creating elaborate millwork. With a 1/4" shank, this versatile bit is compatible with a wide range of hand-held and table-mounted portable routers, allowing for flexibility in your shop setup.

Freud bits are built to withstand the rigors of professional use while delivering an extra-fine finish. The 38-302 features Freud’s industry-leading TiCo™ Hi-Density Carbide, a specially formulated blend that stays sharper longer than standard bits. The body is coated in Freud’s exclusive Red Perma-SHIELD® Non-Stick Coating, which significantly reduces friction and prevents the buildup of heat, rust, and pitch. Computer-balanced for vibration-free operation, this tool cuts cleanly through hardwood, softwood, plywood, and composite materials, ensuring a smooth surface that requires minimal sanding.

Key Features

  • Classic Profile: Creates a decorative Cove and Bead edge ideal for traditional molding and furniture.
  • TiCo™ Hi-Density Carbide: Proprietary carbide blend ensures maximum edge retention and durability.
  • Perma-SHIELD® Coating: Non-stick red coating protects against heat, corrosion, and resin adhesion.
  • Shear Angle Design: Slices through wood fibers for a clean, chatter-free finish.
  • Versatile Application: Safe for use with both hand-held and table-mounted routers.
  • Multi-Material Compatibility: Cuts flawlessly through composition materials, plywoods, hardwoods, and softwoods.
  • Precision Balanced: Computer-balanced to eliminate vibration at high speeds.

What's Included

(1) Freud 38-302 1-5/32" Cove and Bead Router Bit

Specifications

Overall Diameter (D) 1-5/32"
Shank Diameter (A) 1/4"
Carbide Height (h) 5/8"
Overall Length (H) 2-3/16"
Bearing Diameter (B) 3/8"
Large Radius (R1) 1/8"
Minor Height (m) 7/32"
Number of Cutters 2
Max RPM 18,000
Profile Design Cove and Bead
Coating Perma-SHIELD® Non-Stick
Material TiCo™ Hi-Density Carbide
Country of Origin Italy

Pro-Tip: When using bits with complex profiles like the Cove and Bead, consistency is key. Always run a test cut on a piece of scrap material of the same thickness to fine-tune your depth settings. For the cleanest possible edge, especially on hardwoods, make a shallow initial pass to remove bulk material before making your final finishing pass at full depth.
