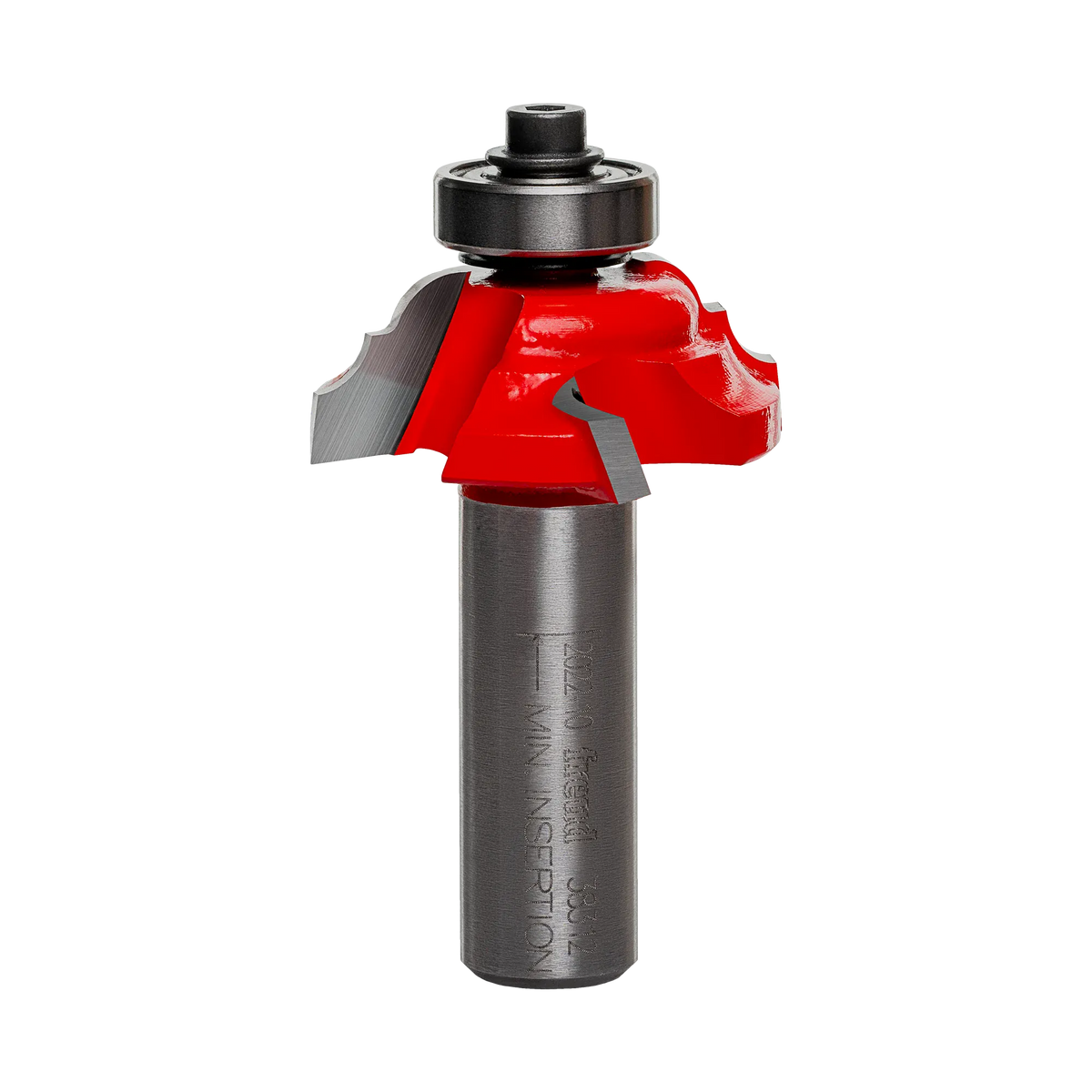

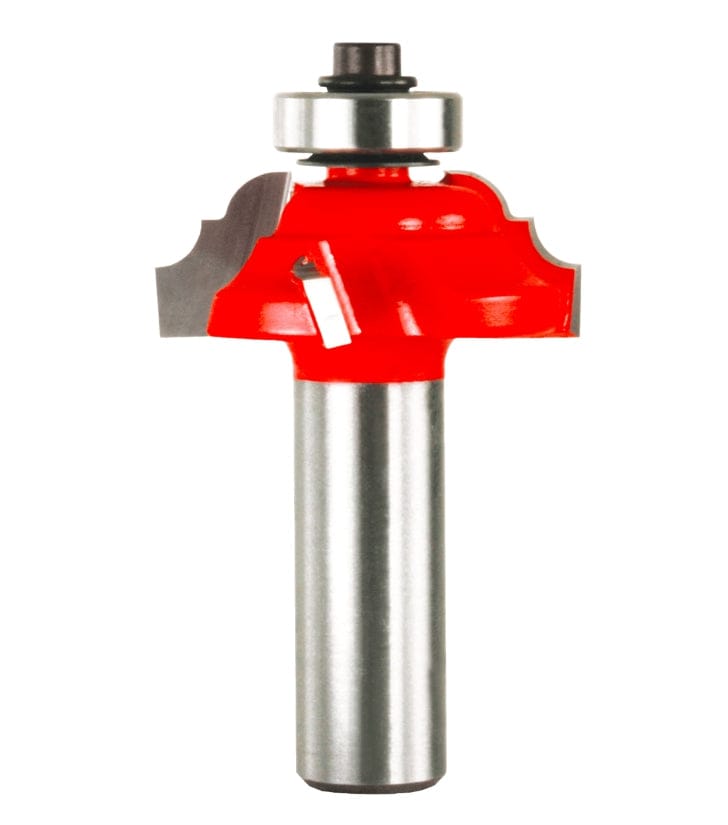

Studio shot of the Freud 38-312 Cove and Bead router bit featuring a red Perma-SHIELD body, Quadra-Cut carbide cutters, 1/2 inch silver shank, and top ball bearing guide.
Retail packaging for the Freud 38-312 Cove and Bead Bit, displaying the bit inside a plastic case with text indicating Quadra-Cut technology, a 1/8 inch radius, and 1/2 inch shank.

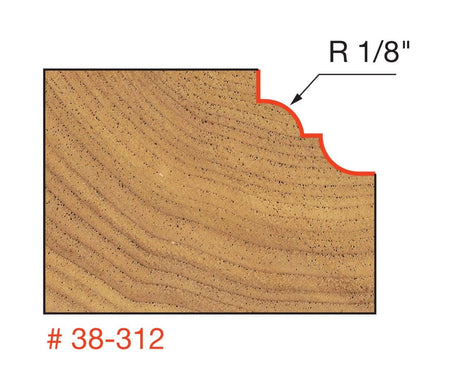

Technical profile diagram illustrating the Cove and Bead shape cut into a wood edge by the Freud 38-312 bit, specifying a 1/8 inch radius.
Studio shot of the Freud 38-312 Cove and Bead router bit featuring a red Perma-SHIELD body, Quadra-Cut carbide cutters, 1/2 inch silver shank, and top ball bearing guide.
Freud Quadra Cut Router Bits promotional video
Studio shot of the Freud 38-312 Cove and Bead router bit featuring a red Perma-SHIELD body, Quadra-Cut carbide cutters, 1/2 inch silver shank, and top ball bearing guide.
Retail packaging for the Freud 38-312 Cove and Bead Bit, displaying the bit inside a plastic case with text indicating Quadra-Cut technology, a 1/8 inch radius, and 1/2 inch shank.
Technical profile diagram illustrating the Cove and Bead shape cut into a wood edge by the Freud 38-312 bit, specifying a 1/8 inch radius.
Studio shot of the Freud 38-312 Cove and Bead router bit featuring a red Perma-SHIELD body, Quadra-Cut carbide cutters, 1/2 inch silver shank, and top ball bearing guide.
Freud Quadra Cut Router Bits promotional video
Freud

Freud 38-312 1-5/32 Inch Cove and Bead Router Bit 1/2 Inch Shank Quadra-Cut TiCo Carbide Decorative Edging Tool for Woodworking

Only 2 left
SKU: 38-312
$32.49 USD

Description

Freud precisely the best logo Logout

Create Exquisite Classical Profiles with Quadra-Cut Precision

Elevate your cabinetry and furniture projects with the distinct style of the Freud 38-312 1-5/32" Cove and Bead Router Bit. This premium decorative edging tool creates a sophisticated profile that combines a soft concave cove with a delicate convex bead, adding immediate value and architectural interest to plaques, millwork, and drawer fronts. Unlike standard two-cutter bits, this model features Freud’s patented Quadra-Cut™ design. With four cutting edges, the large cutters remove the bulk of the material while the smaller pair trims the finish to a mirror-like smoothness, virtually eliminating the need for sanding cross-grain applications.

Built to withstand the rigors of a professional shop, the 38-312 is crafted with Freud’s industry-leading TiCo™ Hi-Density Carbide. This proprietary micrograin formula maintains a razor-sharp edge significantly longer than standard bits, even when routing abrasive materials like plywood and composites. The tool body is protected by the exclusive Red Perma-SHIELD® Non-Stick Coating, which minimizes friction, prevents heat buildup, and resists pitch and resin accumulation. With a robust 1/2" shank for maximum stability, this bit delivers chatter-free performance in both hand-held and table-mounted routers.

Key Features

  • Quadra-Cut™ Design: Features 4 cutters (2 large, 2 small) for an ultra-fine, splinter-free finish.
  • Decorative Profile: Creates a classic Cove and Bead edge ideal for furniture and plaques.
  • TiCo™ Hi-Density Carbide: Proprietary blend offers superior edge retention and durability.
  • Perma-SHIELD® Coating: Non-stick red coating protects against heat, corrosion, and resin buildup.
  • Maximum Stability: 1/2" shank reduces vibration for safer, smoother cuts.
  • Versatile Compatibility: Safe for use on hand-held and table-mounted routers.
  • Wide Material Use: Cuts flawlessly through hardwood, softwood, plywood, and composites.

What's Included

(1) Freud 38-312 1-5/32" Diameter Cove & Bead Router Bit

Specifications

Overall Diameter (D) 1-5/32"
Shank Diameter (A) 1/2"
Carbide Height (h) 5/8"
Overall Length (H) 2-9/16"
Large Radius (R1) 1/8"
Bearing Diameter (B) 5/8"
Minor Height (m) 7/32"
Number of Cutters 4 (Quadra-Cut)
Max RPM 18,000
Coating Perma-SHIELD® Non-Stick
Material TiCo™ Hi-Density Carbide

Pro-Tip: Thanks to the Quadra-Cut technology, this bit produces an exceptionally smooth surface right off the router. However, to maximize this benefit and prevent burning in the tight corners of the cove profile, ensure you maintain a consistent feed rate without pausing. If you are routing hardwood prone to splintering, this 4-cutter design is your best defense against tear-out.
