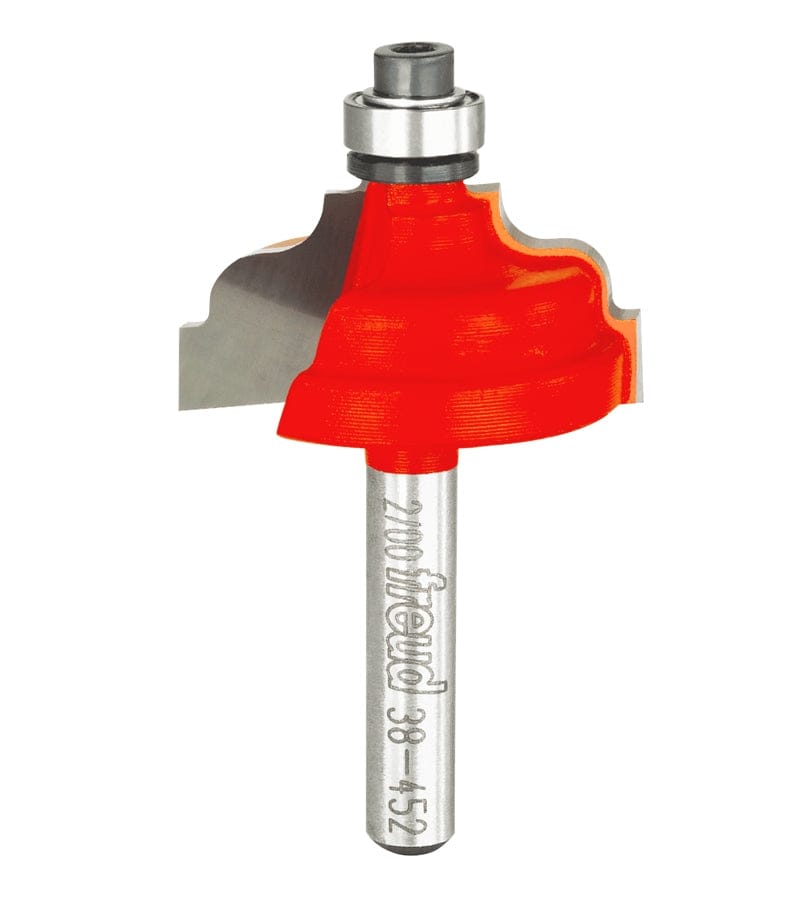

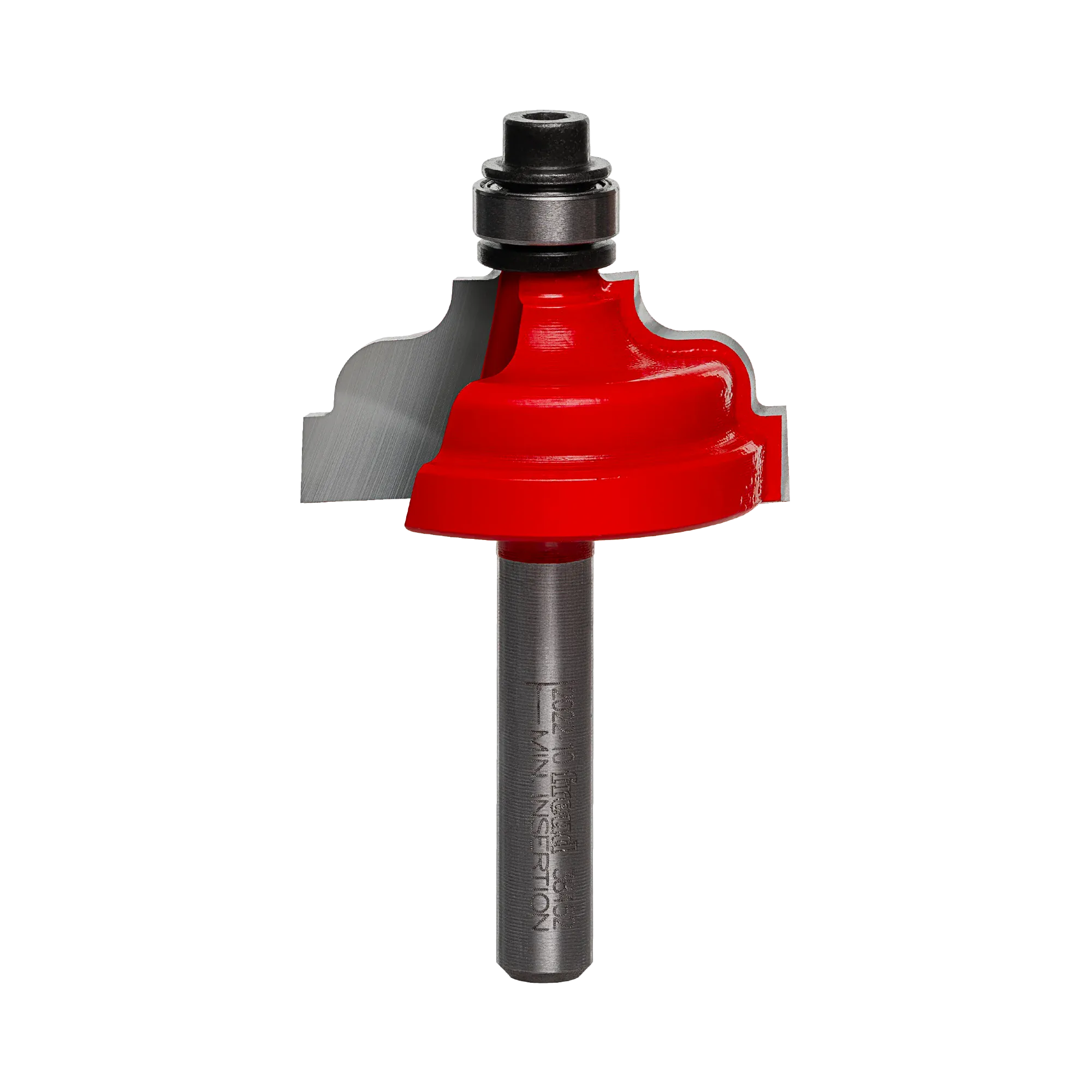

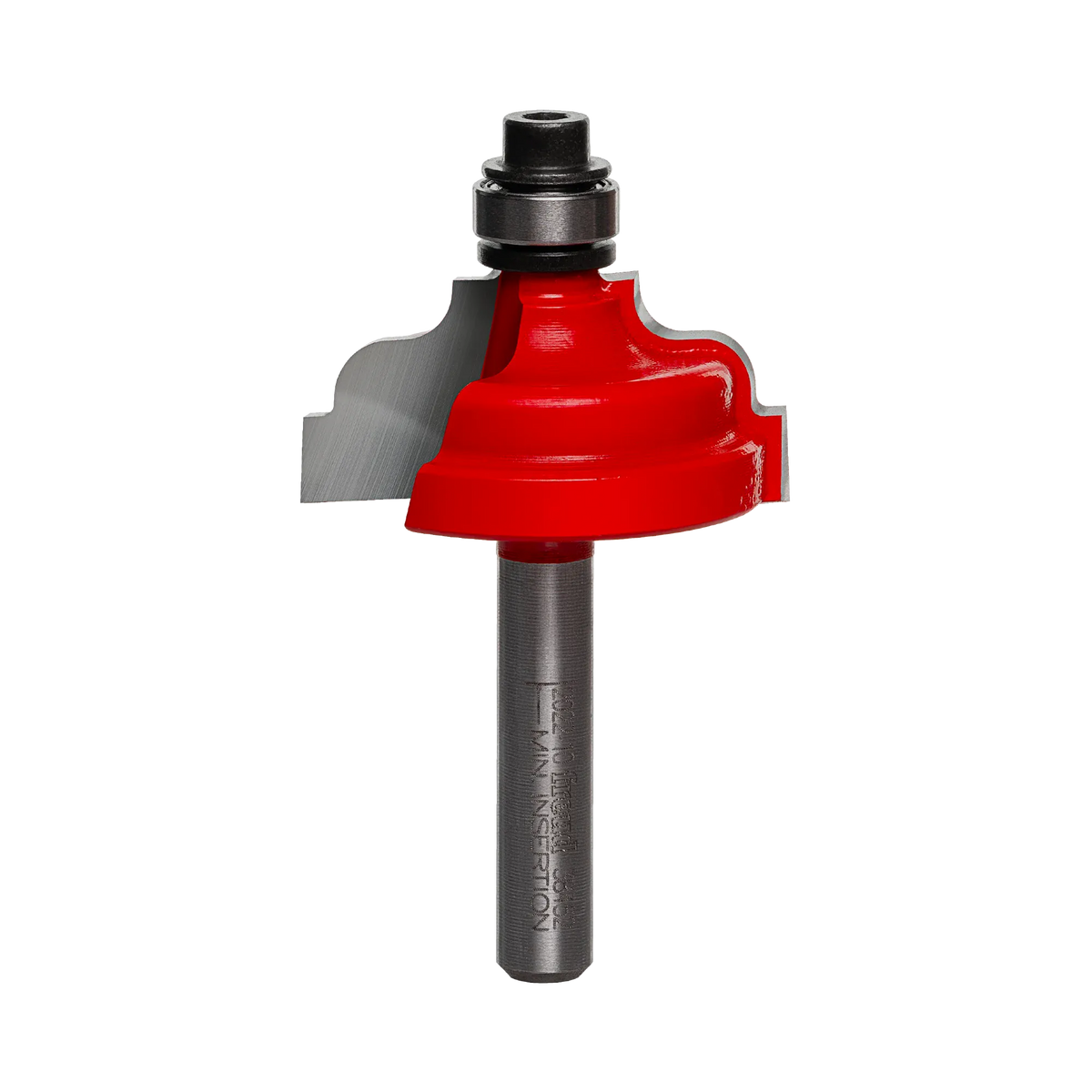

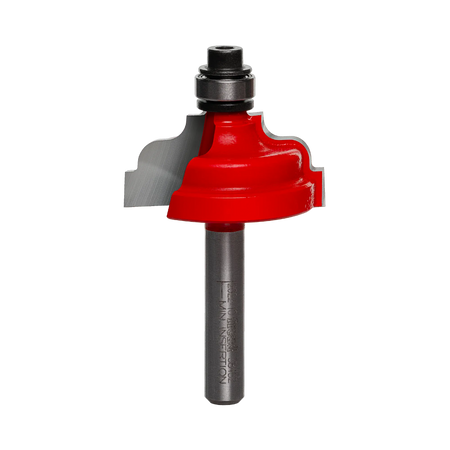

Studio shot of the Freud 38-452 Double Fillet Ogee router bit featuring a red Perma-SHIELD body, Quadra-Cut carbide cutters, 1/4 inch silver shank, and top ball bearing guide.
Studio shot of the Freud 38-452 Double Fillet Ogee router bit featuring a red Perma-SHIELD body, Quadra-Cut carbide cutters, 1/4 inch silver shank, and top ball bearing guide.

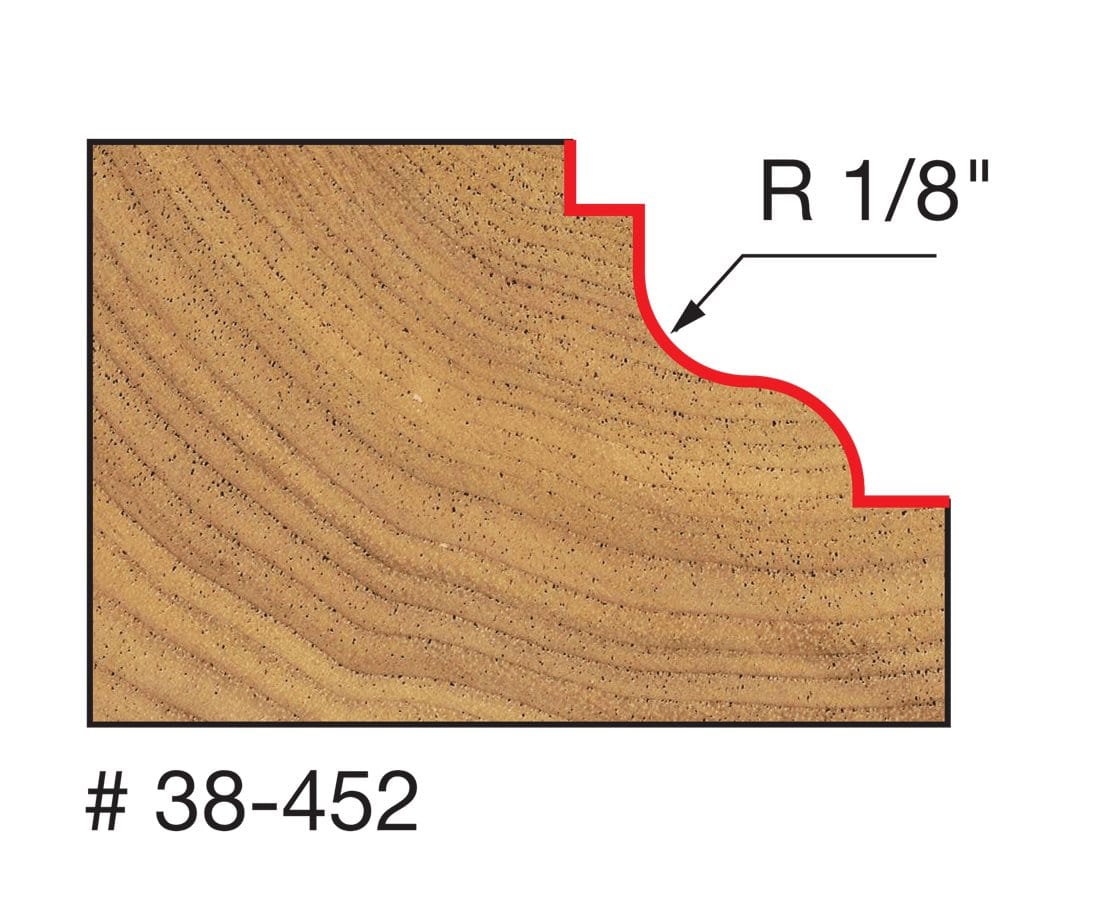

Technical profile diagram illustrating the Double Fillet Ogee shape cut into a wood edge by the Freud 38-452 bit, specifying a 1/8 inch radius.

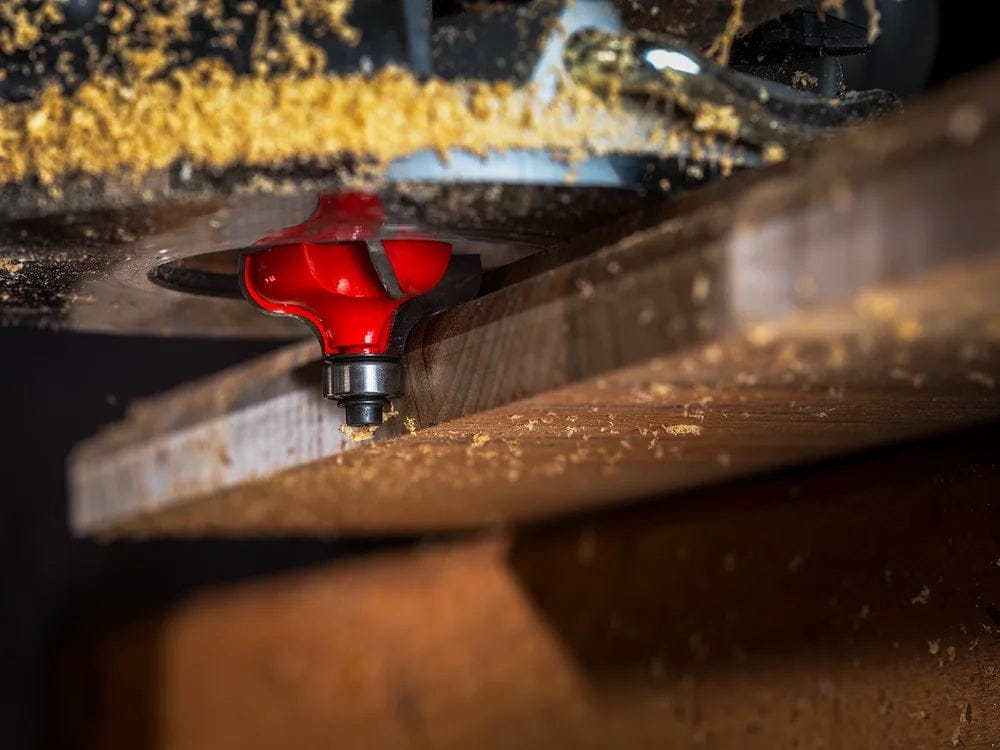

Close-up action shot of the Freud 38-452 router bit cutting a decorative Double Fillet Ogee profile into a wood edge with visible sawdust.
Freud Quadra Cut Router Bits promotional video
Studio shot of the Freud 38-452 Double Fillet Ogee router bit featuring a red Perma-SHIELD body, Quadra-Cut carbide cutters, 1/4 inch silver shank, and top ball bearing guide.
Studio shot of the Freud 38-452 Double Fillet Ogee router bit featuring a red Perma-SHIELD body, Quadra-Cut carbide cutters, 1/4 inch silver shank, and top ball bearing guide.
Technical profile diagram illustrating the Double Fillet Ogee shape cut into a wood edge by the Freud 38-452 bit, specifying a 1/8 inch radius.
Close-up action shot of the Freud 38-452 router bit cutting a decorative Double Fillet Ogee profile into a wood edge with visible sawdust.
Freud Quadra Cut Router Bits promotional video
Freud

Freud 38-452 1-1/4 Inch Double Fillet Ogee Router Bit 1/4 Inch Shank Quadra-Cut TiCo Carbide Decorative Edging Tool for Woodworking

Only 1 left
SKU: 38-452
$39.77 USD

Description

Freud precisely the best logo Logout

Add Distinctive Character with Flawless Quadra-Cut Precision

Transform ordinary wood edges into elegant architectural details with the Freud 38-452 1-1/4" Double Fillet Ogee Router Bit. This sophisticated profile features a classic S-shaped ogee curve framed by two flat "fillets" (steps) at the top and bottom, adding immediate depth and shadow lines to cabinets, furniture, plaques, and millwork. Ideally suited for the discerning woodworker, this bit utilizes Freud’s patented Quadra-Cut™ design. By employing four cutting edges—two large cutters to remove bulk material and two smaller cutters to trim the surface—it produces an ultra-fine, splinter-free finish that requires little to no sanding.

Engineered for durability in a professional production environment, the 38-452 is tipped with Freud’s exclusive TiCo™ Hi-Density Carbide. This specialized micrograin formula is designed to hold a razor-sharp edge longer than standard carbide, even when routing abrasive materials like plywood and composites. The tool body is protected by the signature Red Perma-SHIELD® Non-Stick Coating, which minimizes friction, prevents heat buildup, and resists pitch and resin accumulation. Equipped with a high-quality ball bearing pilot, this bit tracks smoothly along straight or curved edges, ensuring precision in both hand-held and table-mounted routers.

Key Features

  • Quadra-Cut™ Technology: Features 4 cutters (2 large, 2 small) for a glass-smooth finish with minimal sanding.
  • Double Fillet Profile: Creates a refined Ogee curve bordered by distinct flat steps for added detail.
  • TiCo™ Hi-Density Carbide: Proprietary blend delivers superior edge retention and cutting life.
  • Perma-SHIELD® Coating: Non-stick red coating resists heat, rust, and pitch buildup.
  • Versatile Application: Ideal for edging hardwood, softwood, plywood, and composites.
  • Wide Compatibility: Safe for use on both hand-held routers and router tables.
  • Precision Balanced: Computer-balanced design eliminates vibration for chatter-free results.

What's Included

(1) Freud 38-452 1-1/4" Diameter Double Fillet Ogee Router Bit

Specifications

Overall Diameter (D) 1-1/4"
Shank Diameter (A) 1/4"
Carbide Height (h) 19/32"
Overall Length (H) 2-3/16"
Radius (R) 1/8"
Bearing Diameter (B) 3/8"
Number of Cutters 4 (Quadra-Cut)
Max RPM 18,000
Profile Design Double Fillet Ogee
Coating Perma-SHIELD® Non-Stick
Material TiCo™ Hi-Density Carbide

Pro-Tip: The "fillets" are the small flat steps above and below the curve. To get the full decorative effect of this bit, ensure your router depth is set precisely so that both fillets cut into the wood. If the bit is set too high or too low, you may lose one of these defining steps, resulting in a less defined profile.
