Freud Router Bit 39-154 7/8 In Dia 1/4 In Shank Ogee Groove (24000 RPM TiCo Carbide Perma-SHIELD Decorative Molding Furniture Woodworking Tool)
Couldn't load pickup availability
Precision Freud 7/8 Inch Ogee Groove Router Bit 39-154 with 1/4 Inch Shank
The Freud 39-154 7/8-Inch Diameter Ogee Groove Router Bit functions as an industrial-grade architectural profile cutting tool engineered to plunge directly into workpieces to route decorative ogee surface grooves, panel accents, and edge profiles on solid hardwoods, softwoods, cabinet plywood, and wood composites. Manufactured with micrograin TiCo High-Density Carbide cutters treated with friction-reducing Red Perma-SHIELD non-stick finish, this 1/4-inch shank bit features a 1/8-inch radius, a 13/32-inch carbide height, and a 24,000 RPM maximum speed rating. Compatible with CNC automated routers, handheld plunge routers, and router table setups with edge guides, this two-cutter decorative bit maintains sharp edge retention and chatter-free balance across cabinet doors, architectural moldings, and custom furniture joinery.
Best Used For:
- Ogee Cabinet Door & Drawer Face Profiling: Plunging directly into solid cabinet door panel faces and drawer fronts to rout decorative ogee channels.
- Guided Architectural Edge Profiling: Shaping elegant ogee edge profiles along tabletop perimeters and architectural millwork moldings using a fence or edge guide.
- CNC & Plunge Surface Fluting: Executing decorative panel channels, faux raised panel profiles, and accent grooves on automated CNC machinery or plunge router setups.
Key Performance & Safety Features
- TiCo High-Density Micrograin Carbide: Proprietary titanium-cobalt carbide formulation maintains razor-sharp edges up to four times longer than standard carbide.
- Red Perma-SHIELD Thermal Barrier Coating: Non-stick red fluoropolymer coating insulates the bit body against heat buildup, pitch accumulation, and rust corrosion.
- Precision Plunge-Cutting Center Geometry: Center-cutting carbide flutes permit smooth direct vertical plunge capability for stopped interior panel grooves.
- Computer-Balanced Dynamically Balanced Body: Precision-balanced tool body eliminates vibration and chatter marks at speeds up to 24,000 RPM.
- Dual-Flute Precision Shear Angle: Two precision-ground shear-angle carbide wings slice wood fibers cleanly to eliminate surface tear-out and grain burning.
- Universal 1/4-Inch Shank Profile: Fits standard 1/4-inch router collets across compact palm trimmers, handheld plunge routers, and table setups.
What's Included
- (1) Freud 39-154 7/8" Diameter Ogee Groove Router Bit with 1/4" Shank
Technical Specifications
| Brand Name | Freud |
| Model Number SKU | 39-154 |
| Product Tool Classification | Ogee Groove Plunge Router Bit |
| Overall Cut Diameter (D) | 0.875 in. (7/8 in.) |
| Shank Diameter (A) | 0.250 in. (1/4 in.) |

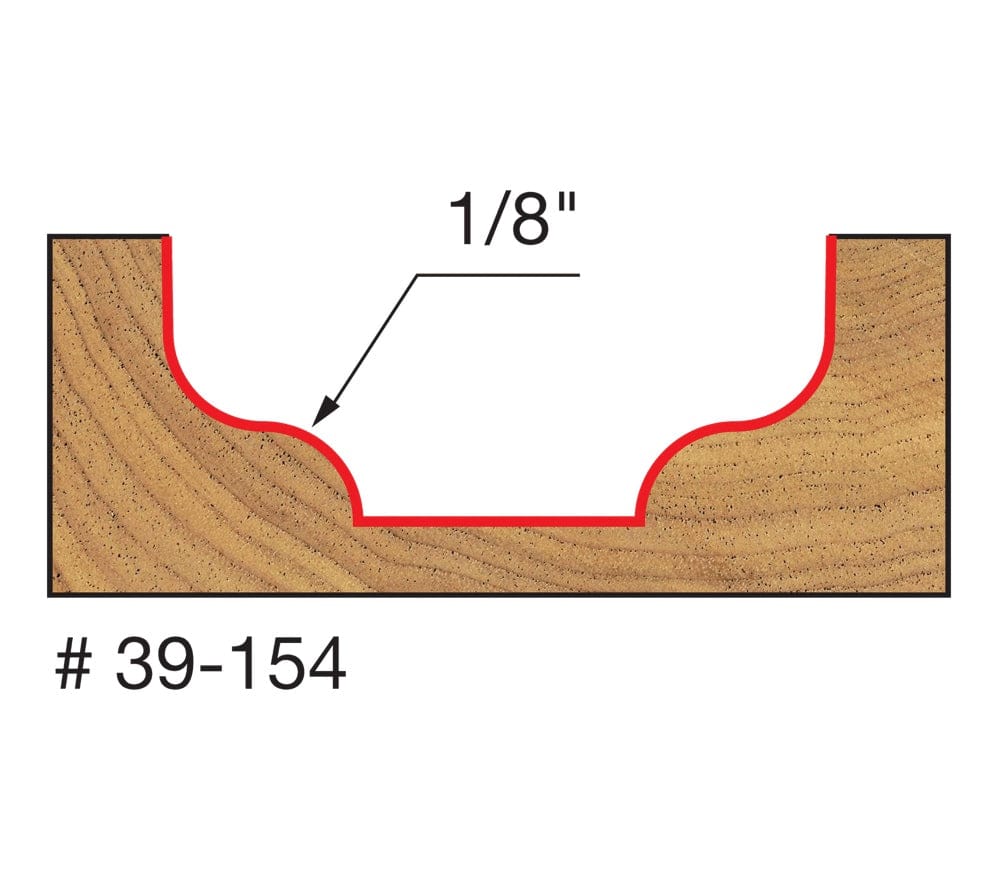

| Profile Radiused Curve (R) | 0.125 in. (1/8 in.) |
| Carbide Cutting Height (h) | 0.40625 in. (13/32 in.) |
| Small Tip Diameter (n) | 0.375 in. (3/8 in.) |
| Overall Bit Length (H) | 1.6875 in. (1-11/16 in.) |
| Number of Cutting Flutes | 2 Carbide Wings |
| Maximum Rotational Speed | 24,000 RPM |
| Protective Body Finish | Red Perma-SHIELD Non-Stick Coating |
| Carbide Grade Composition | TiCo High-Density Micrograin Carbide |
| Machine Equipment Compatibility | CNC Routers, Handheld Plunge Routers, Router Tables |
| Target Substrates | Hardwood, Softwood, Cabinet Plywood, MDF, Wood Composites |
Pro-Tip: When plunge-routing stopped ogee panel grooves into cabinet doors using a handheld plunge router, attach a straight edge guide or temporary fence jig to keep cuts parallel to the door frame. Making two shallow passes down to your final 13/32-inch depth prevents chip tear-out at corners and ensures clean chip clearance from the groove floor.
