Freud Router Bit 39-234 2 Inch Dia 1/2 Inch Shank Ovolo Groove (16000 RPM TiCo Carbide Perma-SHIELD French Provincial Cabinet Panel Tool)
Couldn't load pickup availability
Precision Freud 2 Inch Ovolo Groove Router Bit 39-234 with 1/2 Inch Shank

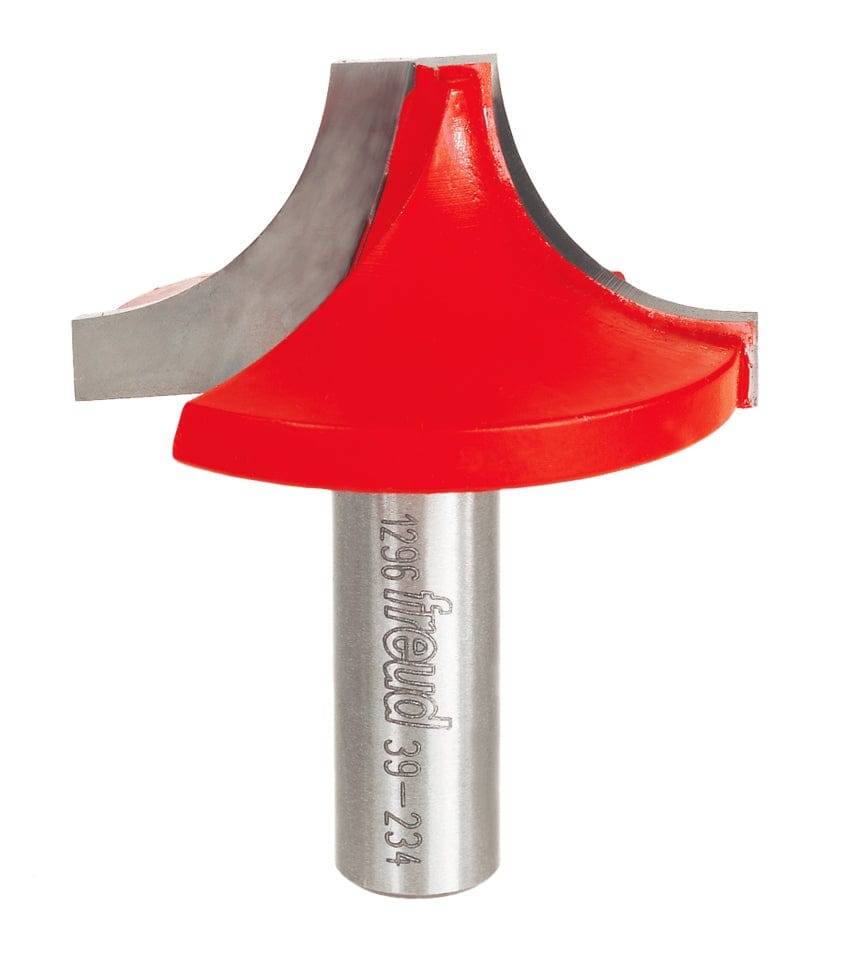

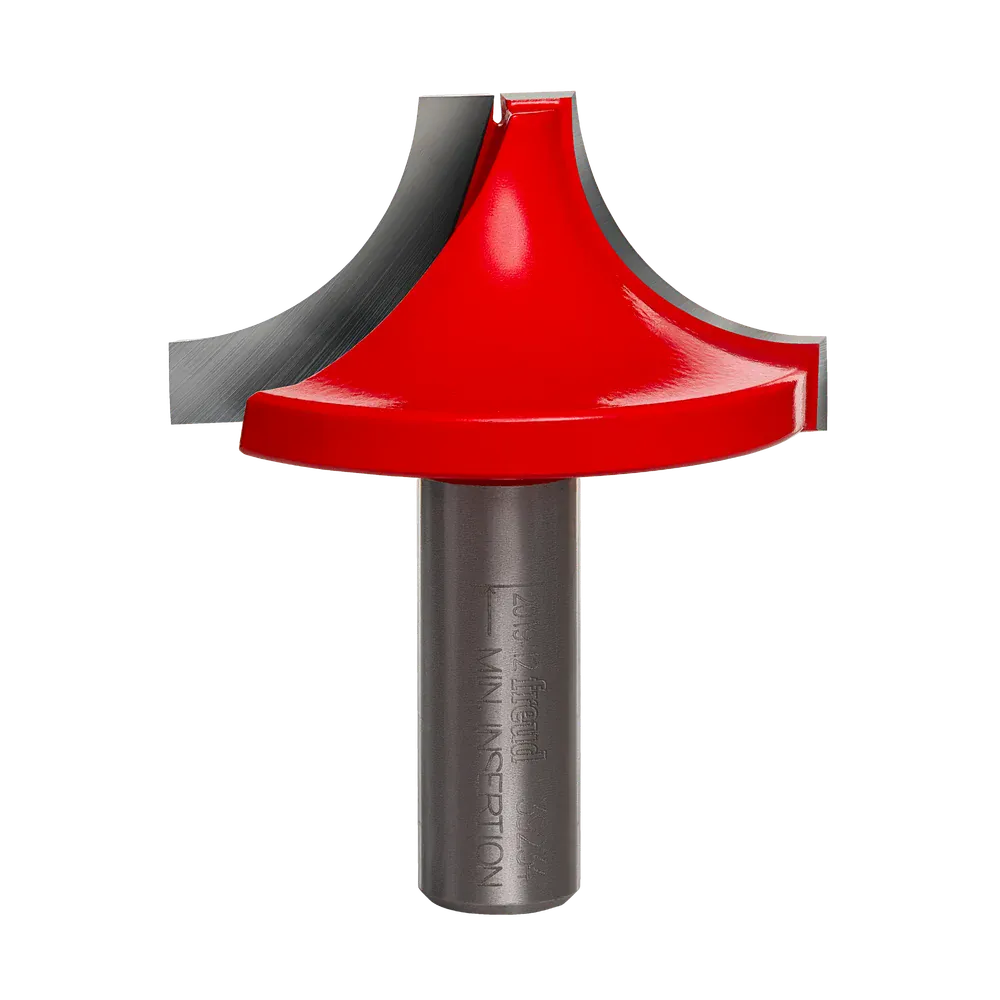

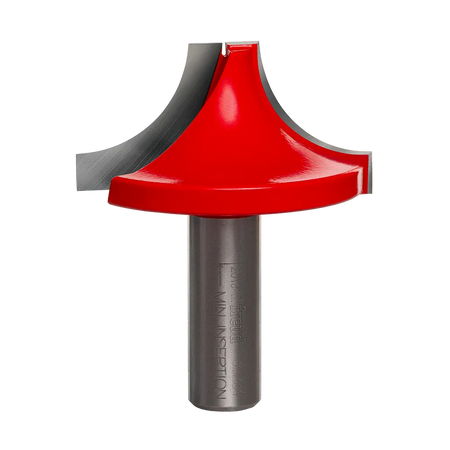

The Freud 39-234 2-Inch Diameter Ovolo Groove Router Bit serves as a heavy-duty surface grooving and edge-milling tool engineered to cut wide 3/4-inch radius ovolo decorative channels into solid hardwoods, softwoods, cabinet plywood, and wood composites. Manufactured with micrograin TiCo High-Density Carbide cutters coated in friction-reducing Red Perma-SHIELD non-stick finish, this 1/2-inch shank bit features a 1/2-inch minor diameter, a 1-inch carbide cutting height, and a 16,000 RPM maximum speed rating. Compatible with CNC machinery, handheld heavy-duty routers, and router table setups with fence guides, this dual-flute shearing bit clears surface material cleanly to eliminate grain tear-out across large-scale French Provincial cabinet door panels, drawer faces, and architectural moldings.
Best Used For:
- Large-Scale French Provincial Cabinet Face Grooving: Plunge-routing sweeping 3/4-inch radiused ovolo detail channels across solid wood cabinet door panels, drawer fronts, and period furniture.
- Guided Edge Round-Over & Bead Milling: Running along router table fences or straightedge guides to execute deep edge profiles and decorative border moldings.
- CNC Fluting & Millwork Detailing: Executing automated high-speed surface fluting and decorative channel cuts across cabinet plywood and MDF stock.
Key Performance & Safety Features
- TiCo High-Density Micrograin Carbide: Proprietary titanium-cobalt carbide formulation maintains razor-sharp edges up to four times longer than standard carbide.
- Red Perma-SHIELD Thermal Barrier Coating: Non-stick fluoropolymer coating insulates the bit body against heat buildup, pitch accumulation, and rust corrosion.
- Heavy-Duty 1/2-Inch Steel Shank: Provides maximum anti-flex structural stability and vibration resistance during deep 2-inch diameter profile cuts.
- Precision Plunge-Capable Geometry: Designed for smooth center plunging and continuous surface grooving without chatter or bottom-corner burning.
- Dynamic Balancing at 16,000 RPM: Computer-balanced tool body eliminates vibration and chatter marks for an extra-fine surface finish at regulated speeds.
- Multi-Platform Equipment Versatility: Precision-balanced body operates smoothly across CNC spindles, handheld routers, and router table setups.
What's Included
- (1) Freud 39-234 2" Diameter Ovolo Groove Router Bit (1/2" Shank)
Technical Specifications
| Brand Name | Freud |
| Model Number SKU | 39-234 |
| Product Tool Classification | Ovolo Surface Groove Router Bit |
| Overall Cut Diameter (D) | 2.000 in. (2 in.) |
| Shank Diameter (A) | 0.500 in. (1/2 in.) |
| Carbide Cutting Height (h) | 1.000 in. (1 in.) |
| Overall Bit Length (H) | 2.500 in. (2-1/2 in.) |

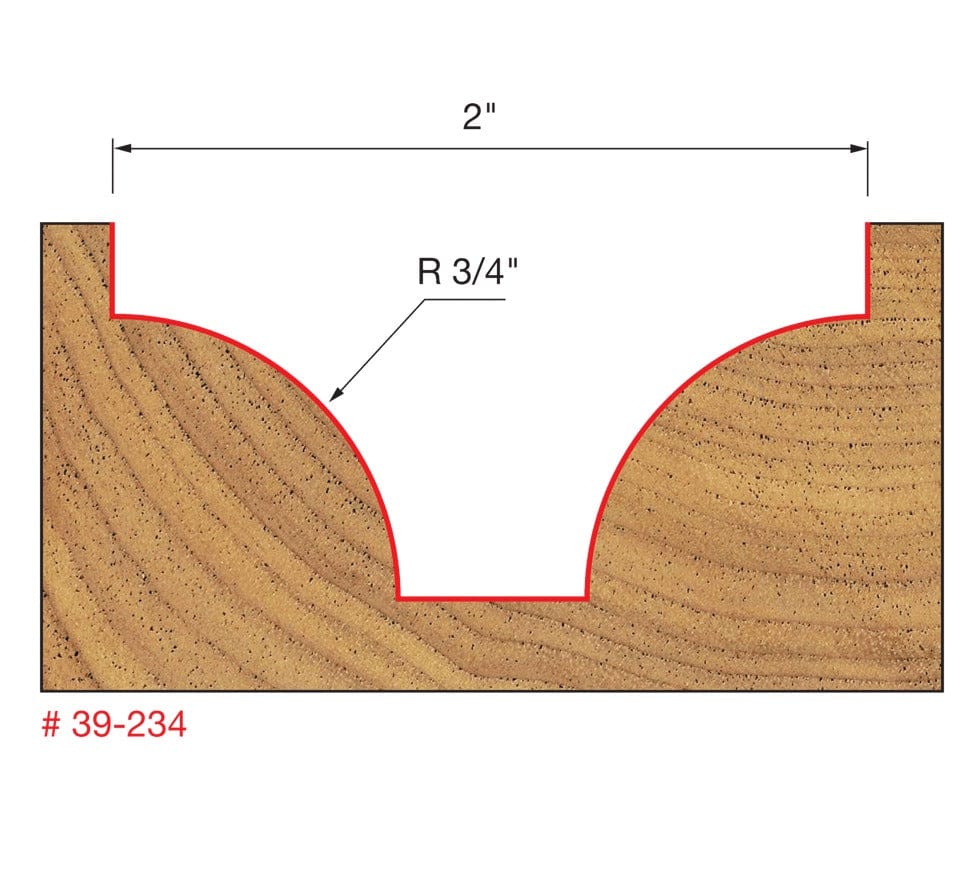

| Profile Radiused Curve (R) | 0.750 in. (3/4 in.) |
| Minor Diameter (n) | 0.500 in. (1/2 in.) |
| Number of Cutting Flutes | 2 Precision Carbide Wings |
| Maximum Rotational Speed | 16,000 RPM (Speed Adjustment Required) |
| Protective Body Finish | Red Perma-SHIELD Non-Stick Coating |
| Carbide Grade Composition | TiCo High-Density Micrograin Carbide |
| Machine Equipment Compatibility | CNC Spindles, Handheld Routers, Router Tables with 1/2" Collet |
| Country of Origin | Italy |
Pro-Tip: Due to the large 2-inch cutter diameter, dial down your variable-speed router to a maximum speed of 16,000 RPM before starting your cut. When plunge-routing deep 1-inch ovolo grooves into solid hardwood panels, make multiple progressive passes of 1/4-inch depth rather than taking a single heavy cut to maintain total machine control and prevent cutter burning.
