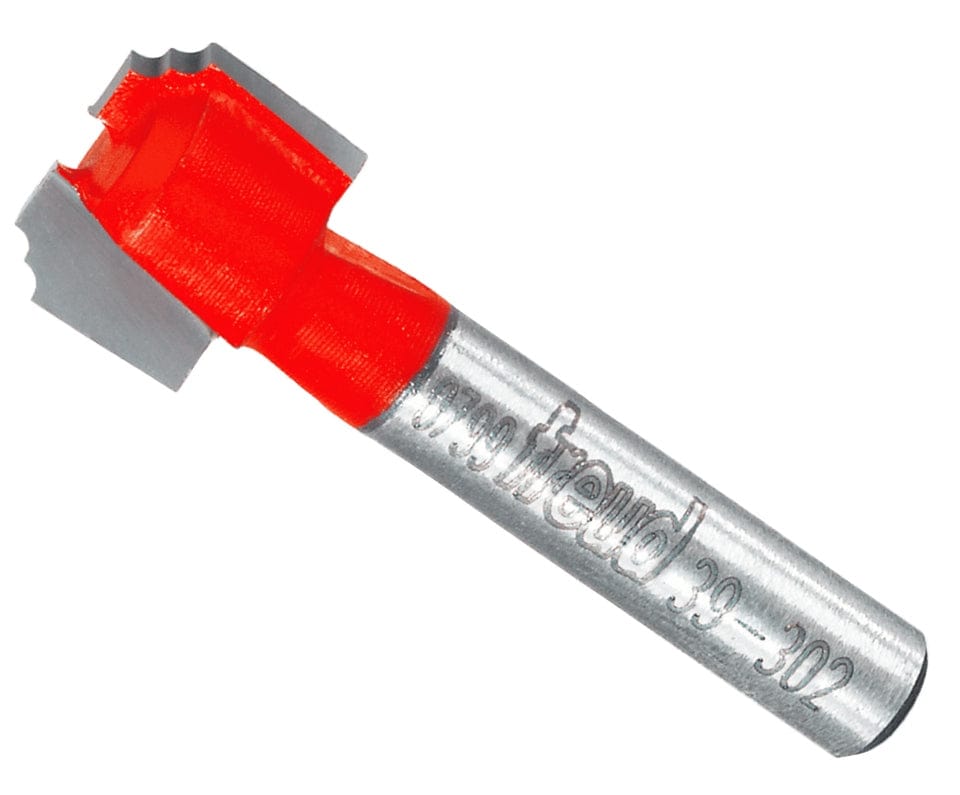

Studio shot of the Freud 39-302 Classical Beading Groove router bit featuring a red Perma-SHIELD body, carbide cutters, and 1/4 inch silver shank with laser etched text.

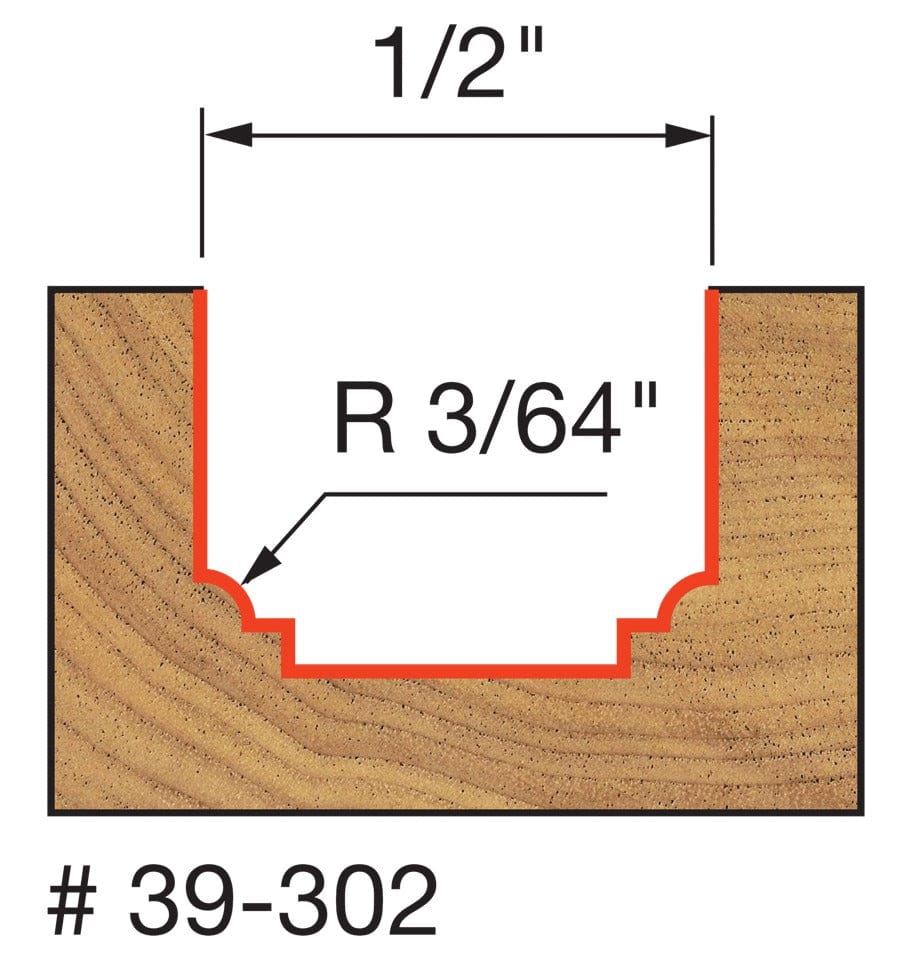

Technical profile diagram illustrating the Classical Beading Groove shape cut into a wood surface by the Freud 39-302 bit, specifying a 3/64 inch radius and 1/2 inch overall diameter.
Studio shot of the Freud 39-302 Classical Beading Groove router bit featuring a red Perma-SHIELD body, carbide cutters, and 1/4 inch silver shank with laser etched text.
Studio shot of the Freud 39-302 Classical Beading Groove router bit featuring a red Perma-SHIELD body, carbide cutters, and 1/4 inch silver shank with laser etched text.
Technical profile diagram illustrating the Classical Beading Groove shape cut into a wood surface by the Freud 39-302 bit, specifying a 3/64 inch radius and 1/2 inch overall diameter.
Studio shot of the Freud 39-302 Classical Beading Groove router bit featuring a red Perma-SHIELD body, carbide cutters, and 1/4 inch silver shank with laser etched text.
Freud

Freud Router Bit 39-302 1/2 In Dia 1/4 In Shank Classical Beading Groove (24000 RPM TiCo Carbide Perma-SHIELD Plunge Decorative Woodworking)

Only 1 left
SKU: 39-302
$21.29 USD

Description

Freud precisely the best logo Logout

Precision Freud 1/2 Inch Classical Beading Groove Router Bit 39-302 with 1/4 Inch Shank

The Freud 39-302 1/2-Inch Diameter Classical Beading Groove Router Bit operates as a commercial-grade plunge-cutting woodworking tool engineered to route decorative profile grooves, shadow lines, and classical bead details into solid hardwoods, softwoods, plywood, and wood composites. Precision-manufactured with micrograin TiCo High-Density Carbide cutters treated with friction-reducing Red Perma-SHIELD non-stick coating, this 1/4-inch shank plunge bit features a 3/64-inch radius and a 24,000 RPM maximum speed rating. Compatible with CNC automatic routers, table-mounted router setups, and handheld plunge routers, this two-cutter decorative bit maintains sharp edge retention and chatter-free balance across custom cabinetry and architectural millwork applications.

Best Used For:

  • Cabinet Door & Drawer Panel Profiling: Milling decorative classical bead grooves and shadow accent lines across solid wood cabinet fronts and raised panels.
  • Architectural Trim & Molding Fabrication: Milling custom casing profiles, beadboard details, and decorative face-frame grooves into hardwood and MDF trim.
  • CNC & Plunge Router Fluting: Executing plunge-cut grooves, faux panel details, and decorative surface fluting on automated CNC machines or handheld plunge routers.

Key Performance & Safety Features

  • TiCo High-Density Micrograin Carbide: Custom formulation titanium-cobalt carbide cutters retain extreme edge sharpness longer than standard carbide when routing dense hardwoods.
  • Red Perma-SHIELD Non-Stick Thermal Coating: Proprietary red coating isolates the bit body against heat buildup, pitch accumulation, and pitch rust corrosion.
  • Computer-Balanced Precision Balancing: Dynamically balanced tool body eliminates vibration and chatter marks at speeds up to 24,000 RPM.
  • Plunge-Cut Profile Cutter Geometry: Center-cutting carbide geometry allows direct vertical plunge cuts for interior panel profiling and stopped groove routing.
  • Universal 1/4-Inch Shank Compatibility: Fits standard 1/4-inch router collets across handheld, table-mounted, and CNC automated router spindles.
  • Dual-Flute Precision Shear Angle: Two precision-ground cutting flutes shear wood fibers cleanly to eliminate surface tear-out on cross-grain cuts.

What's Included

  • (1) Freud 39-302 1/2" Diameter Classical Beading Groove Router Bit (1/4" Shank)

Technical Specifications

Brand Name Freud
Model Number SKU 39-302
Product Tool Classification Classical Beading Groove Plunge Router Bit
Overall Cut Diameter (D) 0.500 in. (1/2 in.)
Shank Diameter (A) 0.250 in. (1/4 in.)
Carbide Cutting Height (h) 0.375 in. (3/8 in.)
Overall Bit Length (H) 1.625 in. (1-5/8 in.)
Profile Bead Radius (R) 0.0468 in. (3/64 in.)
Small Diameter Tip (n) 0.3281 in. (21/64 in.)
Minor Profile Height (m) 0.0468 in. (3/64 in.)
Number of Cutting Flutes 2 Carbide Wings
Maximum Rotational Speed 24,000 RPM
Protective Body Finish Red Perma-SHIELD Non-Stick Coating
Carbide Grade Material TiCo High-Density Micrograin Carbide
Machine Equipment Compatibility Handheld Plunge Routers, Router Tables, CNC Automated Routers
Target Substrates Hardwood, Softwood, Plywood, MDF, Particleboard, Wood Composites

Pro-Tip: When plunge-routing deep classical bead profiles into dense hardwoods like white oak or hard maple using this 1/2-inch bit, make two incremental depth passes rather than a single full 3/8-inch cut. Setting your router depth turret to take an initial light pass removes most material smoothly, preventing tear-out and keeping the TiCo carbide cutters running cool for a burn-free finish.
