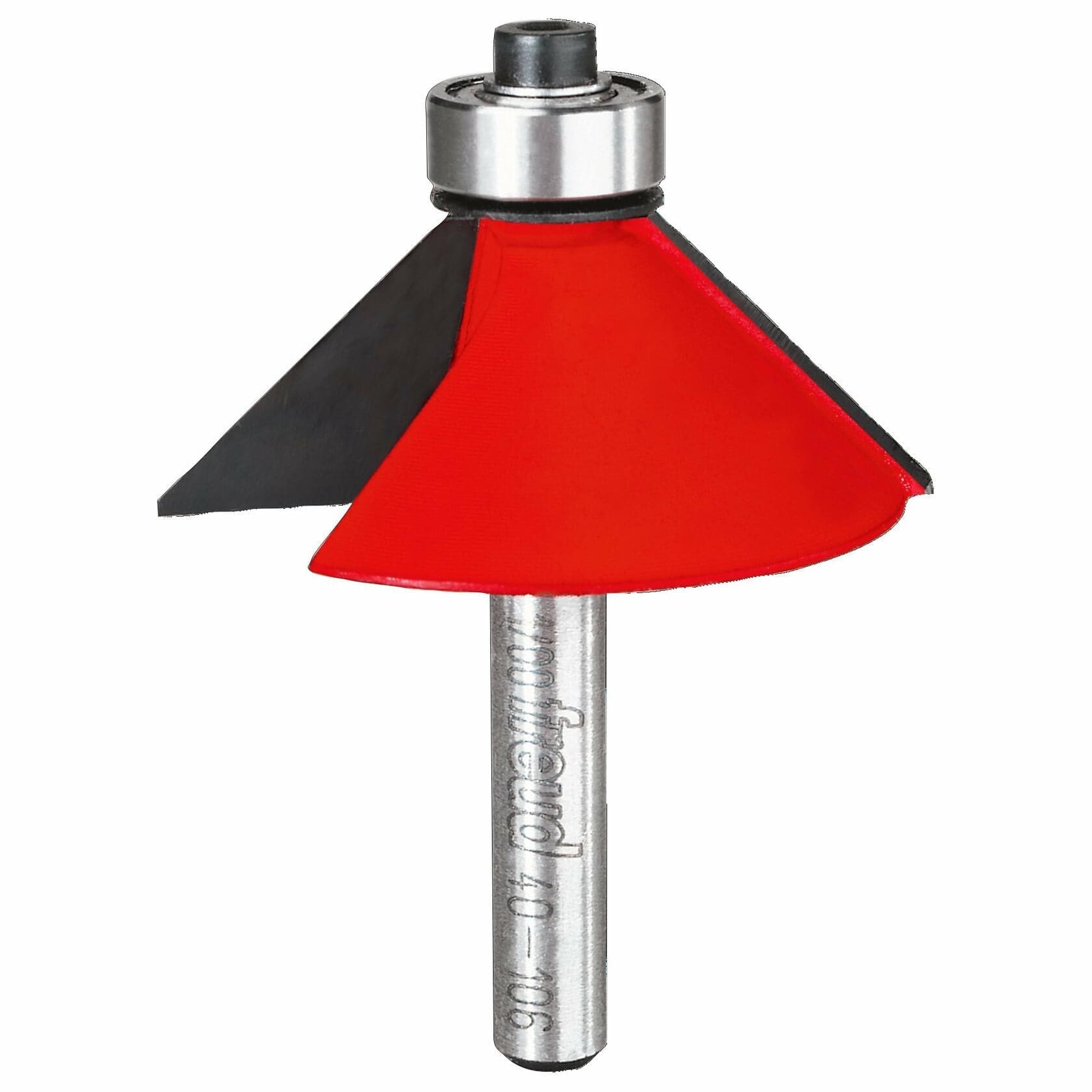

This is a close-up, vertical image of a router bit, specifically a chamfer or bevel bit, which is a tool used for shaping wood edges. It features a prominent red-painted cutting head with two black cutting wings, topped by a metal bearing, and a smooth silver cylindrical shank extending downwards with "freud" branding.

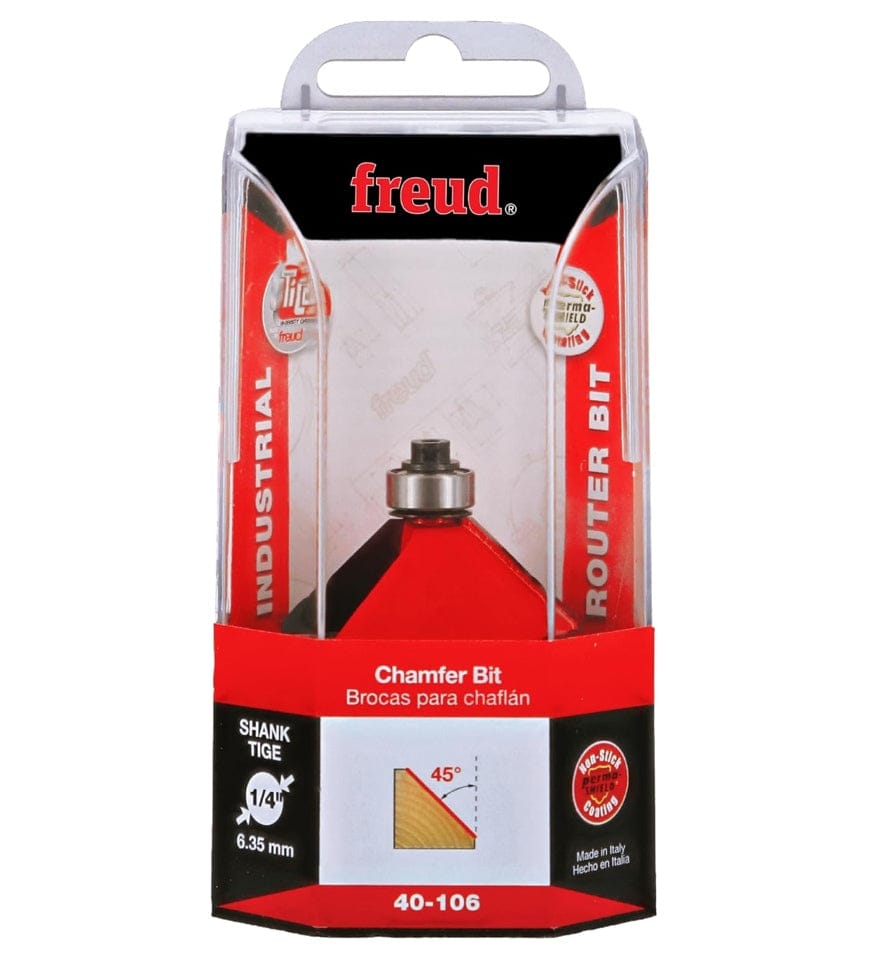

Product packaging for the Freud 40-106 industrial chamfer router bit featuring a 45-degree angle, 1/4-inch shank, and red Perma-SHIELD non-stick coating for professional woodworking and joinery.

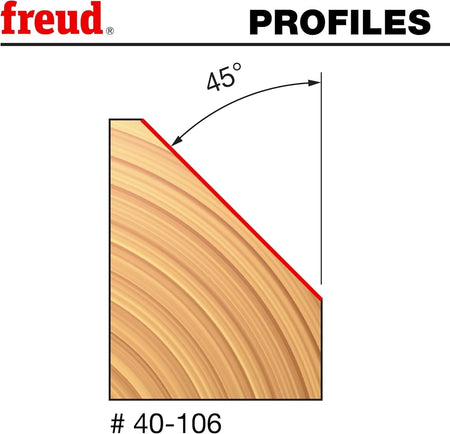

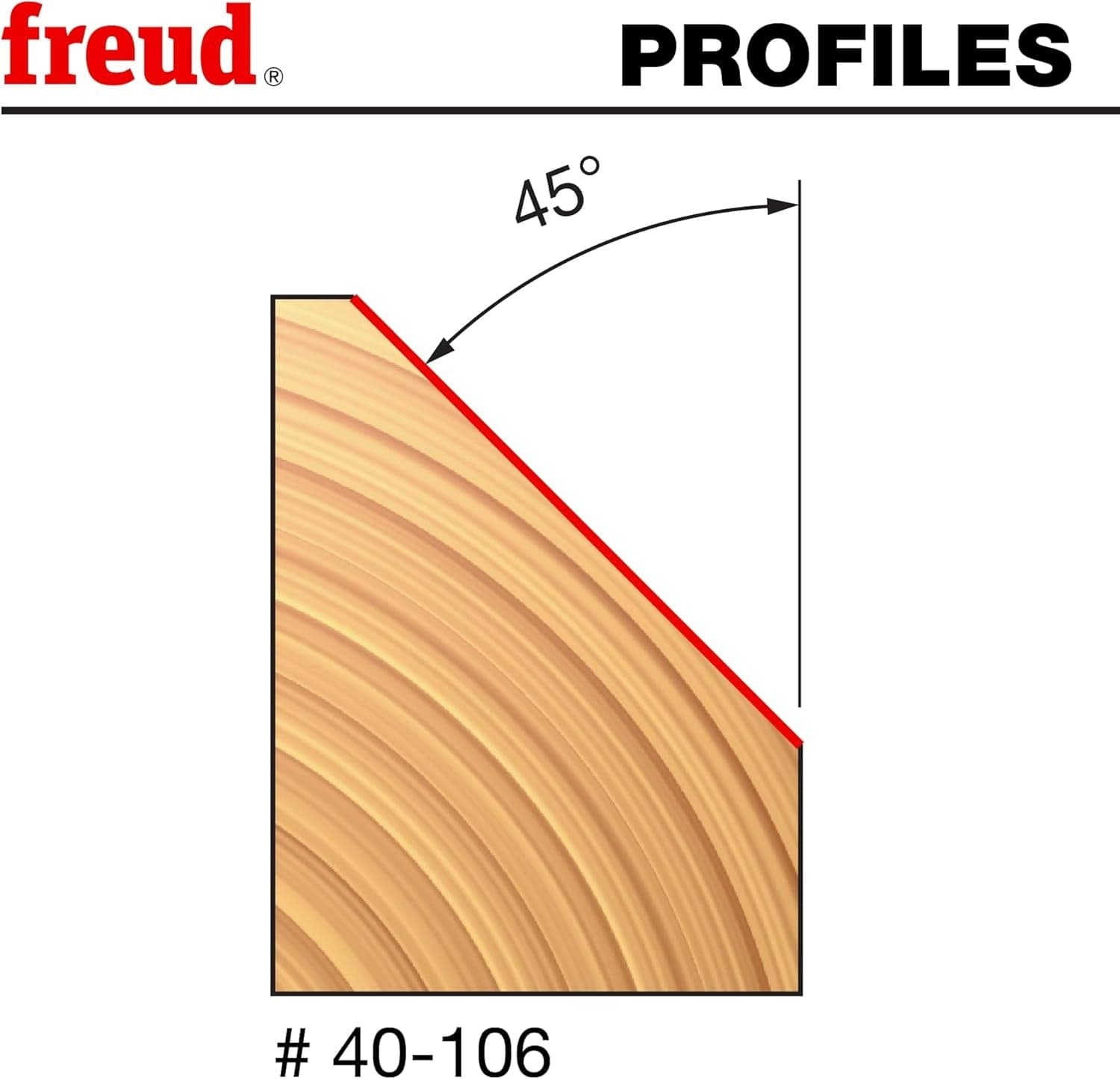

Technical profile diagram of the Freud 40-106 router bit illustrating the precise 45-degree angle cut produced on a wood edge for decorative edging and crisp geometric lines.

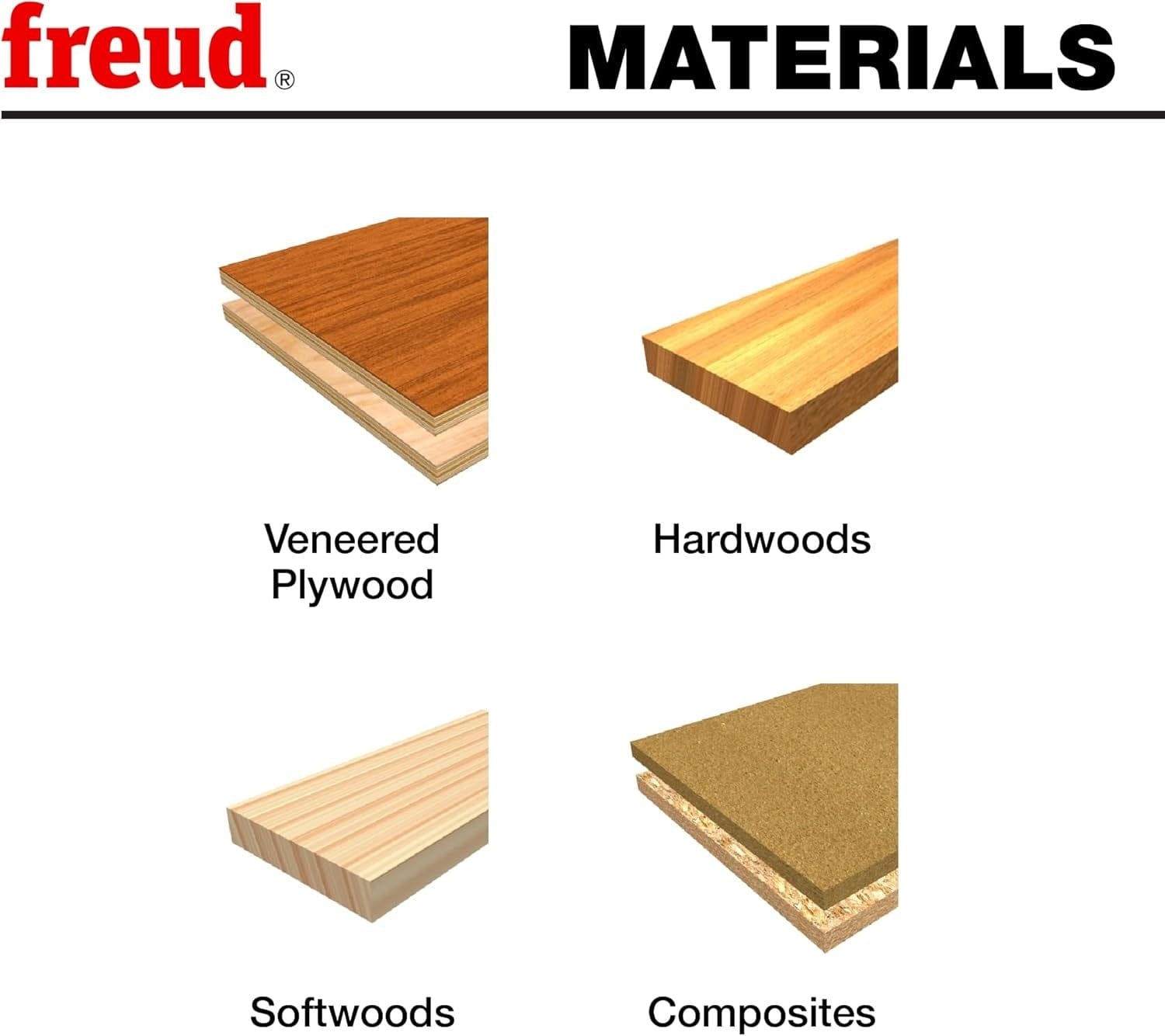

Materials compatibility infographic for the Freud chamfer bit including veneered plywood, hardwoods, softwoods, and composites, highlighting its versatility for various construction and furniture projects.

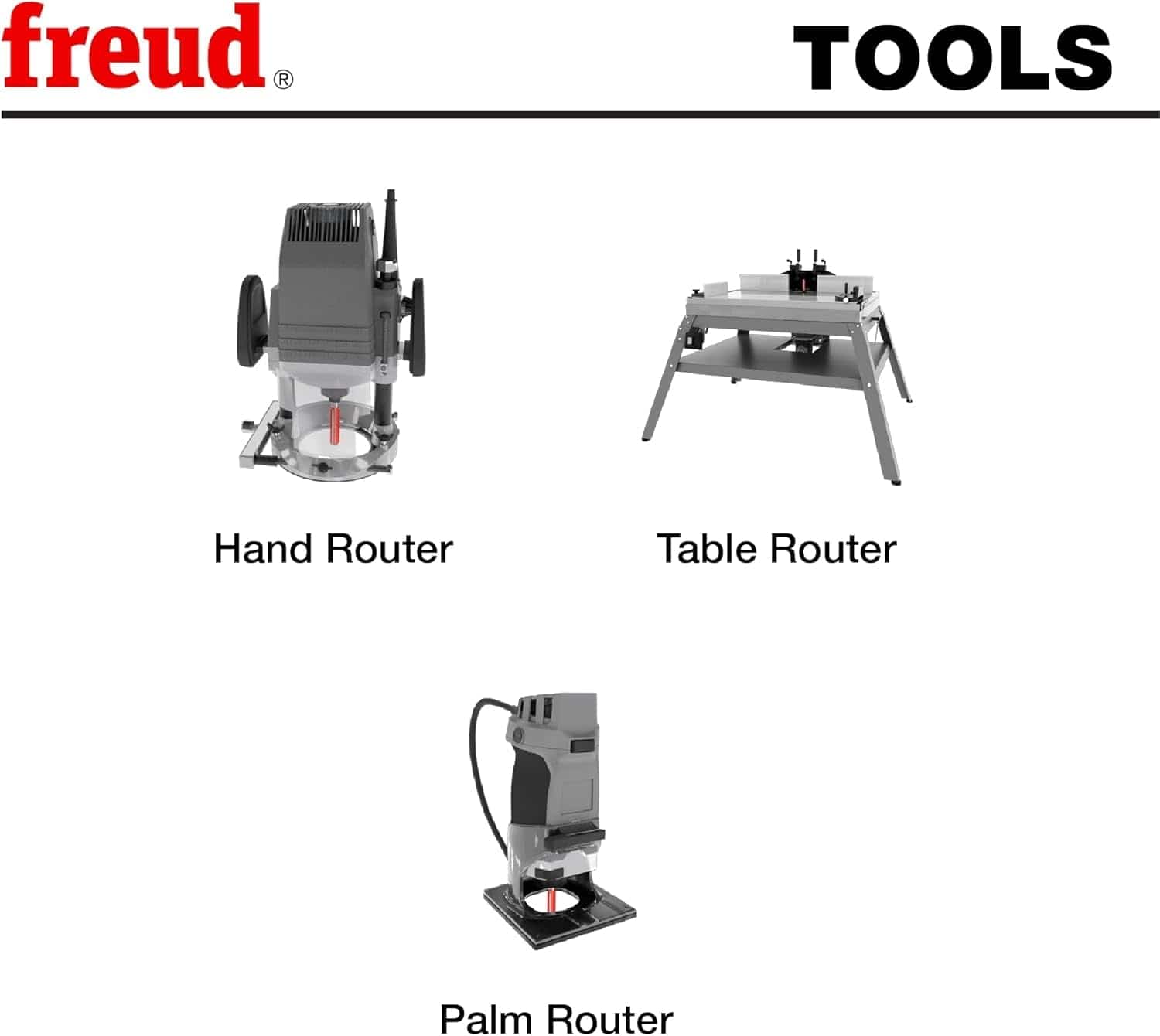

Tool compatibility graphic showing that the 1-3/4 inch diameter chamfer bit is designed for use with hand-held routers, table-mounted routers, and compact palm routers.

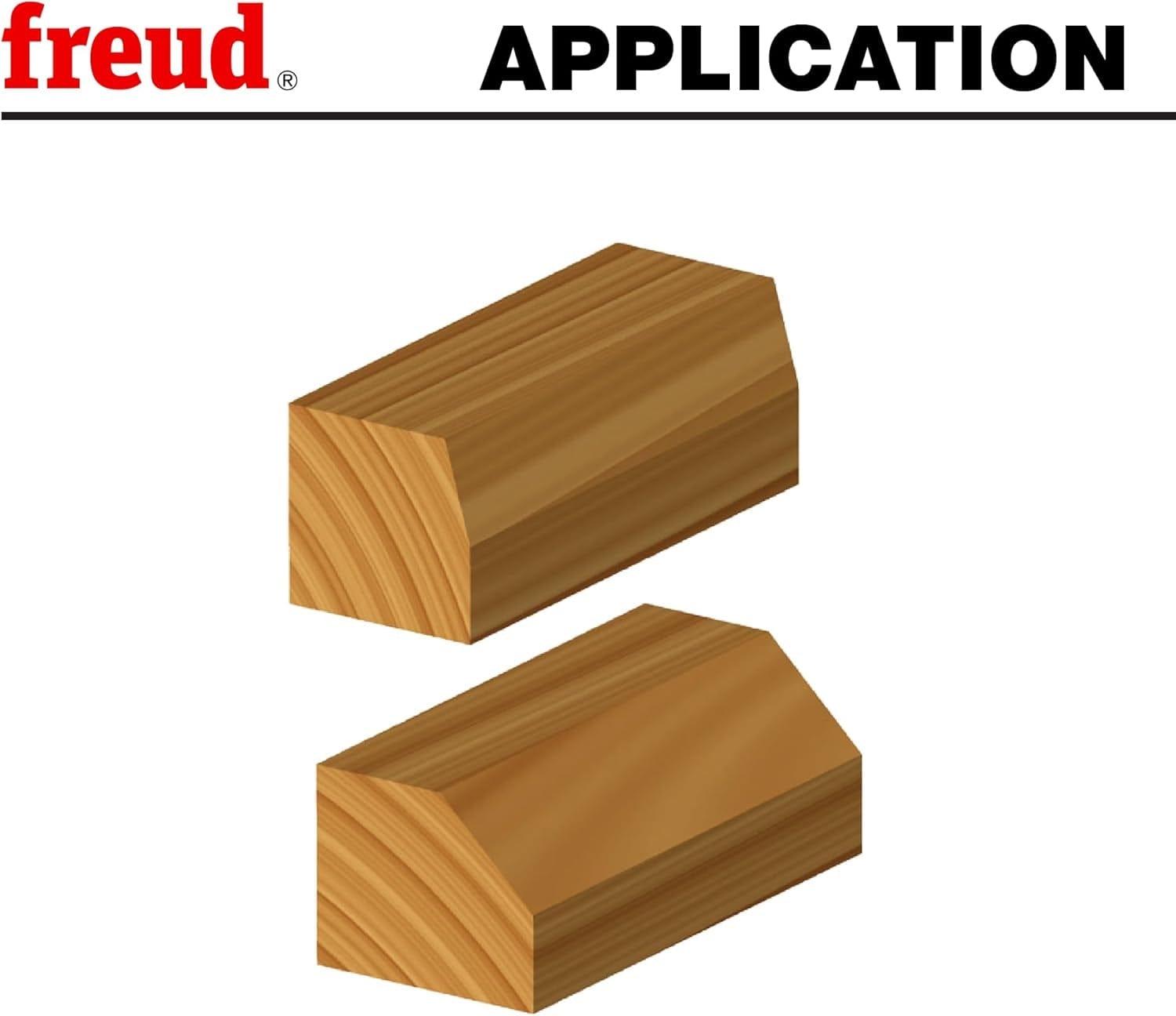

Application illustration demonstrating two types of 45-degree bevel cuts achievable with the Freud 40-106 bit, ideal for easing sharp edges or creating decorative joinery.

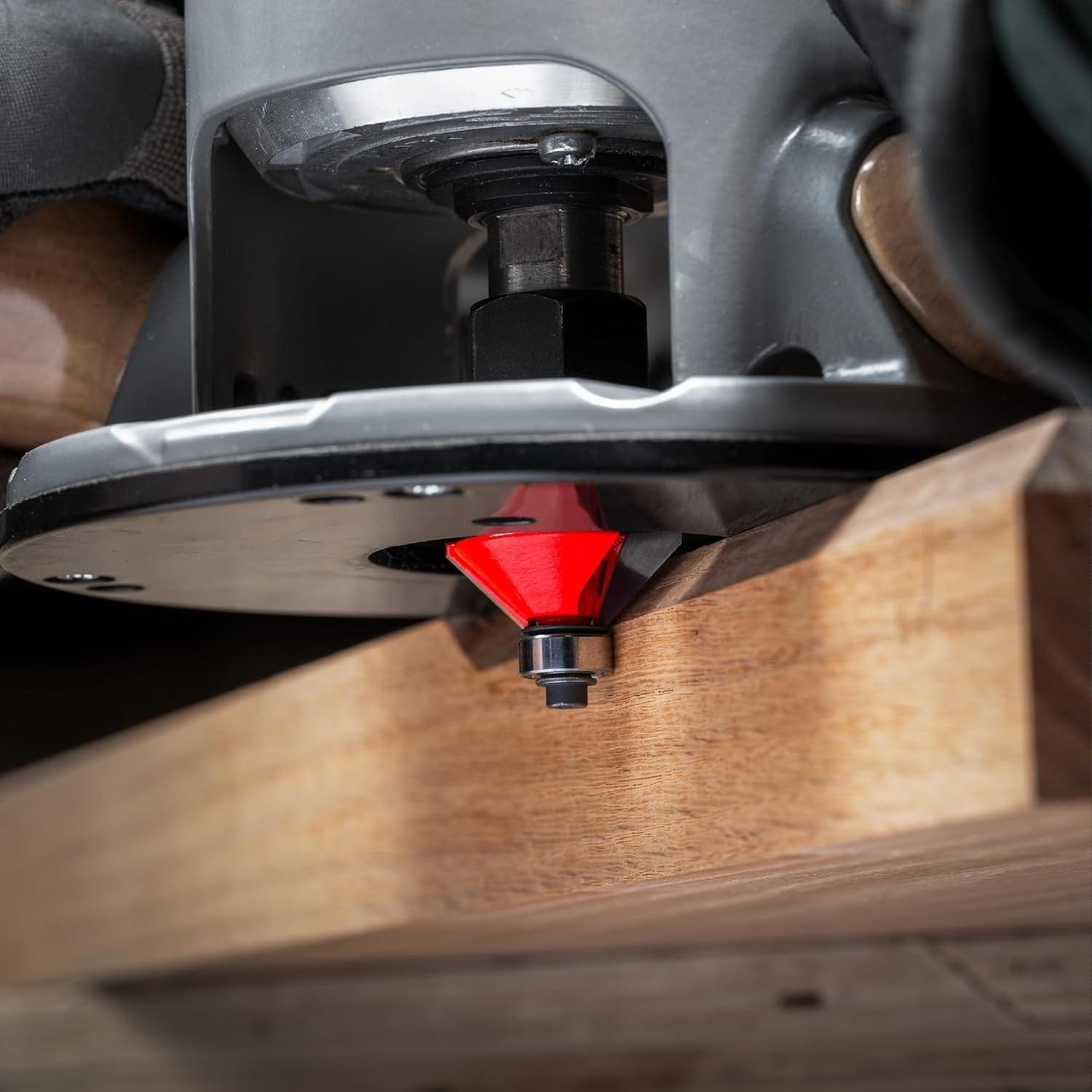

Action shot of a Freud 40-106 chamfer bit installed in a hand-held router, performing a clean 45-degree bevel cut on a hardwood board with the integrated guide bearing in use.
This is a close-up, vertical image of a router bit, specifically a chamfer or bevel bit, which is a tool used for shaping wood edges. It features a prominent red-painted cutting head with two black cutting wings, topped by a metal bearing, and a smooth silver cylindrical shank extending downwards with "freud" branding.
Product packaging for the Freud 40-106 industrial chamfer router bit featuring a 45-degree angle, 1/4-inch shank, and red Perma-SHIELD non-stick coating for professional woodworking and joinery.
Technical profile diagram of the Freud 40-106 router bit illustrating the precise 45-degree angle cut produced on a wood edge for decorative edging and crisp geometric lines.
Materials compatibility infographic for the Freud chamfer bit including veneered plywood, hardwoods, softwoods, and composites, highlighting its versatility for various construction and furniture projects.
Tool compatibility graphic showing that the 1-3/4 inch diameter chamfer bit is designed for use with hand-held routers, table-mounted routers, and compact palm routers.
Application illustration demonstrating two types of 45-degree bevel cuts achievable with the Freud 40-106 bit, ideal for easing sharp edges or creating decorative joinery.
Action shot of a Freud 40-106 chamfer bit installed in a hand-held router, performing a clean 45-degree bevel cut on a hardwood board with the integrated guide bearing in use.
Freud

Freud Router Bit 40-106 1/4 Inch Shank Chamfer Tool (45 Degree Bevel 1-3/4 Diameter 5/8 Height TiCo Carbide Bearing Hardwood Plywood Cabinet Slicing)

Only 1 left
SKU: 40-106
$26.22 USD

Description

Freud precisely the best logo Logout

Freud 40-106 1-3/4" Diameter 45° Chamfer Router Bit (1/4" Shank)

The Freud 40-106 1-3/4-inch diameter 45-degree chamfer router bit eases sharp workpiece edges, bevels solid hardwood stock, shapes multi-sided architectural planters, and cuts precision 8-sided miter joinery without edge splintering. Engineered with proprietary TiCo™ high-density carbide cutting edges and rated for spindle operating speeds up to 16,000 RPM, this 1/4-inch shank bit features an expansive 5/8-inch carbide cutting height to produce uniform 45° bevels across variable material thicknesses. Outfitted with an integrated 1/2-inch precision steel pilot ball bearing that guarantees mar-free tracking, alongside a friction-reducing Perma-SHIELD® protective coating that prevents pitch adhesion and thermal degradation, it equips custom cabinetmakers, furniture builders, and trim carpenters with satin-smooth decorative edge treatments across handheld compact routers and table-mounted setups.

Best Used For:

  • Edge Easing and Decorative Profiling: Softening sharp 90-degree corners on tabletop perimeters, handrails, cabinet doors, and architectural baseboards to prevent impact denting.
  • Multi-Sided Column and Box Joinery: Milling accurate 45-degree edge bevels to construct sturdy 8-sided planters, decorative pedestals, and faceted casework enclosures.
  • Plywood Edge Dressing and Veneer Trimming: Beveling exposed plywood and composite sheet edges cleanly without chipping delicate top veneer layers.

Key Performance & Safety Features

  • TiCo™ Hi-Density Micrograin Carbide: Custom tungsten carbide blend withstands extreme friction and abrasion, extending cutting edge sharpness up to 2X longer.
  • Precise 45° Geometric Angle: Micro-ground cutter geometry ensures uniform, symmetrical bevel angles for precise decorative edges and faceted joinery.
  • Adjustable Chamfer Width: Depth and width of the bevel profile adjust easily by raising or lowering the router collet or setting fence depth.
  • Perma-SHIELD® Non-Stick Coating: Baked-on protective coating prevents resin buildup, gumming, and heat distortion during prolonged production runs.
  • Precision-Ground Pilot Ball Bearing: 1/2-inch steel pilot bearing guides the cutter along straight and curved workpiece edges without surface scoring.
  • Vibration-Free Computer Balancing: Individually balanced body design operates smoothly up to 16,000 RPM without harmonic chatter or tool wobble.

What's Included

  • (1) Freud 40-106 1-3/4" Diameter 45° Chamfer Router Bit (1/4" Shank)
  • (1) Pre-Installed 1/2" Precision Pilot Ball Bearing Assembly

Technical Specifications

Manufacturer Freud Tools
Model Number 40-106
Product Classification 45° Chamfer Edge Router Bit
Overall Cutting Diameter 1.750 inches (1-3/4 in / 44.45 mm)
Chamfer Profile Angle 45.0°
Shank Diameter Size 0.250 inches (1/4 in / 6.35 mm) Round Shank
Carbide Cutting Height 0.625 inches (5/8 in / 15.88 mm)
Overall Tool Length 2.1875 inches (2-3/16 in / 55.56 mm)
Pilot Bearing Diameter 0.500 inches (1/2 in / 12.7 mm)
Number of Cutters 2 Flutes
Maximum Spindle Speed 16,000 RPM
Cutting Tip Metallurgy TiCo™ Hi-Density Micrograin Tungsten Carbide
Protective Coating Perma-SHIELD® Non-Stick Coating
Target Substrates Hardwoods, Softwoods, Plywood, MDF, & Wood Composites
Compatible Tool Platforms Handheld Palm & Trim Routers, Fixed-Base Routers, Router Tables (1/4" Collet)

Pro-Tip: Because this bit features a wide 1-3/4-inch diameter cutter body, reduce your router speed setting to 16,000 RPM or lower before making passes; this prevents perimeter burning on end-grain cuts and ensures consistent feed control.
