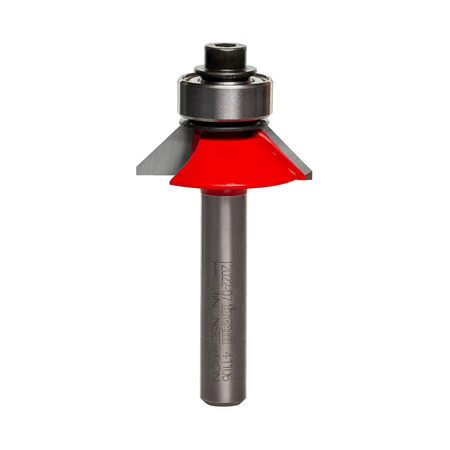

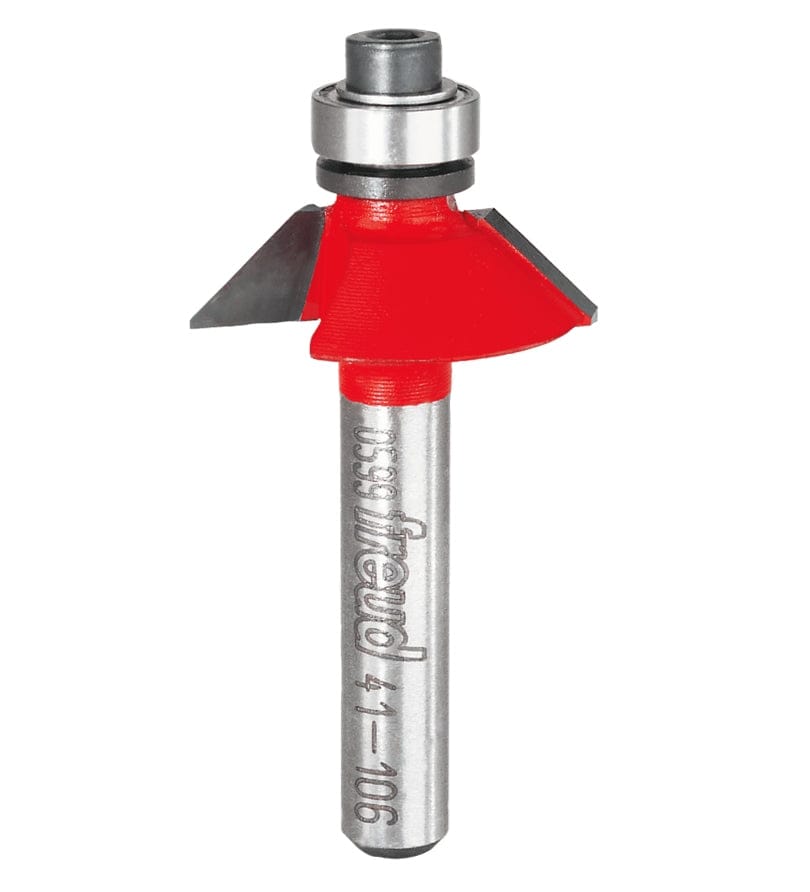

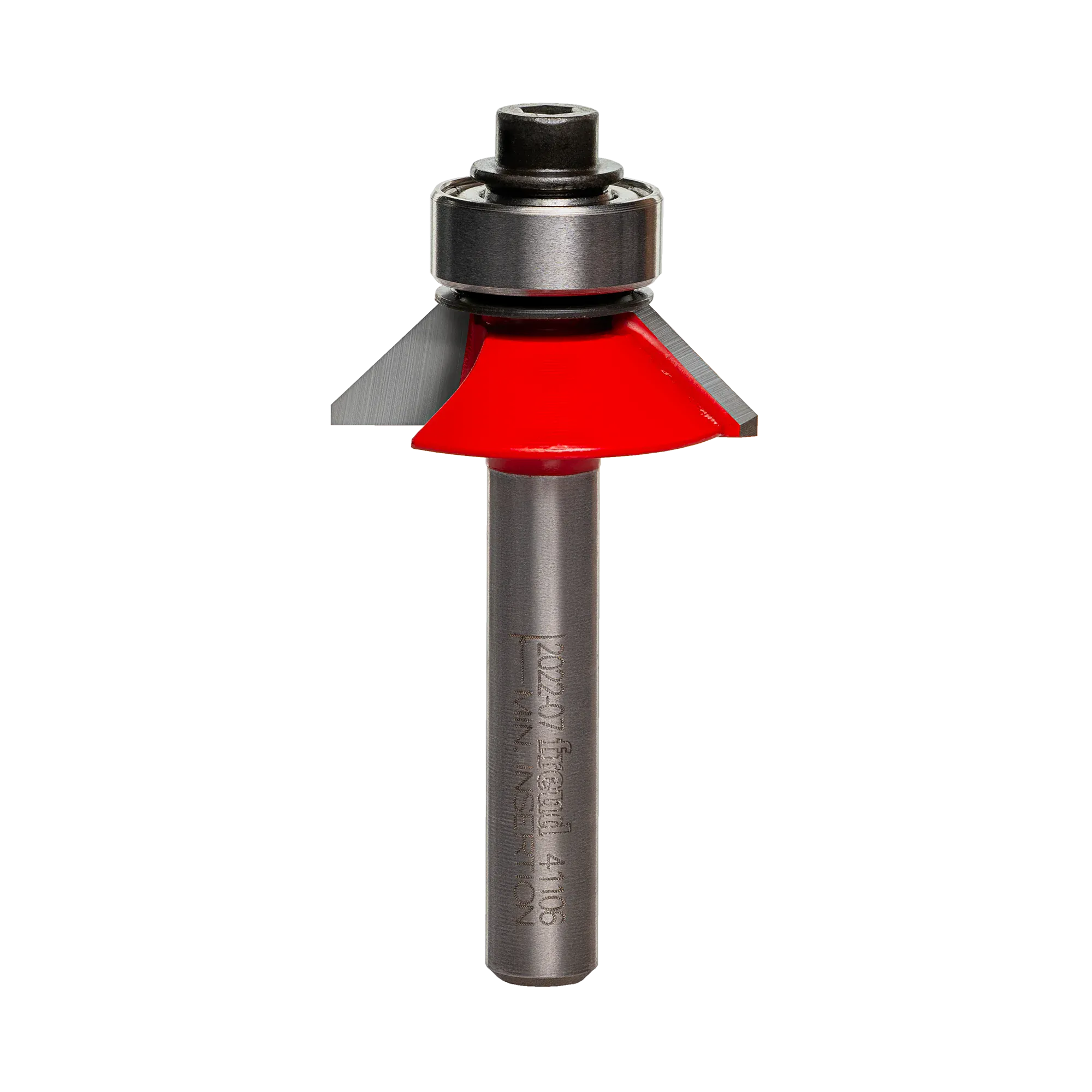

Studio shot of the Freud 41-106 Bevel Trim router bit featuring a red Perma-SHIELD body, angled carbide cutters, 1/4 inch silver shank, and top ball bearing guide.

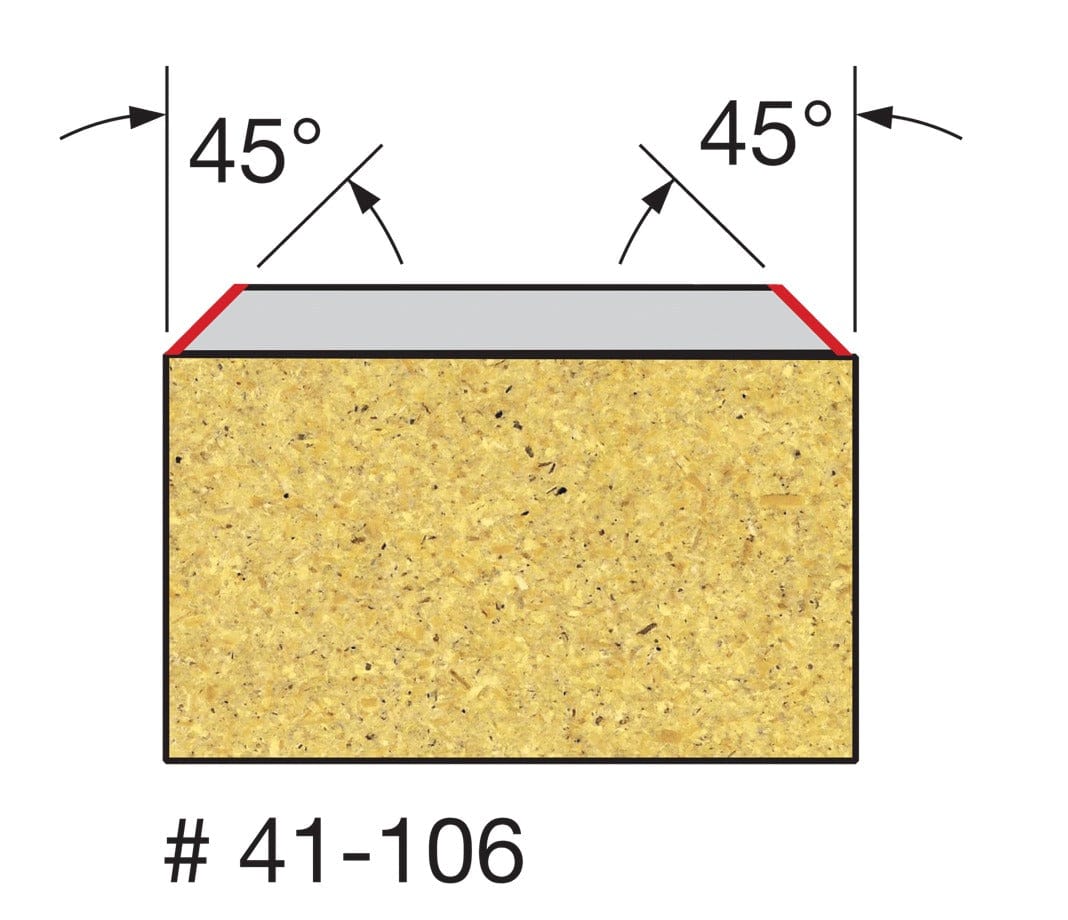

Technical diagram illustrating the 45-degree bevel cut profile on a laminate edge using the Freud 41-106 bit.

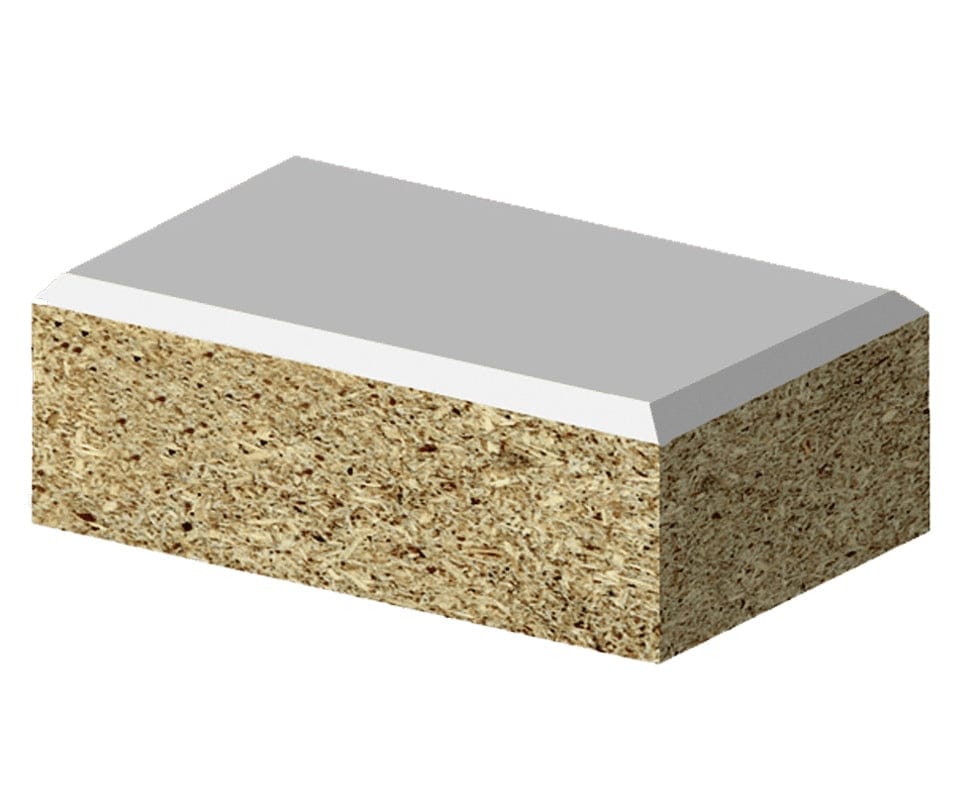

Illustration of a composite block with a laminate top, displaying the clean 45-degree beveled edge finished by the router bit.
Studio shot of the Freud 41-106 Bevel Trim router bit featuring a red Perma-SHIELD body, angled carbide cutters, 1/4 inch silver shank, and top ball bearing guide.
Studio shot of the Freud 41-106 Bevel Trim router bit featuring a red Perma-SHIELD body, angled carbide cutters, 1/4 inch silver shank, and top ball bearing guide.
Technical diagram illustrating the 45-degree bevel cut profile on a laminate edge using the Freud 41-106 bit.
Illustration of a composite block with a laminate top, displaying the clean 45-degree beveled edge finished by the router bit.
Studio shot of the Freud 41-106 Bevel Trim router bit featuring a red Perma-SHIELD body, angled carbide cutters, 1/4 inch silver shank, and top ball bearing guide.
Freud

Freud 41-106 31/32 Inch Diameter 45 Degree Bevel Trim Router Bit 1/4 Inch Shank Carbide Laminate Trimming Tool

Only 1 left
SKU: 41-106
$28.49 USD

Description

Freud precisely the best logo Logout

Achieve Flawless Laminate Edges with the Freud 45-Degree Bevel Trim Bit

Create perfectly finished edges on plastic laminates with the Freud 41-106 31/32" Bevel Trim Router Bit. Designed specifically for the demanding needs of cabinet makers and countertop installers, this bit creates a precise 45-degree bevel that softens sharp laminate edges without the need for time-consuming manual filing. Whether you are working on kitchen counters, trade show displays, or custom furniture, this tool ensures a clean, professional transition between the top surface and the edge.

The 41-Series features high-quality construction with a precision-ground ball bearing guide that rides smoothly along the substrate, ensuring an even cut width without scorching the material. Compatible with hand-held routers, table-mounted setups, and specialized laminate trimmers, this bit is versatile enough for any shop. The carbide cutters are engineered to slice through tough plastic laminates cleanly, providing a long service life and a superior finish that improves the durability of your project edges.

Key Features

  • Precision Beveling: Cuts a 45-degree angle to soften sharp laminate edges.
  • Bearing Guide: 1/2" ball bearing ensures precise tracking along the workpiece.
  • Reduced Labor: Produces a finished edge that requires little to no filing.
  • Versatile Compatibility: Ideal for hand-held routers and laminate trimmers.
  • Material Performance: Cuts cleanly through all standard plastic laminates.
  • Standard Shank: 1/4" shank fits most compact and full-size routers.

What's Included

(1) Freud 41-106 31/32" Bevel Trim Router Bit

Specifications

Overall Diameter (D) 31/32"
Shank Diameter (A) 1/4"
Carbide Height (h) 1/4"
Overall Length (H) 1-7/8"
Angle (d) 45°
Bearing Diameter (B) 1/2"
Number of Cutters 2
Max RPM 24,000
Type Bevel Trim
Material Application Plastic Laminates

Pro-Tip: When trimming laminate, contact cement or adhesive can sometimes build up on the bearing, causing it to seize or spin sluggishly. A seized bearing will burn and ruin your finished edge almost instantly. To prevent this, wipe the bearing clean with a solvent periodically during large jobs and apply a drop of lubricant to ensure it spins freely.
