Freud Router Bit 41-110 9/16 Inch Dia 1/4 Inch Shank Bevel Trim (24000 RPM 8 Degree Carbide Tipped Perma-SHIELD Laminate Countertop Edge Tool)

Precision Freud 9/16 Inch 8-Degree Bevel Trim Router Bit 41-110 with 1/4 Inch Shank

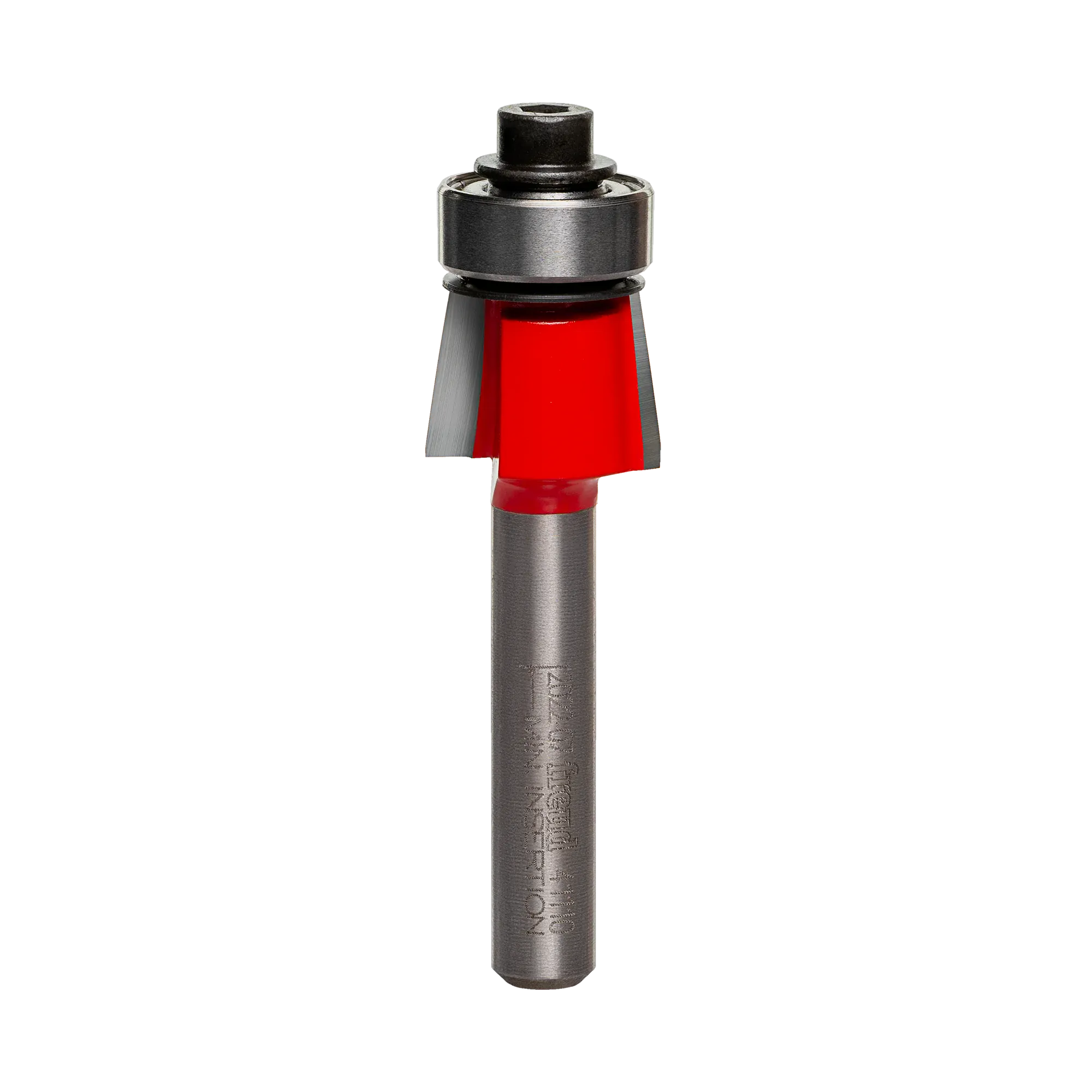

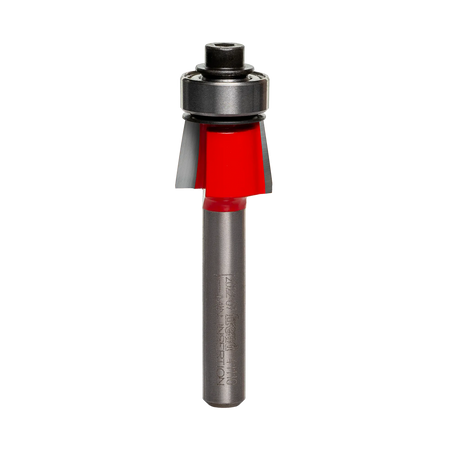

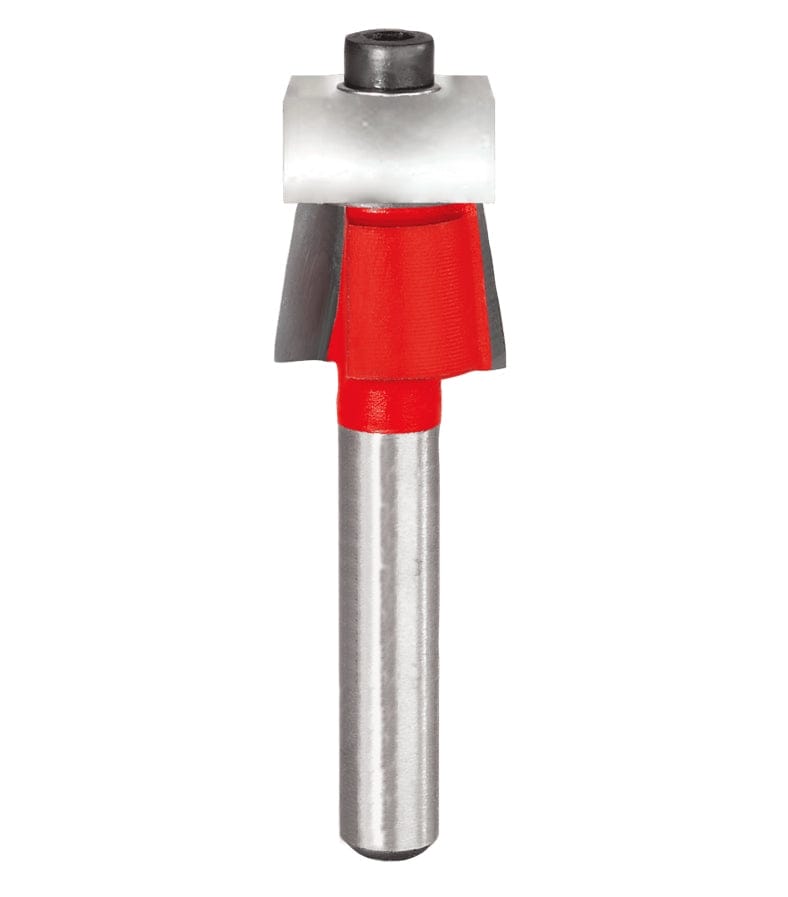

The Freud 41-110 9/16-Inch Diameter Bevel Trim Router Bit functions as a high-precision edge-finishing tool engineered to cut subtle 8-degree bevels on high-pressure plastic laminates, acrylic veneers, and composite substrates. Manufactured with micrograin carbide-tipped cutters treated with friction-reducing Red Perma-SHIELD non-stick finish, this 1/4-inch shank bit features a 1/2-inch pilot ball bearing, a 13/32-inch carbide cutting height, and a 24,000 RPM maximum speed rating. Compatible with handheld laminate trimmers, compact palm routers, and router tables, this dual-flute beveling tool removes sharp factory laminate margins to prevent chipping and eliminate time-consuming hand filing across kitchen countertops, custom cabinetry, and commercial displays.

Best Used For:

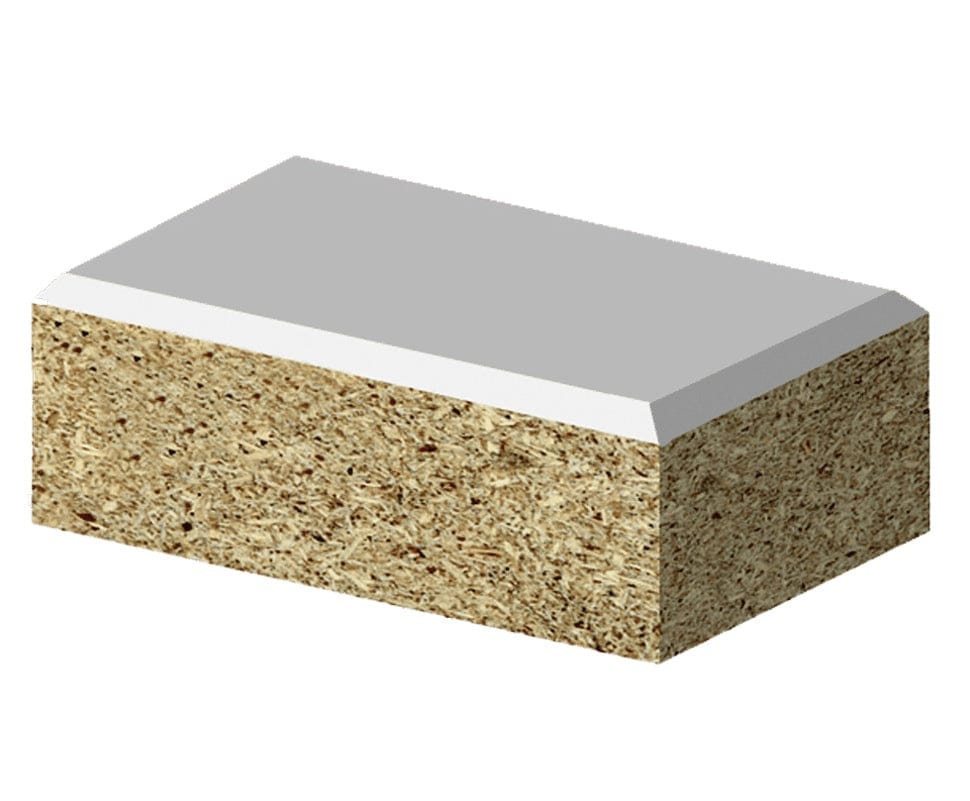

• Plastic Laminate Countertop Edge Beveling: Trimming flush self-edge laminate strips at an 8-degree angle to create a smooth, chip-resistant border profile.
• Cabinet Face & Commercial Fixture Finishing: Machining subtle bevel transitions along plastic laminate cabinet doors, drawer fronts, and retail display cases.
• Substrate-Guided Template Trimming: Tracing substrate margins using the integrated 1/2-inch ball bearing pilot to maintain a uniform bevel width without scorching the material.

Key Performance & Safety Features

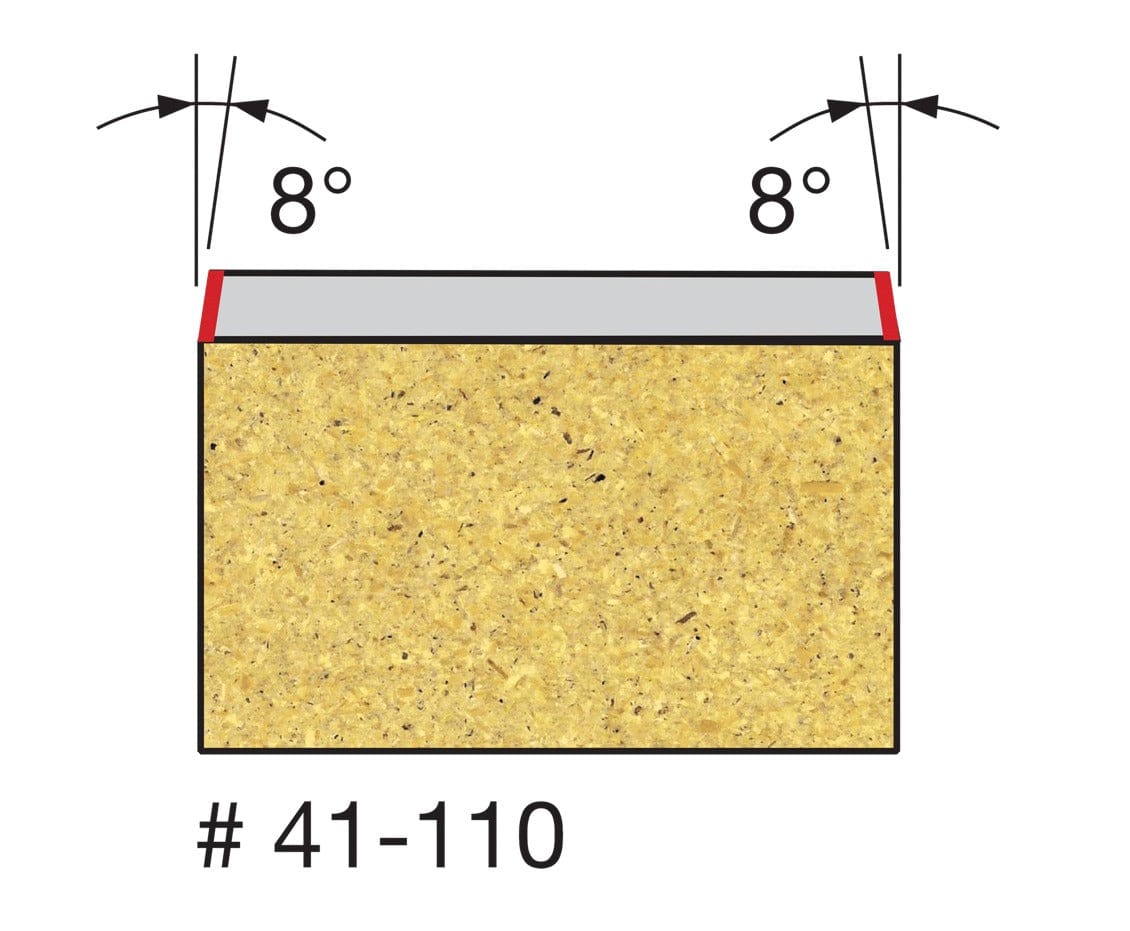

• Precision 8-Degree Bevel Cutters: Ground to exact angular tolerances to produce uniform edge chamfers without requirement for manual filing.
• High-Grade Industrial Carbide Tips: Formulated micrograin carbide edges resist abrasive resin wear from high-pressure decorative laminates.
• Red Perma-SHIELD Thermal Coating: Non-stick fluoropolymer finish prevents contact cement pitch, adhesive residue, and heat buildup during continuous trimming passes.
• Integrated 1/2-Inch Pilot Ball Bearing: Precision steel guide bearing glides smoothly against substrate edges to prevent gouging or friction marring.
• High-Speed 24,000 RPM Rating: Dynamically balanced bit body maintains stability and clean material shear at high rotational speed rates.
• Universal 1/4-Inch Shank Profile: Fits standard 1/4-inch collet assemblies across compact palm routers, handheld laminate trimmers, and table setups.

What's Included

• (1) Freud 41-110 9/16" Diameter 8-Degree Bevel Trim Router Bit (1/4" Shank)
• (1) Pre-Installed 1/2" Pilot Ball Bearing Assembly

Technical Specifications

Pro-Tip: When trimming newly applied plastic laminate self-edging, apply a thin strip of painter's tape along the path where the pilot bearing contacts the substrate. This prevents wet contact cement squeezing out along the seam from sticking to the pilot bearing casing, ensuring continuous smooth tracking without pitch drag.
