Freud

Freud Router Bit 41-502 1/2 Inch Dia 1/4 Inch Shank Radius Laminate (24000 RPM 1/16 Inch Radius TiCo Carbide Perma-SHIELD Countertop Edge Tool)

Only 1 left
SKU: 41-502
$24.49 USD

Description

Freud precisely the best logo Logout

Precision Freud 1/2 Inch Radius Laminate Trim Router Bit 41-502 with 1/4 Inch Shank

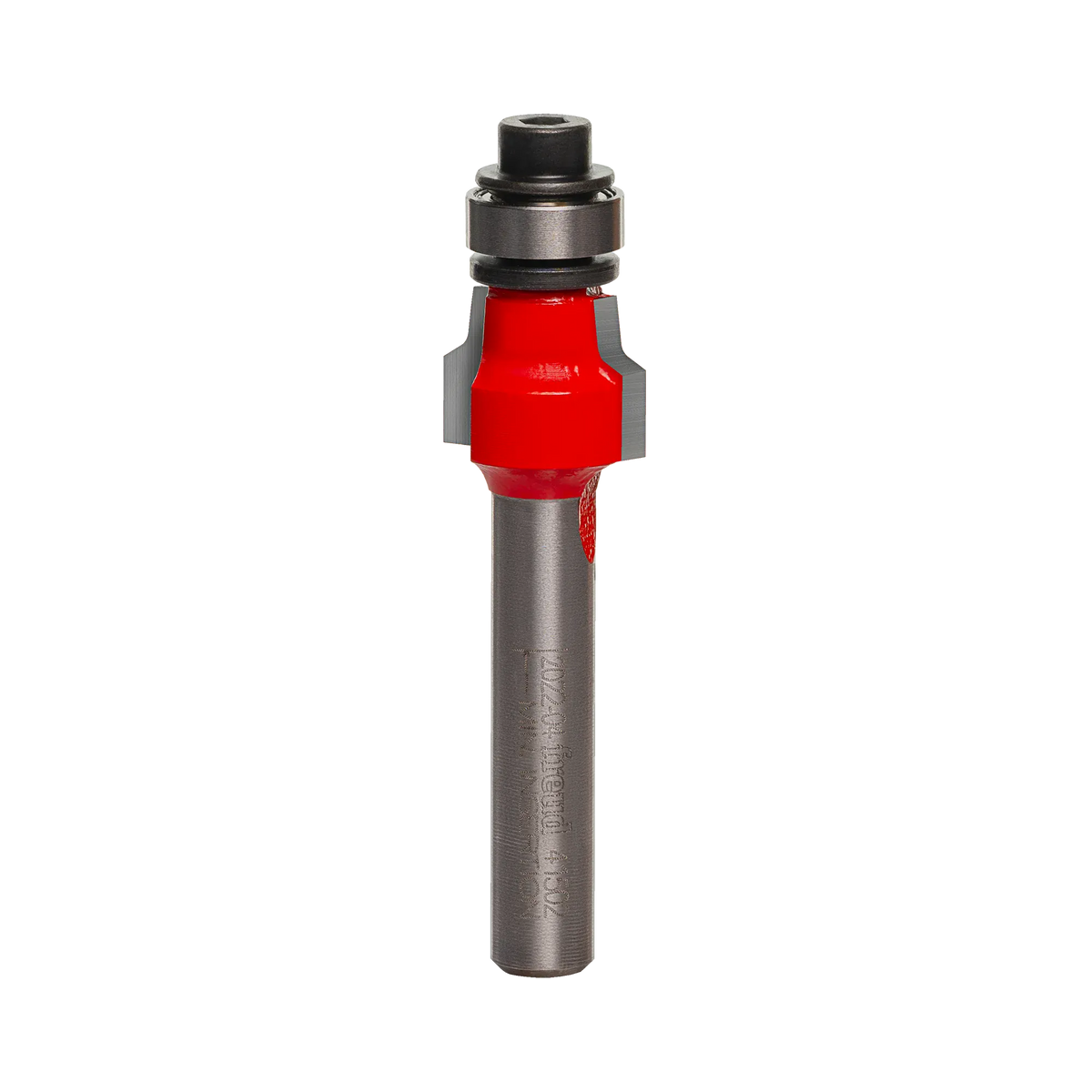

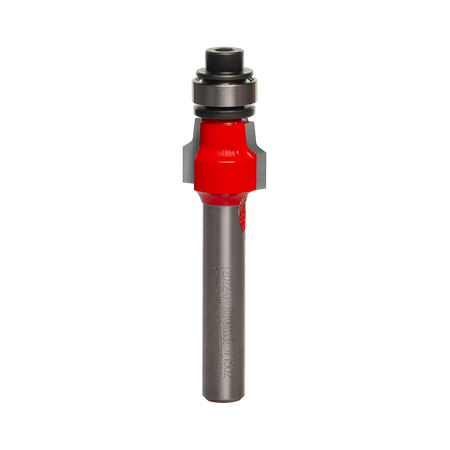

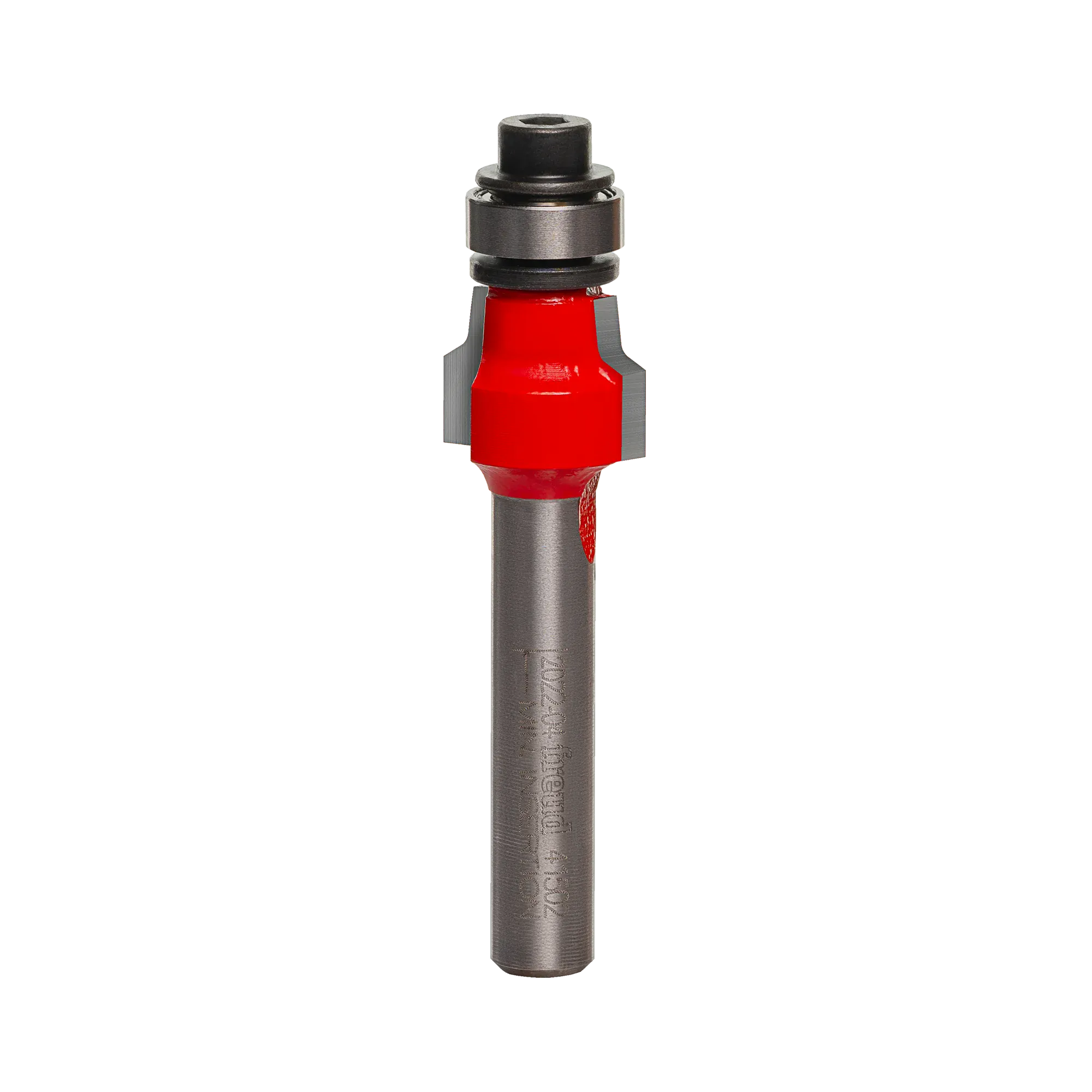

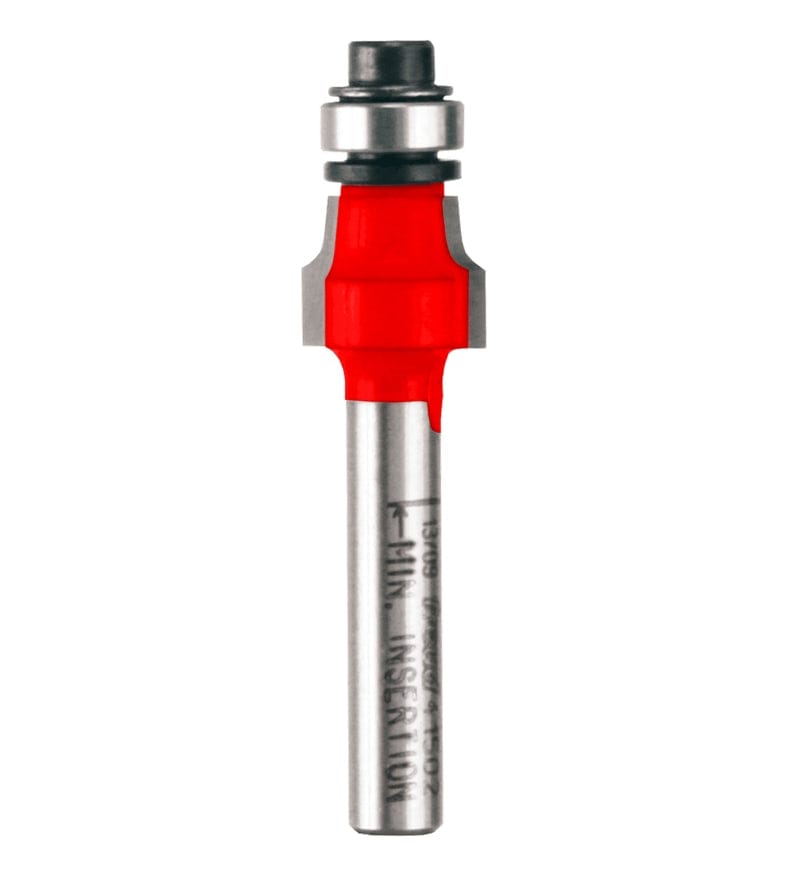

The Freud 41-502 1/2-Inch Diameter Radius Laminate Trim Router Bit serves as a specialized edge-finishing tool engineered to rout plastic laminate self-edging flush while simultaneously producing a smooth 1/16-inch radius rounded edge profile in a single pass. Manufactured with micrograin TiCo High-Density Carbide cutters coated in friction-reducing Red Perma-SHIELD non-stick finish, this 1/4-inch shank bit features a 3/8-inch carbide height, 2-inch overall length, and a 24,000 RPM maximum speed rating. Compatible with handheld laminate trimmers, compact palm routers, and router tables, this dual-flute profiling bit eliminates sharp substrate margins without requiring hours of manual hand filing across Formica and Wilsonart countertop installations.

Best Used For:

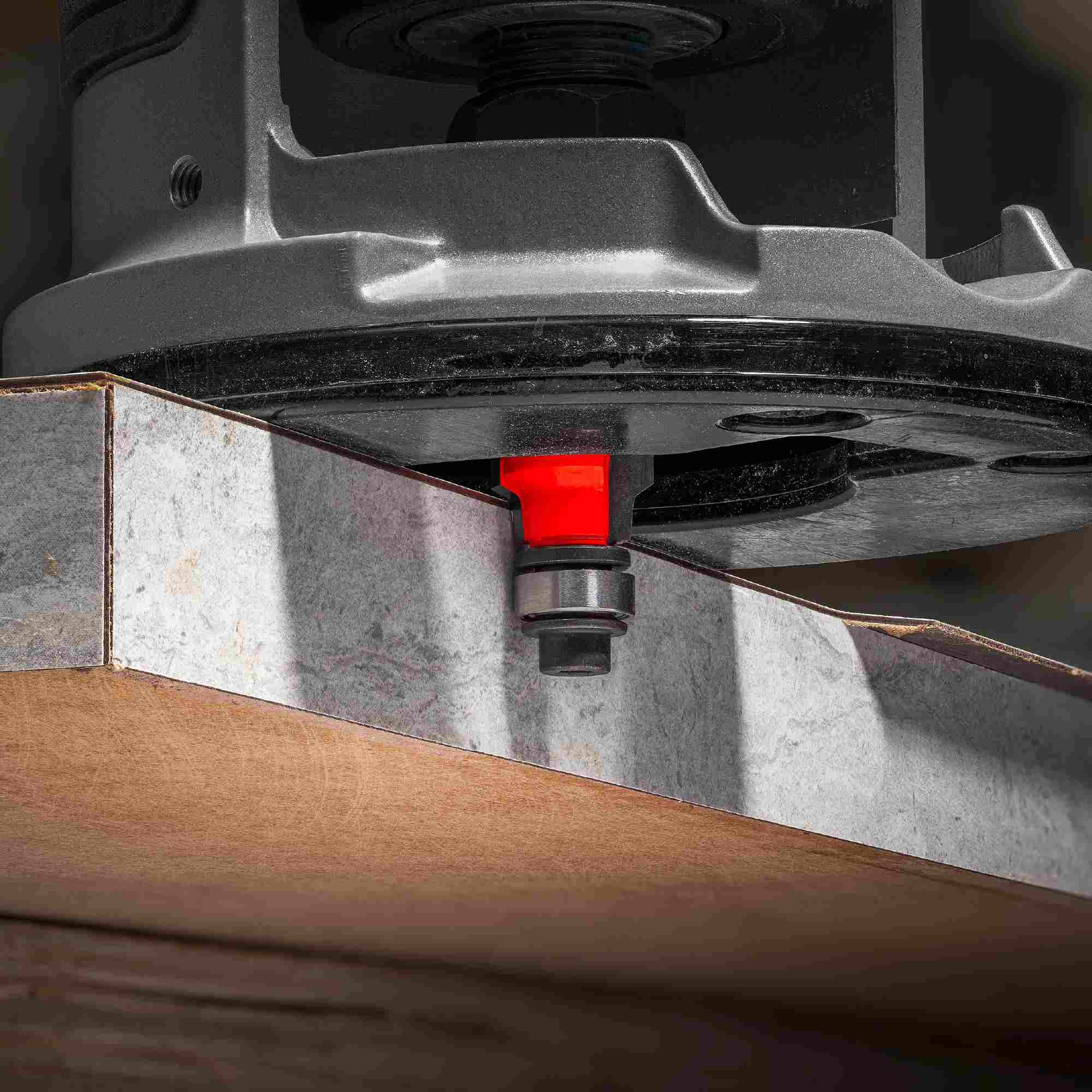

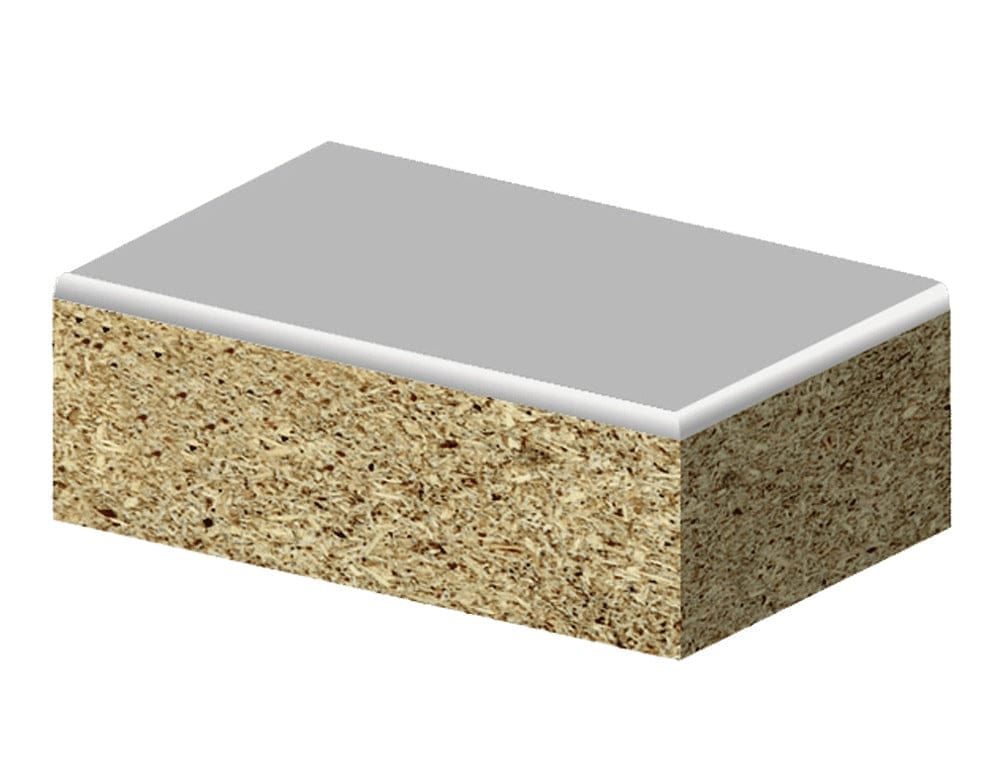

  • Plastic Laminate Countertop Edge Profiling: Trimming flush self-edge laminate strips and milling a soft 1/16-inch radius border in one operation to prevent edge chipping.
  • Cabinet & Commercial Display Finishing: Machining burr-free rounded transitions on high-pressure plastic laminate cabinet faces, drawer fronts, and retail fixtures.
  • Single-Pass Joint Line Trimming: Eliminating sharp glue seams along laminate junctions without scorching the decorative surface paper or requiring manual edge filing.

Key Performance & Safety Features

  • Dual-Action Single-Pass Cutter Geometry: Simultaneously cuts laminate flush and applies a soft 1/16-inch radius rounded safety edge.
  • TiCo High-Density Micrograin Carbide: Proprietary titanium-cobalt carbide formulation maintains razor-sharp edges up to four times longer when cutting abrasive laminates.
  • Red Perma-SHIELD Thermal Barrier Coating: Non-stick fluoropolymer coating prevents contact cement pitch, adhesive residue, and heat buildup during continuous trimming passes.
  • Chatter-Free Precision Shearing: Optimized cutter flute design slices cleanly through dense laminate materials to deliver a chatter-free finish.
  • High-Speed 24,000 RPM Rating: Computer-balanced bit body maintains rotational stability and chatter-free operation at maximum router speeds.
  • Universal 1/4-Inch Shank Profile: Fits standard 1/4-inch collet assemblies across compact palm trimmers, handheld routers, and table setups.

What's Included

  • (1) Freud 41-502 1/2" Diameter 1/16" Radius Laminate Trim Router Bit (1/4" Shank)
  • (1) Pre-Installed Guide Assembly

Technical Specifications

Brand Name Freud
Model Number SKU 41-502
Product Tool Classification Radius Laminate Trim Router Bit

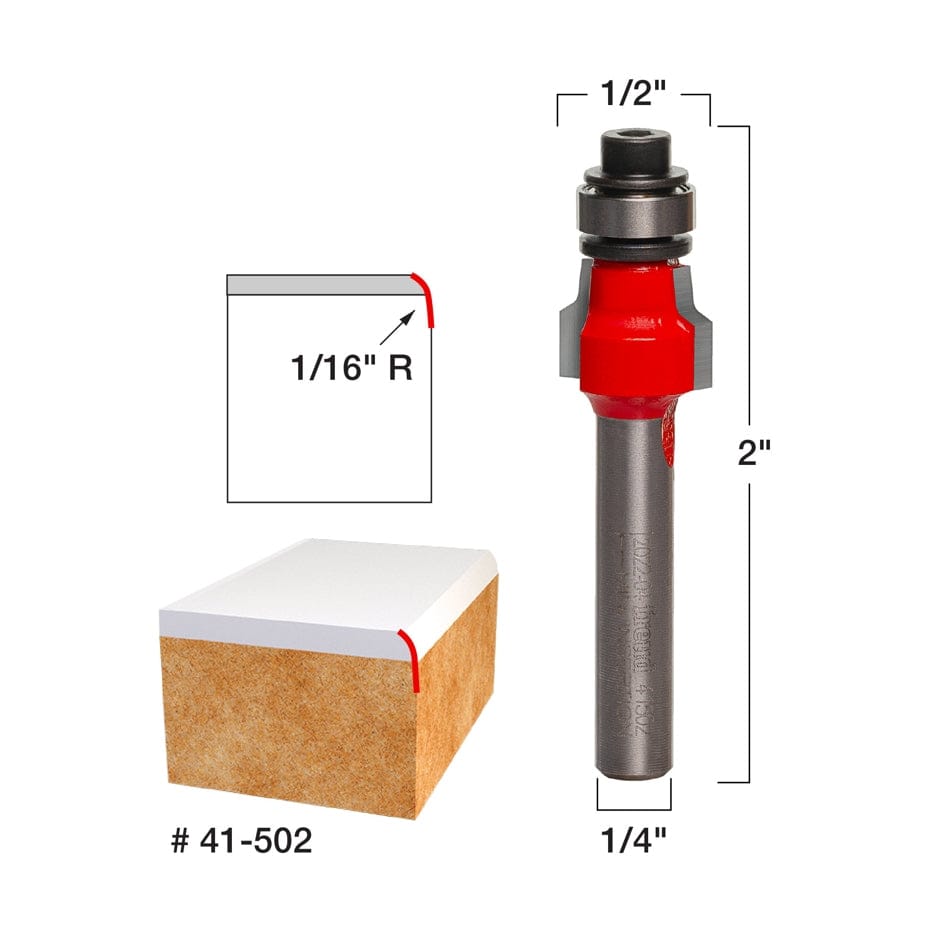

Overall Cut Diameter (D) 0.500 in. (1/2 in.)
Shank Diameter (A) 0.250 in. (1/4 in.)
Carbide Cutting Height (h) 0.375 in. (3/8 in.)
Overall Bit Length (H) 2.000 in. (2 in.)
Profile Radiused Curve (R) 0.0625 in. (1/16 in.)
Number of Cutting Flutes 2 Precision Carbide Wings
Maximum Rotational Speed 24,000 RPM (Speed Adjustment Required)
Protective Body Finish Red Perma-SHIELD Non-Stick Coating
Carbide Grade Composition TiCo High-Density Micrograin Carbide
Machine Equipment Compatibility Laminate Trimmers, Compact and Full-Size Routers with 1/4" Collet
Country of Origin Italy

Pro-Tip: When routing newly applied plastic laminate seams, clean away excess contact cement squeeze-out before passing the bit along the edge. Sticky adhesive residue on the workpiece can build up along the cutter body, causing friction drag and leading to burn marks on delicate laminate face patterns.
