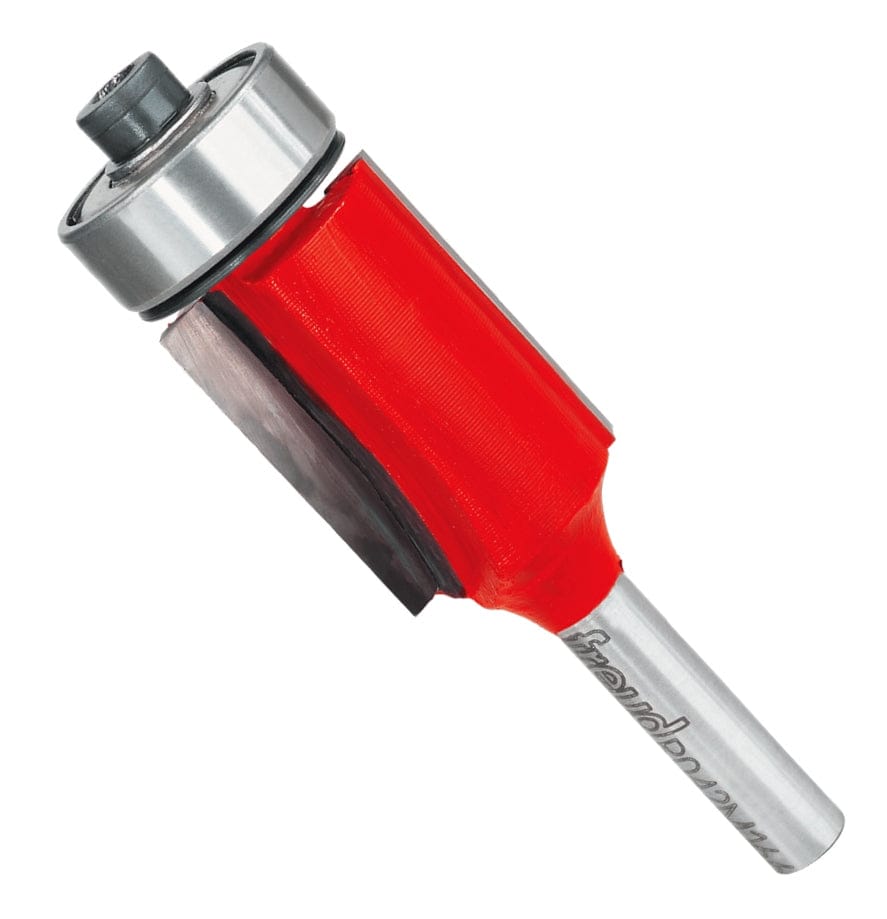

A studio product photograph of the Freud 42-080 flush trimming router bit featuring a red Perma-SHIELD coated body, two silver carbide cutting flutes, a top-mounted ball bearing pilot, and a 1/4 inch shank.

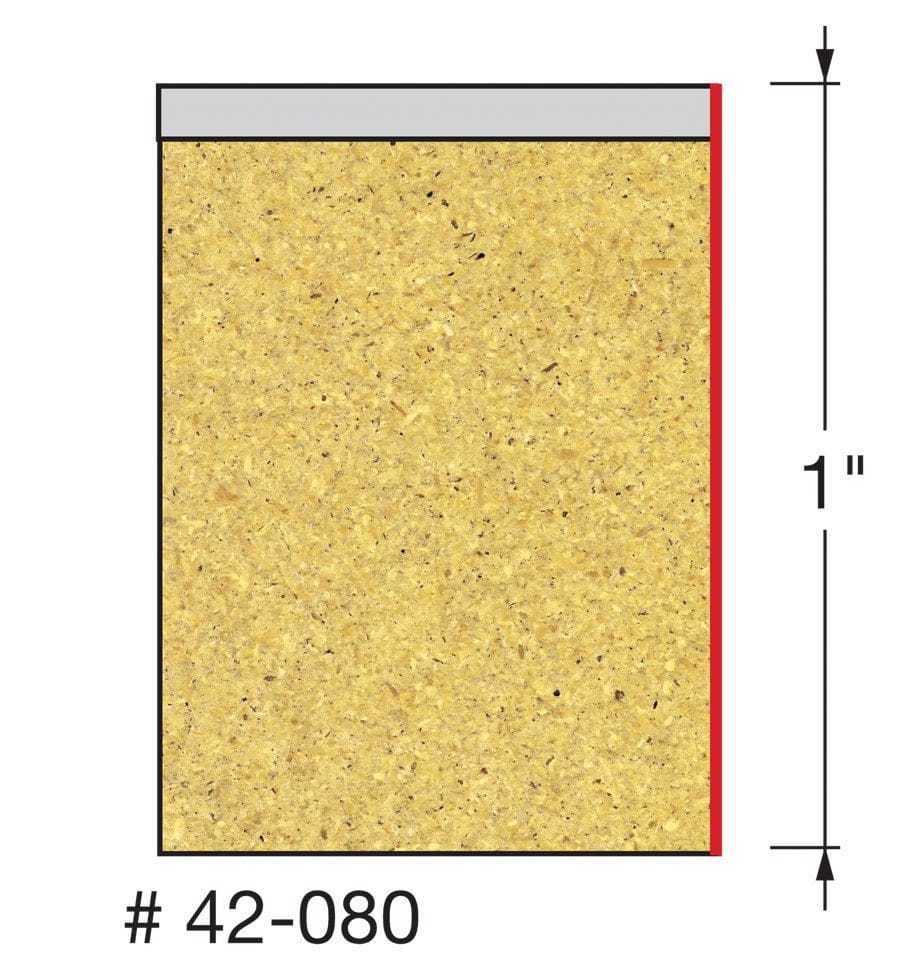

A technical cross-section diagram of a wood-textured workpiece showing a 1-inch vertical red line on the right edge to indicate the maximum carbide cutting height for the 42-080 bit.

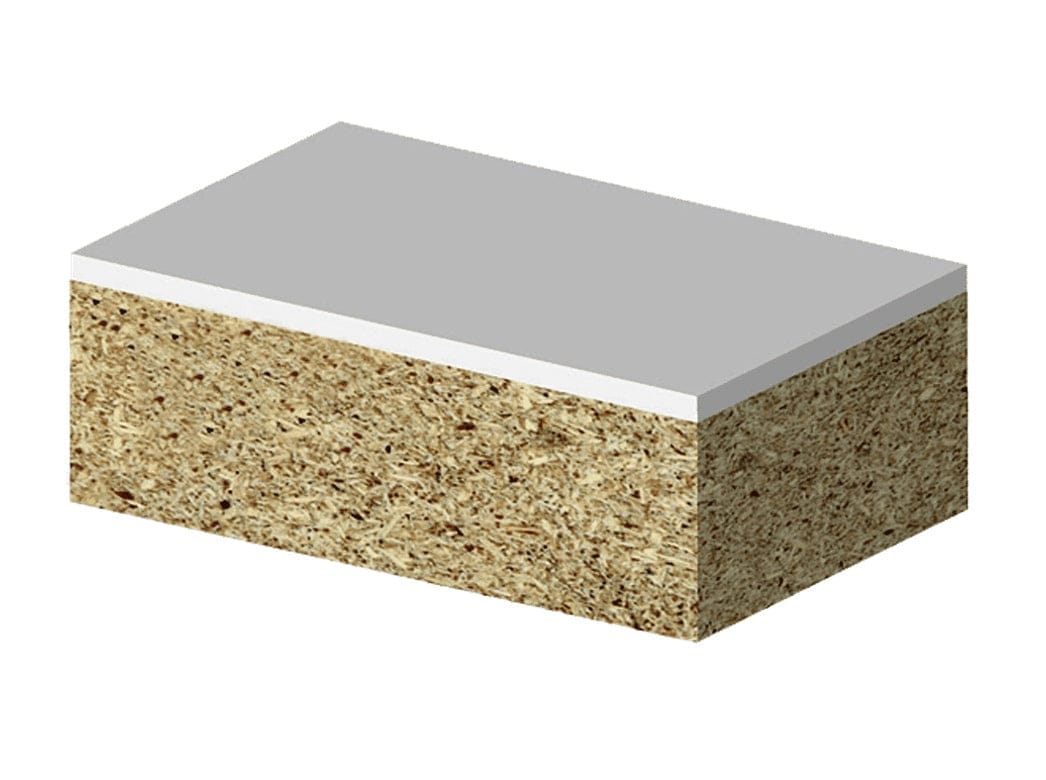

An isometric 3D render showing a rectangular piece of particle board with a thin grey laminate top layer, illustrating the materials suitable for flush trimming.

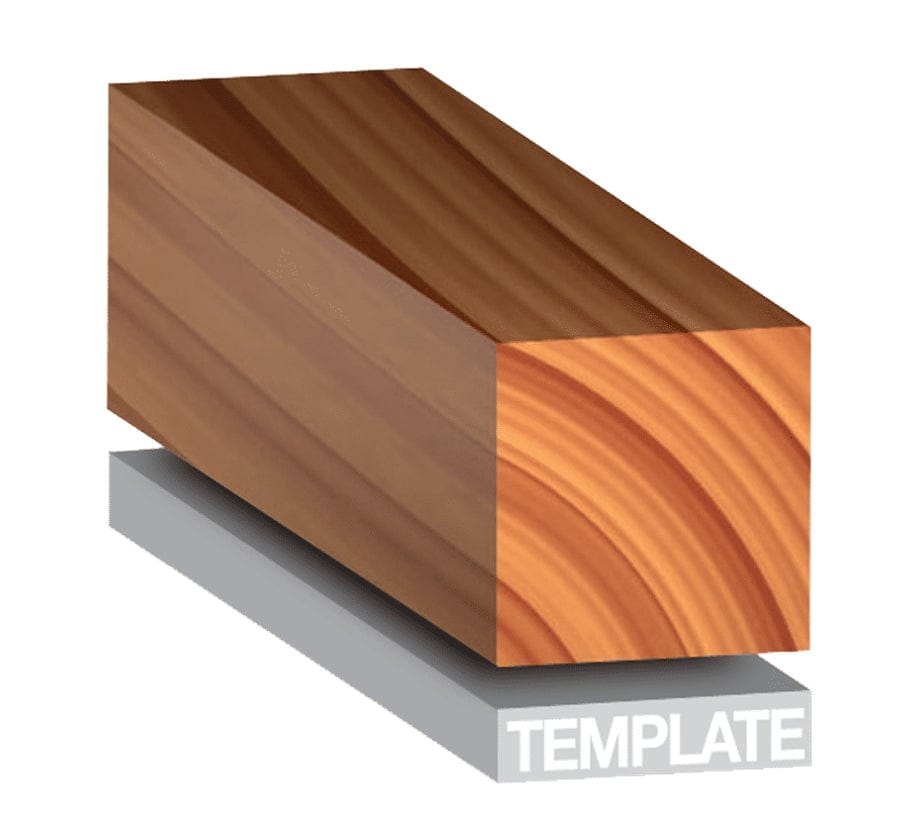

A 3D diagram showing a rectangular wood block positioned on top of a grey rectangular template, demonstrating the setup for pattern routing applications.
A studio product photograph of the Freud 42-080 flush trimming router bit featuring a red Perma-SHIELD coated body, two silver carbide cutting flutes, a top-mounted ball bearing pilot, and a 1/4 inch shank.
A technical cross-section diagram of a wood-textured workpiece showing a 1-inch vertical red line on the right edge to indicate the maximum carbide cutting height for the 42-080 bit.
An isometric 3D render showing a rectangular piece of particle board with a thin grey laminate top layer, illustrating the materials suitable for flush trimming.
A 3D diagram showing a rectangular wood block positioned on top of a grey rectangular template, demonstrating the setup for pattern routing applications.
Freud

Freud 42-080 7/8 Inch Diameter x 1 Inch Height 2 Flute Flush Trimming Router Bit 1/4 Inch Shank TiCo Carbide Tipped Pattern Template Tool

Only 1 left
SKU: 42-080
$24.79 USD

Description

Achieve Flawless Edges and Precision Pattern Duplication with Freud Performance

Experience industrial-grade precision with the Freud 42-080 7/8" Diameter Flush Trimming Router Bit. Engineered for the most demanding trimming applications, this bit is the ultimate solution for professional woodworkers and kitchen installers. Whether you are trimming plastic laminate countertops for a seamless fit or following a complex template to duplicate intricate furniture parts, the 42-080 delivers a perfectly flush, glass-smooth edge every time. The top-mounted ball bearing pilot ensures effortless tracking against your pattern or workpiece edge, eliminating the guesswork and preventing costly mistakes.

Durability meets advanced technology with Freud’s exclusive TiCo™ Hi-Density Carbide tips. This specialized micrograin formula stays sharper longer than standard carbide, providing clean, burn-free cuts in hardwood, softwood, plywood, and abrasive composites. To further enhance performance, the bit is finished with a vibrant red Perma-SHIELD® Non-Stick Coating. This coating significantly reduces friction and heat buildup while preventing the accumulation of resin and pitch—ensuring your tool runs cooler and lasts longer. Perfectly balanced for hand-held or table-mounted routers, the 2-flute design provides the ideal balance between high-speed material removal and a superior surface finish.

Key Features

  • Precision Flush Trimming: Ideal for laminate countertops and following intricate patterns for exact duplication.
  • TiCo™ Hi-Density Carbide: Proprietary micrograin carbide blend offers maximum cutting life and razor-sharp edges.
  • Perma-SHIELD® Coating: Non-stick red coating protects the bit from heat, corrosion, and pitch buildup.
  • Dual-Flute Design: Optimized for faster cutting speeds while maintaining a smooth, professional finish.
  • Versatile Compatibility: Engineered for use with hand-held and table-mounted portable routers.
  • Multi-Material Excellence: Slices through hardwood, softwood, plywood, composites, and plastic laminates with ease.

What's Included

(1) Freud 42-080 7/8" Diameter x 1" Carbide Height Flush Trimming Router Bit with 1/4" Shank

Specifications

Overall Diameter (D) 7/8"
Carbide Height (h) 1"
Shank Diameter (A) 1/4"
Overall Length (H) 3"
Bearing Diameter (B) 7/8"
Number of Cutters 2
Max RPM 24,000
Blade Material TiCo™ Hi-Density Carbide
Body Coating Perma-SHIELD® Red Non-Stick
Application Flush Trimming and Pattern Routing
Pilot Type Ball Bearing Pilot

Pro-Tip: When flush trimming laminates, ensure the bearing is clean and spinning freely to avoid scratching the finished surface. If you are trimming thick stock, make multiple passes rather than trying to remove all the material at once; this reduces strain on the 1/4" shank and provides a much smoother final edge with zero burning.
