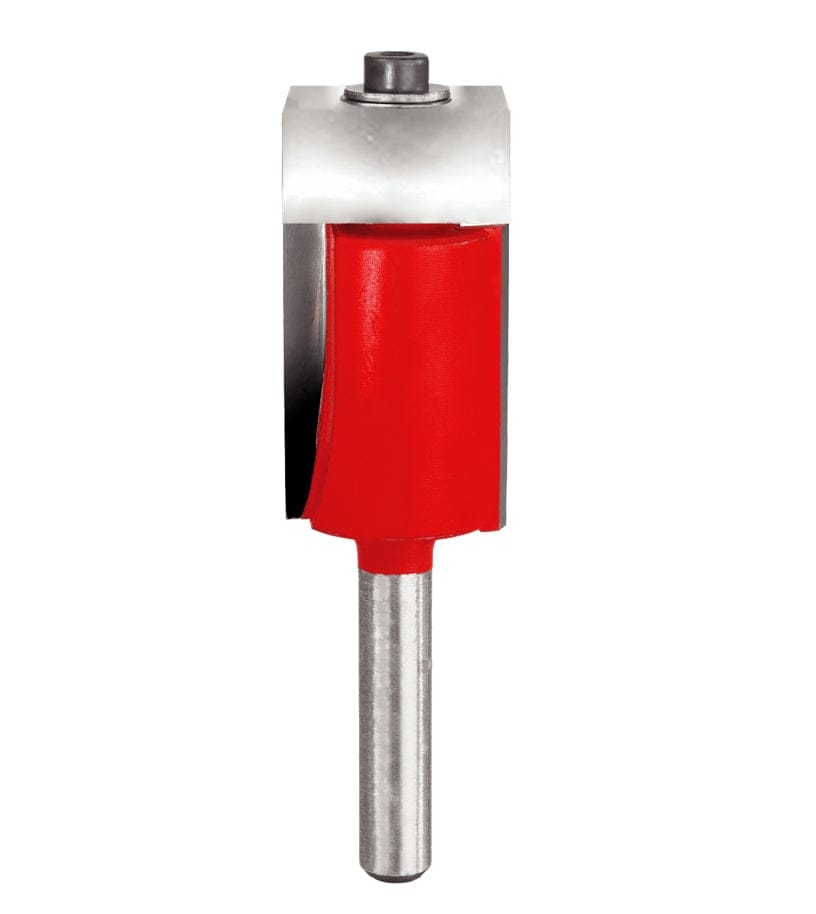

Studio shot of the Freud 42-090 Flush Trim router bit featuring a red Perma-SHIELD body, two straight carbide cutters, 1/4 inch silver shank, and a top-mounted ball bearing pilot.

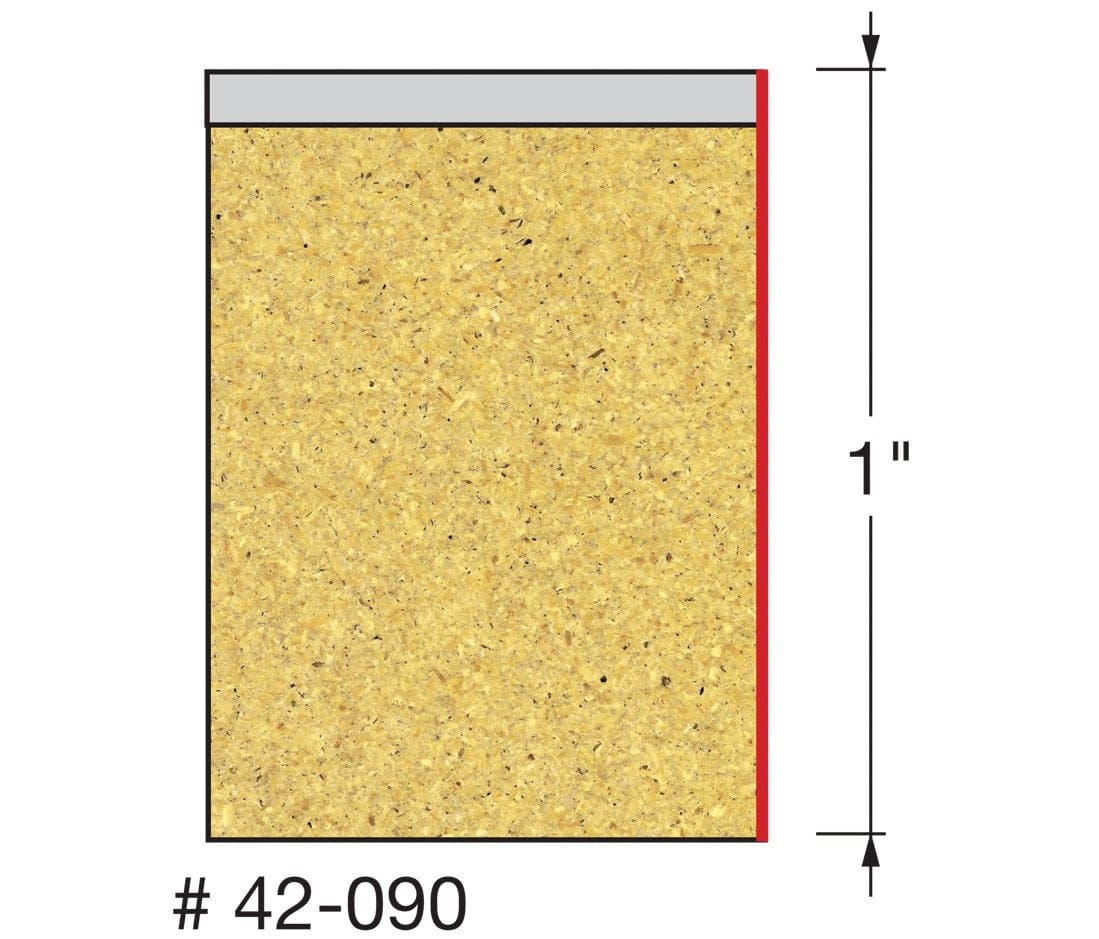

Technical profile diagram of the Freud 42-090 bit, illustrating a flush trim cut where the 1-inch cutting edge aligns perfectly with the top bearing to trim material flush with a template or substrate.

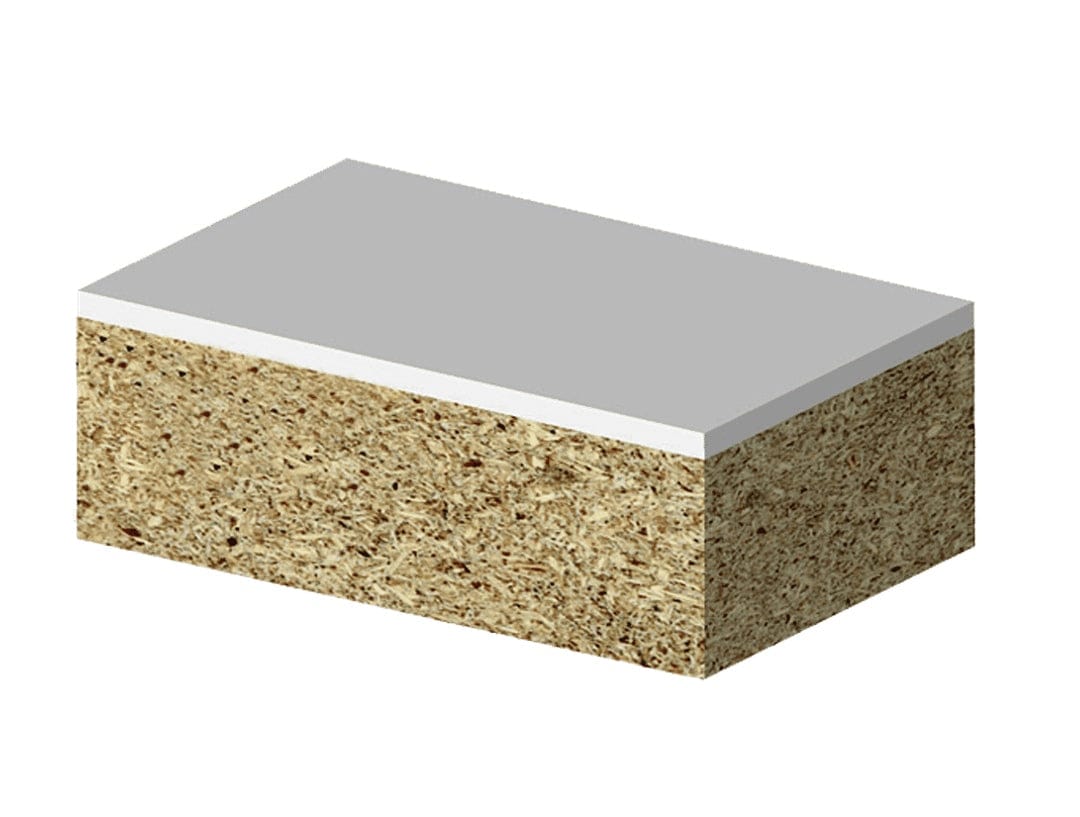

Illustration of a composite block with a white laminate top, displaying a clean, flush edge finished by the router bit.

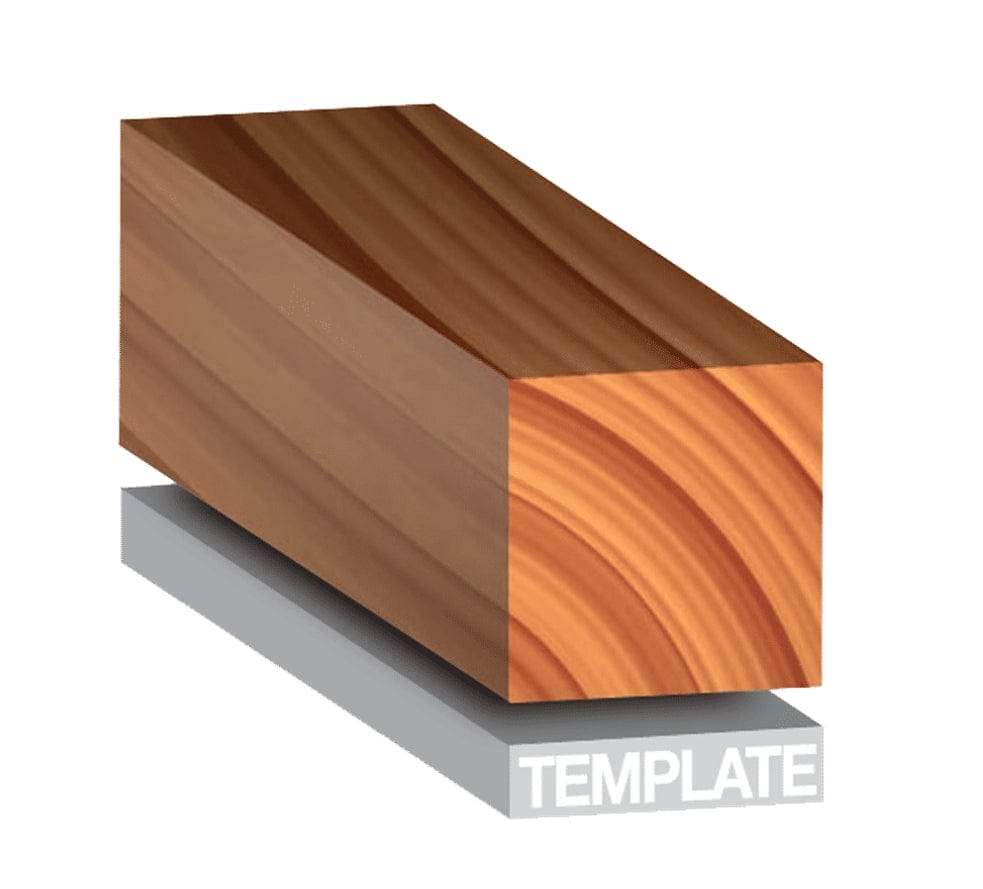

Illustration showing how the flush trim bit follows a template guide below the workpiece to duplicate a shape onto the wood block above.
Studio shot of the Freud 42-090 Flush Trim router bit featuring a red Perma-SHIELD body, two straight carbide cutters, 1/4 inch silver shank, and a top-mounted ball bearing pilot.
Technical profile diagram of the Freud 42-090 bit, illustrating a flush trim cut where the 1-inch cutting edge aligns perfectly with the top bearing to trim material flush with a template or substrate.
Illustration of a composite block with a white laminate top, displaying a clean, flush edge finished by the router bit.
Illustration showing how the flush trim bit follows a template guide below the workpiece to duplicate a shape onto the wood block above.
Freud

Freud 42-090 3/4 Inch Diameter Flush Trim Router Bit 1 Inch Height 1/4 Inch Shank Carbide Pattern Routing Tool for Woodworking

Only 2 left
SKU: 42-090
$19.95

Description

Achieve Precision Pattern Work and Flawless Edges with the Freud Flush Trim Bit

Experience the difference that industrial-grade engineering makes in your carpentry projects with the Freud 42-090 3/4" Flush Trim Router Bit. Designed for versatility and precision, this bit is the ultimate solution for trimming laminate countertops, duplicating intricate parts using templates, and ensuring perfectly flush edges on cabinetry. Whether you are a professional cabinet maker or a dedicated hobbyist, this tool delivers smooth, burn-free cuts that require minimal sanding, saving you time and effort on every build.

Built to withstand the demands of heavy use, the 42-090 features Freud’s proprietary TiCo™ Hi-Density Carbide, a specially formulated blend that stays sharper up to four times longer than standard carbide. The bit is finished with Freud's exclusive Red Perma-SHIELD® Non-Stick Coating, which dramatically reduces friction and prevents the buildup of heat, rust, and pitch. With its efficient 2-flute design, this bit provides fast chip clearance and a superior finish on hardwood, softwood, plywood, composites, and laminates.

Key Features

  • Precision Flushing: Pilot bearing matches the cutter diameter exactly for perfect pattern duplication.
  • TiCo™ Hi-Density Carbide: Exclusive carbide blend maximizes edge retention and cut quality.
  • Perma-SHIELD® Coating: Non-stick red coating resists heat, corrosion, and resin accumulation.
  • Versatile Application: Ideal for trimming laminates, veneers, and pattern routing in all wood types.
  • Dual Flute Geometry: Ensures fast chip removal and a smooth finish on the workpiece edge.
  • Broad Compatibility: Safe for use with hand-held routers and table-mounted router systems.
  • Balanced Operation: Computer-balanced to minimize vibration and chatter during operation.

What's Included

(1) Freud 42-090 3/4" Diameter Flush Trim Router Bit

Specifications

Overall Diameter (D) 3/4"
Shank Diameter (A) 1/4"
Carbide Height (h) 1"
Overall Length (H) 2-15/16"
Bearing Diameter (B) 3/4"
Number of Cutters 2
Max RPM 24,000
Bit Type Flush Trim
Coating Perma-SHIELD® Non-Stick
Material TiCo™ Hi-Density Carbide
Country of Origin Italy

Pro-Tip: To extend the life of your flush trim bit and prevent burning, never try to trim off more than 1/8" of material at a time. Use a jigsaw or band saw to rough-cut your material close to the template line first. This leaves just a small amount of stock for the router bit to shave off, ensuring a cleaner finish and less strain on your router.
