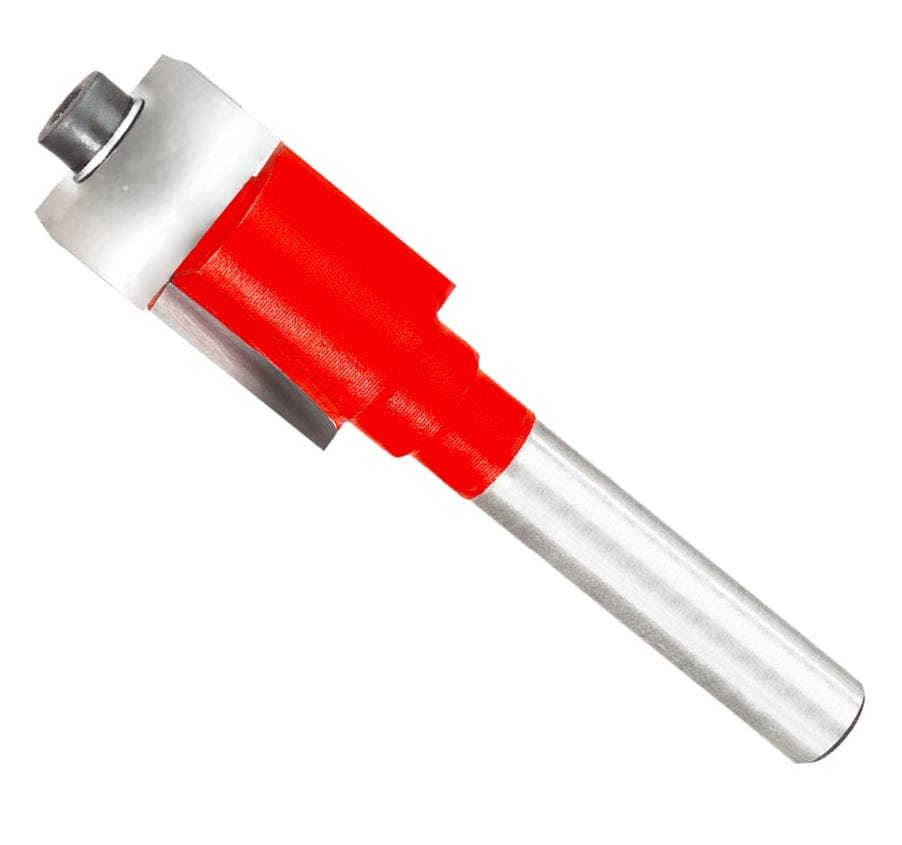

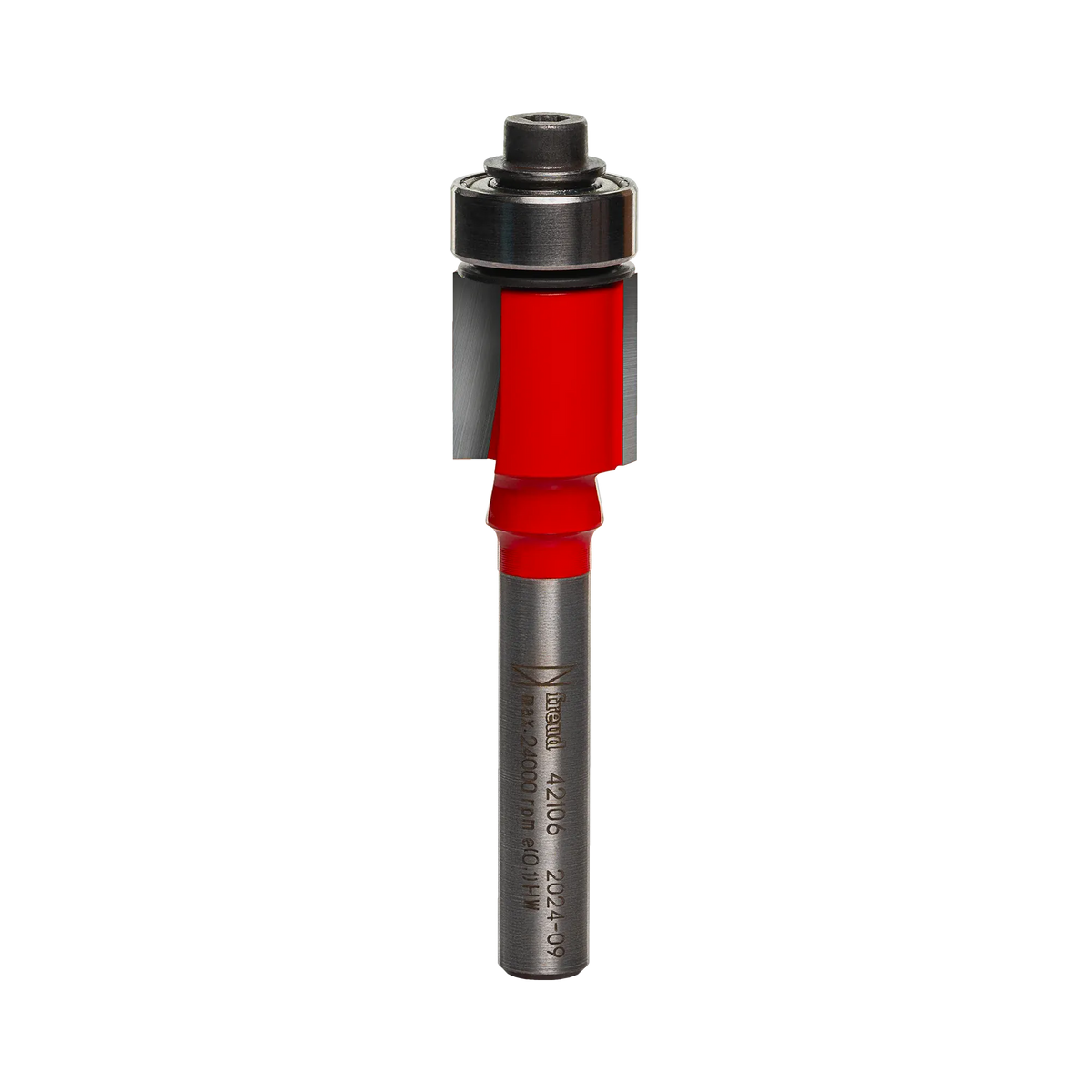

Studio shot of the Freud 42-106 Flush Trim router bit featuring a red Perma-SHIELD body, two carbide flutes, 1/4 inch silver shank, and top ball bearing pilot.
Retail packaging for the Freud 42-106 router bit showing the tool behind clear plastic with specifications including 1/2 inch diameter and 1/4 inch shank.

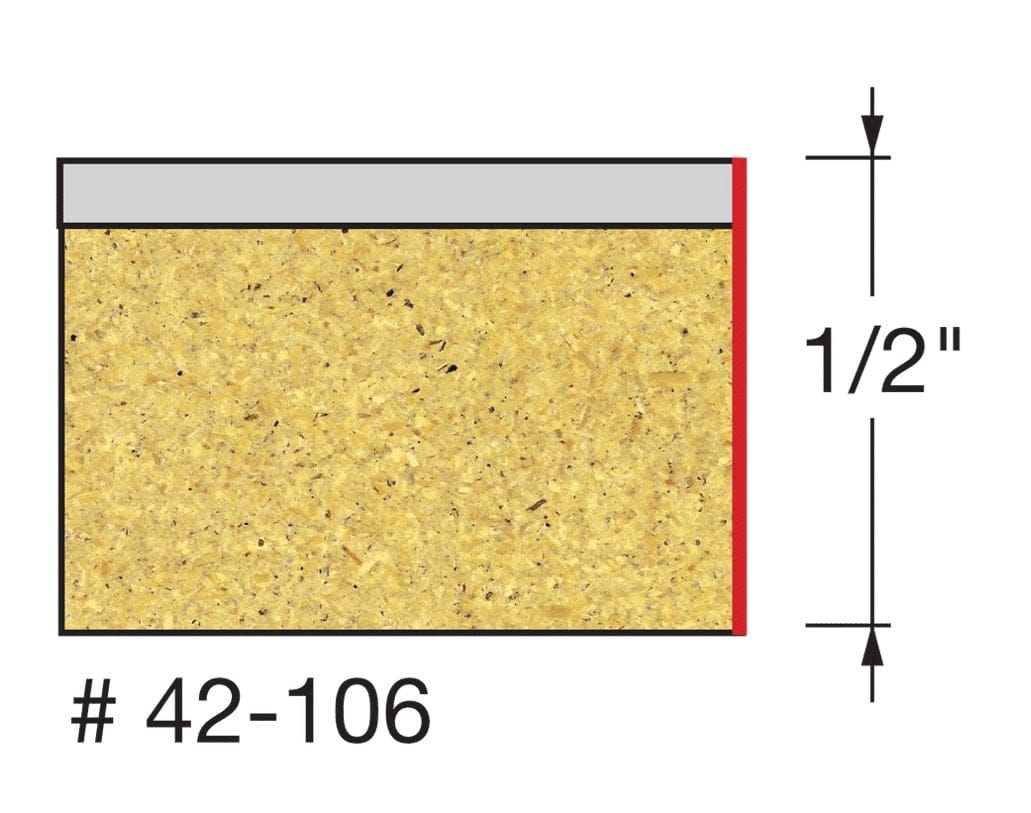

Technical profile diagram illustrating the straight flush trim cut on a laminate edge by the Freud 42-106 bit, specifying a 1/2 inch cutting height.

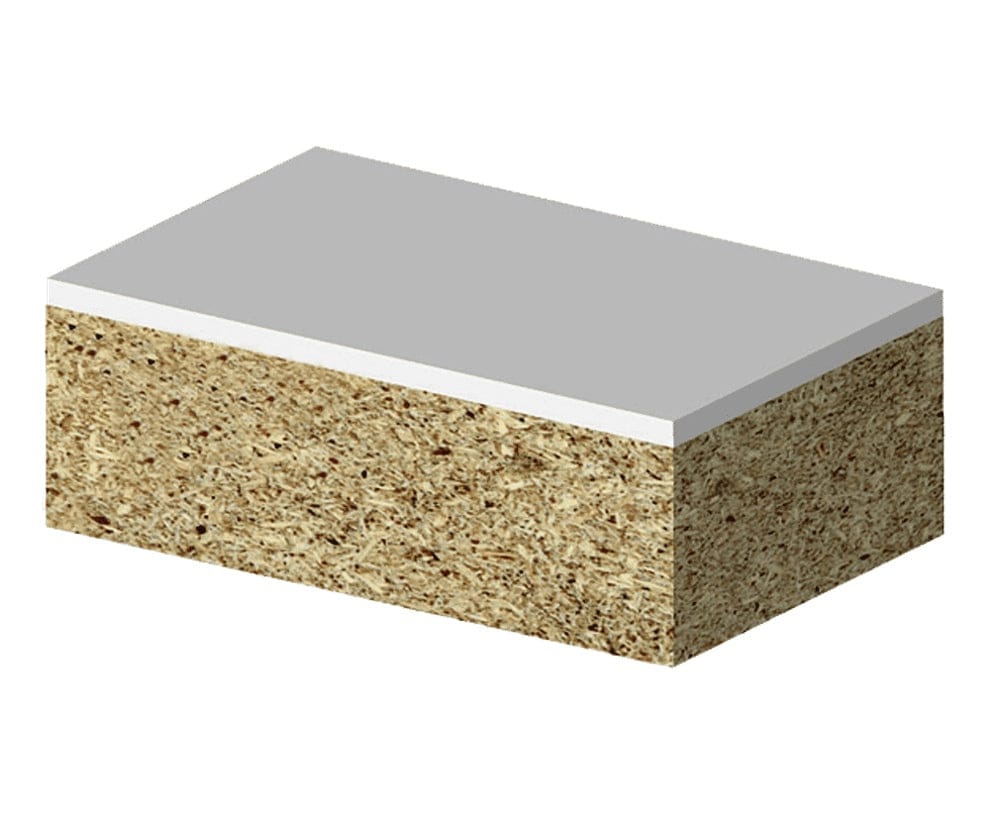

3D illustration of a wood block with a white laminate top surface being trimmed perfectly flush to the edge using the Freud 42-106 bit.

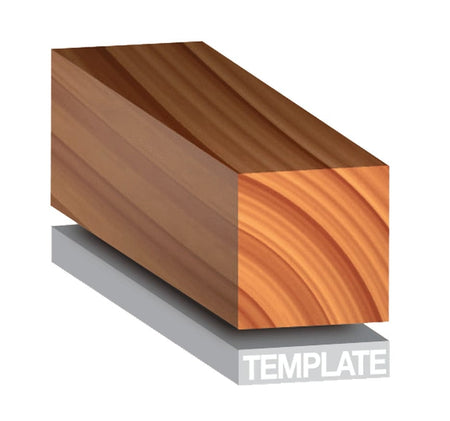

3D illustration demonstrating pattern routing where a wooden workpiece is trimmed to exactly match the shape of a template guide placed below it.
Studio shot of the Freud 42-106 Flush Trim router bit featuring a red Perma-SHIELD body, two carbide flutes, 1/4 inch silver shank, and top ball bearing pilot.
Retail packaging for the Freud 42-106 router bit showing the tool behind clear plastic with specifications including 1/2 inch diameter and 1/4 inch shank.
Technical profile diagram illustrating the straight flush trim cut on a laminate edge by the Freud 42-106 bit, specifying a 1/2 inch cutting height.
3D illustration of a wood block with a white laminate top surface being trimmed perfectly flush to the edge using the Freud 42-106 bit.
3D illustration demonstrating pattern routing where a wooden workpiece is trimmed to exactly match the shape of a template guide placed below it.
Freud

Freud 42-106 1/2 Inch Diameter Flush Trim Router Bit 1/4 Inch Shank TiCo Carbide Pattern and Laminate Trimming Tool

Only 1 left
SKU: 42-106
$16.49
Description

Achieve Flawless Flush Trims and Precision Pattern Duplication

Experience the ultimate in trimming precision with the Freud 42-106 1/2" Diameter Flush Trim Router Bit. This essential woodworking tool is expertly designed to provide perfectly smooth, burn-free edges on laminate countertops, cabinetry, and furniture. Whether you are trimming a wood veneer to size or following a template to duplicate intricate shapes, the ball bearing pilot ensures the cutter matches the profile of your substrate or pattern exactly. Its versatile design allows for efficient operation in both hand-held and table-mounted routers, giving you the flexibility needed for various workshop tasks.

Engineered for durability and a superior finish, the 42-106 features Freud’s industry-leading TiCo™ Hi-Density Carbide. This specialized micrograin formula stays sharper longer than standard carbide, effortlessly cutting through hardwood, softwood, plywood, and abrasive composites. The two-flute geometry is optimized for fast stock removal while maintaining a clean finish. Protected by the exclusive Red Perma-SHIELD® Non-Stick Coating, the bit resists friction, heat buildup, and pitch accumulation, ensuring consistently high performance even during extended use.

Key Features

  • Precision Flush Trimming: Ideal for trimming laminates, veneers, and solid wood edging flush to the surface.
  • Pattern Routing: Bearing pilot follows templates accurately for duplicating parts and shapes.
  • TiCo™ Hi-Density Carbide: Proprietary blend delivers maximum cutting life and razor-sharp edges.
  • Perma-SHIELD® Coating: Non-stick red coating protects against heat, corrosion, and resin buildup.
  • Two-Flute Design: Provides a balance of fast cutting speed and smooth surface finish.
  • Versatile Compatibility: Safe for use with hand-held and table-mounted portable routers.
  • Multi-Material Use: Cuts effectively through plywood, hardwood, softwood, and plastic laminates.

What's Included

(1) Freud 42-106 1/2" Diameter Flush Trim Router Bit

Specifications

Overall Diameter (D) 1/2"
Shank Diameter (A) 1/4"
Carbide Height (h) 1/2"
Overall Length (H) 2-1/8"
Bearing Diameter (B) 1/2"
Number of Flutes 2
Max RPM 24,000
Coating Perma-SHIELD® Non-Stick
Material TiCo™ Hi-Density Carbide
Application Flush Trimming, Pattern Routing

Pro-Tip: When using a flush trim bit for pattern work, the quality of your finished piece is directly dependent on the quality of your template. Ensure your template edge is perfectly smooth and free of bumps or divots, as the bearing will transfer even the slightest imperfection from the template directly to your workpiece.
