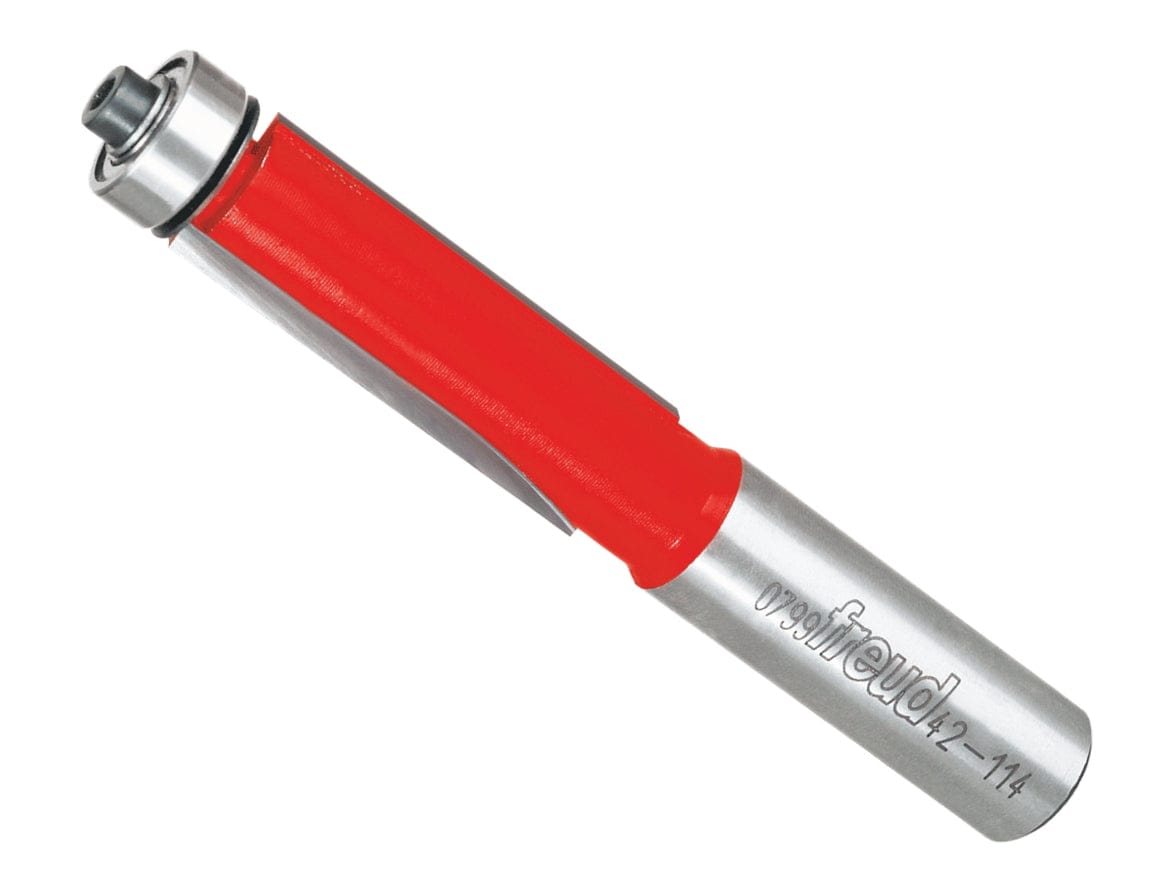

Studio shot of the Freud 42-114 Flush Trim router bit featuring a red Perma-SHIELD body, two carbide flutes, 1/2 inch silver shank, and top ball bearing pilot.

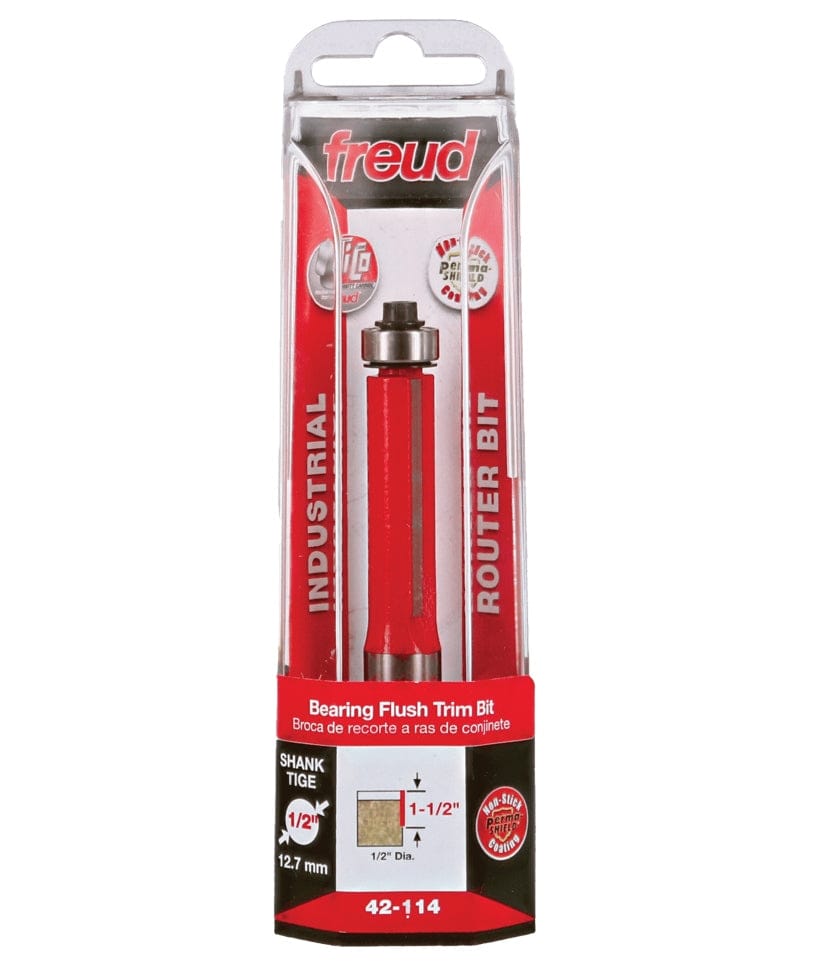

Retail packaging for the Freud 42-114 router bit showing the tool behind clear plastic with specifications including 1/2 inch diameter and 1/2 inch shank.
Technical profile diagram illustrating the straight flush trim cut on a laminate edge by the Freud 42-114 bit, specifying a 1-1/2 inch cutting height.

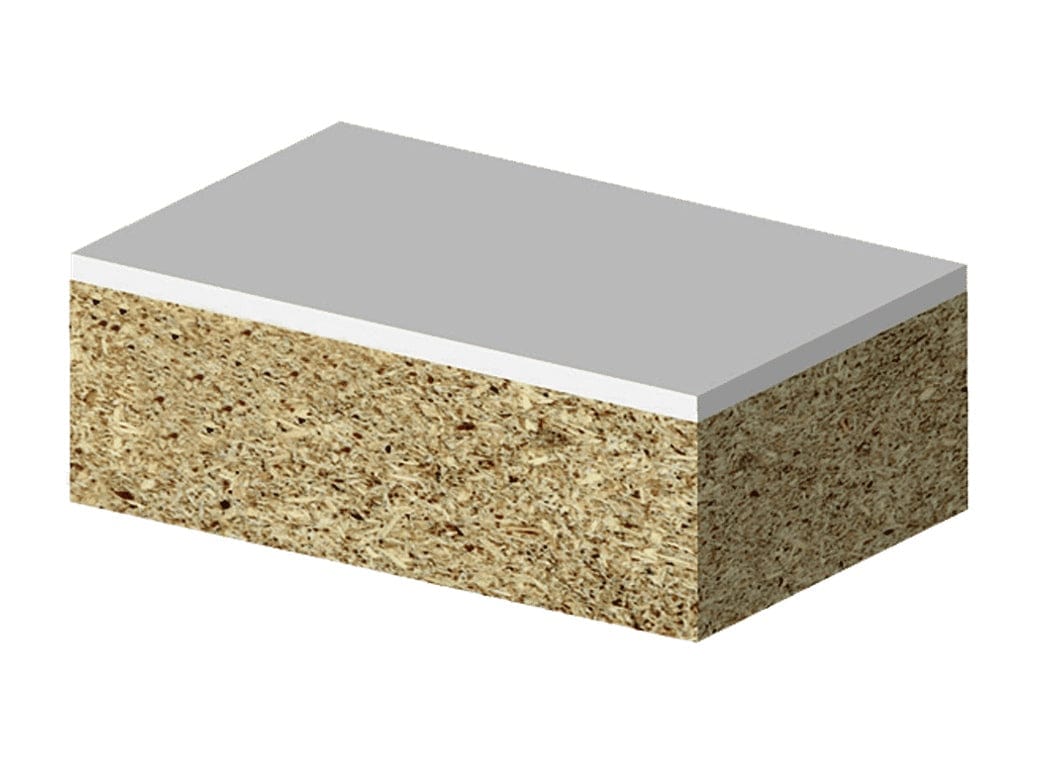

3D illustration of a wood block with a white laminate top surface being trimmed perfectly flush to the edge using the Freud 42-114 bit.

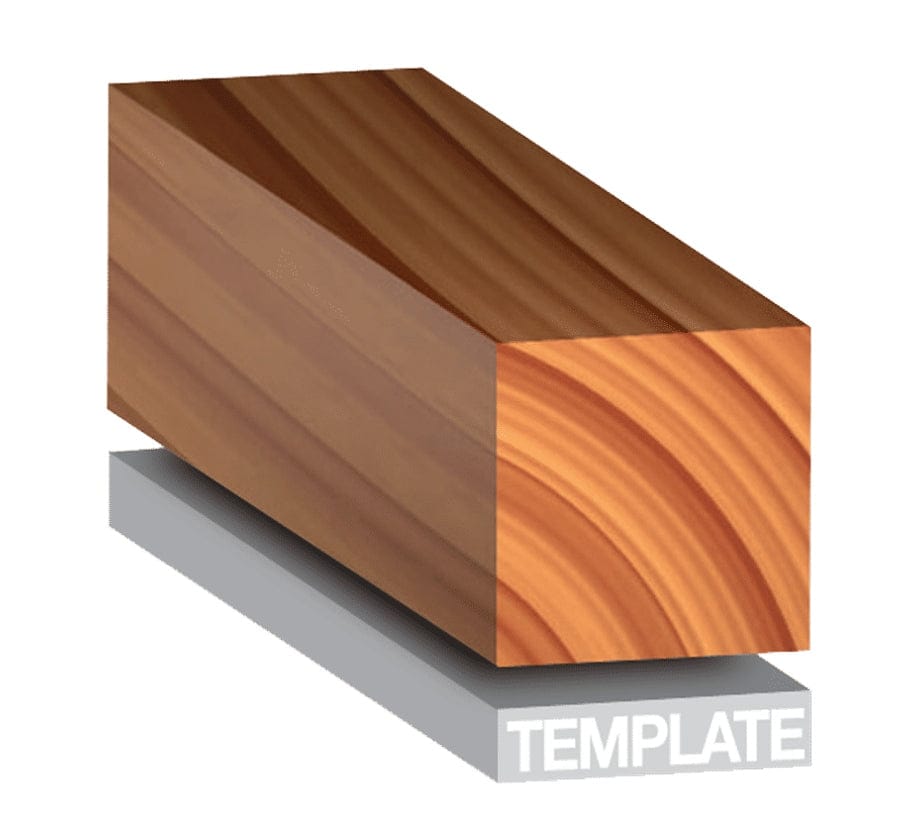

3D illustration demonstrating pattern routing where a wooden workpiece is trimmed to exactly match the shape of a template guide placed below it.
Studio shot of the Freud 42-114 Flush Trim router bit featuring a red Perma-SHIELD body, two carbide flutes, 1/2 inch silver shank, and top ball bearing pilot.
Studio shot of the Freud 42-114 Flush Trim router bit featuring a red Perma-SHIELD body, two carbide flutes, 1/2 inch silver shank, and top ball bearing pilot.
Retail packaging for the Freud 42-114 router bit showing the tool behind clear plastic with specifications including 1/2 inch diameter and 1/2 inch shank.
Technical profile diagram illustrating the straight flush trim cut on a laminate edge by the Freud 42-114 bit, specifying a 1-1/2 inch cutting height.
3D illustration of a wood block with a white laminate top surface being trimmed perfectly flush to the edge using the Freud 42-114 bit.
3D illustration demonstrating pattern routing where a wooden workpiece is trimmed to exactly match the shape of a template guide placed below it.
Studio shot of the Freud 42-114 Flush Trim router bit featuring a red Perma-SHIELD body, two carbide flutes, 1/2 inch silver shank, and top ball bearing pilot.
Freud

Freud Router Bit 42-114 1/2 In Dia 1/2 In Shank Flush Trim (24000 RPM TiCo Carbide Perma-SHIELD Ball Bearing Pilot Pattern Laminate Wood Trimming)

Only 1 left
SKU: 42-114
$19.79 USD

Description

Freud precisely the best logo Logout

Precision Freud 1/2 Inch Flush Trim Router Bit 42-114 with 1/2 Inch Shank

The Freud 42-114 1/2-Inch Diameter Flush Trim Router Bit functions as a commercial-grade deep-profile pattern trimming tool engineered to execute flush edge cuts, template replication, and multi-layer laminate overhang removal on solid hardwoods, softwoods, cabinet plywood, and plastic laminates. Manufactured with micrograin TiCo High-Density Carbide cutters coated in friction-reducing Red Perma-SHIELD non-stick coating, this heavy-duty 1/2-inch shank bit features a steel ball bearing pilot, an extended 1-1/2-inch carbide height, and a 24,000 RPM maximum speed rating. Compatible with handheld portable routers and router table setups, this double-flute flush trim bit delivers smooth, burn-free edge profiles across thick stock material, countertop fabrication, and deep pattern joinery tasks.

Best Used For:

  • Deep Stock Laminate & Veneer Trimming: Trimming thick plastic laminate overhangs, multi-layer veneers, and thick hardwood edging flush with cabinet substrates in a single pass.
  • Deep Template & Pattern Replication: Following thick template curves using the steel ball bearing pilot to duplicate furniture components accurately without deflection.
  • Cabinet Face-Frame & Edge Banding Flush Cutting: Leveling solid wood edge bands up to 1-1/2 inches thick flush to plywood cabinet panels without tear-out or surface burning.

Key Performance & Safety Features

  • Extended 1-1/2-Inch Cutting Height: Ample carbide height allows for trimming thick wood stock, deep templates, and tall face-frame edging in a single setup.
  • Heavy-Duty 1/2-Inch Steel Shank: Minimizes shank flex, bit deflection, and vibration for smoother surface cuts and safer operation during deep cuts.
  • Precision Steel Ball Bearing Pilot: Guide bearing tracks templates and edge substrate faces smoothly to prevent workpiece scoring.
  • TiCo High-Density Micrograin Carbide: Proprietary titanium-cobalt carbide formulation maintains razor-sharp edges significantly longer than standard carbide when milling abrasive laminates.
  • Red Perma-SHIELD Thermal Barrier Coating: Non-stick fluoropolymer coating insulates the bit body against heat buildup, resin accumulation, and rust corrosion.
  • Computer-Balanced Dynamically Balanced Body: Dynamically balanced tool body eliminates vibration and chatter marks at speeds up to 24,000 RPM.

What's Included

  • (1) Freud 42-114 1/2" Diameter Flush Trim Router Bit with 1/2" Shank

Technical Specifications

Brand Name Freud
Model Number SKU 42-114
Product Tool Classification Extended Deep Profile Flush Trim Pattern Router Bit
Overall Cut Diameter (D) 0.500 in. (1/2 in.)
Shank Diameter (A) 0.500 in. (1/2 in.)
Carbide Cutting Height (h) 1.500 in. (1-1/2 in.)
Overall Bit Length (H) 3.625 in. (3-5/8 in.)
Pilot Ball Bearing Diameter (B) 0.500 in. (1/2 in.)
Number of Cutting Flutes 2 Carbide Wings
Maximum Rotational Speed 24,000 RPM
Protective Body Coating Red Perma-SHIELD Non-Stick Coating
Carbide Grade Composition TiCo High-Density Micrograin Carbide
Machine Equipment Compatibility Handheld Routers and Router Tables with 1/2" Collet
Target Substrates Plastic Laminates, Wood Veneers, Hardwood, Softwood, Plywood, MDF

Pro-Tip: When using this extended 1-1/2-inch cutting height flush trim bit to cut deep profiles on thick hardwood stock, make sure the shank is inserted fully into your router's collet up to the safety line marked on the shank. Maximizing shank insertion into a 1/2-inch collet prevents bit runout and deflection under heavy side load, keeping the top ball bearing tracking accurately along your template face.
