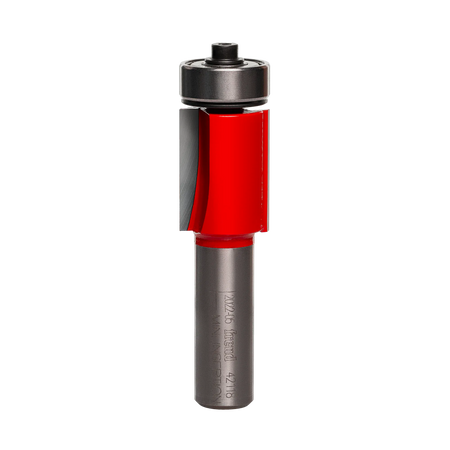

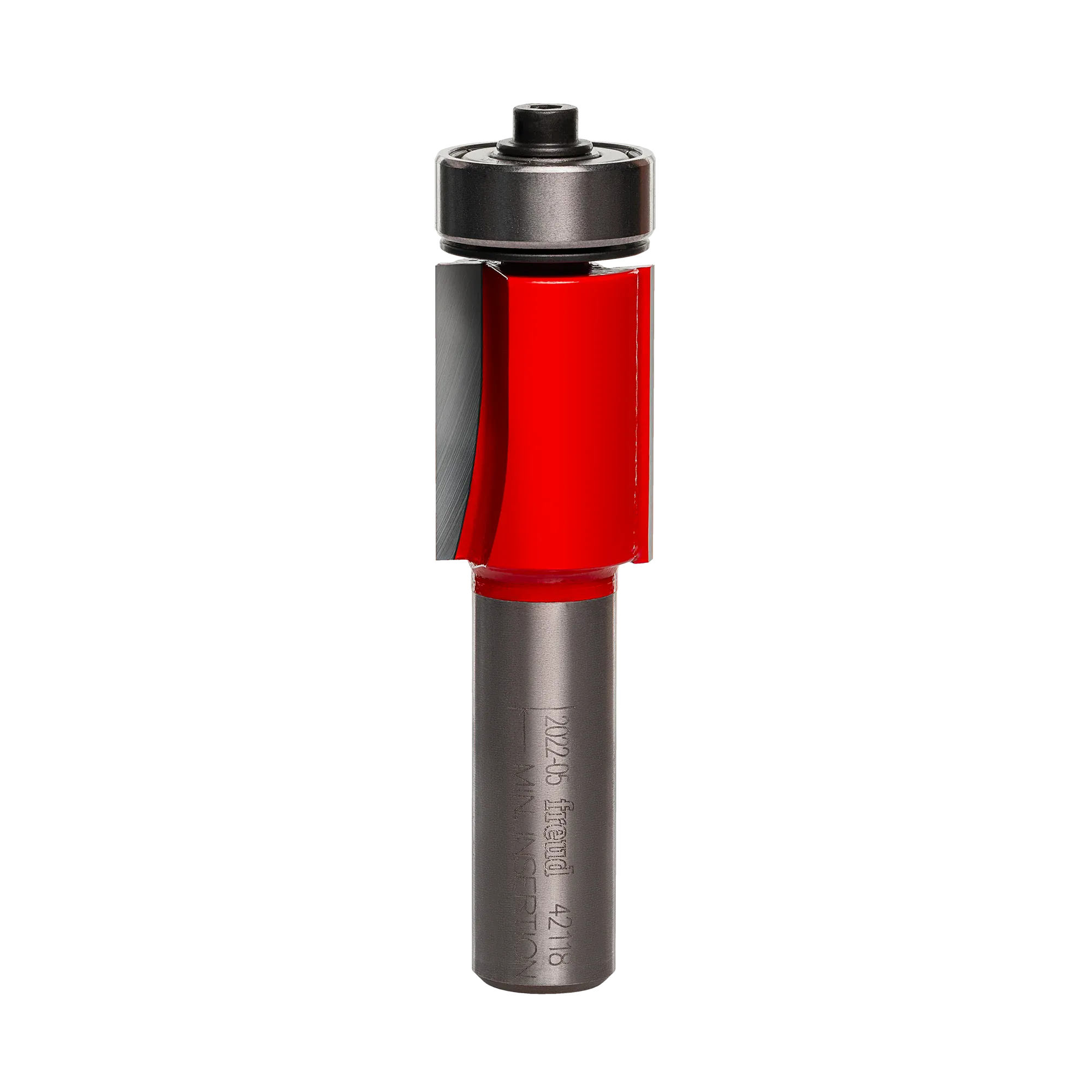

Studio shot of the Freud 42-118 Flush Trim router bit featuring a red Perma-SHIELD body, two carbide flutes, 1/2 inch silver shank, and top ball bearing pilot.

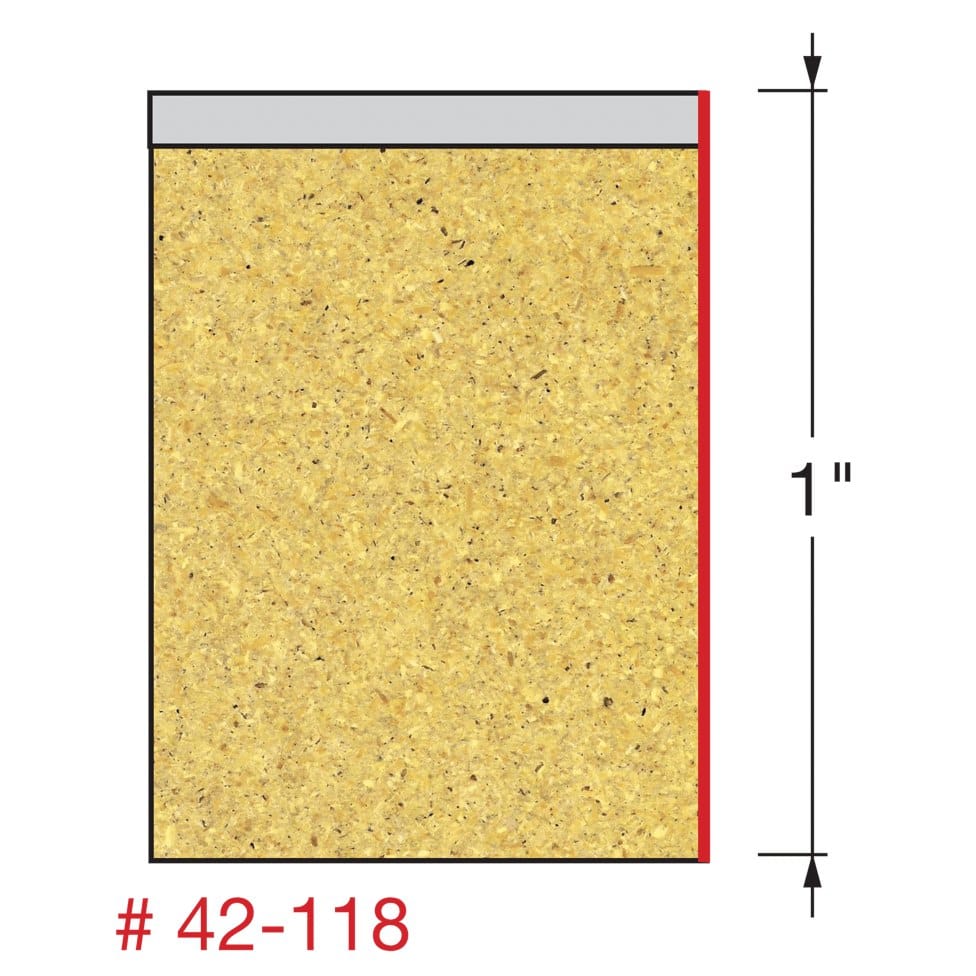

Technical profile diagram illustrating the straight flush trim cut on a laminate edge by the Freud 42-118 bit, specifying a 1 inch cutting height.

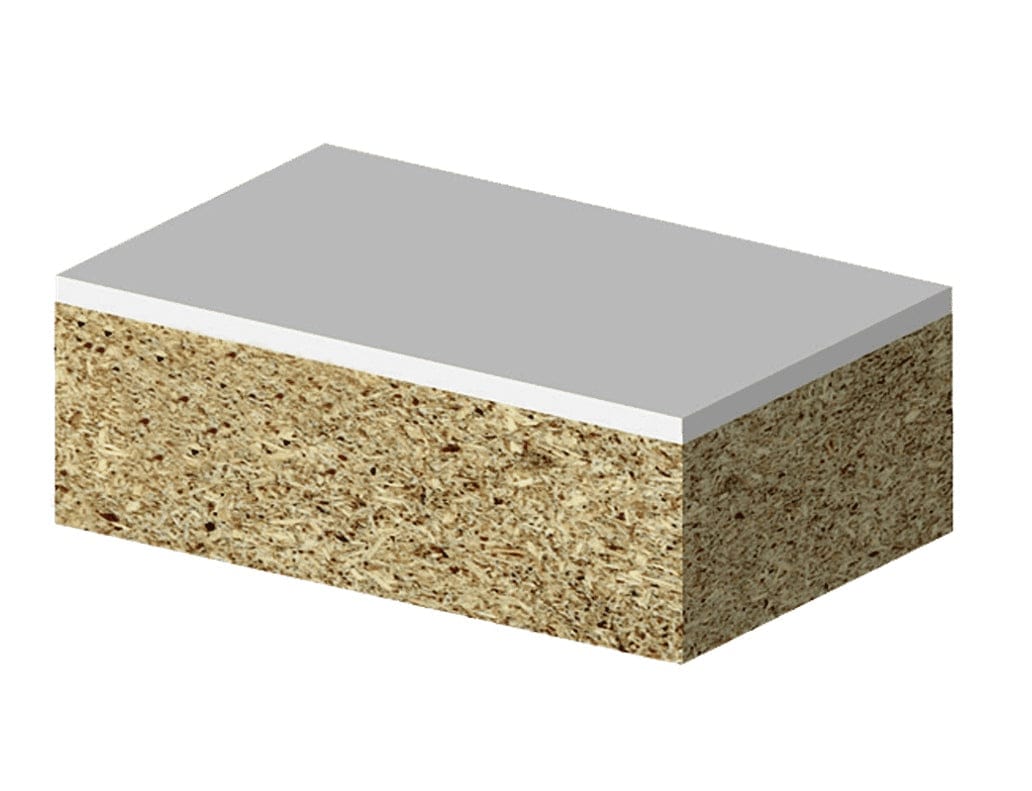

3D illustration of a wood block with a white laminate top surface being trimmed perfectly flush to the edge using the Freud 42-118 bit.

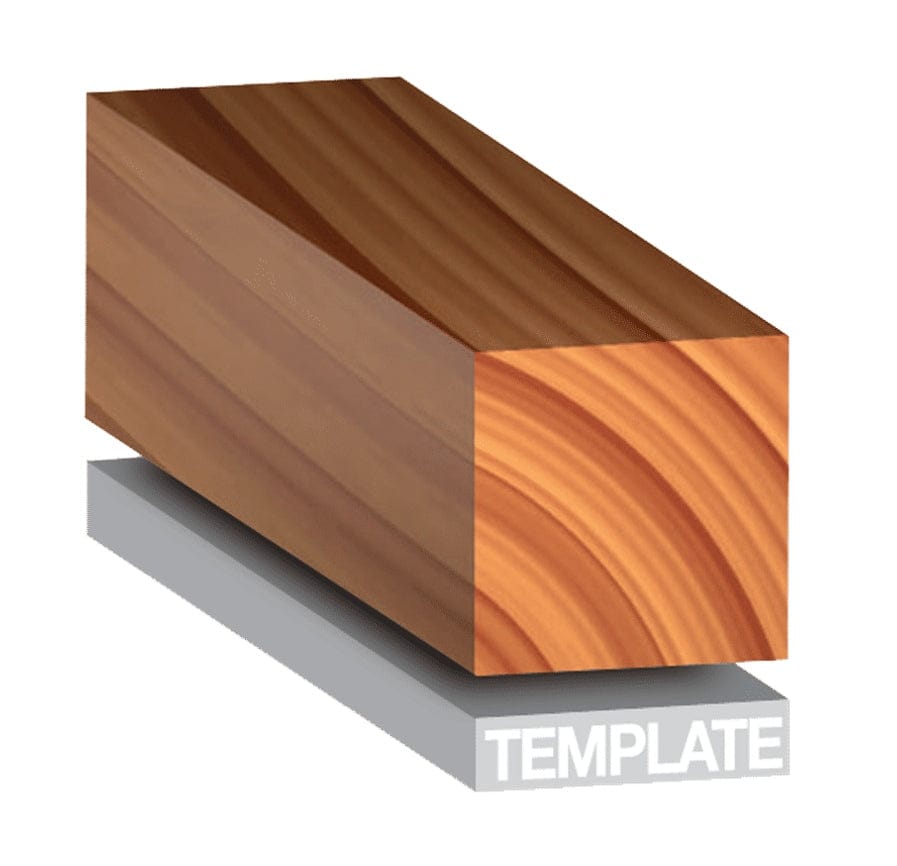

3D illustration demonstrating pattern routing where a wooden workpiece is trimmed to exactly match the shape of a template guide placed below it.
Freud Flush Trim Bits Make Your Job Easier promotional video
Studio shot of the Freud 42-118 Flush Trim router bit featuring a red Perma-SHIELD body, two carbide flutes, 1/2 inch silver shank, and top ball bearing pilot.
Technical profile diagram illustrating the straight flush trim cut on a laminate edge by the Freud 42-118 bit, specifying a 1 inch cutting height.
3D illustration of a wood block with a white laminate top surface being trimmed perfectly flush to the edge using the Freud 42-118 bit.
3D illustration demonstrating pattern routing where a wooden workpiece is trimmed to exactly match the shape of a template guide placed below it.
Freud Flush Trim Bits Make Your Job Easier promotional video
Freud

Freud 42-118 3/4 Inch Diameter Flush Trim Router Bit 1 Inch Height 1/2 Inch Shank TiCo Carbide Pattern and Laminate Trimming Tool

Only 1 left
SKU: 42-118
$19.97 USD

Description

Freud precisely the best logo Logout

Maximize Finish Quality with Large Diameter Flush Trimming Stability

Upgrade your routing precision with the Freud 42-118 3/4" Diameter Flush Trim Router Bit. While standard flush trim bits often use a 1/2" diameter, this professional-grade tool features a substantial 3/4" diameter cutter. This larger diameter changes the angle at which the cutting edge meets the wood, resulting in a cleaner shearing action that significantly reduces tear-out on complex grain patterns. Coupled with a 1-inch cutting height, it is the ideal solution for trimming thick hardwood edging, laminate countertops, and duplicating patterns where a superior surface finish is required.

Built for heavy-duty performance, the 42-118 utilizes a rigid 1/2" shank to minimize vibration and chatter, ensuring safe operation even during deep cuts. The cutting edges are crafted from Freud’s exclusive TiCo™ Hi-Density Carbide, a proprietary micrograin formula that retains sharpness up to four times longer than standard bits. The bit is finished with the signature Red Perma-SHIELD® Non-Stick Coating, which reduces friction, prevents overheating, and resists pitch buildup. Whether used in a hand-held router for site work or a router table for production runs, this bit delivers consistent, burn-free results.

Key Features

  • Large 3/4" Diameter: Provides a shallower cutting angle for a smoother finish and less tear-out.
  • Heavy-Duty Stability: 1/2" shank and large body mass reduce vibration for chatter-free cuts.
  • Precision Pattern Routing: Top-mounted ball bearing accurately follows templates and substrates.
  • TiCo™ Hi-Density Carbide: Specialized blend delivers maximum cutting life and razor-sharp edges.
  • Perma-SHIELD® Coating: Non-stick red coating protects against heat, corrosion, and resin accumulation.
  • Versatile Application: Safe for use with hand-held and table-mounted portable routers.
  • Multi-Material Use: Cuts effectively through plywood, hardwood, softwood, and laminates.

What's Included

(1) Freud 42-118 3/4" Diameter Flush Trim Router Bit



Specifications

Overall Diameter (D) 3/4"
Shank Diameter (A) 1/2"
Carbide Height (h) 1"
Overall Length (H) 3-1/4"
Bearing Diameter (B) 3/4"
Number of Cutters 2
Max RPM 24,000
Coating Perma-SHIELD® Non-Stick
Material TiCo™ Hi-Density Carbide
Application Flush Trimming, Pattern Routing

Pro-Tip: The 3/4" diameter of this bit offers a distinct advantage over smaller bits: geometry. The larger circumference creates a flatter "exit angle" for the cutter as it leaves the wood. This physics advantage means you will experience significantly less chipping and tear-out on tricky wood grains compared to a standard 1/2" diameter trim bit.
