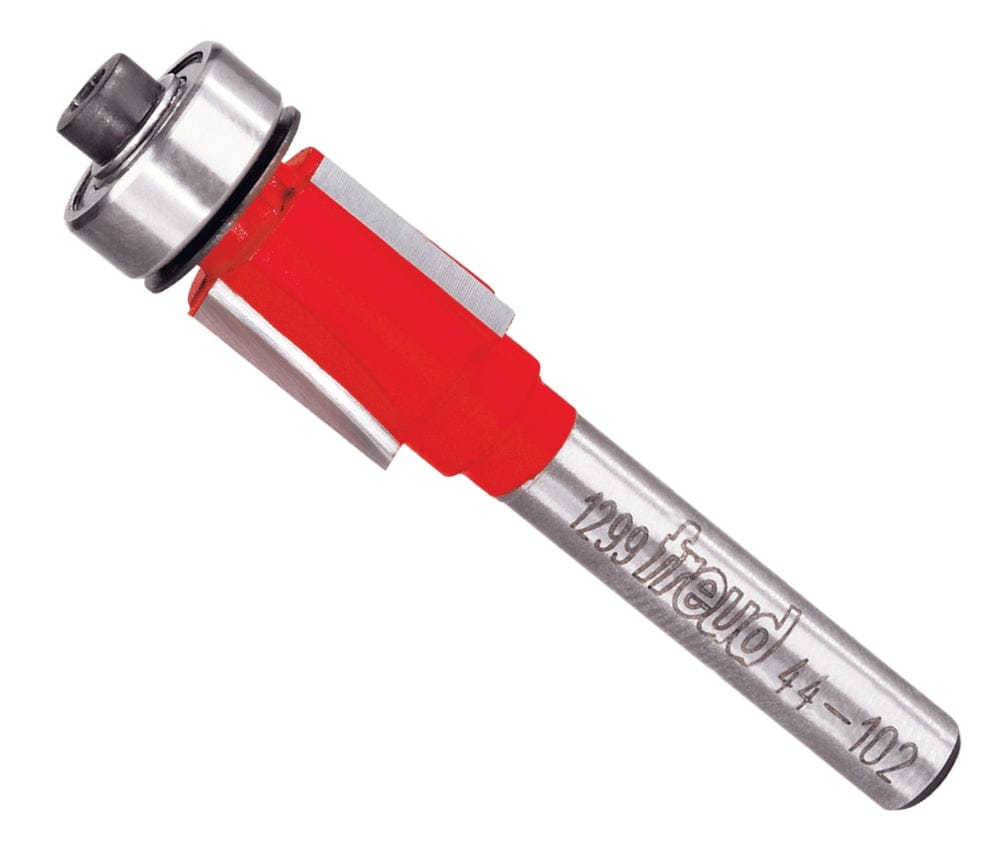

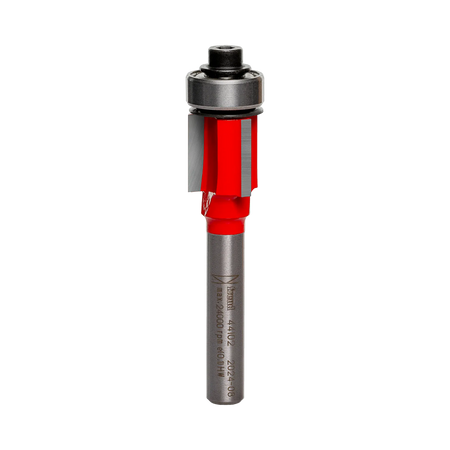

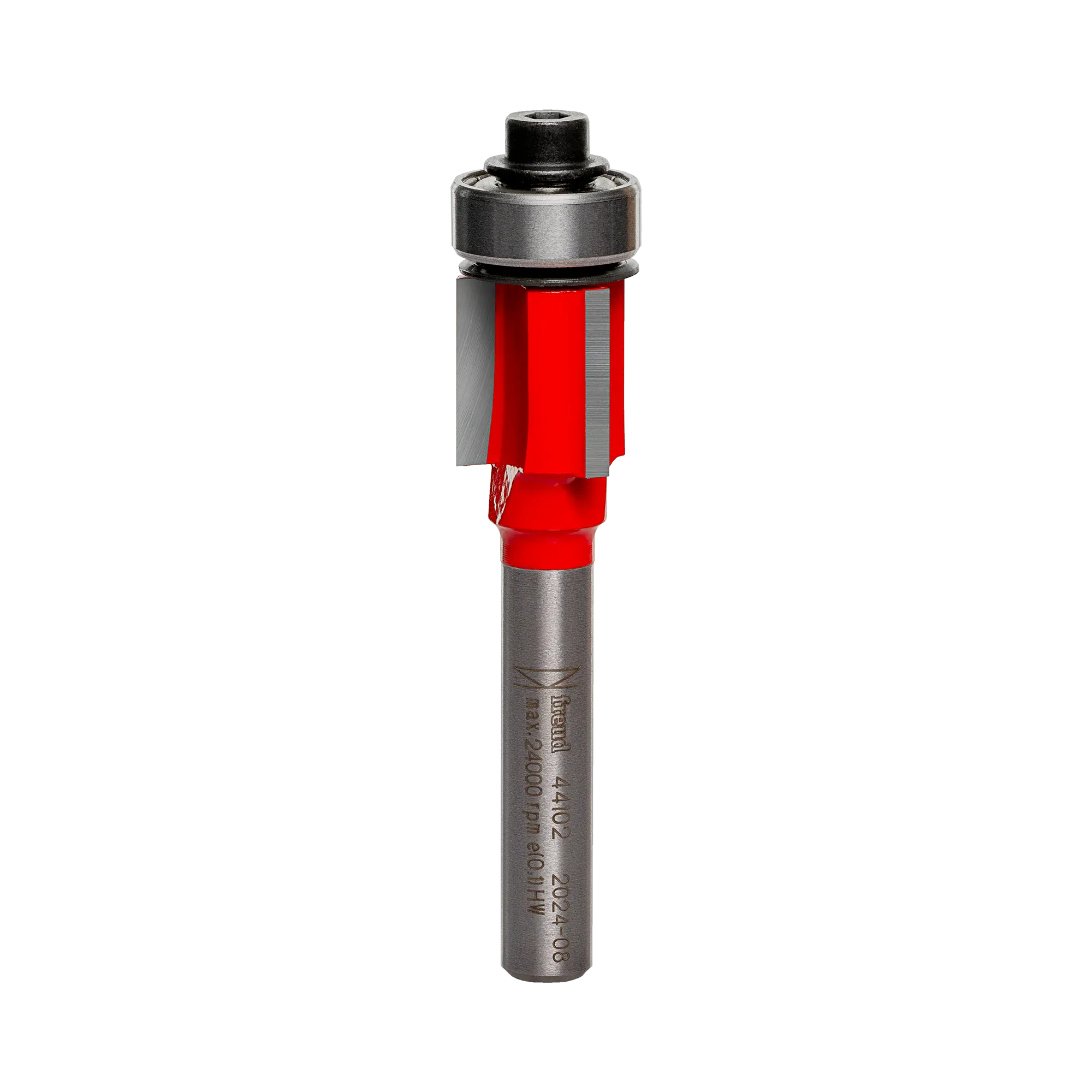

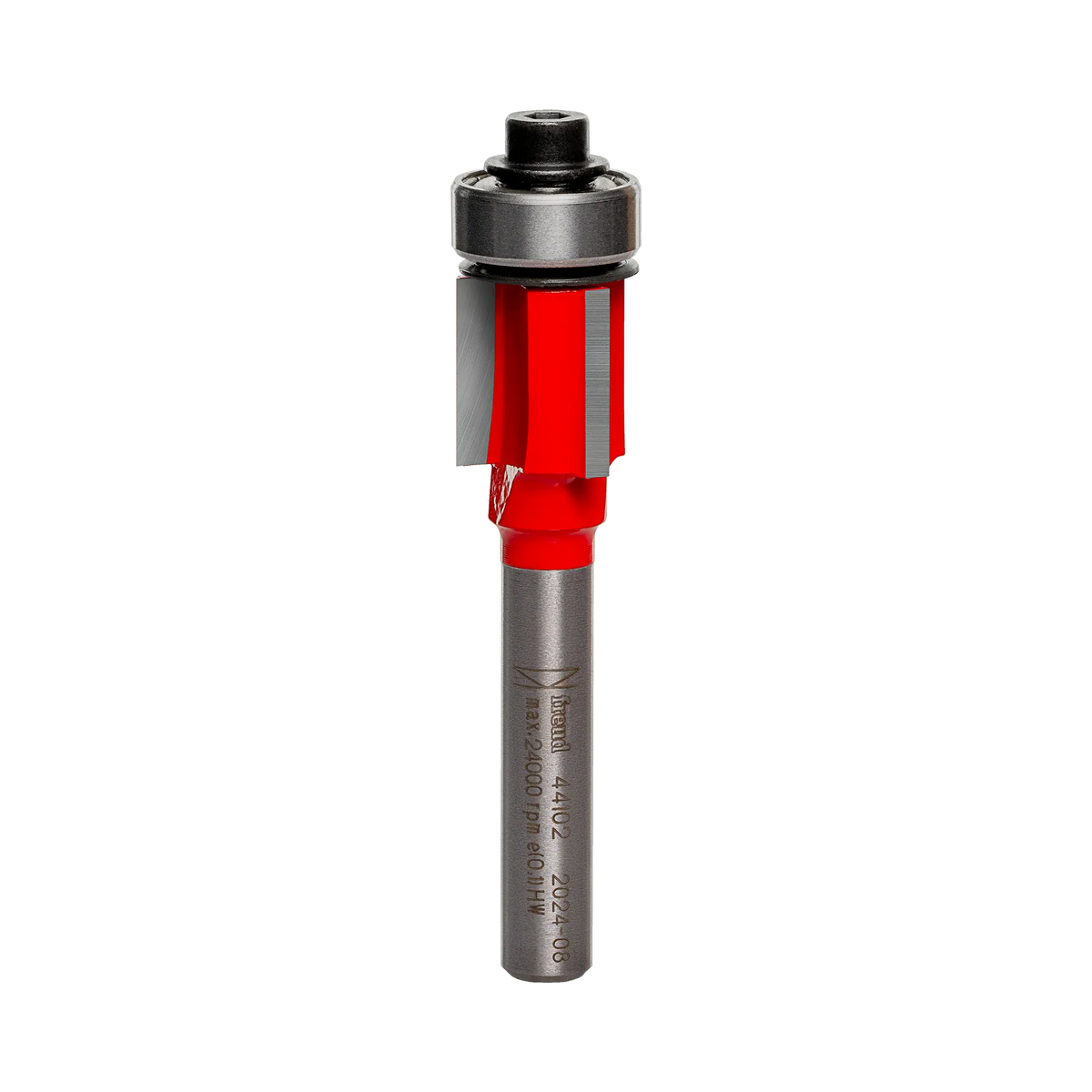

Studio shot of the Freud 44-102 Flush Trim router bit featuring a red Perma-SHIELD body, three carbide flutes, 1/4 inch silver shank, and top ball bearing pilot.

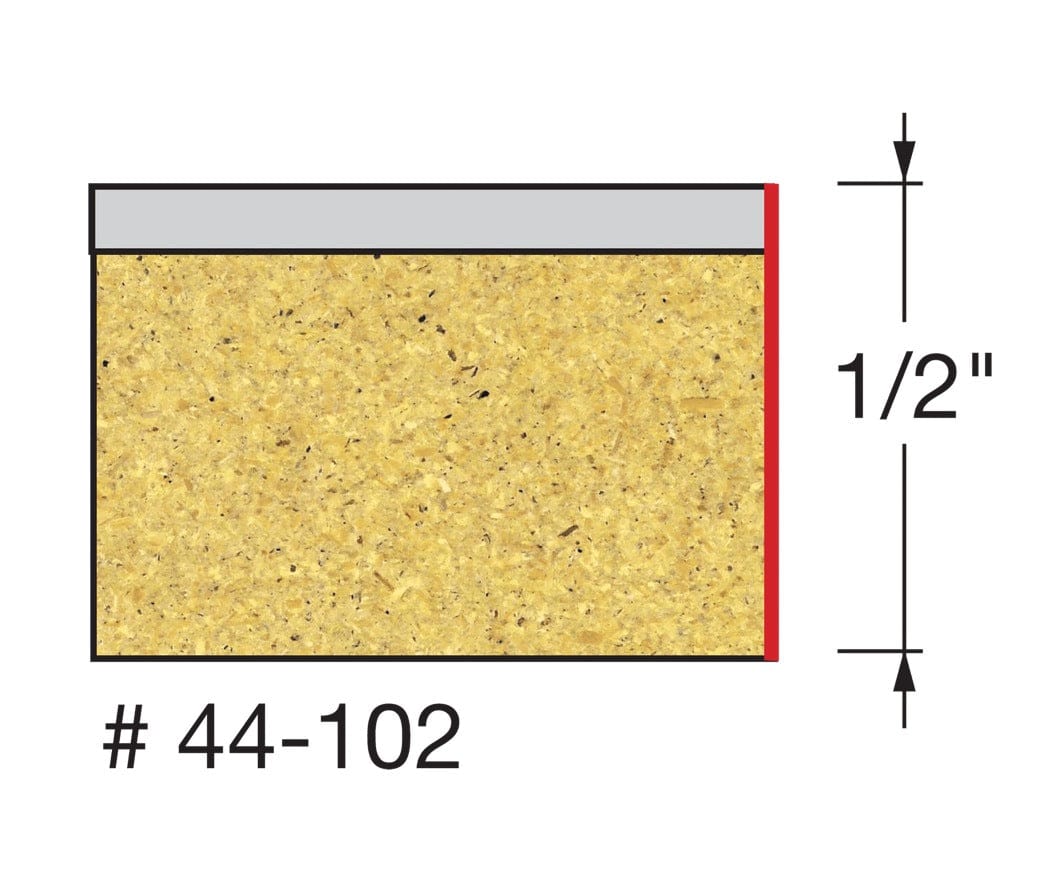

Technical profile diagram illustrating the straight flush trim cut on a laminate edge by the Freud 44-102 bit, specifying a 1/2 inch cutting height.

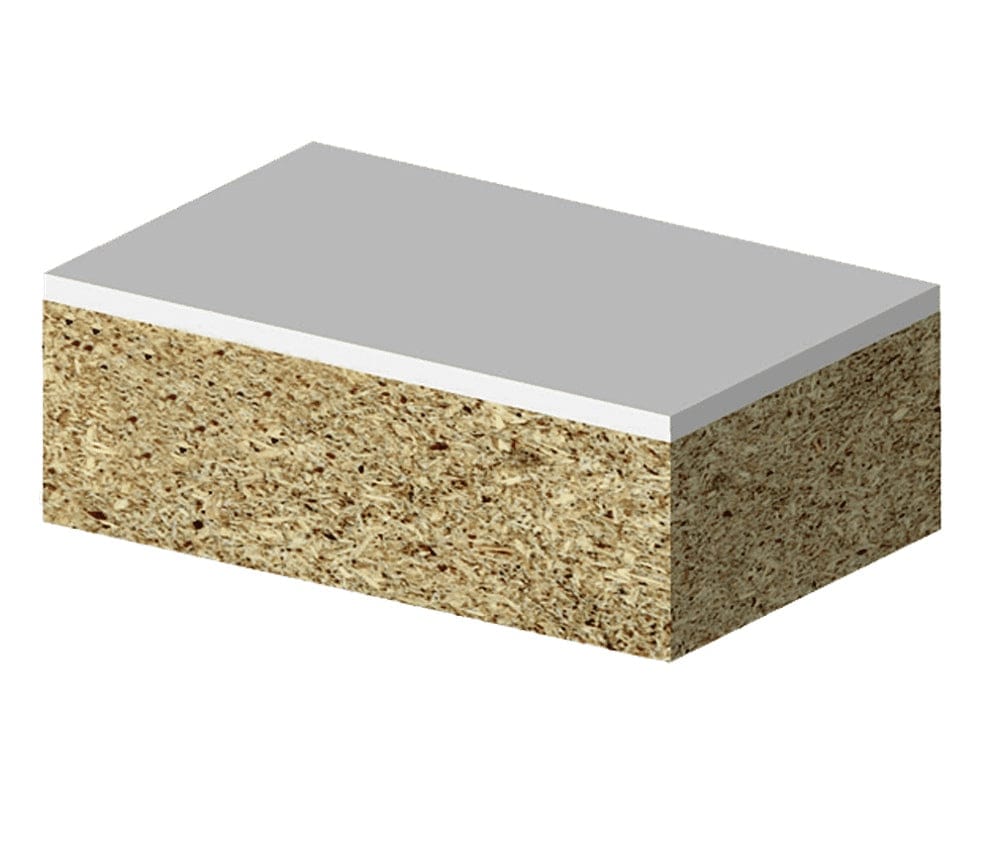

3D illustration of a wood block with a white laminate top surface being trimmed perfectly flush to the edge using the Freud 44-102 bit.

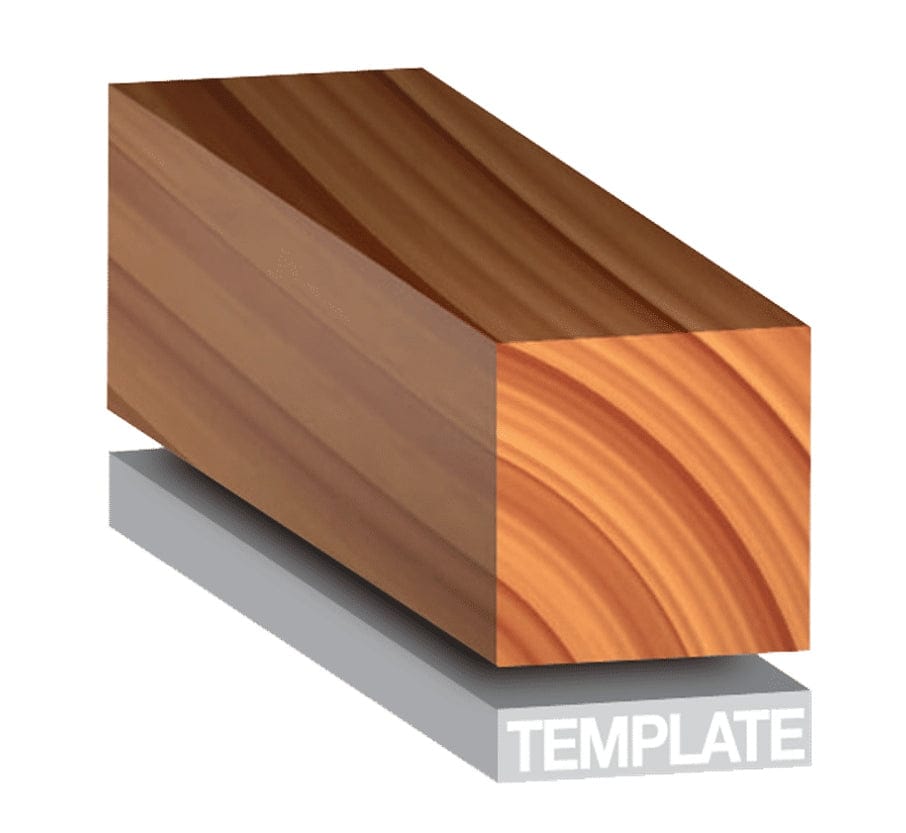

3D illustration demonstrating pattern routing where a wooden workpiece is trimmed to exactly match the shape of a template guide placed below it.
Studio shot of the Freud 44-102 Flush Trim router bit featuring a red Perma-SHIELD body, three carbide flutes, 1/4 inch silver shank, and top ball bearing pilot.
Studio shot of the Freud 44-102 Flush Trim router bit featuring a red Perma-SHIELD body, three carbide flutes, 1/4 inch silver shank, and top ball bearing pilot.
Technical profile diagram illustrating the straight flush trim cut on a laminate edge by the Freud 44-102 bit, specifying a 1/2 inch cutting height.
3D illustration of a wood block with a white laminate top surface being trimmed perfectly flush to the edge using the Freud 44-102 bit.
3D illustration demonstrating pattern routing where a wooden workpiece is trimmed to exactly match the shape of a template guide placed below it.
Studio shot of the Freud 44-102 Flush Trim router bit featuring a red Perma-SHIELD body, three carbide flutes, 1/4 inch silver shank, and top ball bearing pilot.
Freud

Freud 44-102 1/2 Inch Diameter 3-Flute Flush Trim Router Bit 1/4 Inch Shank TiCo Carbide Tool for Ultra Smooth Laminate and Pattern Routing

Only 1 left
SKU: 44-102
$22.95 USD

Description

Freud precisely the best logo Logout

Achieve a Mirror-Like Finish with 3-Flute Precision Trimming

Elevate your woodworking projects to a professional standard with the Freud 44-102 1/2" Diameter Flush Trim Router Bit. Unlike standard two-flute bits, this premium tool features a three-flute design. This additional cutting edge increases the cuts per inch, resulting in an ultra-smooth, burn-free surface on the edge of your workpiece. It is the ultimate choice for discerning woodworkers who need to trim plastic laminates, wood veneers, or solid wood edging perfectly flush with a substrate without the ripple marks often left by aggressive cutters.

Engineered for durability and exacting performance, the 44-102 is crafted with Freud’s exclusive TiCo™ Hi-Density Carbide. This specialized micrograin formula retains a razor-sharp edge significantly longer than standard bits, even when cutting through abrasive composites and plywood. The precision-ground ball bearing pilot glides effortlessly along your template or existing edge, making it perfect for pattern routing and duplicating intricate shapes. Protected by the signature Red Perma-SHIELD® Non-Stick Coating, the bit resists friction, heat buildup, and resin accumulation, ensuring cool operation and extended tool life in hand-held or table-mounted routers.

Key Features

  • 3-Flute Geometry: Delivers a superior, ultra-smooth finish compared to standard 2-flute bits.
  • Precision Flush Trimming: Trims laminates and veneers perfectly flush without chipping or burning.
  • Pattern Duplication: Top-mounted ball bearing pilot follows templates with exacting accuracy.
  • TiCo™ Hi-Density Carbide: Proprietary blend offers maximum edge retention and durability.
  • Perma-SHIELD® Coating: Non-stick red coating reduces heat and prevents pitch and rust buildup.
  • Versatile Compatibility: Balanced for safe use in both hand-held and table-mounted routers.
  • 1/4" Shank: Standard shank size fits most trim routers and standard routers.

What's Included

(1) Freud 44-102 1/2" Diameter 3-Flute Flush Trim Router Bit

Specifications

Overall Diameter (D) 1/2"
Shank Diameter (A) 1/4"
Carbide Height (h) 1/2"
Overall Length (H) 2-1/8"
Bearing Diameter (B) 1/2"
Number of Cutters 3
Max RPM 24,000
Coating Perma-SHIELD® Non-Stick
Material TiCo™ Hi-Density Carbide

Pro-Tip: While 3-flute bits leave a superior finish, they have slightly smaller gullets for chip ejection compared to 2-flute bits. To prevent the bit from heating up, maintain a steady, moderate feed rate. Do not slow down too much in the cut, as dwelling in one spot can cause friction burning, especially on cherry or maple.
