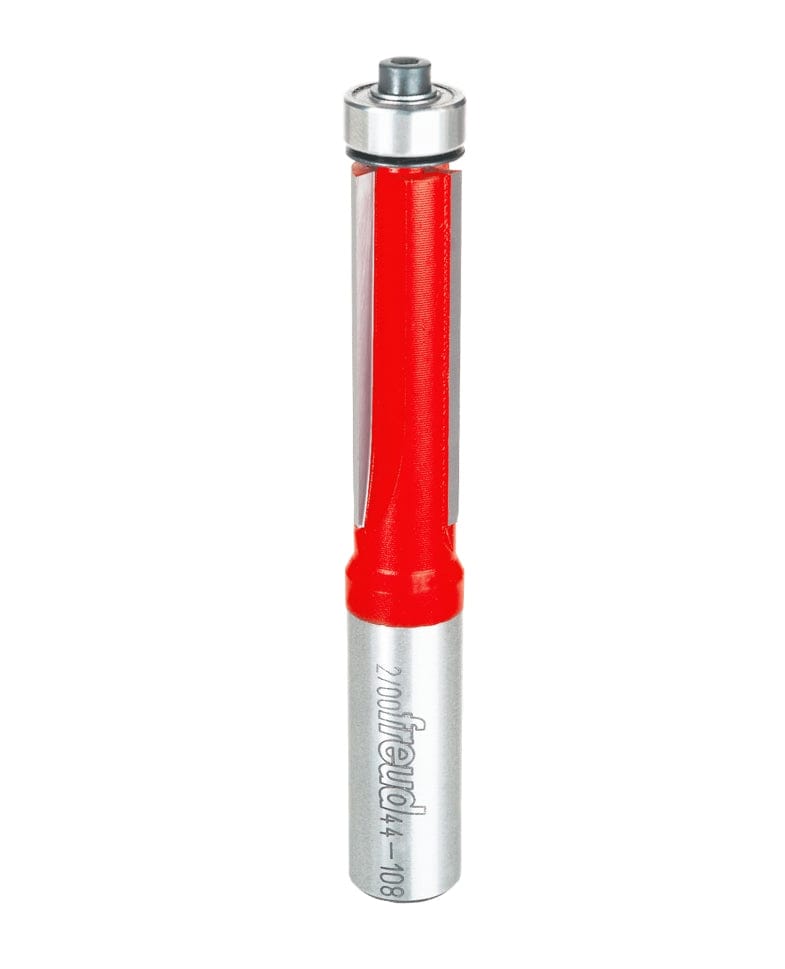

Freud 44-108 1/2 inch diameter three-flute flush trim router bit shown with a red body, silver shank, and top-mounted bearing.

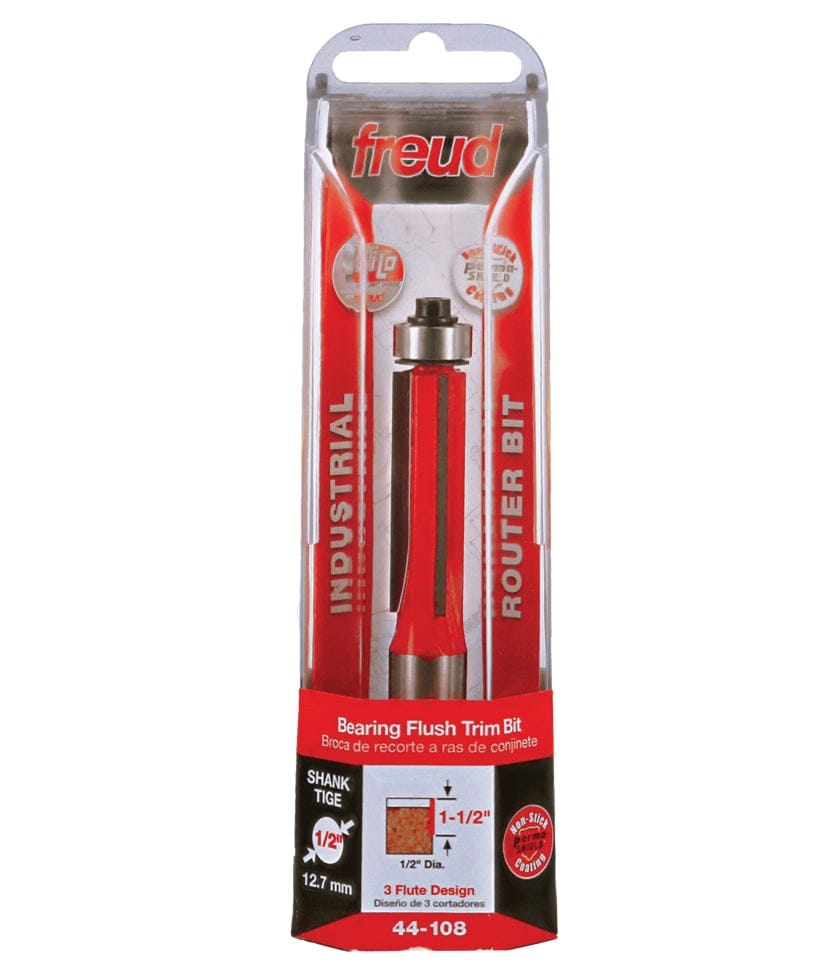

Freud 44-108 Bearing Flush Trim Bit shown in its original retail packaging, highlighting the 1/2 inch shank and 1-1/2 inch cutting height.

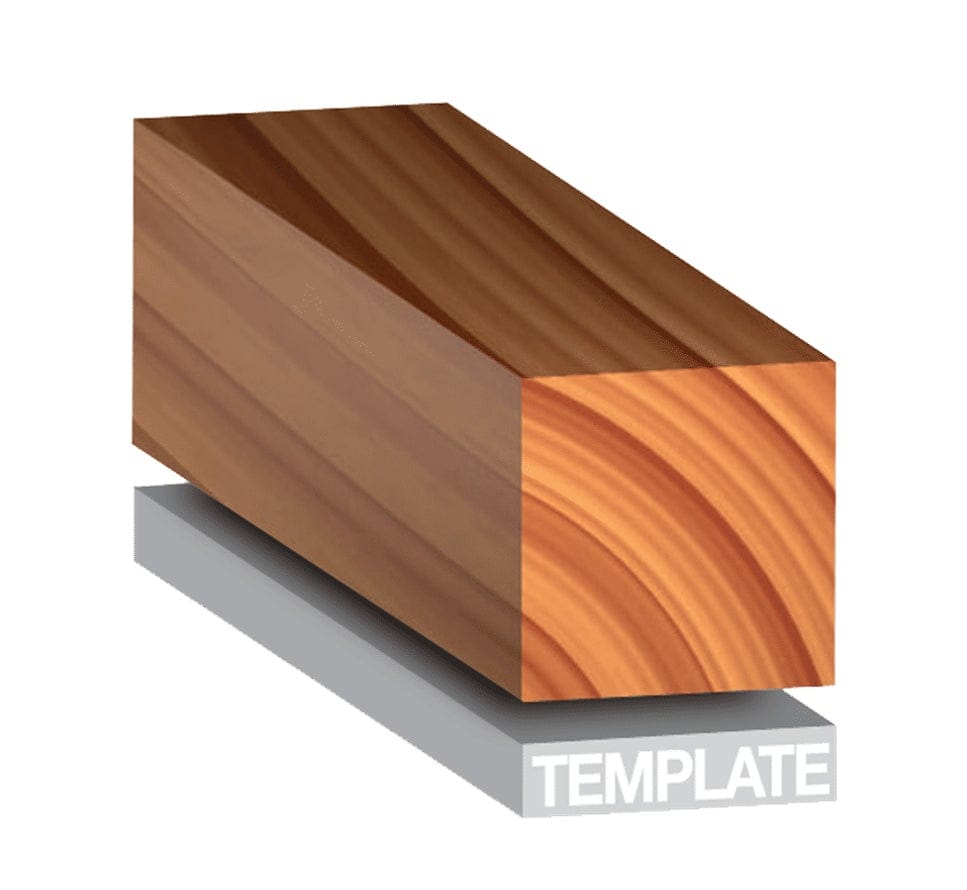

Diagram illustrating the application of a flush trim router bit, showing a piece of wood being cut flush against a gray template below it.
Image of particle board or composite material with a layer of white laminate on top, representing common material for flush trimming.

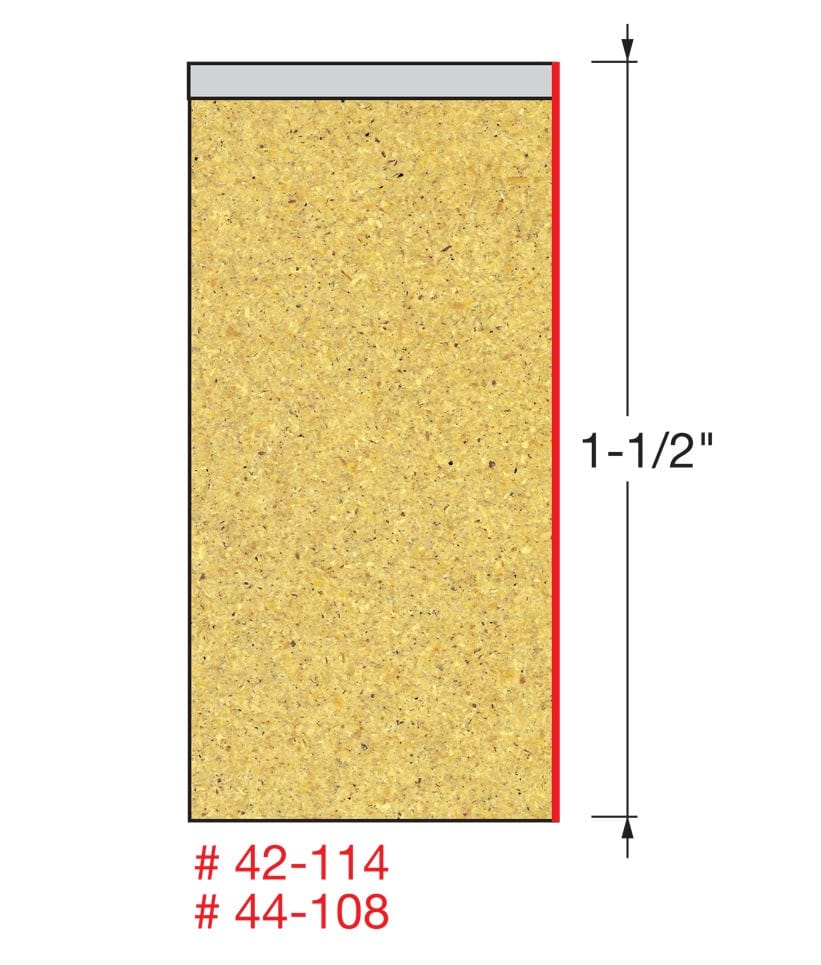

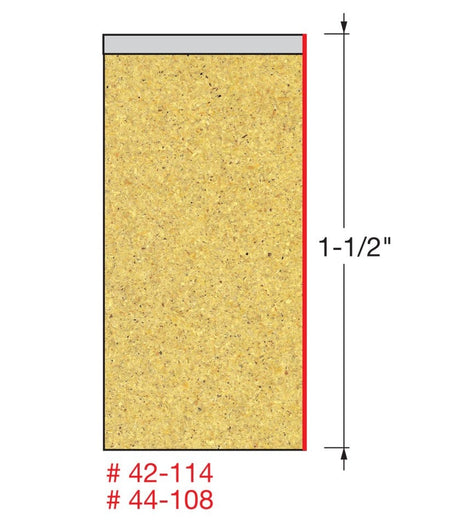

Dimensional diagram showing a cross-section of particle board being cut by the router bit, indicating a cutting depth of 1-1/2 inches.
Freud 44-108 1/2 inch diameter three-flute flush trim router bit shown with a red body, silver shank, and top-mounted bearing.
Freud 44-108 1/2 inch diameter three-flute flush trim router bit shown with a red body, silver shank, and top-mounted bearing.
Freud 44-108 Bearing Flush Trim Bit shown in its original retail packaging, highlighting the 1/2 inch shank and 1-1/2 inch cutting height.
Diagram illustrating the application of a flush trim router bit, showing a piece of wood being cut flush against a gray template below it.
Image of particle board or composite material with a layer of white laminate on top, representing common material for flush trimming.
Dimensional diagram showing a cross-section of particle board being cut by the router bit, indicating a cutting depth of 1-1/2 inches.
Freud 44-108 1/2 inch diameter three-flute flush trim router bit shown with a red body, silver shank, and top-mounted bearing.
Freud

Freud Router Bit 44108 1/2 Inch Three Flute Flush Trim (1/2 Inch Shank 24000 Max RPM Perma SHIELD Pattern Template Cutting Tool)

In stock
SKU: 44-108
$25.08 USD
$54.69 USD Sale $25.08 USD

Description

Freud precisely the best logo Logout

Freud 44-108 1/2-Inch Shank Three-Flute Carbide Flush Trim Pattern Router Bit

The Freud 44-108 1/2-Inch Shank Three-Flute Flush Trim Router Bit executes burn-free edge trimming, pattern duplication, and template routing across solid hardwoods, softwoods, plywood panels, and high-pressure laminates. Engineered with a balanced 3-flute shear-angle geometry and a 1-1/2-inch carbide cutting height, this heavy-duty end mill delivers glass-smooth finishes that drastically reduce secondary sanding. Shielded by a thermal red Perma-SHIELD non-stick coating and rated up to 24,000 max RPM, this bit provides industrial woodworkers with precise, chatter-free edge alignment in handheld or table-mounted routers.

Best Used For:

  • Template & Pattern Duplication: Trimming duplicate furniture parts, custom signs, and complex wooden components using physical master templates and guide bearings.
  • Laminate & Countertop Edge Sizing: Slicing high-pressure decorative plastic laminates and wood veneers flush with cabinet edge substrates.
  • Deep Joinery & Millwork Trimming: Squaring up rough-sawn edge joints and leveling layered plywood assemblies with a 1-1/2-inch cutting reach.

Key Performance & Safety Features

  • Three-Flute Shear Geometry: Multi-cutter balance produces a 30% smoother surface cut than 2-flute bits, eliminating chatter marks and tear-out.
  • Perma-SHIELD Non-Stick Coating: Red industrial thermal shield repels pitch buildup, wood gumming, and frictional heat accumulation.
  • Extended 1-1/2-Inch Carbide Height: Provides massive cutting surface contact for trimming thick multi-layer workpieces in a single pass.
  • Precision Ball-Bearing Guide: Shielded steel guide bearing follows template contours accurately without scoring the master pattern.
  • Rigid 1/2-Inch Anti-Vibration Shank: High-tensile steel shank prevents deflection and guarantees concentric rotation up to 24,000 RPM.

What's Included

  • (1) Freud 44-108 Three-Flute Flush Trim Router Bit with 1/2" Shank and Bearing

Technical Specifications

Specification Detail
Model Number 44-108
Number of Flute Cutters 3 Flutes (Three-Flute Design)
Carbide Cutting Height (h) 1.50 in (1-1/2 in / 38.1 mm)
Overall Cutting Diameter (D) 0.50 in (1/2 in / 12.7 mm)
Shank Diameter (A) 0.50 in (1/2 in / 12.7 mm)
Guide Bearing Diameter (B) 0.50 in (1/2 in / 12.7 mm)
Overall Tool Length (H) 3.625 in (3-5/8 in / 92.1 mm)
Maximum Rotational Speed 24,000 RPM
Cutter Tip Metallurgy TiCo High-Density Tungsten Carbide
Protective Thermal Coating Perma-SHIELD Non-Stick Red Fluoropolymer
Tool Machine Compatibility Handheld Plunge Routers and Table-Mounted Routers
Substrate Suitability Hardwoods, Softwoods, Plywood, MDF, High-Pressure Laminates
Pro-Tip: When pattern routing thick hardwood blanks, take a preliminary bandsaw cut to leave only 1/16-inch of excess material for the 44-108 flush trim bit to remove; this light final pass prevents motor bog-down and guarantees a splinter-free edge.
