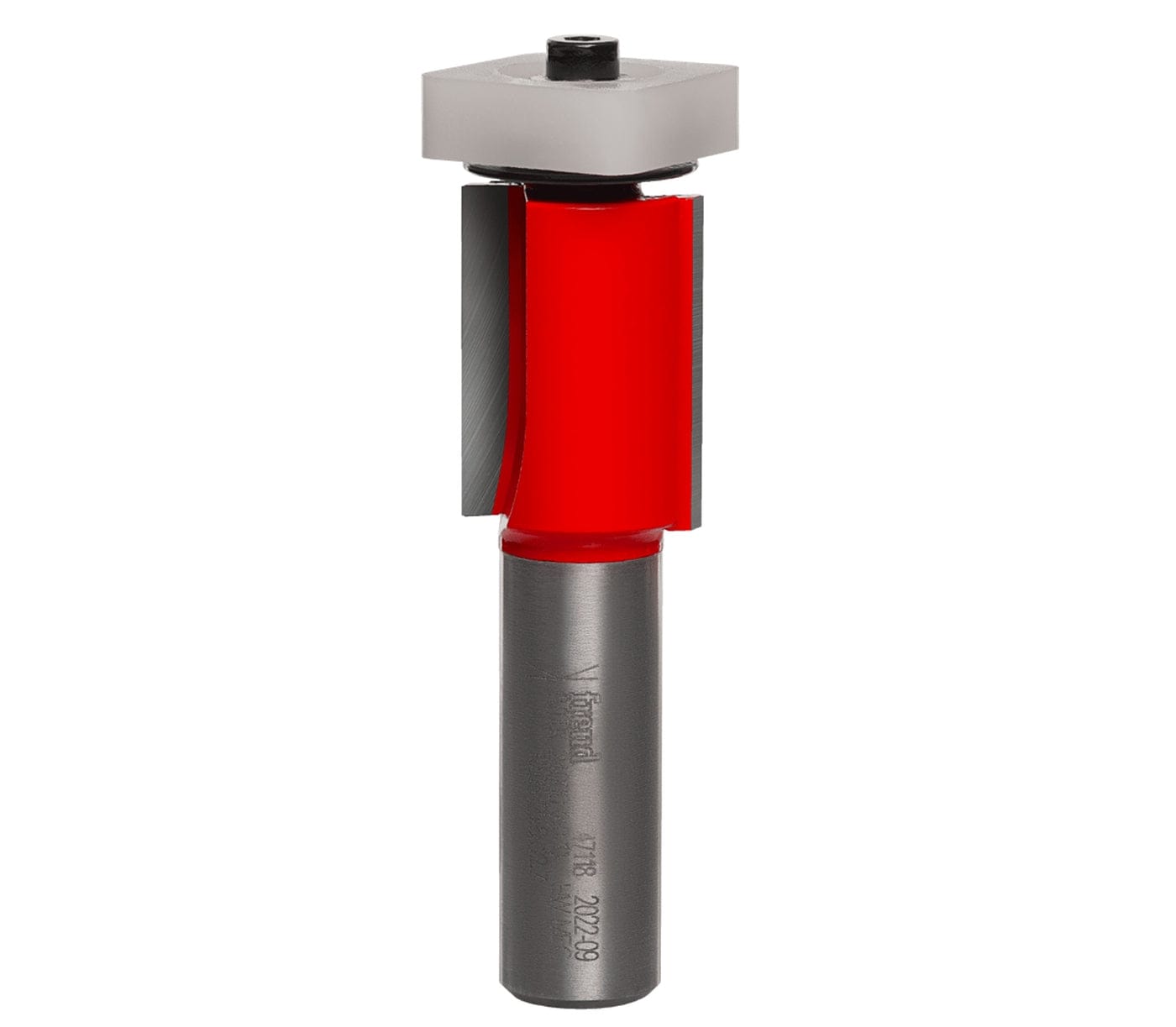

Freud 47-118 3/4-inch flush trim router bit with a 1/2-inch shank, featuring red Perma-SHIELD coating and high-density carbide cutters for professional cabinetry and joinery.

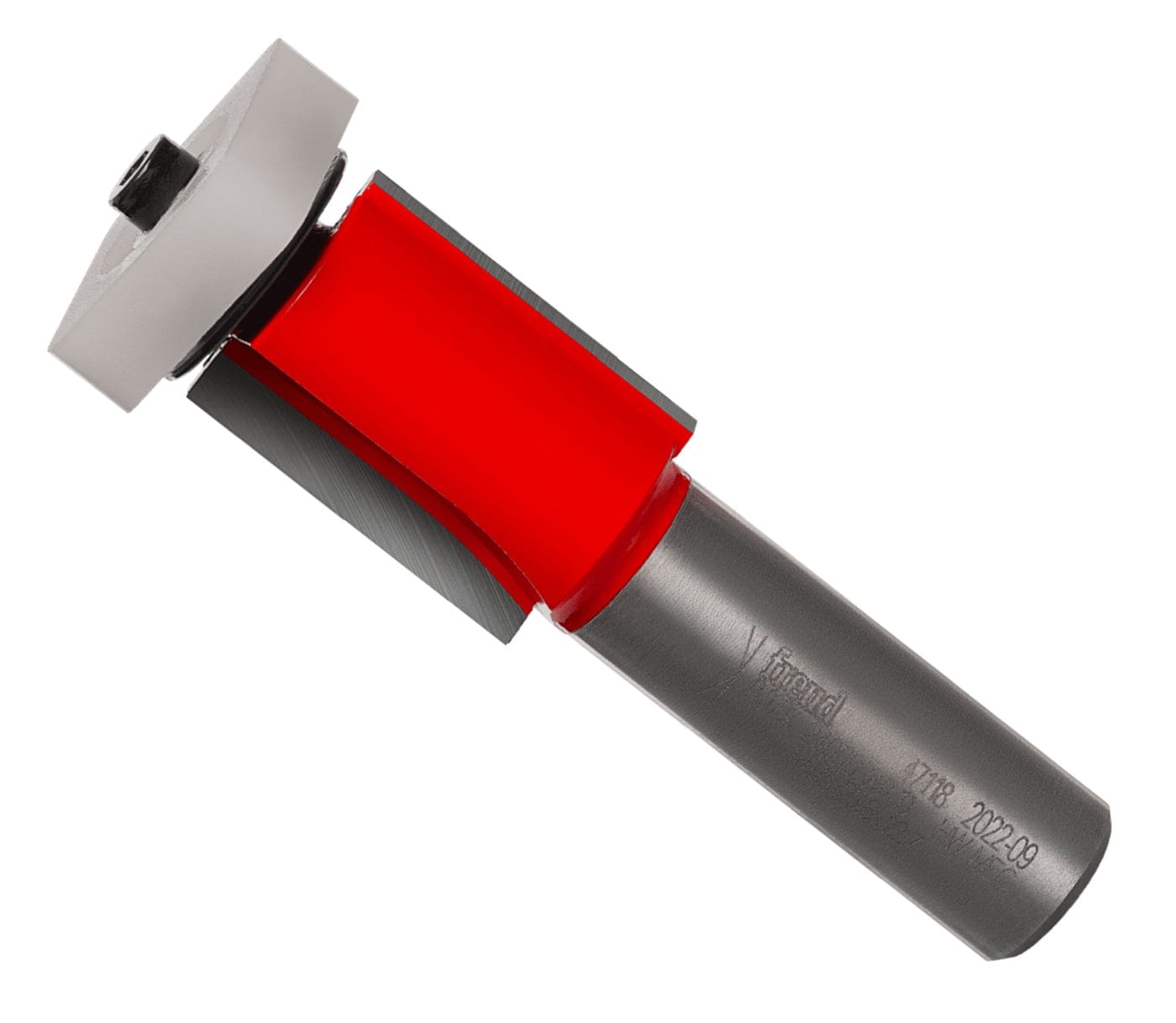

Angled view of the Freud 3/4-inch flush trim bit showcasing the two-flute carbide design and bottom-mounted ball bearing for smooth template and pattern routing.
Freud 47-118 3/4-inch flush trim router bit with a 1/2-inch shank, featuring red Perma-SHIELD coating and high-density carbide cutters for professional cabinetry and joinery.
Technical diagram illustrating the 1-inch carbide cutting height of the Freud 47-118 flush trim bit for precise trimming in wood and laminate materials.
Illustration showing the flush trimming application of the Freud 47-118 bit on a composite wood workpiece with a white laminate top layer.
Pattern routing diagram demonstrating the Freud 47-118 router bit following a bottom-mounted template to create a clean, flush edge on a solid wood board.
Freud 47-118 3/4-inch flush trim router bit with a 1/2-inch shank, featuring red Perma-SHIELD coating and high-density carbide cutters for professional cabinetry and joinery.
Angled view of the Freud 3/4-inch flush trim bit showcasing the two-flute carbide design and bottom-mounted ball bearing for smooth template and pattern routing.
Freud 47-118 3/4-inch flush trim router bit with a 1/2-inch shank, featuring red Perma-SHIELD coating and high-density carbide cutters for professional cabinetry and joinery.
Technical diagram illustrating the 1-inch carbide cutting height of the Freud 47-118 flush trim bit for precise trimming in wood and laminate materials.
Illustration showing the flush trimming application of the Freud 47-118 bit on a composite wood workpiece with a white laminate top layer.
Pattern routing diagram demonstrating the Freud 47-118 router bit following a bottom-mounted template to create a clean, flush edge on a solid wood board.
Freud

Freud Router Bit 47-118 3/4 Inch Flush Trim (1/2 Shank 1 Inch Carbide Height Perma-SHIELD Coating Wood Laminate Pattern Template Cabinetry Joinery)

Only 1 left
SKU: 47-118
$20.97 USD

Description

Freud precisely the best logo Logout

Trim Laminates and Duplicate Templates with Smooth Burn-Free Precision
The Freud 47-118 3/4-inch flush trim router bit delivers industrial-grade material profiling and crisp edge sectioning up to a 24,000 RPM maximum rated speed. Engineered with dual flutes and premium TiCo high-density carbide-tipped cutters, this professional tool trims laminates and wood composites flush with structural substrates without charring. The robust 1/2-inch shank minimizes bit deflection, while a bottom-mounted 3/4-inch ball bearing guide follows templates and patterns smoothly to ensure glass-smooth finishes right off the tool in hand-held or table-mounted routers.

Best Used For:

  • Laminate Countertop Trimming: Slicing overhanging high-pressure laminates, plastic overlays, and delicate face veneers flush with underlying core substrates.
  • Pattern and Template Duplication: Tracking complex curves, geometric shapes, and cabinetry furniture templates accurately using the precision-piloted guide bearing.
  • Cabinetry Joinery Cleanout: Flattening proud structural joints, solid wood lippings, and overlapping edge bands without tearing out the underlying grain face.

Key Performance & Safety Features

  • TiCo High-Density Carbide: Custom-formulated tungsten micro-grain tips maintain structural edge sharpness and resist impact wear across abrasive boards.
  • Perma-SHIELD Thermal Barrier: Proprietary non-stick coating insulates the bit steel core, actively shedding processing heat, friction drag, and resin pitch gumming.
  • Bottom-Mounted Ball Bearing: Shielded 3/4-inch pilot guide bearing allows for precise mar-free tracking along standard master patterns or workpiece borders.
  • Optimized Two-Flute Design: Symmetrical dual cutting edges balance the working load to accelerate waste chip clearance while lowering dynamic tool vibration.

What's Included

  • (1) Freud 3/4" Flush Trim Router Bit (47-118)
  • (1) Pre-installed Precision Ball Bearing

Technical Specifications

Brand Freud
Model Number 47-118
Overall Diameter 3/4 inch
Carbide Cutting Height 1 inch
Shank Diameter 1/2 inch
Overall Length 3-1/4 inches
Bearing Diameter 3/4 inch
Bearing Type Bottom-Mounted Ball Bearing
Number of Cutters 2
Maximum Speed Limit 24,000 RPM
Cutter Material Composition TiCo High-Density Carbide
Coating Finish Technology Perma-SHIELD Non-Stick Coating

Pro-Tip: When routing abrasive laminates or plastics flush with adhesive-bonded plywood, keep the tool advancing smoothly. Pausing in one location allows residual glue or binding agents to collect behind the bottom guide bearing, so maintaining a continuous feed path protects both the Perma-SHIELD coating and the template edge from tracking lines.
