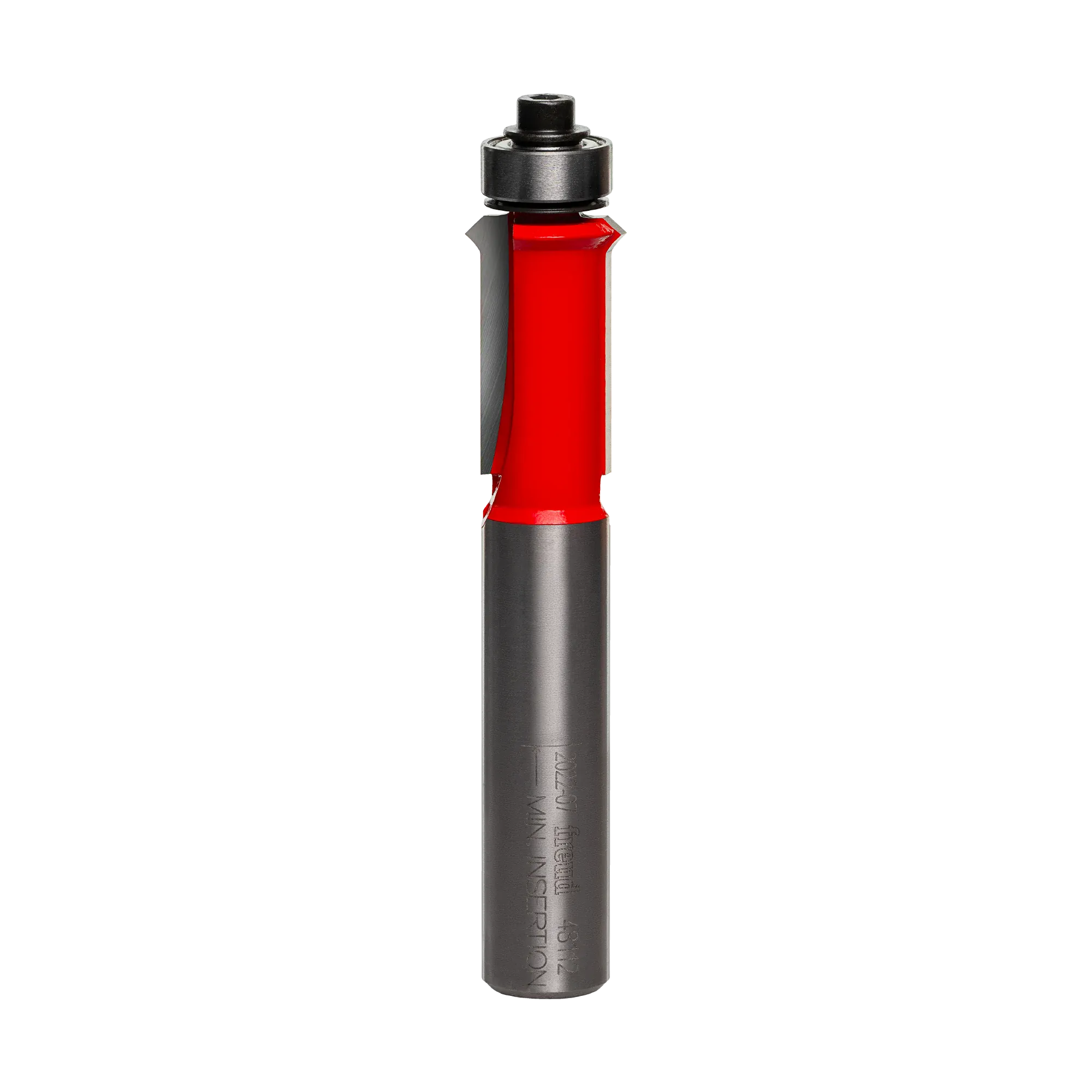

A studio product shot of the Freud 48-112 flush trim V-groove router bit, featuring a long silver 1/2-inch shank, a vibrant red body with two carbide cutting flutes, and a top-mounted silver pilot bearing.
A technical diagram of a wood profile produced by the Freud 48-112 bit, illustrating a 1-inch cutting height with a decorative V-groove at the transition point between two flush surfaces.
A studio product shot of the Freud 48-112 flush trim V-groove router bit, featuring a long silver 1/2-inch shank, a vibrant red body with two carbide cutting flutes, and a top-mounted silver pilot bearing.
A technical diagram of a wood profile produced by the Freud 48-112 bit, illustrating a 1-inch cutting height with a decorative V-groove at the transition point between two flush surfaces.
Freud

Freud 48-112 5/8 Inch Flush Trim V-Groove Router Bit 1/2 Inch Shank for Cabinet Face Frames Hardwood Softwood Plywood Furniture Making Detail Bit

In stock
SKU: 48-112
$25.89

Description

Freud precisely the best logo Logout

Master Cabinet Face Frames with Simultaneous Flush Trimming and Decorative V-Groove Detailing

The Freud 48-112 Flush Trim "V" Groove Bit is a specialized asset for furniture builders and professional cabinetmakers looking to streamline their workflow. This innovative bit performs two tasks at once: it routs a clean, decorative "V" groove while simultaneously bringing a cabinet face frame perfectly flush with the cabinet front. By combining these steps, you save significant time and effort while adding a high-end visual touch to your custom cabinet designs.

Crafted for versatility, this bit delivers exceptional results in hardwood, softwood, plywood, and various composites. It features Freud's signature Perma-SHIELD® non-stick coating, which minimizes friction and heat buildup to protect the bit and the workpiece from burning and resin clogs. Whether you are using a hand-held or table-mounted router, the precision-balanced 1/2-inch shank ensures stable, vibration-free operation at speeds up to 24,000 RPM.

Key Features

  • Dual-Action Cutting: Routs a decorative V-groove while flushing cabinet frames in a single pass.
  • Perma-SHIELD® Coating: High-performance coating reduces heat, pitch buildup, and corrosion for longer bit life.
  • Material Versatility: Specifically designed to cut hardwood, softwood, plywood, and composite materials.
  • Versatile Mounting: Fully compatible with both portable hand-held routers and table-mounted router setups.
  • Smooth Finishes: Precision-ground carbide teeth provide a clean cut without the need for excessive sanding.

What's Included

  • (1) Freud 48-112 5/8" Flush Trim “V” Groove Bit

Specifications

Brand Freud
Model Number 48-112
Overall Diameter (D) 5/8 in
Shank Diameter (A) 1/2 in
Carbide Height (h) 1 in
Bearing Diameter (B) 1/2 in
Small Diameter (n) 1/2 in
Overall Length (H) 3-1/4 in
Number of Cutters 2
Maximum RPM 24,000

Pro-Tip: To achieve a perfect V-groove depth without marring your cabinet box, ensure your face frame is slightly oversized before routing. Keep the pilot bearing firmly pressed against the cabinet side and make one continuous, steady pass to prevent burn marks that often occur when the bit dwells in a single spot.
