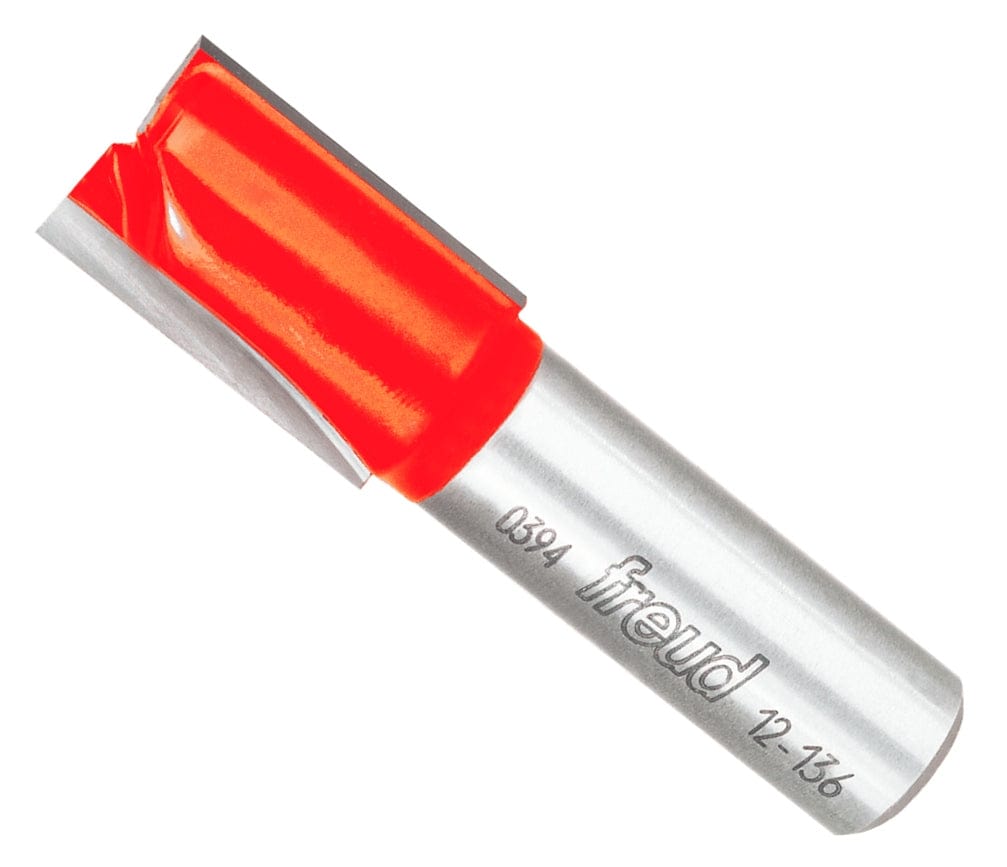

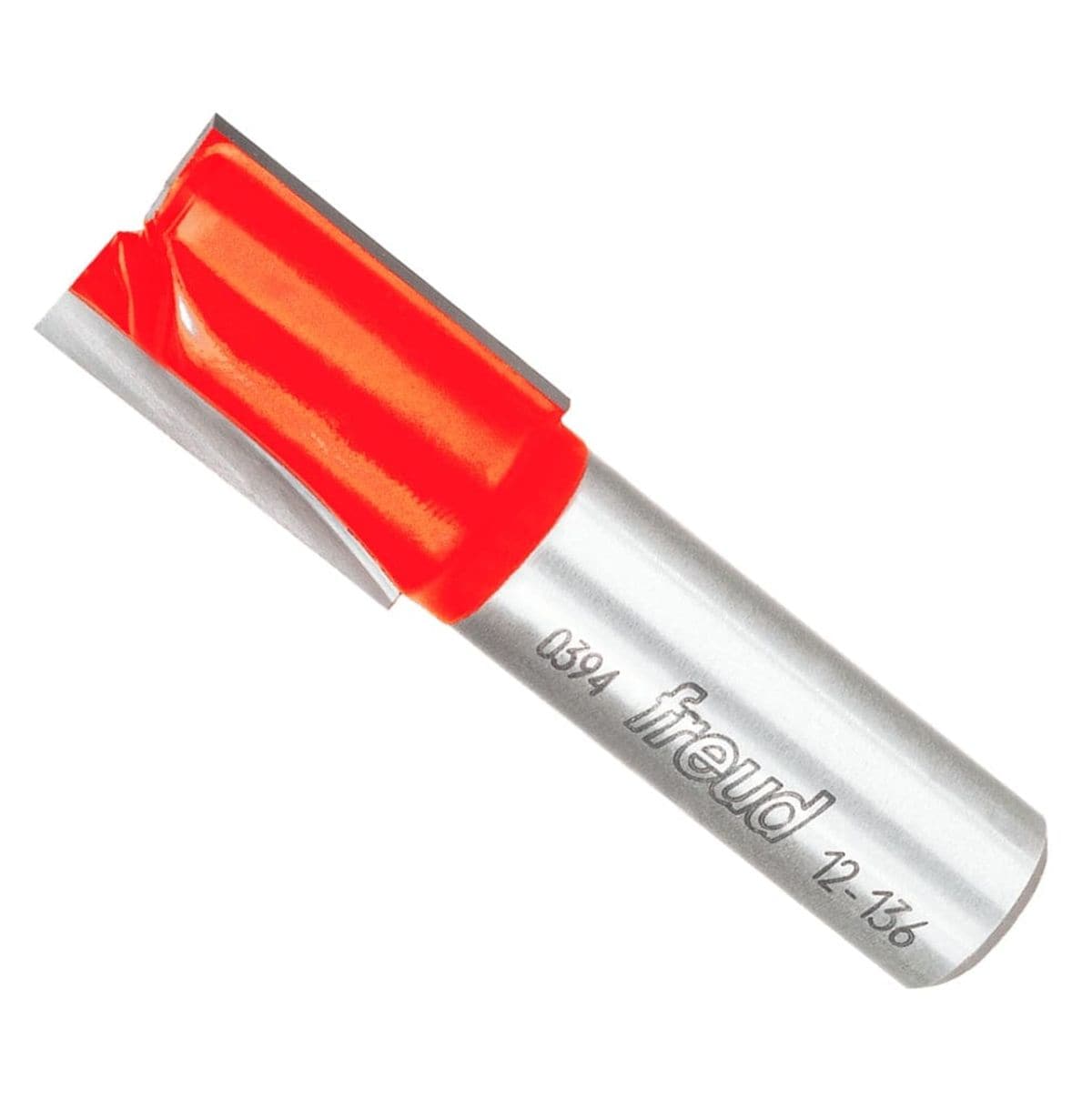

Freud 12-136 5/8 inch diameter double flute straight router bit with red Perma-SHIELD coating and 1/2 inch shank, showing laser etched Freud logo and part numbers, ideal for woodworking with CNC and hand-held or table routers to create precise cuts and dados.

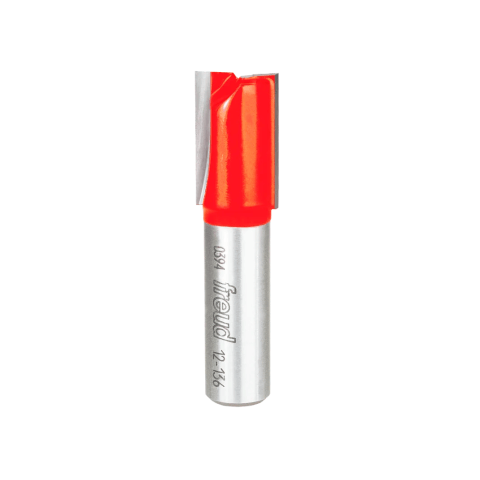

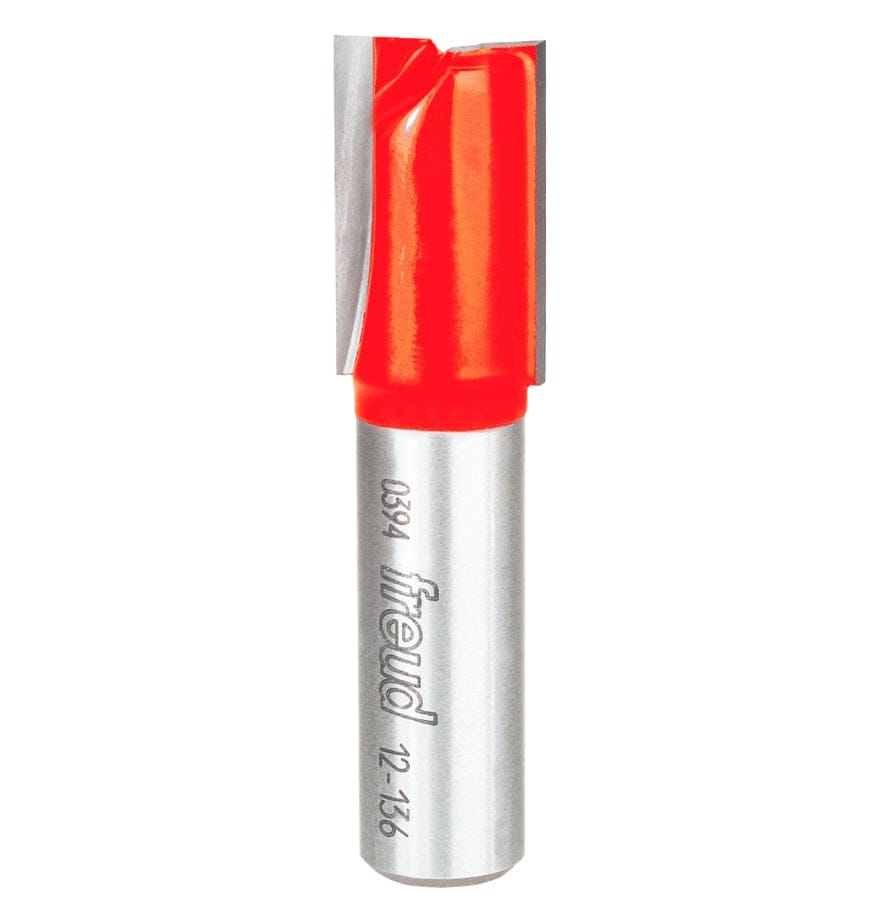

Upright view of the Freud 12-136 5/8 inch double flute straight router bit with red Perma-SHIELD coating and silver 1/2 inch shank, featuring laser etched Freud logo, item number, and RPM specs for precise woodworking cuts and dados.

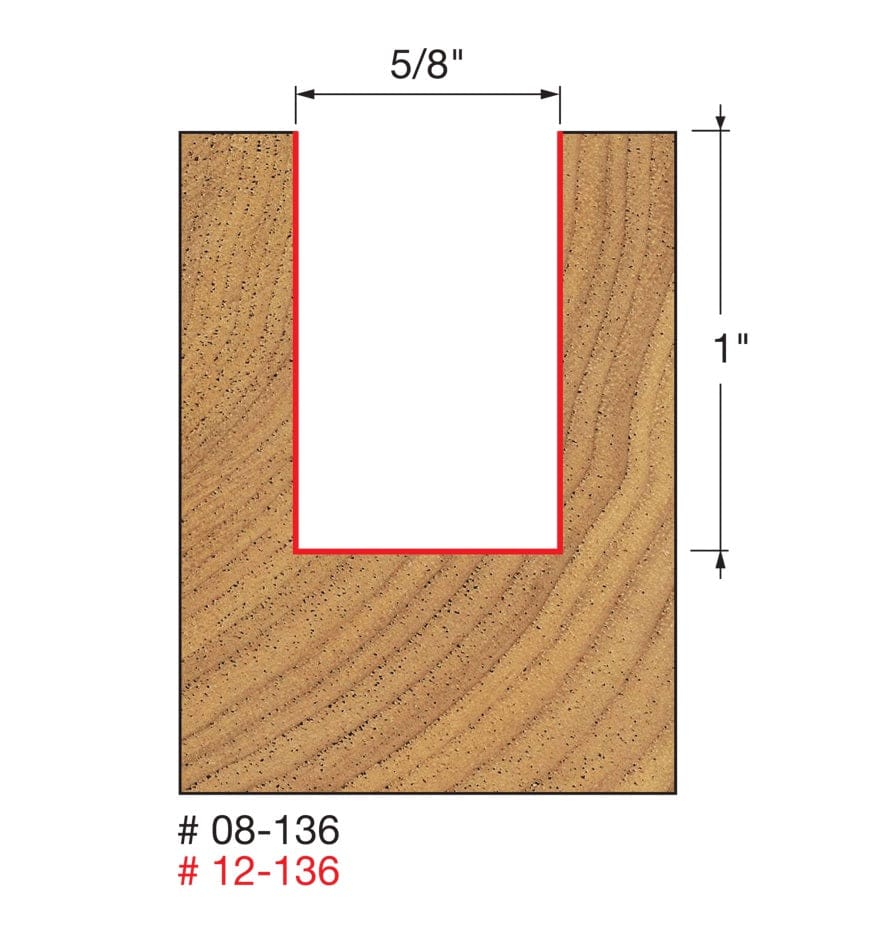

Technical blueprint illustration of the woodworking cut created by the Freud 12-136 router bit, showing a 5/8 inch wide by 1 inch deep groove (U-shaped) cut into a wood block with dimensions clearly marked for precise woodworking and dados.

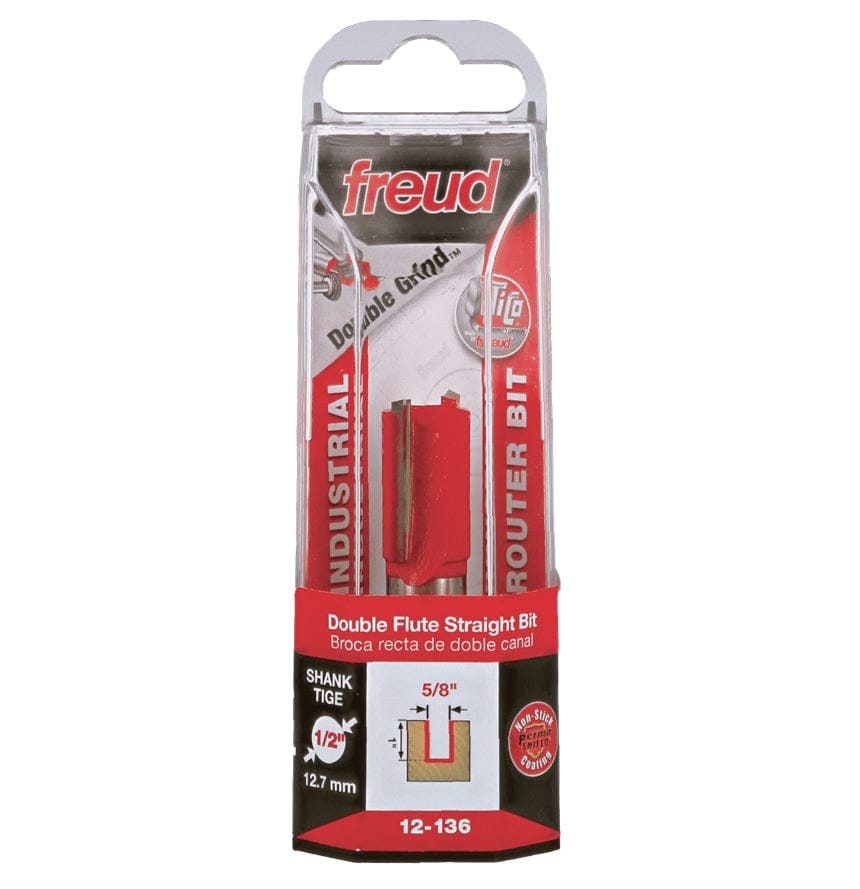

Freud 12-136 5/8 inch Double Flute Straight Router Bit in original retail hanging packaging with clear plastic, featuring red and black branding, "INDUSTRIAL ROUTER BIT", a cross-section icon showing the 5/8 inch cut, 1/2 inch (12.7 mm) shank size, "Non-Stick Perma-SHIELD Coating" seal, and part number.

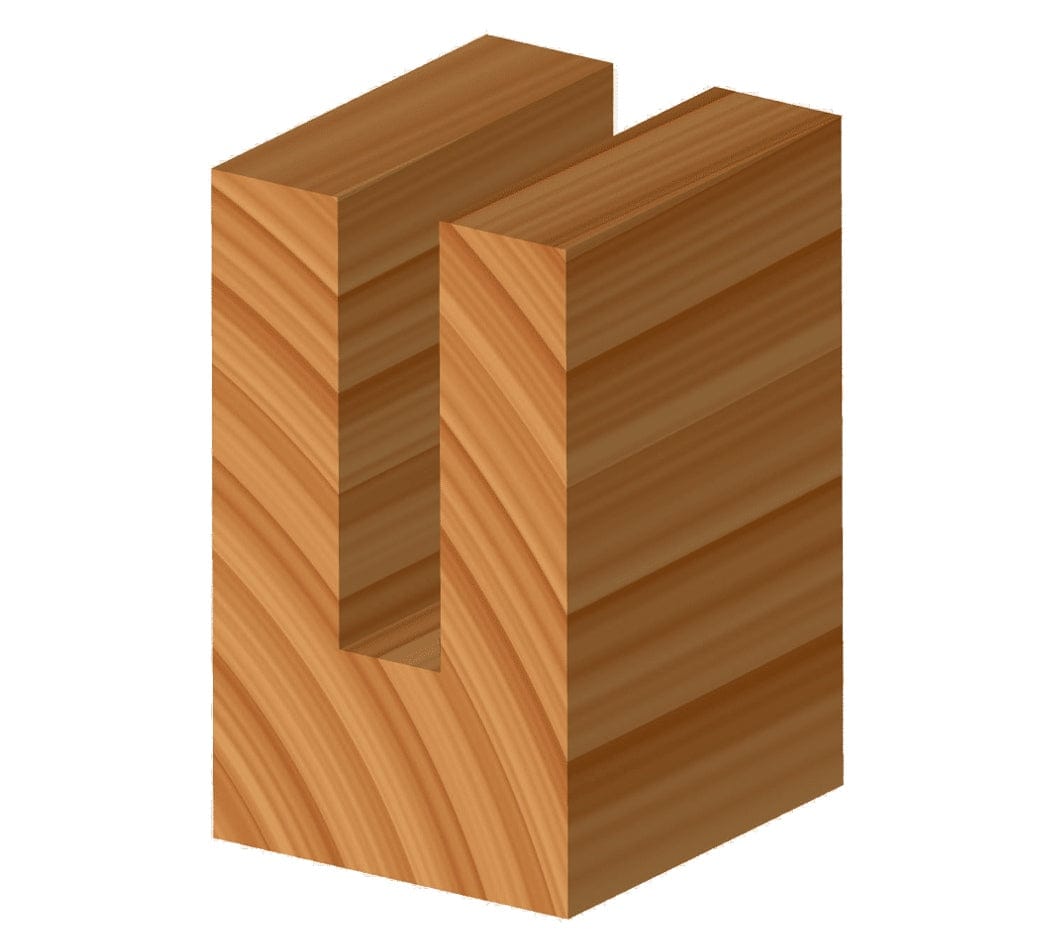

Three-dimensional isometric perspective of a wood block featuring a precise 5/8 inch wide groove or dado cut through the center, demonstrating the clean and accurate woodworking results achieved using the Freud 12-136 5/8 inch double flute straight router bit.

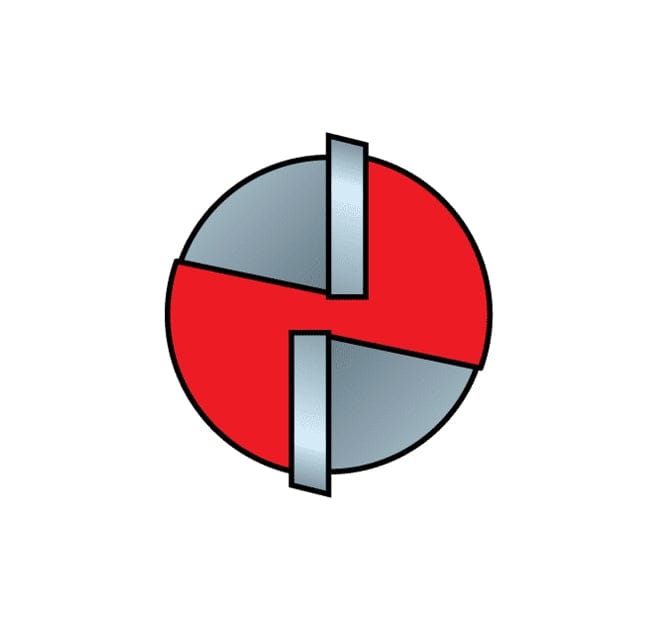

Technical end-on cross-section graphic of the cutting geometry of the Freud 12-136 double flute straight router bit, showing the two precise silver carbide cutting edges and the red Perma-SHIELD coated body designed for clean cuts in woodworking.
Freud 12-136 5/8 inch diameter double flute straight router bit with red Perma-SHIELD coating and 1/2 inch shank, showing laser etched Freud logo and part numbers, ideal for woodworking with CNC and hand-held or table routers to create precise cuts and dados.

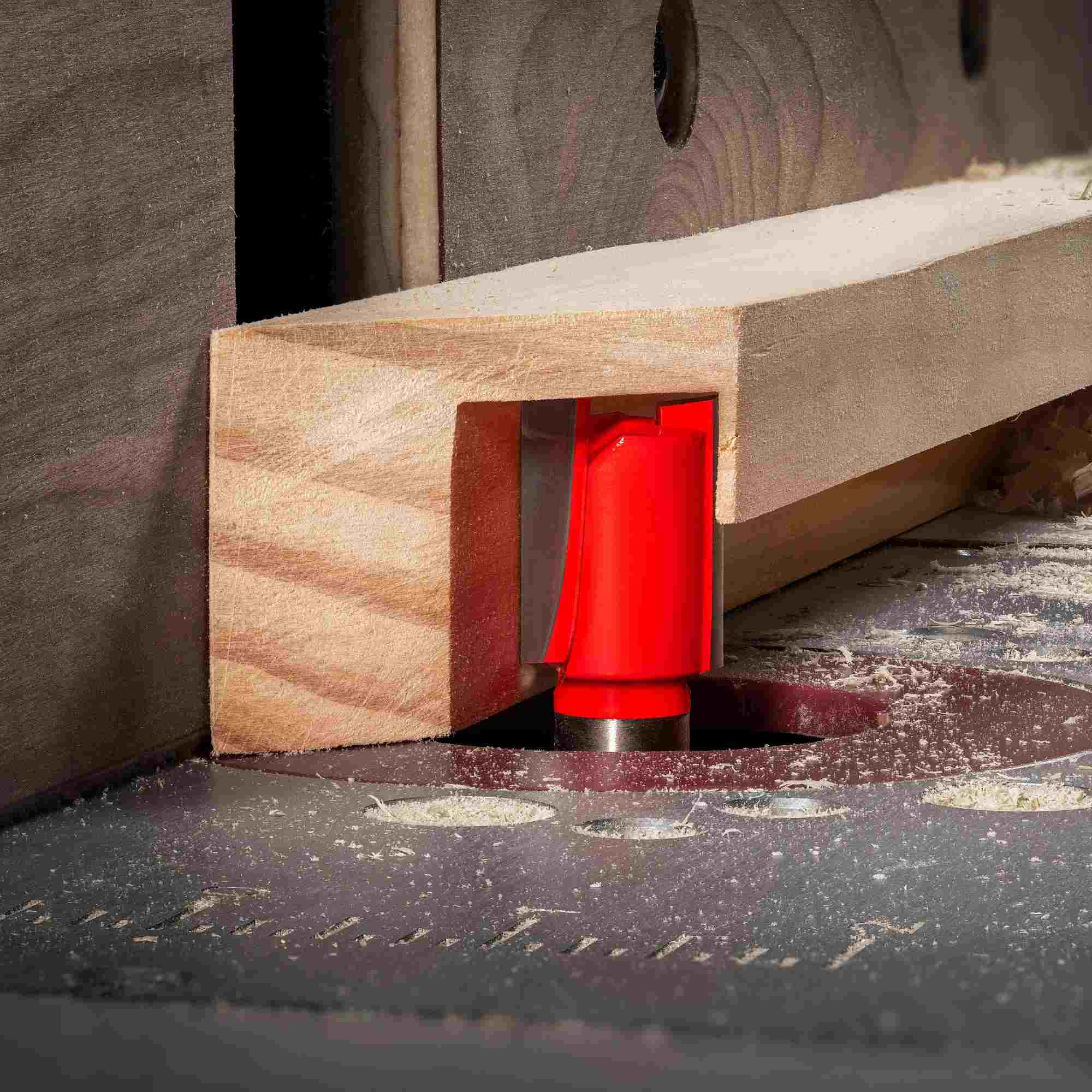

Action shot of the Freud 12-136 router bit with red Perma-SHIELD coating installed in a table router, actively cutting a precise 5/8 inch wide dado groove into a light wood block, with wood shavings and sawdust visible on the grey router table surface and wooden fence.
Freud 12-136 5/8 inch diameter double flute straight router bit with red Perma-SHIELD coating and 1/2 inch shank, showing laser etched Freud logo and part numbers, ideal for woodworking with CNC and hand-held or table routers to create precise cuts and dados.
Upright view of the Freud 12-136 5/8 inch double flute straight router bit with red Perma-SHIELD coating and silver 1/2 inch shank, featuring laser etched Freud logo, item number, and RPM specs for precise woodworking cuts and dados.

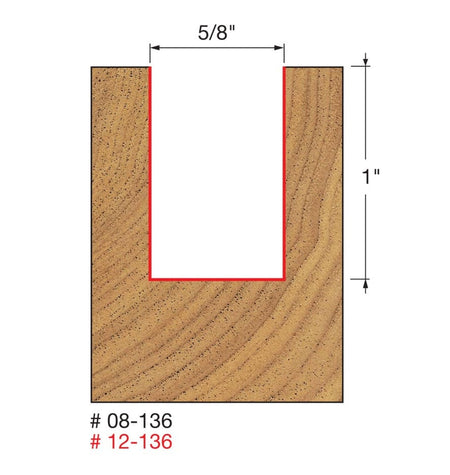

Technical blueprint illustration of the woodworking cut created by the Freud 12-136 router bit, showing a 5/8 inch wide by 1 inch deep groove (U-shaped) cut into a wood block with dimensions clearly marked for precise woodworking and dados.
Freud 12-136 5/8 inch Double Flute Straight Router Bit in original retail hanging packaging with clear plastic, featuring red and black branding, "INDUSTRIAL ROUTER BIT", a cross-section icon showing the 5/8 inch cut, 1/2 inch (12.7 mm) shank size, "Non-Stick Perma-SHIELD Coating" seal, and part number.
Three-dimensional isometric perspective of a wood block featuring a precise 5/8 inch wide groove or dado cut through the center, demonstrating the clean and accurate woodworking results achieved using the Freud 12-136 5/8 inch double flute straight router bit.
Technical end-on cross-section graphic of the cutting geometry of the Freud 12-136 double flute straight router bit, showing the two precise silver carbide cutting edges and the red Perma-SHIELD coated body designed for clean cuts in woodworking.
Freud 12-136 5/8 inch diameter double flute straight router bit with red Perma-SHIELD coating and 1/2 inch shank, showing laser etched Freud logo and part numbers, ideal for woodworking with CNC and hand-held or table routers to create precise cuts and dados.
Action shot of the Freud 12-136 router bit with red Perma-SHIELD coating installed in a table router, actively cutting a precise 5/8 inch wide dado groove into a light wood block, with wood shavings and sawdust visible on the grey router table surface and wooden fence.
Freud

Freud Straight Router Bit 12-136 1/2 Inch Shank TiCo Carbide Cutter (5/8 Diameter 1 Cutting Length Max 24000 RPM Wood Plywood Dado Grooving Plunge)

In stock
SKU: 12-136
$18.00 USD

Description

Freud precisely the best logo Logout

Freud 12-136 5/8" Double Flute Straight Router Bit (1/2" Shank)

The Freud 12-136 5/8-inch double flute straight router bit routs precision grooves, clean dados, and mortises across dense hardwoods, softwoods, plywood, and composite sheet stock. Engineered with Freud's exclusive TiCo™ high-density carbide and precision-relieved plunge tips, this industrial-grade cutting accessory performs smooth plunge cuts and edge trimming up to a maximum rated rotational speed of 24,000 RPM. Outfitted with precision-ground shear angles that eliminate surface fuzzing, an anti-friction non-stick Perma-SHIELD® coating that prevents pitch buildup and lowers cutting temperatures, and a rigid 1/2-inch steel shank, it equips cabinetmakers, finish carpenters, and CNC machinists with mirror-smooth joinery passes across hand-held, router-table, and automated CNC machinery.

Best Used For:

  • Cabinetry Dado and Groove Milling: Cutting flat-bottom 5/8-inch dados, rabbets, and shelf housing grooves in cabinet side panels, plywood carcases, and solid hardwood casework.
  • Plunge Routing and Mortise Cutting: Executing clean vertical plunge entries for deep mortise-and-tenon joints, hardware recesses, and decorative template inlays without burning timber cores.
  • Precision Edge Trimming and CNC Profiling: Machining square, tearout-free edges and intricate internal cutouts across MDF, solid timber, particleboard, and composite panels.

Key Performance & Safety Features

  • TiCo™ Hi-Density Carbide: Proprietary titanium cobalt micrograin formulation retains razor sharpness significantly longer than standard commercial carbide grades.
  • Perma-SHIELD® Non-Stick Coating: Thermally stable barrier reduces rotational friction, sheds pitch and resin buildup, and resists corrosive chemical adhesives.
  • Precision-Relieved Plunge Tips: End-of-bit clearance geometry allows effortless, chatter-free vertical plunge routing without burning wood fibers.
  • Optimized Shear Angle Geometry: Two-flute double cutting profile slices through dense wood fibers smoothly to eliminate surface chipping and perimeter fuzzing.
  • Multi-Platform Rotational Balance: Dynamically balanced body rated up to 24,000 RPM provides vibration-free tracking in CNC machines, router tables, and hand-held plungers.
  • Heavy-Duty 1/2" Shank: Large-diameter solid alloy steel shank eliminates rotational deflection and provides maximum collet gripping security.

What's Included

  • (1) Freud 12-136 5/8" Double Flute Straight Router Bit with 1/2" Shank

Technical Specifications

Manufacturer Brand Freud Tools Inc.
Model Part Number 12-136
Product Tool Classification Double Flute Straight Router Bit
Overall Cutting Diameter 0.625 Inches (5/8 in. / 15.88 mm)
Carbide Cutting Height 1.000 Inches (1 in. / 25.40 mm)
Collet Shank Diameter 0.500 Inches (1/2 in. / 12.70 mm)
Overall Tool Length 2.500 Inches (2-1/2 in. / 63.50 mm)
Flute Configuration 2 Cutters (Double Flute Design)
Cutting Tip Metallurgy Exclusive TiCo™ High-Density Micrograin Carbide
Plunge Cutting Ability Precision-Relieved Tips for Direct Plunge Cuts
Maximum Rotational Speed 24,000 RPM
Protective Surface Coating Non-Stick Industrial Perma-SHIELD® Coating
Machine Format Compatibility CNC Machinery, Router Tables, & Hand-Held Routers
Suitable for material type Hardwoods, Softwoods, Plywood, Composites, & MDF

Pro-Tip: When routing deep 5/8-inch dados or mortises in dense hardwoods like maple or white oak, mill the groove across multiple incremental depth passes of no more than 1/4 inch per pass; staged depth passes maximize chip clearance, keep the carbide cutting edge cool, and produce mirror-flat groove bottoms.
