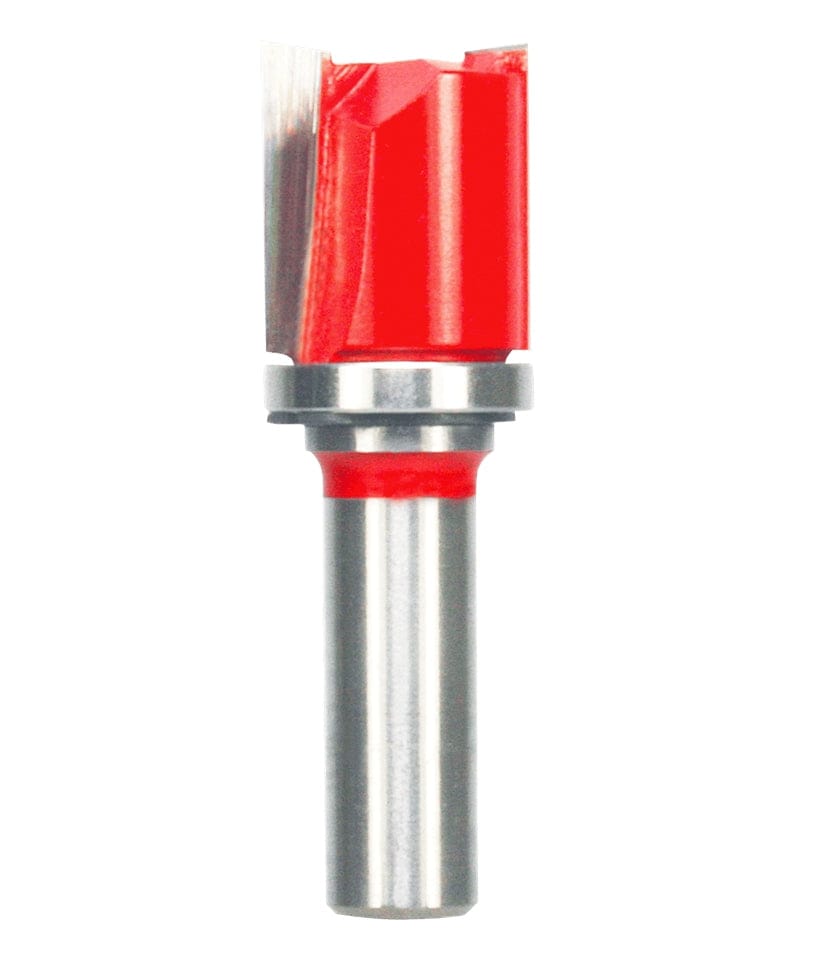

A studio product shot of the Freud 50-138 top bearing flush trim router bit, featuring a silver 1/2-inch shank, a vibrant red dual-flute body, and a silver pilot bearing mounted at the top of the carbide cutters.

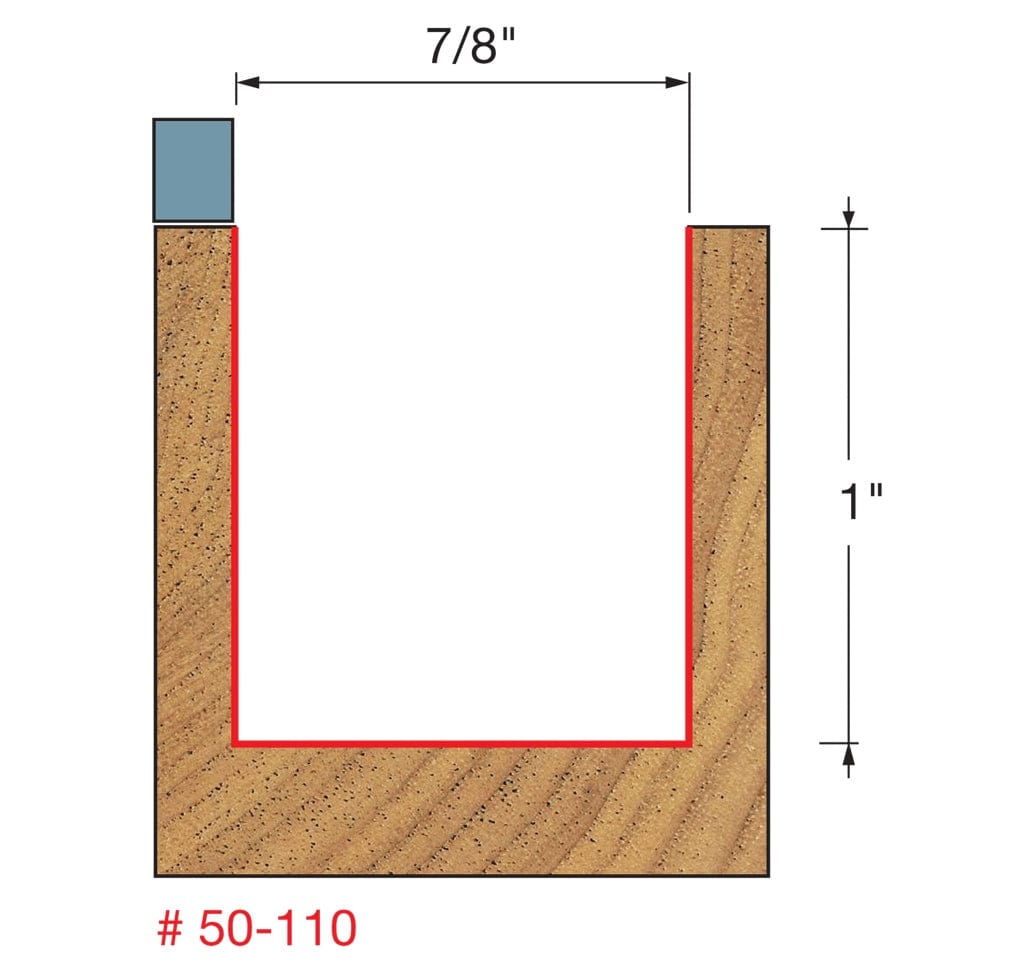

A technical diagram showing the wood profile produced by the Freud 50-110 and 50-138 bits, illustrating a 7/8-inch cutting diameter and a 1-inch cutting height with a red line indicating the vertical and horizontal flush-cut path.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, and composites to indicate the various materials this bit is designed to cut.
A studio product shot of the Freud 50-138 top bearing flush trim router bit, featuring a silver 1/2-inch shank, a vibrant red dual-flute body, and a silver pilot bearing mounted at the top of the carbide cutters.
A studio product shot of the Freud 50-138 top bearing flush trim router bit, featuring a silver 1/2-inch shank, a vibrant red dual-flute body, and a silver pilot bearing mounted at the top of the carbide cutters.
A technical diagram showing the wood profile produced by the Freud 50-110 and 50-138 bits, illustrating a 7/8-inch cutting diameter and a 1-inch cutting height with a red line indicating the vertical and horizontal flush-cut path.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, and composites to indicate the various materials this bit is designed to cut.
A studio product shot of the Freud 50-138 top bearing flush trim router bit, featuring a silver 1/2-inch shank, a vibrant red dual-flute body, and a silver pilot bearing mounted at the top of the carbide cutters.
Freud

Freud 50-110 2 Inch Diameter Top Bearing Flush Trim Router Bit 1/2 Inch Shank Pattern Template Routing Sign Lettering Hardwood Plywood Carbide Cutter

Only 1 left
SKU: 50-110
$36.79 USD

Description

Freud precisely the best logo Logout

Achieve Flawless Pattern Replication and Precision Sign Lettering with Top-Bearing Versatility

The Freud 50-110 Top Bearing Flush Trim Router Bit is a must-have for woodworkers requiring absolute accuracy when following templates or duplicating intricate patterns. This professional-grade carbide bit is specifically engineered for tasks where the pattern is placed on top of the workpiece, making it the perfect choice for high-visibility sign lettering, custom grooving, and detailed cabinetry work. Whether you are a professional craftsman or a dedicated hobbyist, the top-mounted bearing provides exceptional control, ensuring your router follows your guide perfectly for a clean, flush finish every time.

Designed to handle a variety of materials with ease, this bit effortlessly routs through hardwood, softwood, plywood, and composites. It features Freud's legendary Perma-SHIELD® non-stick coating, which significantly reduces friction and protects the bit from heat, resin, and pitch buildup to ensure a longer tool life. Compatible with both hand-held and table-mounted routers, the 50-110 is built with a heavy-duty 1/2-inch shank and high-quality carbide to maintain its sharp edge through the most demanding applications.

Key Features

  • Universal Material Compatibility: Expertly cuts through all composition materials, plywoods, hardwoods, and softwoods.
  • Top-Mounted Bearing: Optimized for grooving or pattern routing where the template is secured to the top of the workpiece.
  • Perma-SHIELD® Coating: Premium non-stick coating minimizes heat and pitch buildup to extend the service life of the bit.
  • Precision Trim Work: Specifically designed for sign lettering and complex template replication tasks.
  • Dual Router Compatibility: Fully optimized for high-performance use in portable hand-held or stationary table-mounted routers.

What's Included

  • (1) Freud 50-110 2" Diameter Top Bearing Flush Trim Router Bit

Specifications

Brand Freud
Model Number 50-110
Cutter Diameter (D) 7/8 in
Shank Diameter (A) 1/2 in
Carbide Height (h) 1 in
Bearing Diameter (B) 7/8 in
Overall Length (H) 2.81 in
Number of Cutters 2
Maximum RPM 24,000
Bit Material Carbide Tipped

Pro-Tip: When using a top-bearing bit for template work, always ensure your pattern is thick enough for the bearing to ride against securely. Secure your template with high-quality double-sided tape or clamps to prevent shifting, and make sure the router has reached full RPM before beginning your cut to ensure the cleanest edge and prevent splintering.
