Freud Slotting Cutter 58-106 2 Inch Diameter 3/32 Inch Kerf 4 Wing Router Blade 16000 Max RPM 9/16 Depth T Molding Plywood Wood Joinery

Industrial Four-Wing Router Tooling for Precision Splines and T-Molding Joinery

The Freud 58-106 2-Inch 4-Wing Slotting Cutter delivers commercial-grade milling accuracy for machining precision joinery slots, custom T-molding profiles, and high-strength spline channels. Engineered with a specialized four-wing architecture, this cutter head distributes structural workload across more points of contact to eliminate mechanical chatter and minimize wood grain tear-out at up to 16,000 RPM. The heavy-duty body features premium industrial carbide teeth ground precisely to a 3/32-inch height, providing the exact clearance dimensions needed for dedicated panel inserts and tongue-and-groove alignments. Optimized for production environments, this slotting blade integrates with standard modular router arbors for clean execution across handheld routers and table-mounted equipment.

Best Used For:

• T-Molding Slot Milling: Cutting deep, consistent 3/32-inch edge grooves along arcade cabinets, tables, and shop counters to secure protective vinyl edging.
• Spline Joint Fabrication: Machining high-density internal alignment channels into hardwood frames, custom panel miters, and structural millwork assemblies.
• Tongue and Groove Processing: Routing matching architectural tongue-and-groove profiles into veneered plywood cores and solid wood cabinetry backing boards.

Key Performance & Safety Features

• Four-Wing Cutting Profile: Micro-balanced 4-wing geometry doubles the cuts-per-minute of standard bits, significantly increasing edge smoothness.
• Precision Kerf Height: Sized specifically at a 3/32-inch carbide height to process minimal material for highly tight, structural fit requirements.

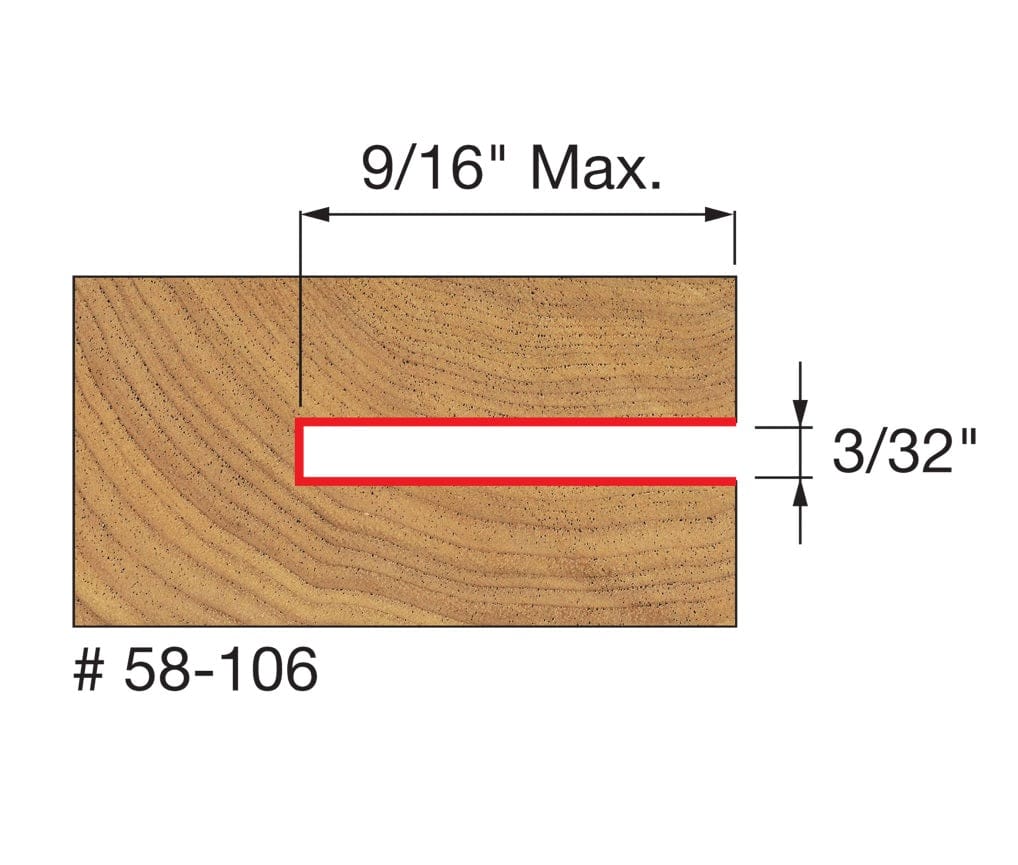

• Deep Mechanical Reach: Delivers up to a 9/16-inch maximum depth of cut, permitting structural recess adjustments for hardware and molding stems.
• Dual Equipment Versatility: Designed to mount safely onto specialized modular arbors for table-mounted shaper operations or portable handheld routing.
• Industrial Carbide Teeth: Formulated with structural micro-grain tungsten carbide to withstand high abrasive wear when milling resinous wood composites.

What's Included

• (1) Freud 58-106 3/32" Slot Four Wing Slotting Cutter

Technical Specifications

Pro-Tip: Because this four-wing cutter requires a separate mechanical arbor assembly, ensure the 5/16-inch center bore lock washer and nut are torqued down securely prior to spin-up. When cutting deep 9/16-inch channels in dense hardwoods, make two sequential depth passes rather than a single full-load pass to prolong carbide edge life and eliminate cross-grain friction scorching.
