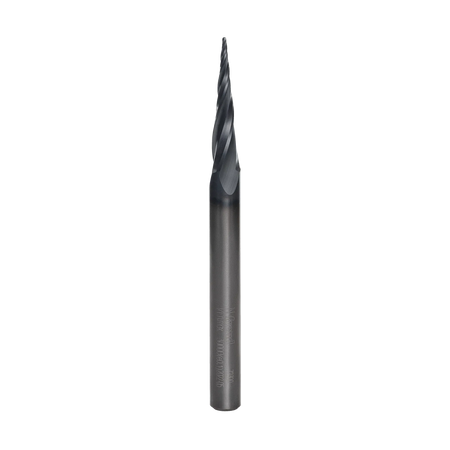

A high-resolution studio shot of the Freud 72-300 3-flute tapered ball tip router bit, showcasing the Black I.C.E. coating and precision-ground solid carbide construction for ultra-detailed 3D carving.

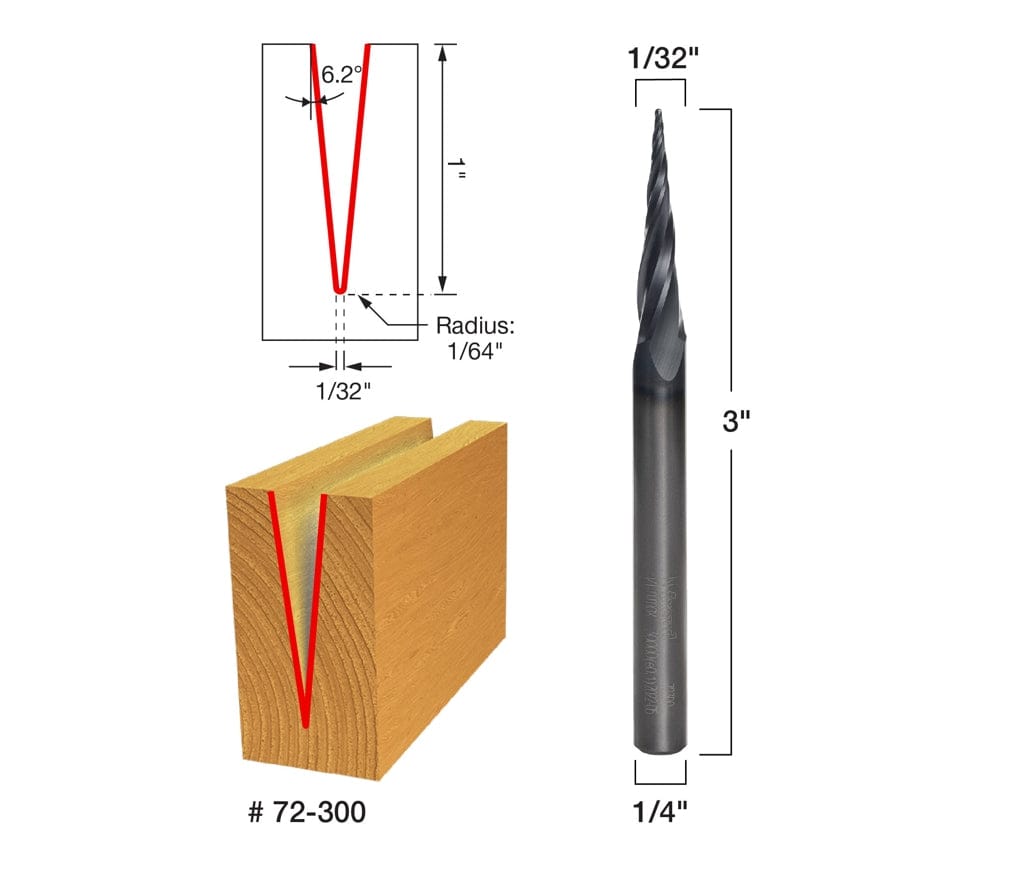

A technical diagram and product view of the Freud 72-300 tapered ball tip bit, showing a 6.2-degree side angle, 1-inch carbide height, 1/32-inch tip diameter, and 3-inch overall length with a 1/4-inch shank for precision CNC carving.
A high-resolution studio shot of the Freud 72-300 3-flute tapered ball tip router bit, showcasing the Black I.C.E. coating and precision-ground solid carbide construction for ultra-detailed 3D carving.
A materials compatibility chart for Freud CNC bits, indicating effective use on plywood, hardwoods, softwoods, MDF, plastics, and aluminum for 2D and 3D carving applications.
A tool compatibility graphic showing that the Freud solid carbide carving bit can be used with a hand router, table router, CNC machine, or palm router.
A close-up action shot of a Freud 72-300 solid carbide bit installed in a CNC spindle collet, with two additional tapered ball tip bits resting on a wood surface covered in fine sawdust.
Freud Black Ice CNC Bits promotional video
A high-resolution studio shot of the Freud 72-300 3-flute tapered ball tip router bit, showcasing the Black I.C.E. coating and precision-ground solid carbide construction for ultra-detailed 3D carving.
A technical diagram and product view of the Freud 72-300 tapered ball tip bit, showing a 6.2-degree side angle, 1-inch carbide height, 1/32-inch tip diameter, and 3-inch overall length with a 1/4-inch shank for precision CNC carving.
A high-resolution studio shot of the Freud 72-300 3-flute tapered ball tip router bit, showcasing the Black I.C.E. coating and precision-ground solid carbide construction for ultra-detailed 3D carving.
A materials compatibility chart for Freud CNC bits, indicating effective use on plywood, hardwoods, softwoods, MDF, plastics, and aluminum for 2D and 3D carving applications.
A tool compatibility graphic showing that the Freud solid carbide carving bit can be used with a hand router, table router, CNC machine, or palm router.
A close-up action shot of a Freud 72-300 solid carbide bit installed in a CNC spindle collet, with two additional tapered ball tip bits resting on a wood surface covered in fine sawdust.
Freud Black Ice CNC Bits promotional video
Freud

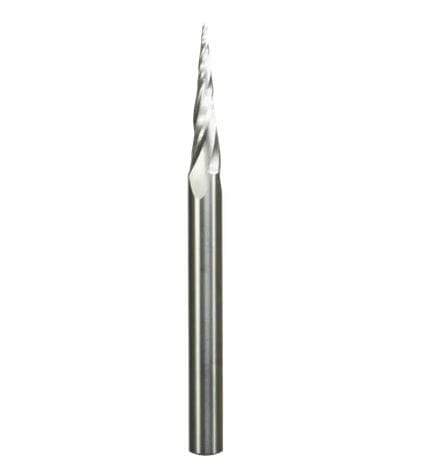

Freud 72-300 Solid Carbide 6.2 Degree Tapered Ball Tip Router Bit 3 Flute 1/32 Inch Diameter 1/4 Inch Shank CNC Carving Tool for 3D Wood and Aluminum

In stock
SKU: 72-300
$39.97 USD
$45.00 USD Sale $39.97 USD

Description

Freud precisely the best logo Logout

Achieve Surgical Precision in Ultra-Detailed 3D Carving with Freud’s Premium Tapered Ball Tip

The Freud 72-300 Tapered Ball Tip Bit is the ultimate solution for CNC makers who require extreme detail and intricate precision in their 2D and 3D carving projects. Featuring an ultra-fine 1/32" diameter tip, this solid carbide bit allows for the creation of complex textures and delicate patterns that standard bits simply cannot achieve. Whether you are working with hardwoods, softwoods, wood composites, plastics, or aluminum, the 6.2-degree taper provides the necessary strength to reach deep into materials while maintaining a crisp, high-quality finish on every pass.

Engineered for maximum durability, this bit is constructed from Freud’s Enhanced TiCo™ Super Density Carbide with chromium, delivering twice the cutting life of standard uncoated bits. The 3-flute design is a critical advantage, providing rapid chip evacuation in deep cuts to prevent heat buildup and material burning. Combined with the advanced Black I.C.E. coating, the cutting edge stays cool even during long CNC production runs. This synergy of material science and cutting-edge geometry ensures that your tool performs with industrial reliability, project after project.

Key Features

  • CNC Maker Optimization: Specifically designed to deliver a long cutting life and professional finish in automated carving applications.
  • Ultra-Fine Detail: 1/32" ball tip diameter allows for the most intricate carving and lettering.
  • 3-Flute Design: Ensures fast chip clearance and smoother finishes in deep 3D carving paths.
  • Enhanced TiCo™ Carbide: In-house manufactured high-density carbide provides 2x the performance and life of standard bits.
  • Black I.C.E. Coating: Advanced industrial coating keeps the bit cool and protects the cutting edge from pitch buildup.

What's Included

  • (1) Freud 6.2° x 1/32" Tapered Ball Tip Solid Carbide Bit (72-300)

Specifications

Model Number 72-300
Tip Diameter (D) 1/32 in
Side Angle 6.2°
Included Angle 12.4°
Shank Diameter (A) 1/4 in
Carbide Height (h) 1 in
Overall Length (H) 3 in
Tip Radius (R) 1/64 in
Number of flutes 3
Maximum RPM 24,000 RPM
Bit Coating Black I.C.E.

Pro-Tip: Due to the extremely fine 1/32" tip, it is essential to use a slow plunge rate and avoid sudden lateral impacts. For best results in 3D carving, utilize a "finishing" toolpath with a small stepover (8% to 10%) to achieve a sand-free surface directly off the CNC machine.
