Freud Slotting Cutter Set 63-154 5/64 Inch Height (1/2 Shank 3-Wing Carbide Tipped Silver ICE Coating T-Molding Spline Joint Wood Router Tool)
Couldn't load pickup availability

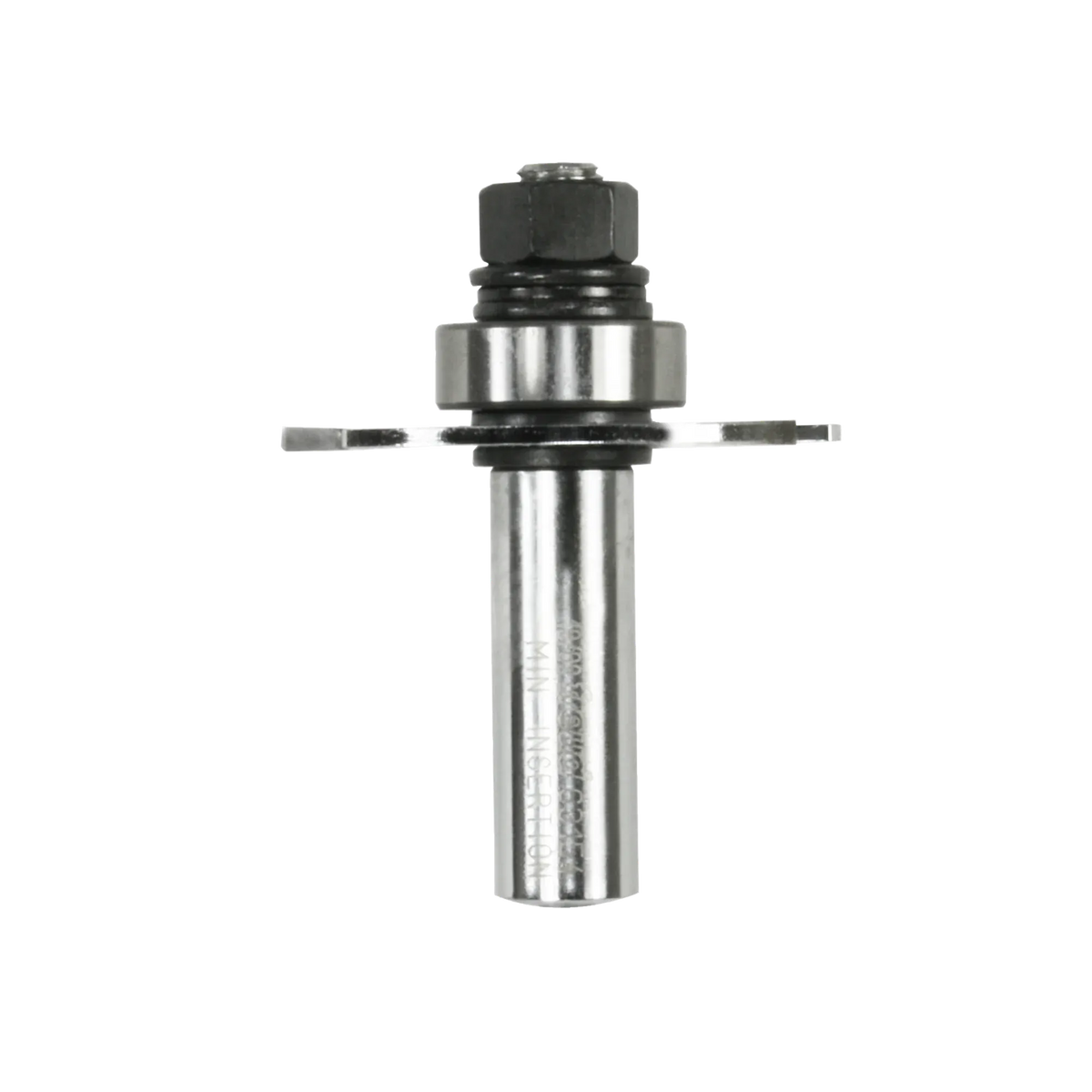

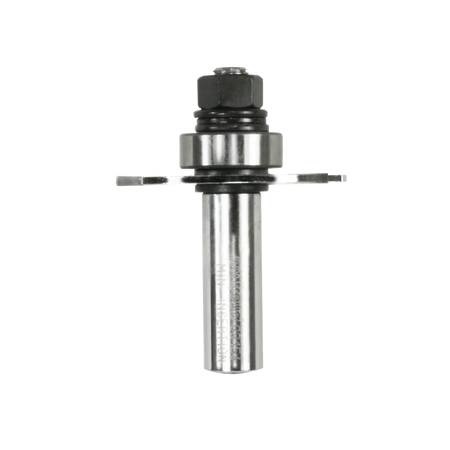

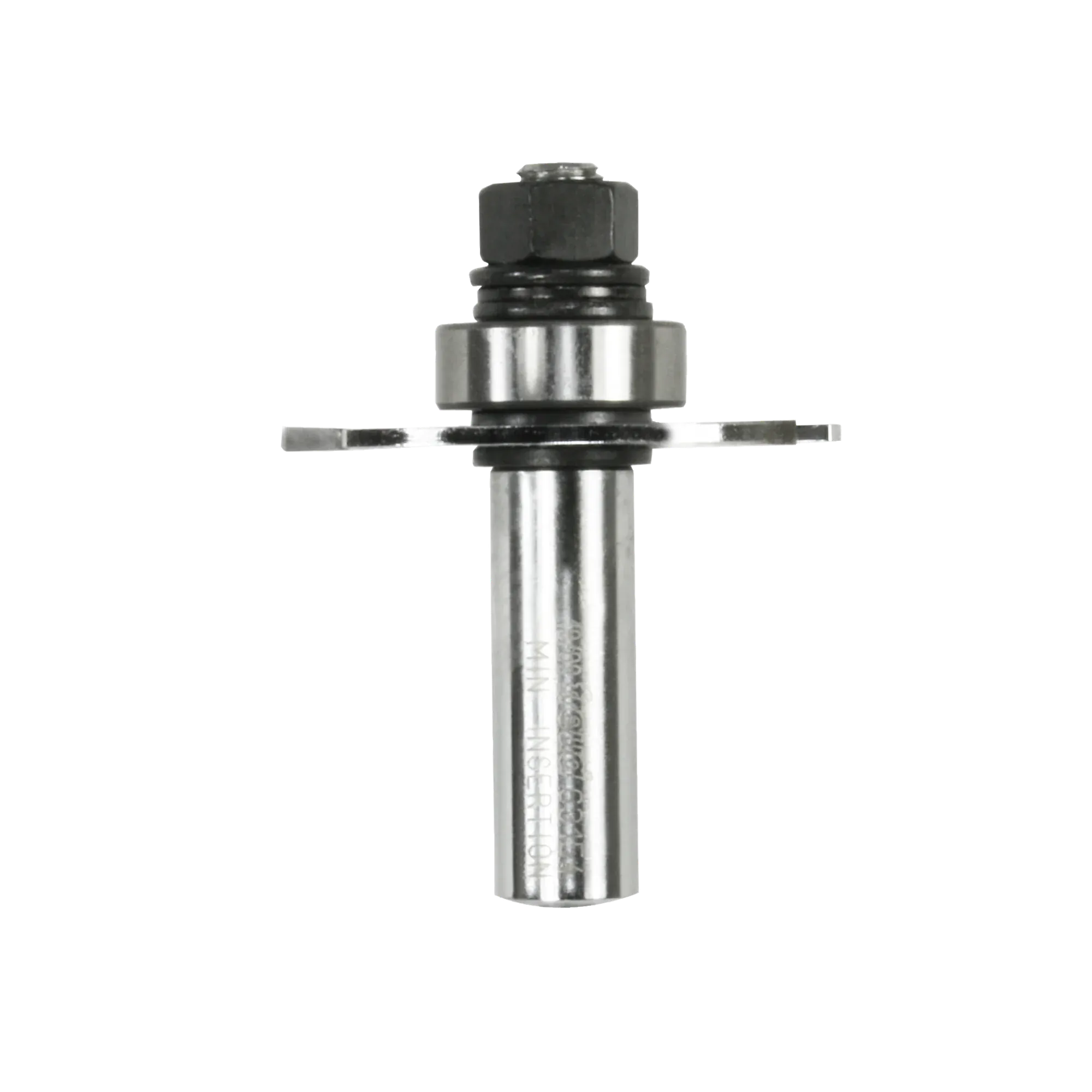

Professional 3-Wing Carbide Tipped Slotting Cutter Kit with Silver I.C.E. Coating
The Freud 63-154 is an industrial-grade 5/64-inch cutting height slotting cutter set featuring a 1/2-inch shank arbor, a ball bearing guide, and a high-performance 3-wing carbide-tipped blade layout engineered to execute clean, consistent 9/16-inch deep grooves in structural millwork. Treated with a proprietary Silver I.C.E. thermal coating to combat severe heat generation and pitch build-up, this professional wood-joining kit operates up to a maximum velocity threshold of 16,000 RPM on stationary shaper tables or handheld routers. The balanced 3-wing architecture maximizes mechanical strike frequency per revolution to completely absorb harmonic vibrations, allowing contractors and cabinetry makers to shape splinter-free paths for thin commercial T-moldings, spline joints, and biscuit placements across hardwoods, plywood, and wood composites.
Best Used For:
- Thin T-Molding Recesses: Machining exact 5/64-inch narrow perimeter slotting tracks along table and countertop edges to seat slim protective polymer trim moldings.
- High-Strength Spline Joinery: Milling precision alignment grooves on structural panel edges to receive thin plywood spline splices or biscuit joints for wood assemblies.
- Tongue and Groove Production: Running matching horizontal side panel cuts in finish-grade wainscoting boards or custom hardwood flooring stock.
Key Performance & Safety Features
- Integrated System Package: Outfitted with a precision-ground 1/2-inch shank arbor, a matched guidance ball bearing, and a 3-wing blade module for immediate assembly.
- Silver I.C.E. Heat Shielding: Proprietary Industrial Cooling Element surface finish reduces dynamic friction levels to preserve cutting-edge matrix temper scores.
- Balanced 3-Wing Profile Geometry: Three distinct carbide cutter tips divide rotational mechanical load metrics to ensure exceptionally smooth linear board feeding.
- TiCo Hi-Density Carbide Formula: Premium micro-grain carbide tip structures retain premium structural razor edges up to twice as long as standard high-speed steel slotters.
- True Ball Bearing Pilot Guidance: Sealed steel guide bearing controls depth accuracy automatically by tracking smoothly against raw structural stock faces.
What's Included
- (1) 3-Wing Slotting Cutter Blade Module
- (1) 1/2" Steel Shank Arbor Mandrel
- (1) Friction-Shielded Pilot Ball Bearing
Technical Specifications
| Brand Name: | Freud Tools |
| Model Number: | 63-154 |
| Tool Component System: | Slotting Cutter Set with Mandrel and Pilot Bearing |
| Carbide Slotting Height (h): | 5/64 in. |
| Maximum Cutting Depth (C): | 9/16 in. |
| Shank Arbor Diameter (A): | 1/2 in. |
| Overall Cutter Diameter (D): | 2 in. |
| Total Outer Length (H): | 2-3/8 in. |
| Total Number of Wings: | 3 Wings |
| Maximum Angular Velocity: | 16,000 RPM |
| Material Metallurgy Core: | TiCo Hi-Density Solid Carbide Tipped Steel |
| Blade Core Coating: | Silver I.C.E. (Industrial Cooling Element) Treatment |
| Universal Product Code: | 008925019329 |
| Manufacturing Origin: | Italy |
Pro-Tip: When routing narrow, deep 9/16-inch recesses into resinous or sappy lumbers, adjust your feed rate to be brisk and consistent. Allowing the 3-wing cutter blade to linger too long inside a single track space causes wood friction scores, despite the Silver I.C.E. barrier coating, so keep the wood piece sliding steadily along the bearing pilot to drop thermal generation limits.
