Freud CNC Router Bit 72-400 1/16 Inch Tapered Ball Nose (1/4 Inch Shank 24000 RPM 4 Flute 5.4 Degree Taper TiCo Carbide 3D Carving Engraving Tool)

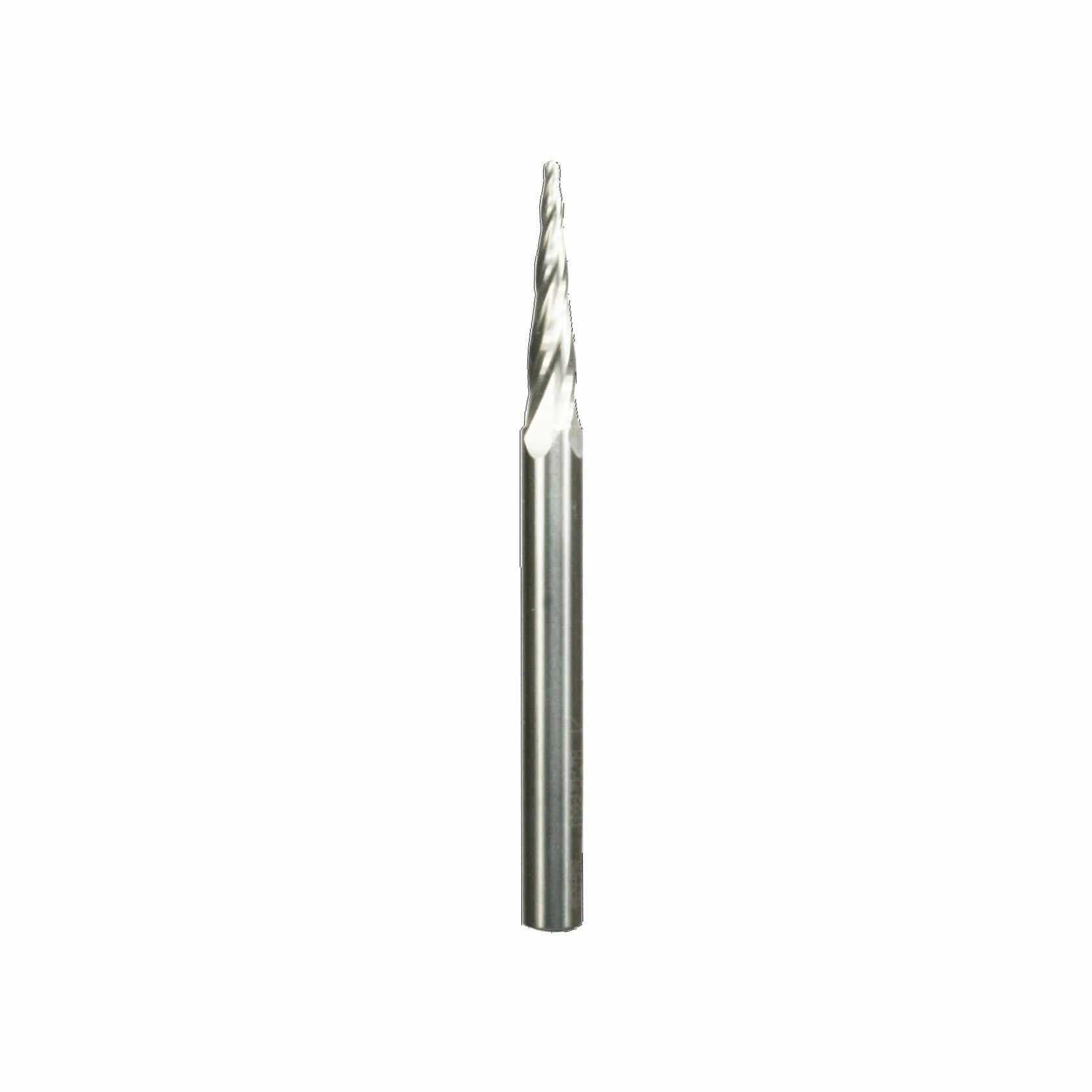

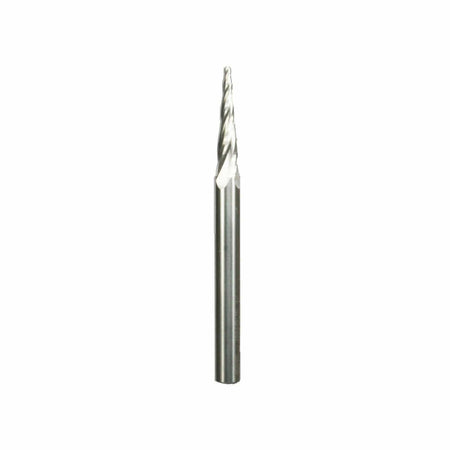

Freud 72-400 1/16-Inch Solid Carbide Tapered Ball Tip CNC Router Bit with 1/4-Inch Shank

The Freud 72-400 1/16-Inch Tapered Ball Tip CNC Router Bit executes ultra-fine 3D relief carving, 2D detailed engraving, and precision contour sculpting across hardwoods, composite panels, plastics, and non-ferrous aluminum. Engineered with a continuous 5.4-degree side taper angle (10.8-degree included angle) transitioning to a micro 1/16-inch ball nose tip, this 1/4-inch shank end mill provides maximum lateral core rigidity to prevent tool deflection and breakage during deep multi-axis passes. Forged from solid TiCo Super Density Carbide and shielded with an advanced Black I.C.E. thermal barrier coating, its 4-flute spiral geometry operates up to 24,000 RPM to evacuate micro-chips rapidly and deliver a glass-smooth finish straight off the CNC table.

Best Used For:

• High-Resolution 3D Relief Carving: Sculpting detailed topographical landscapes, architectural rosettes, and ornamental furniture appliques in dense hardwoods without tool chatter.
• Intricate Dimensional Signmaking: Milling delicate script lettering, filigree details, and clean radiused bottom contours in acrylic, sign foam (HDU), and composite sheet goods.
• Non-Ferrous Aluminum & Brass Milling: Engraving precision instrument dials, decorative metal plates, and prototype molds without tip gumming or edge welding.

Key Performance & Safety Features

• Micro 1/16-Inch Ball Nose Tip: Allows deep, intricate contour access to capture the finest design details in multi-pass 3D finishing cycles.

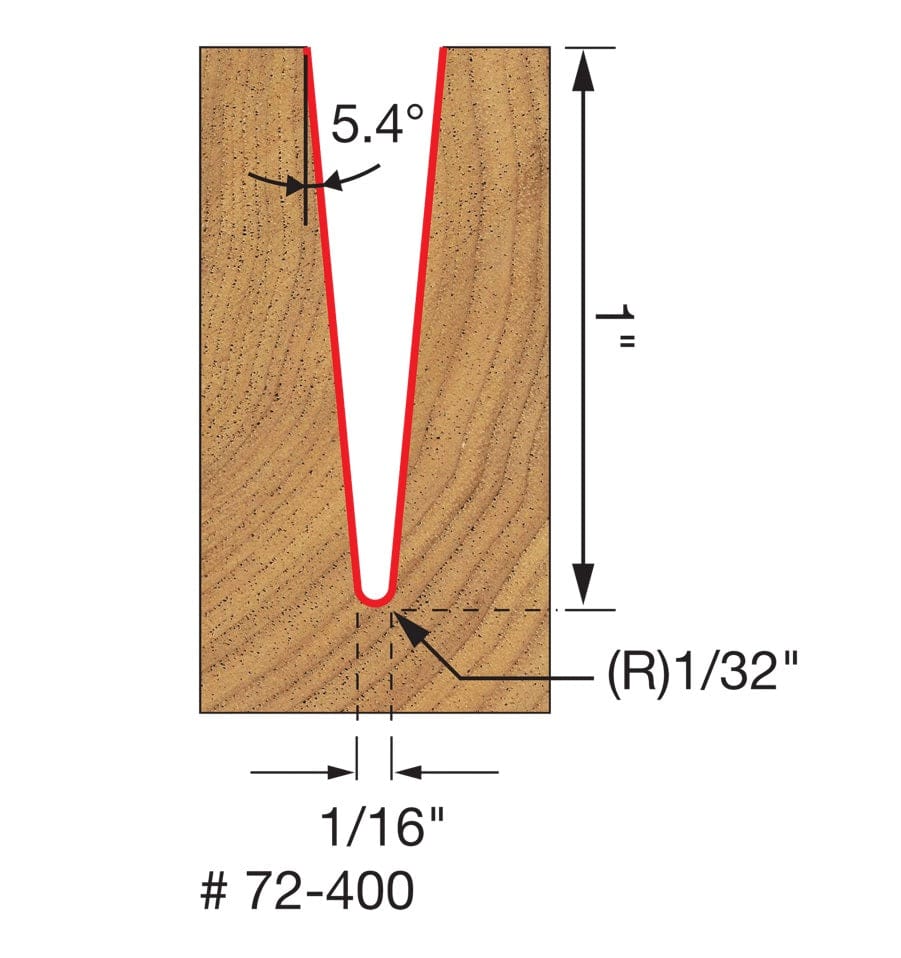

• 5.4-Degree Tapered Side Geometry: Conical flute profile expands core mass toward the 1/4-inch shank to eliminate flex and prevent snap failures.
• Solid TiCo Super Density Carbide: Proprietary ultra-fine grain titanium cobalt matrix delivers extreme hardness and 2X the tool life over conventional solid carbide bits.
• Black I.C.E. Protective Nanocoating: Industrial Cooling Element coating reduces frictional heat, prevents pitch buildup, and speeds chip extraction.
• High-Efficiency 4-Flute Architecture: Multi-edge spiral flutes distribute chip loads evenly to achieve a mirror-smooth cut surface that eliminates manual sanding.
• Rigid 1/4-Inch Precision Shank: Ground to tight aerospace tolerances for concentric, runout-free holding in all standard ER and CNC router collets.

What's Included

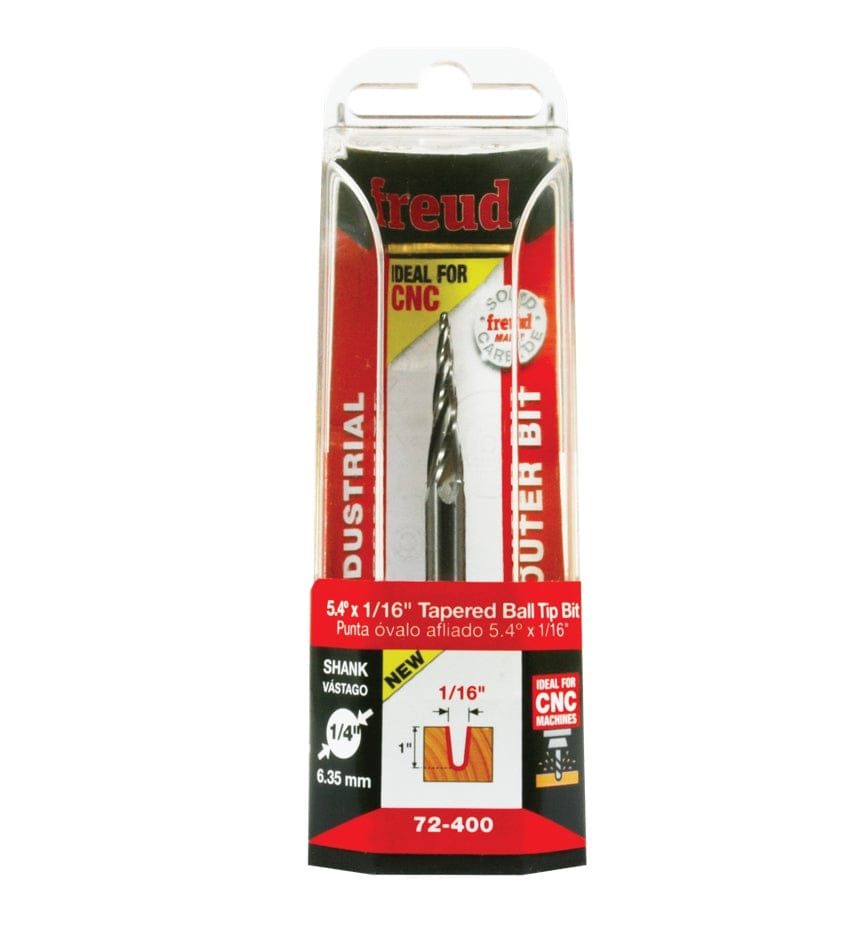

• (1) Freud 72-400 1/16-Inch Tapered Ball Tip Solid Carbide CNC Router Bit with 1/4-Inch Shank

Technical Specifications

Pro-Tip: Set your CNC finishing toolpath stepover to between 8% and 10% of the 1/16-inch tip diameter (approx. 0.005 to 0.006 in); this tight stepover leverages the 4-flute ball nose to eliminate visible cusp ridges on complex 3D relief carvings.
