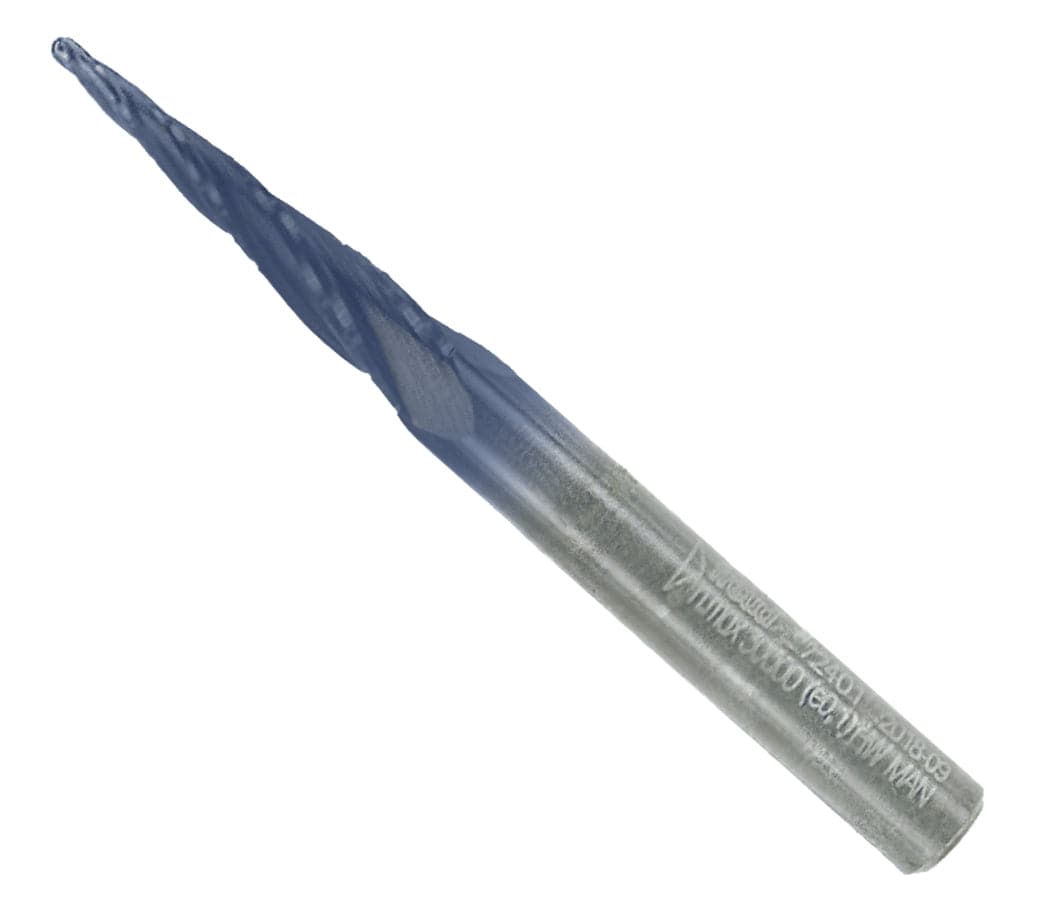

A professional studio shot of the Freud 72-401 solid carbide tapered ball tip router bit featuring a specialized dark coating and a 1/16 inch precision tip for high-resolution 3D relief carving.
A professional studio shot of the Freud 72-401 solid carbide tapered ball tip router bit featuring a specialized dark coating and a 1/16 inch precision tip for high-resolution 3D relief carving.
Technical diagram for the Freud 72-401 bit showing a 10.8 degree total included angle and 1 inch cutting height profile for intricate carving in wood and plastic materials.
A material compatibility chart titled Cuts showing samples of hardwoods, softwoods, composites, plastics, and aluminum, illustrating the wide range of project types for the Freud 72-401 bit.
Freud Black Ice CNC Bits promotional how to video
A professional studio shot of the Freud 72-401 solid carbide tapered ball tip router bit featuring a specialized dark coating and a 1/16 inch precision tip for high-resolution 3D relief carving.
A professional studio shot of the Freud 72-401 solid carbide tapered ball tip router bit featuring a specialized dark coating and a 1/16 inch precision tip for high-resolution 3D relief carving.
Technical diagram for the Freud 72-401 bit showing a 10.8 degree total included angle and 1 inch cutting height profile for intricate carving in wood and plastic materials.
A material compatibility chart titled Cuts showing samples of hardwoods, softwoods, composites, plastics, and aluminum, illustrating the wide range of project types for the Freud 72-401 bit.
Freud Black Ice CNC Bits promotional how to video
Freud

Freud 72-401 Tapered Ball Tip Router Bit 1/16 Inch Diameter 5.4 Degree Solid Carbide 1/4 Inch Shank CNC Tool for 3D Carving Wood Plastic and Aluminum

Only 1 left
SKU: 72-401
$34.89 USD

Description

Freud precisely the best logo Logout

Master the Finest Details: The Professional CNC Bit for Intricate 3D Relief and Precision Carving

The Freud 72-401 Tapered Ball Tip Bit is a precision-engineered tool designed for CNC makers who require unparalleled detail in their work. Featuring an extremely fine 1/16-inch tip and a 5.4-degree taper, this bit is the ultimate solution for deep-reach 3D carving, intricate relief work, and fine-line detailing. The unique 3-flute design ensures rapid chip clearance even in deep cuts, preventing heat buildup and maintaining a pristine finish on your workpiece.

Forged from Freud Premier Solid Carbide and protected by the revolutionary Black I.C.E. (Industrial Cooling Element) coating, the 72-401 is built to outperform and outlast standard bits. By combining Freud’s proprietary TiCo™ Super Density Carbide with advanced cutting geometry, this tool delivers up to 2X the cutting life and maximum durability. Whether you are carving detailed signs in hardwood, intricate 3D models in plastic, or high-precision components in aluminum, this bit provides the professional-grade performance and high-quality finish your projects demand.

Key Features

  • Ultra-fine 1/16" ball tip specifically designed for high-resolution 3D CNC carving.
  • 3-Flute geometry provides superior chip evacuation and faster cutting speeds.
  • Black I.C.E. Coating maintains a cool cutting edge and protects against pitch buildup.
  • TiCo™ Super Density Carbide with Chromium offers 2X the performance life of standard bits.
  • Tapered side design adds strength to the small tip for deeper, more stable cuts.
  • Ideal for a wide range of materials including wood, plastics, composites, and aluminum.

What's Included

  • (1) Freud 72-401 5.4° x 1/16" Tapered Ball Tip Solid Carbide Bit

Specifications

Product Model 72-401
Tip Diameter (D) 0.0625 in. (1/16")
Taper Angle (Side) 5.4°
Included Angle (Total) 10.8°
Carbide Height (h) 1.0 in.
Shank Diameter (A) 0.25 in.
Overall Length (H) 2.5 in.
Tip Radius (R) 0.03125 in. (1/32")
Number of Flutes 3
Maximum RPM 24,000
Material Solid Carbide
Coating Black I.C.E.

Pro-Tip: When using ultra-fine tip bits like the 72-401 for 3D carving, ensure your CNC machine is properly leveled and your workpiece is securely fastened. Even a slight vibration can affect the detail of a 1/16" tip, so consider using a "finishing pass" with a very small step-over (8-10%) to achieve that smooth-as-glass surface finish!
