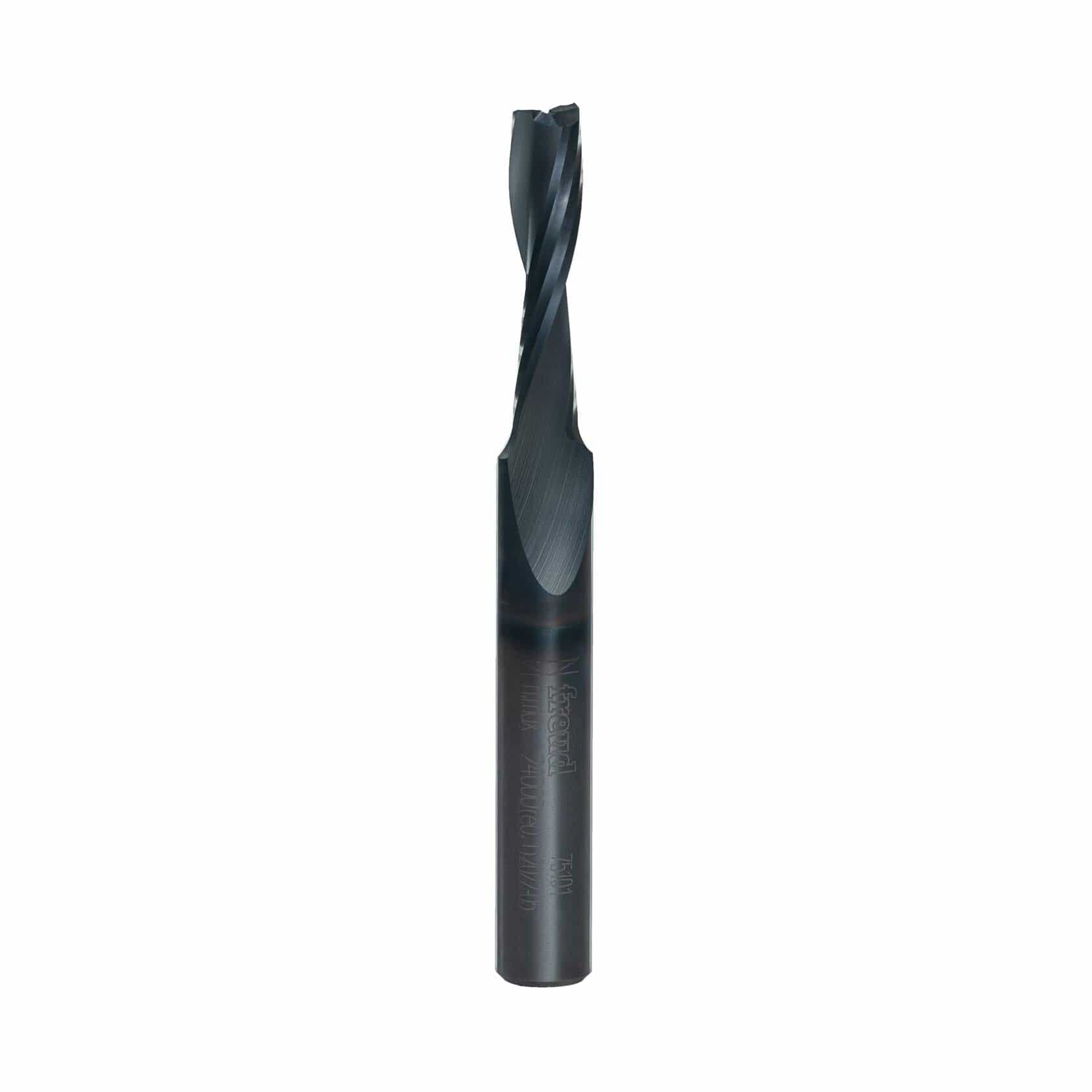

Close-up product photo of the Freud 75-101 Up Spiral router bit with a black coating, highlighting its spiral flute design and the 1/4 inch shank.

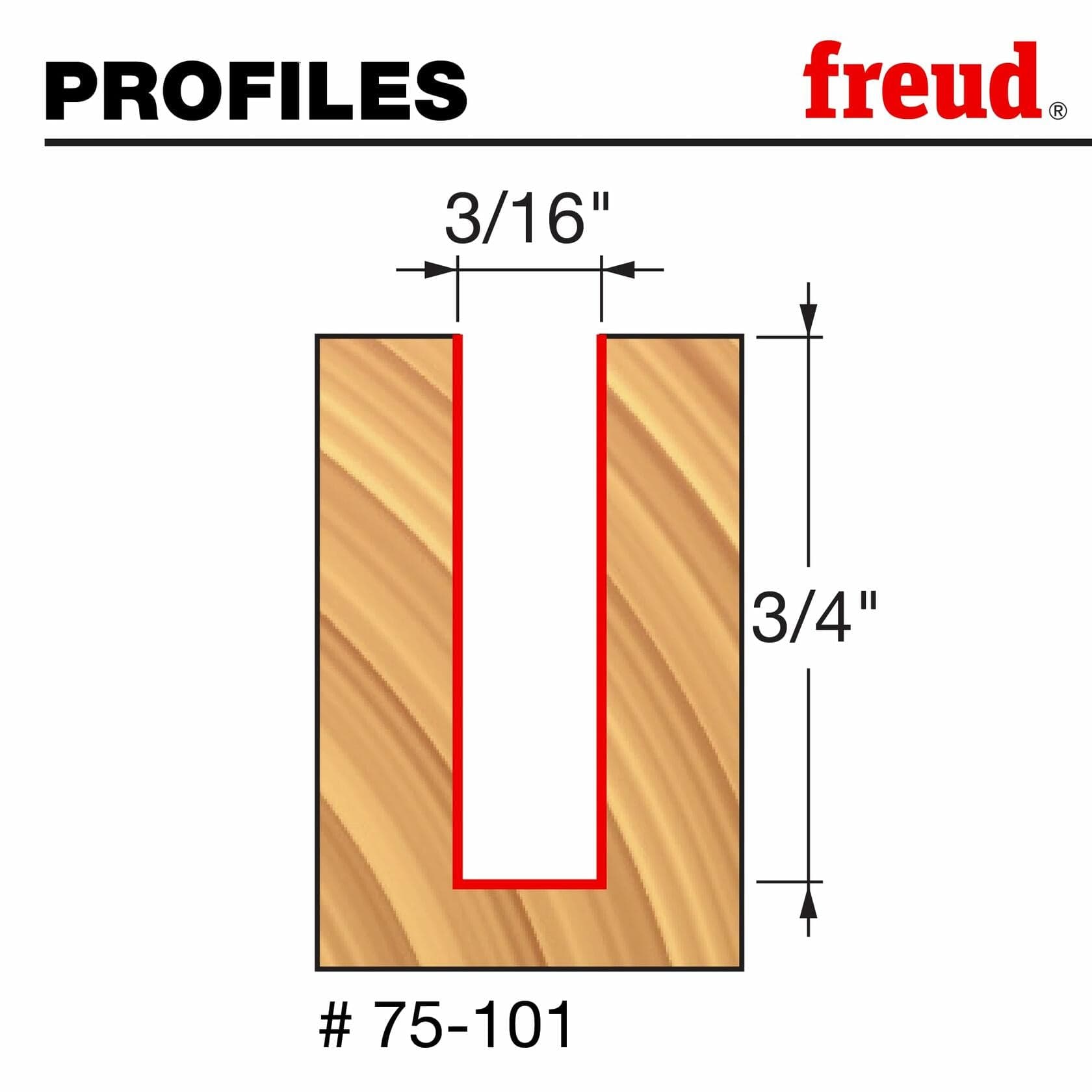

Profile diagram for the Freud 75-101 router bit showing a 3/16 inch diameter plunge cut into wood. The cut depth is labeled 3/4 inch. This illustrates the straight groove the bit is designed to create.

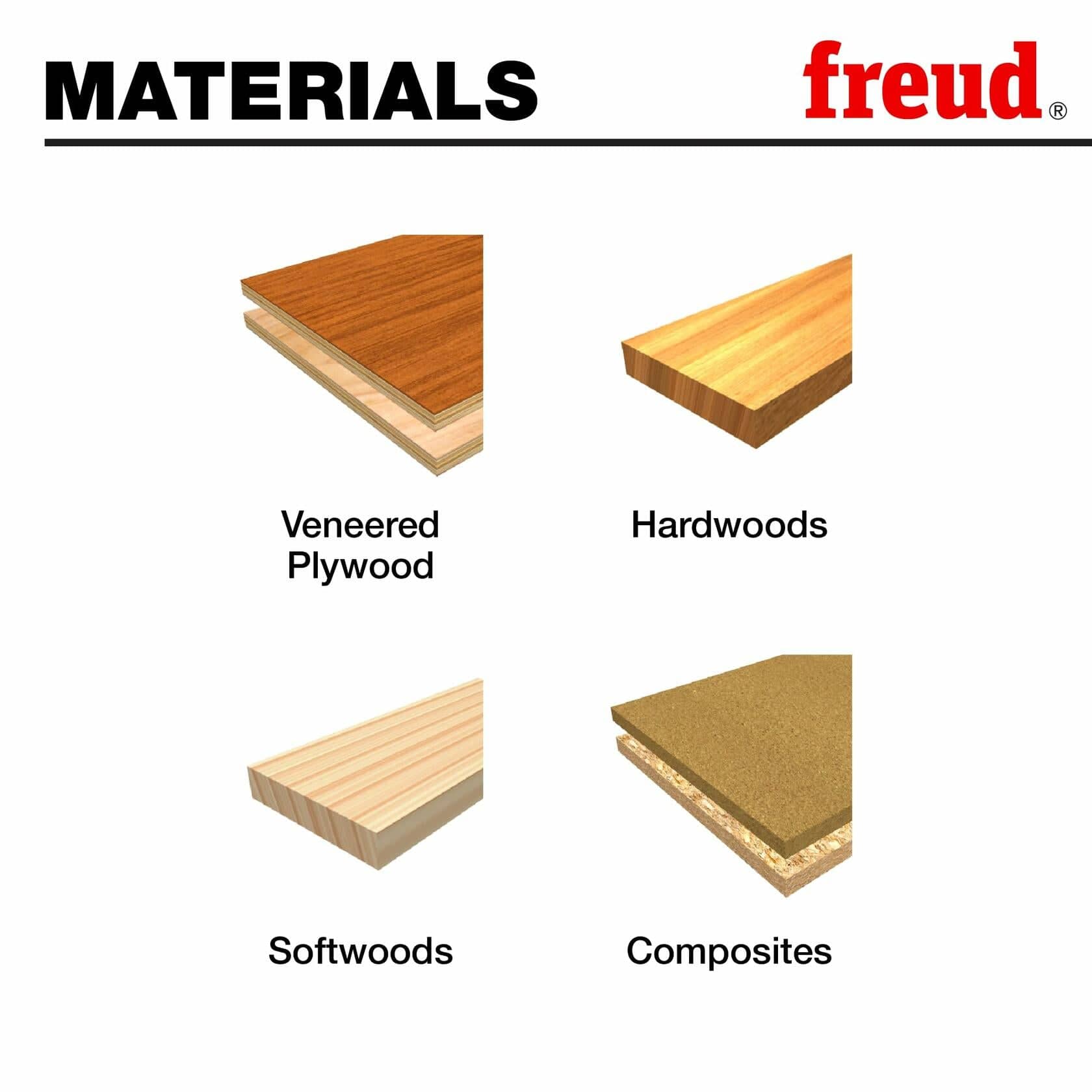

Diagram showing the materials compatible with the Freud 75-101 router bit: Veneered Plywood, Hardwoods, Softwoods, and Composites.

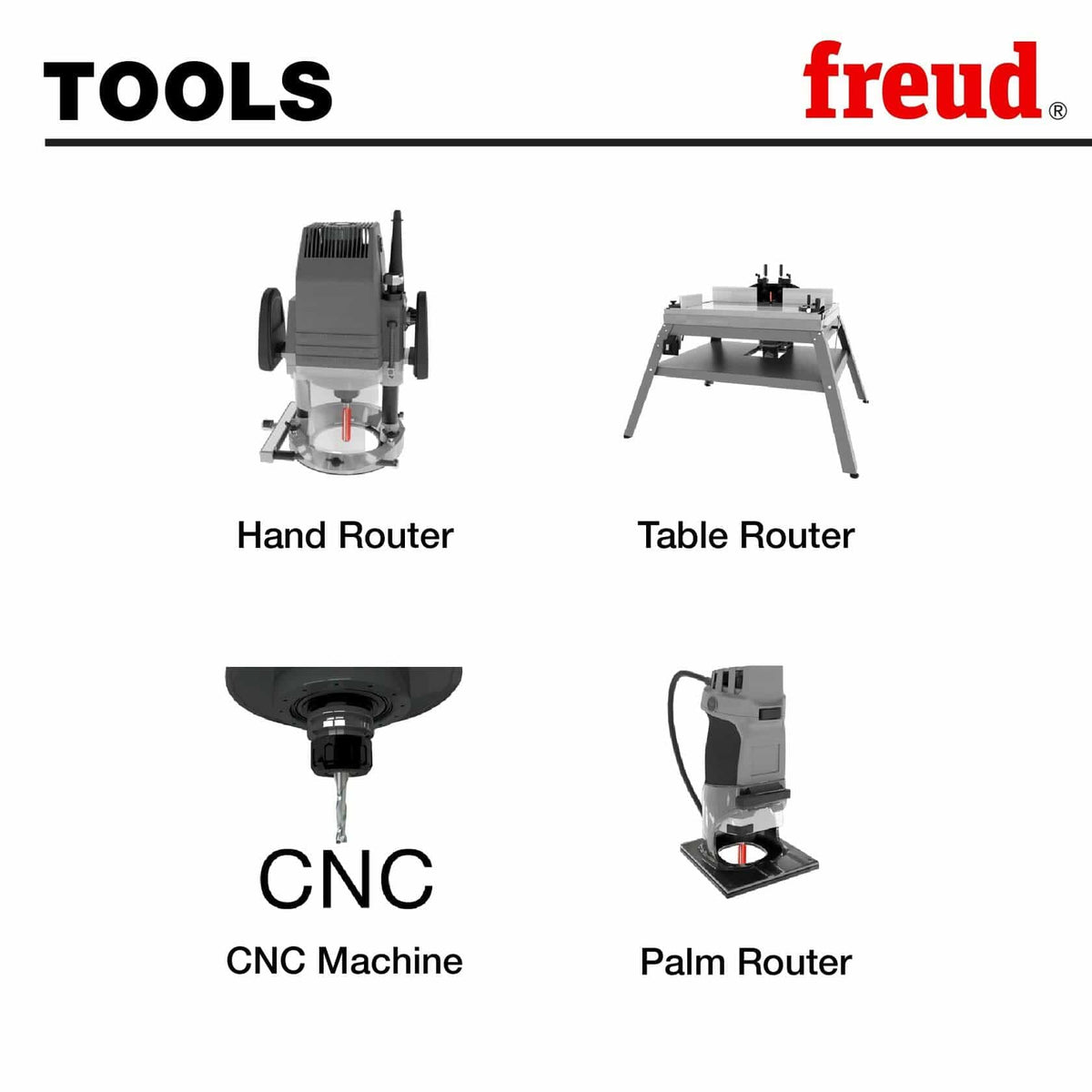

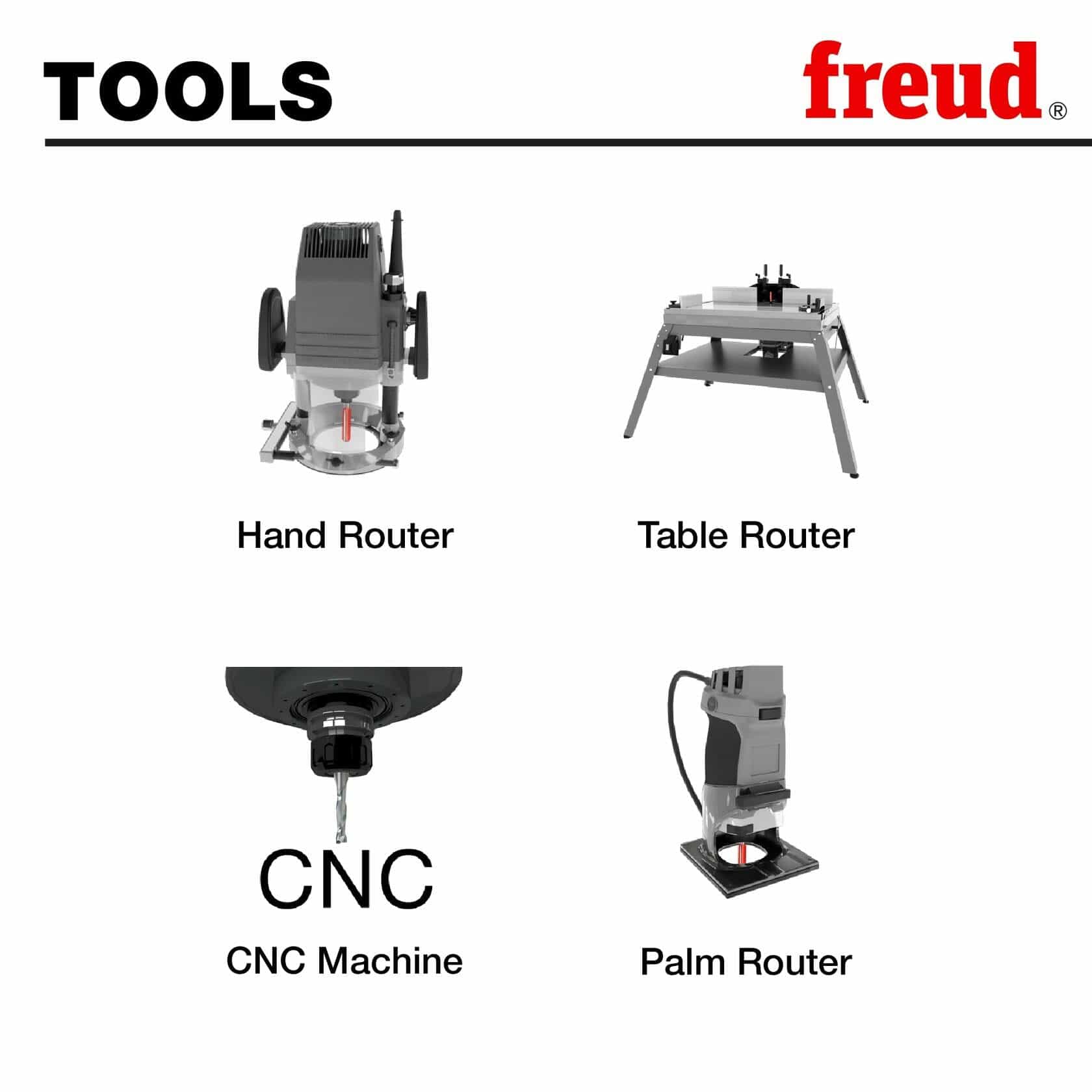

Diagram showing the compatible tools for the Freud 75-101 router bit: Hand Router, Table Router, CNC Machine, and Palm Router.

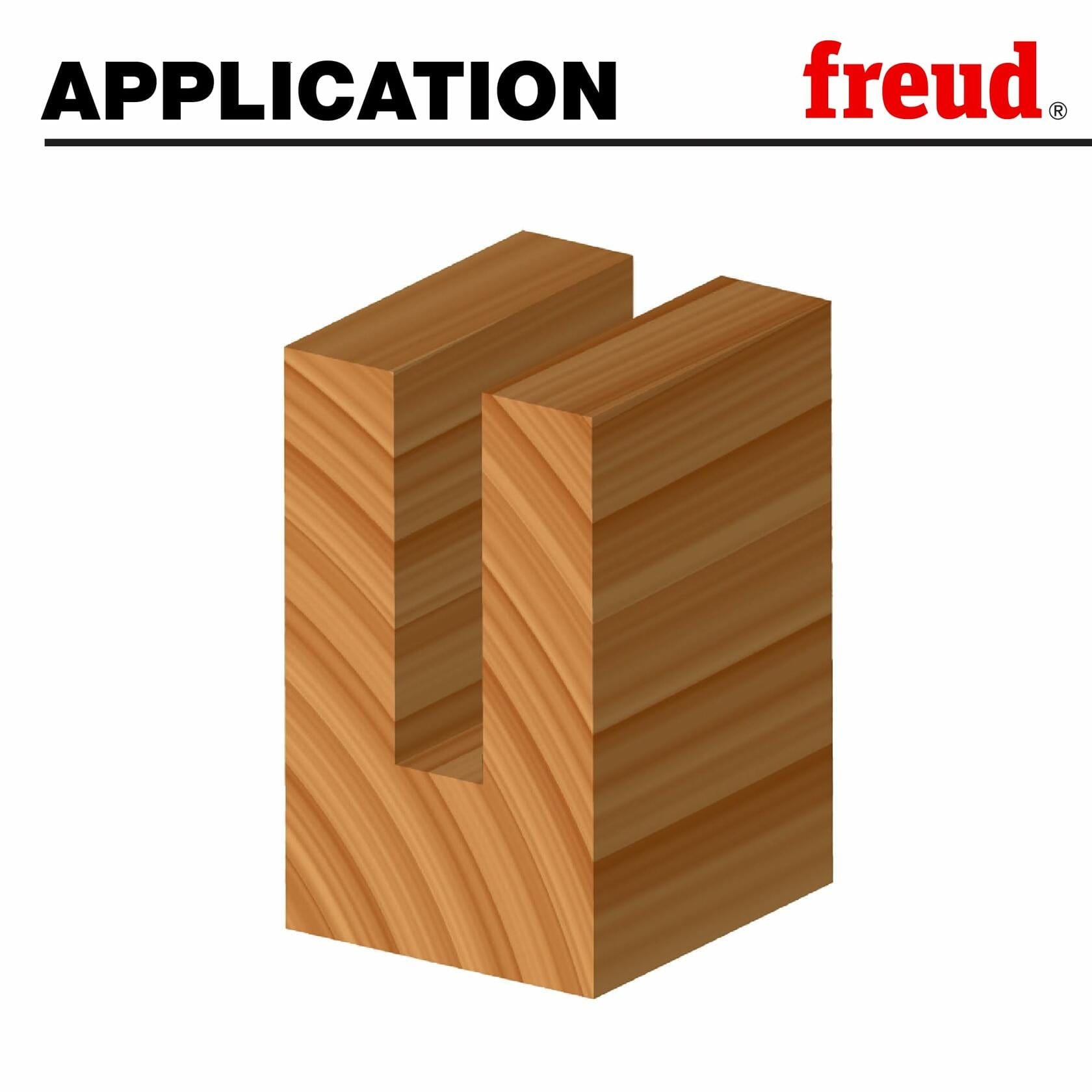

Application diagram showing a clean, straight groove cut into a piece of wood, demonstrating the precise grooving and mortising capability of the router bit.

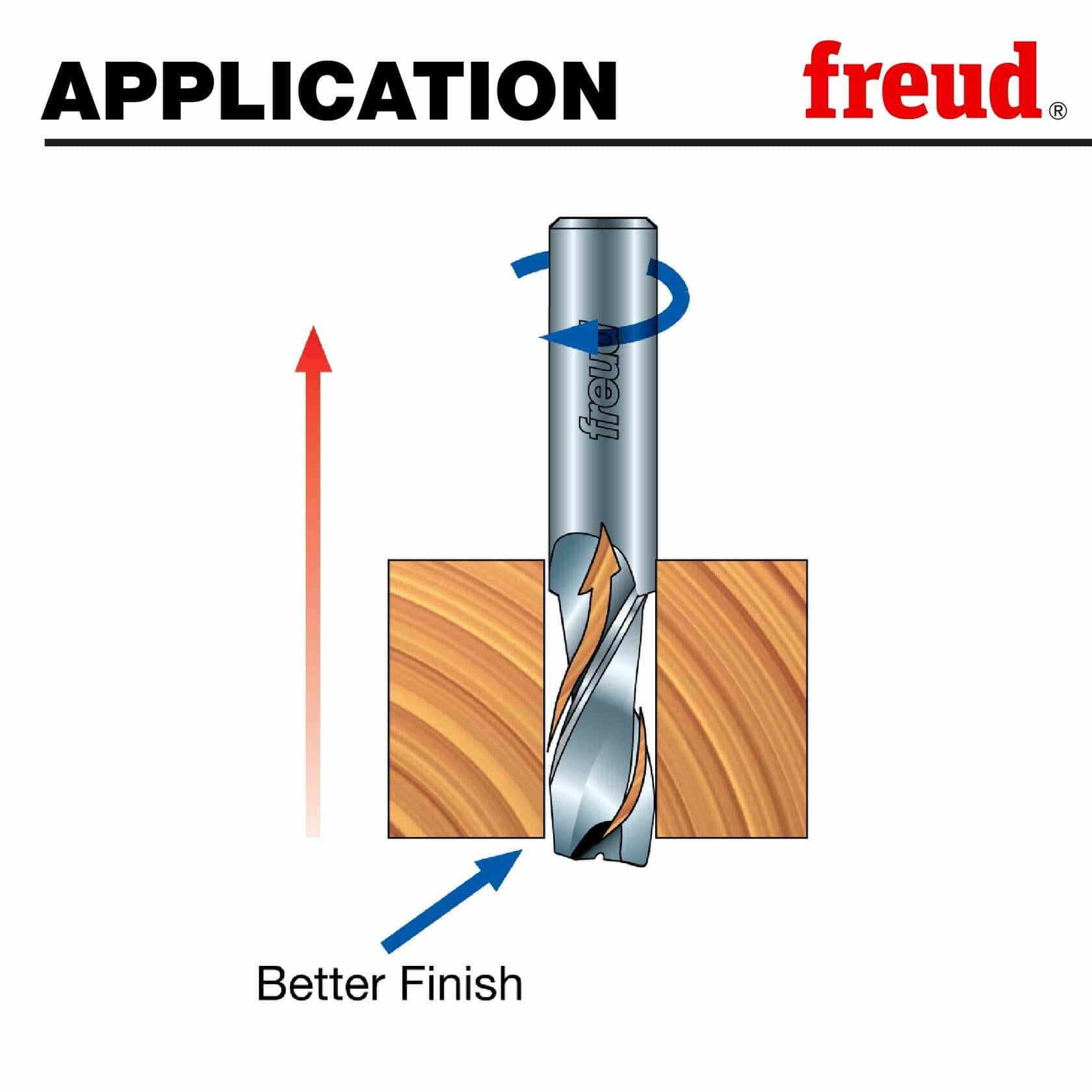

Application diagram illustrating the Up Spiral action of the router bit. The arrow shows chips being pulled up and out of the cut, resulting in a better finish on the bottom surface of the material.
Freud Black Ice CNC Bits promotional how to video
Close-up product photo of the Freud 75-101 Up Spiral router bit with a black coating, highlighting its spiral flute design and the 1/4 inch shank.
Profile diagram for the Freud 75-101 router bit showing a 3/16 inch diameter plunge cut into wood. The cut depth is labeled 3/4 inch. This illustrates the straight groove the bit is designed to create.
Diagram showing the materials compatible with the Freud 75-101 router bit: Veneered Plywood, Hardwoods, Softwoods, and Composites.
Diagram showing the compatible tools for the Freud 75-101 router bit: Hand Router, Table Router, CNC Machine, and Palm Router.
Application diagram showing a clean, straight groove cut into a piece of wood, demonstrating the precise grooving and mortising capability of the router bit.
Application diagram illustrating the Up Spiral action of the router bit. The arrow shows chips being pulled up and out of the cut, resulting in a better finish on the bottom surface of the material.
Freud Black Ice CNC Bits promotional how to video
Freud

Freud Up Spiral Router Bit 75-101 3/16 Inch (Solid Wood Plywood CNC Mortising Single Flute TiCo Carbide 1/4 Inch Shank 24000 RPM)

In stock
SKU: 75-101
$19.97 USD

Description

Freud precisely the best logo Logout

Freud 75-101 3/16-Inch Up-Spiral Single-Flute Solid Carbide Router Bit

The Freud 75-101 3/16-Inch Up-Spiral Single-Flute Solid Carbide Router Bit is a high-precision CNC routing tool engineered to execute deep mortising, slot grooving, and clean through-cuts in solid wood, plywood, MDF, and composite panels. Operating at speeds up to 24,000 RPM with a 1/4-inch shank, 3/16-inch cutting diameter, and 2-1/2-inch overall length, this single-flute cutter features TiCo hi-density micrograin carbide tips and Black I.C.E. / Perma-SHIELD protective coatings. Designed for CNC milling centers, handheld plunge routers, and router tables, this upward spiral cutter solves chip packing, frictional heat buildup, and bottom-edge tear-out challenges in high-volume woodworking production shops.

Best Used For:

  • CNC Deep Mortising & Blind Hole Routing: Clearing sawdust rapidly upward out of deep cavities to prevent cutter pack-up and thermal bit failure.
  • Plywood & Composite Through-Cutting: Milling precise 3/16-inch wide slots and contours through multi-layer hardwood plywood and dense MDF sheets.
  • High-Speed Automated Production Grooving: Executing splinter-free bottom-surface grooves on automated CNC machinery operating at high feed rates.

Key Performance & Safety Features

  • Up-Spiral Single-Flute Geometry: Upward shearing action lifts wood chips and dust out of deep cuts to eliminate clogging and reduce thermal stress.
  • TiCo Hi-Density Micrograin Carbide: Premium titanium-cobalt carbide formulation maintains razor sharpness against abrasive composite glues and resins.
  • Black I.C.E. & Perma-SHIELD Thermal Coatings: Dual-coating system resists frictional heat, pitch buildup, corrosion, and edge wear for extended bit life.
  • Multi-Axis Precision Grinding: Precision-ground cutting edges deliver smooth, burn-free finishes without edge chatter or tear-out.
  • Proprietary Anti-Kickback Design: Formulated bit geometry regulates material feed rate to enhance operator control and safety across all router setups.

What's Included

  • (1) Freud 75-101 3/16 in. Up-Spiral Single-Flute Solid Carbide Router Bit (1/4 in. Shank)

Technical Specifications

Manufacturer Brand Freud Tools
Model Part Number (OEM) 75-101
Cutting Edge Diameter (D) 3/16 in. (4.76 mm)
Shank Interface Diameter (d) 1/4 in. (6.35 mm) Round Shank
Overall Bit Length (L) 2-1/2 in. (63.5 mm)
Spiral Flute Orientation Up-Spiral (Upward Chip Ejection)
Total Flute Cutter Count 1 Single Flute
Cutter Material Composition TiCo Hi-Density Micrograin Carbide
Protective Coating Matrix Black I.C.E. & Perma-SHIELD Red Coating
Maximum Rotational Speed 24,000 RPM
Power Tool System Compatibility CNC Routers, Handheld Plunge Routers, Router Tables
Primary Target Substrates Solid Hardwood, Softwood, Plywood, MDF, Composites
Pro-Tip: Use an up-spiral bit when plunge routing mortises to lift chips cleanly out of the hole, but apply sacrificial hold-down scrap on top of your workpiece if top-edge veneer fuzzing occurs.
