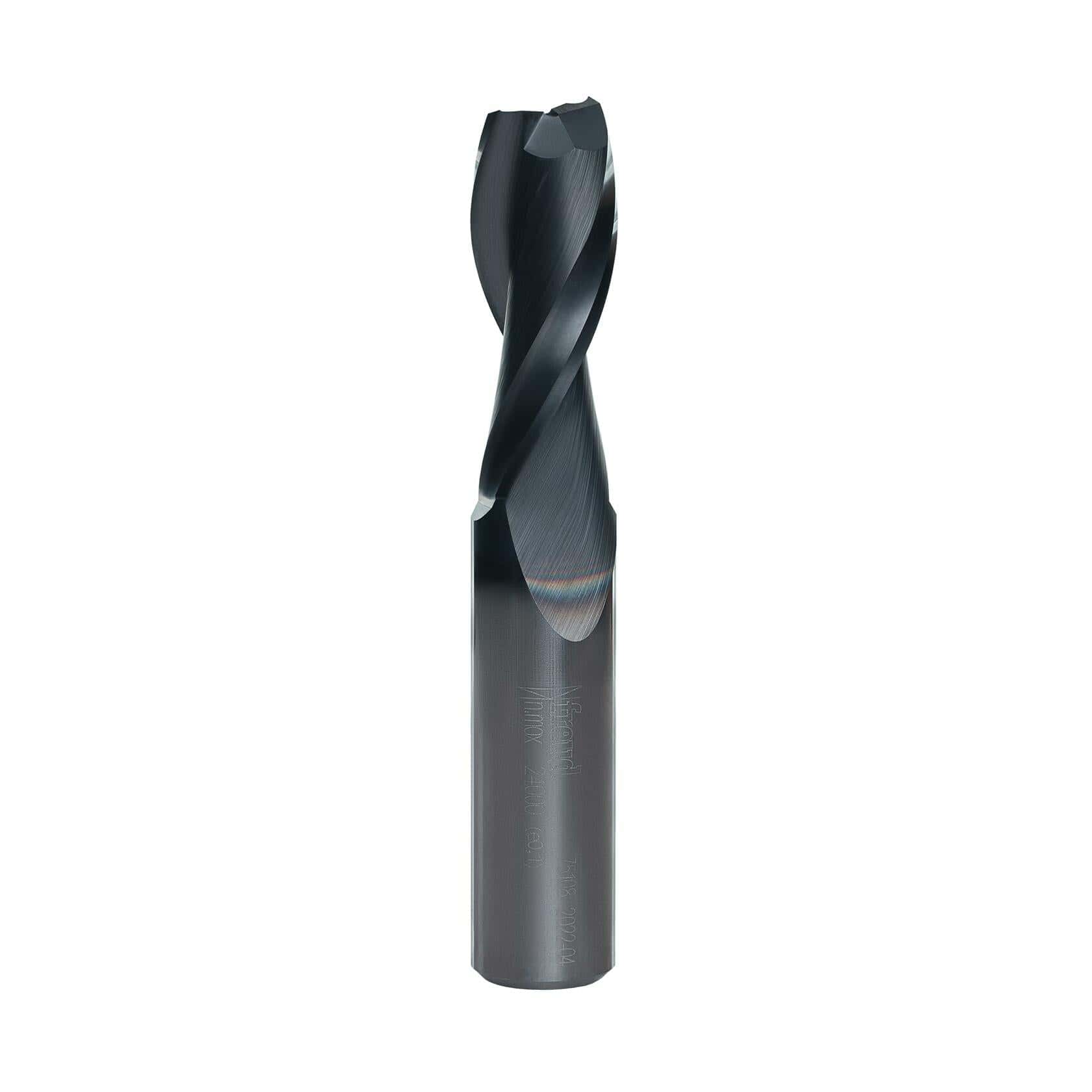

Vertical view of the Freud 75-108 solid carbide up spiral router bit, showing the dark Black I.C.E. coating and the spiral flutes.

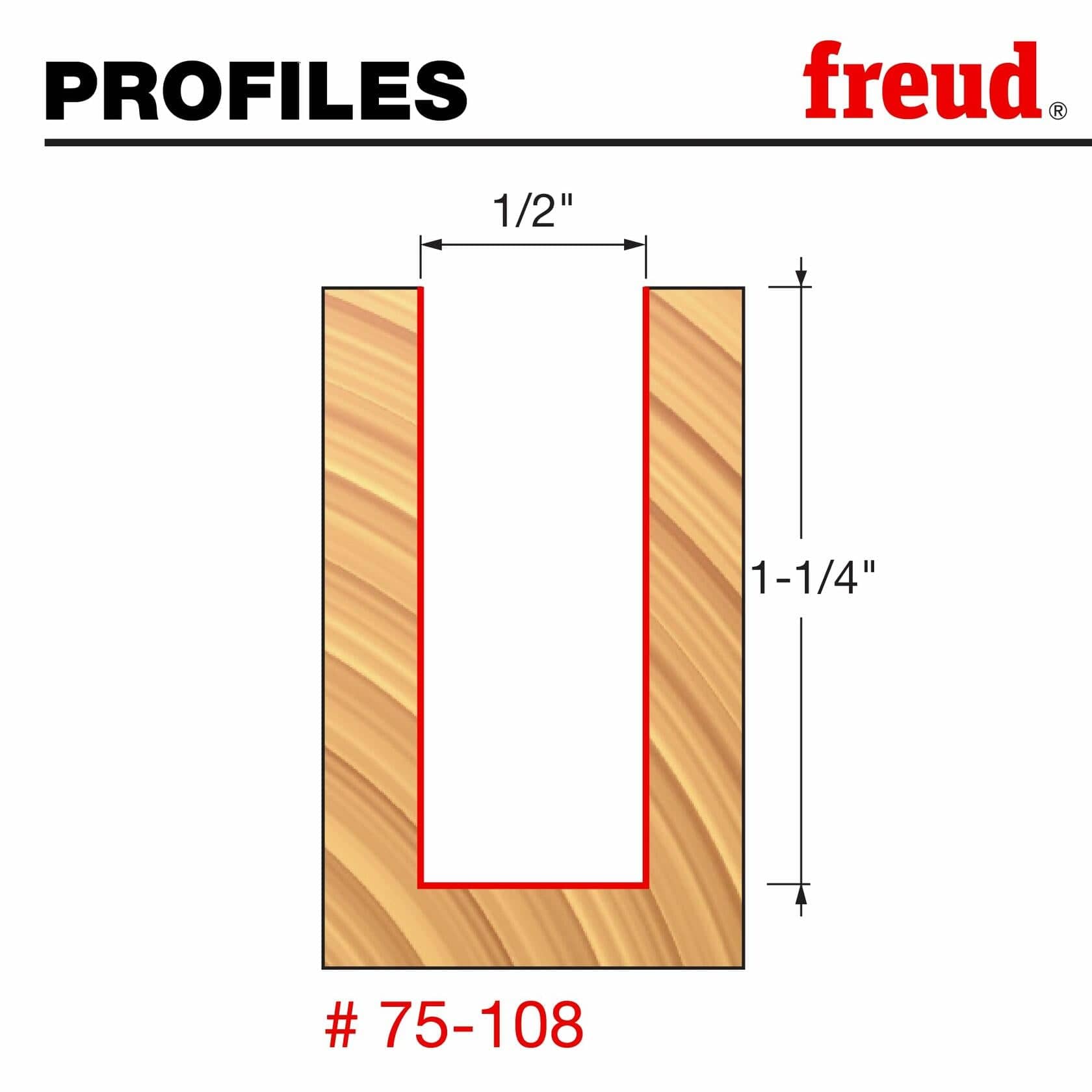

Diagram showing the technical dimensions of the cut profile created by the Freud 75-108 bit: 1/2 inch diameter and 1-1/4 inch cutting height.
Images showing the material types suitable for the Freud 75-108 bit: Veneered Plywood, Hardwoods, Softwoods, and Composites.

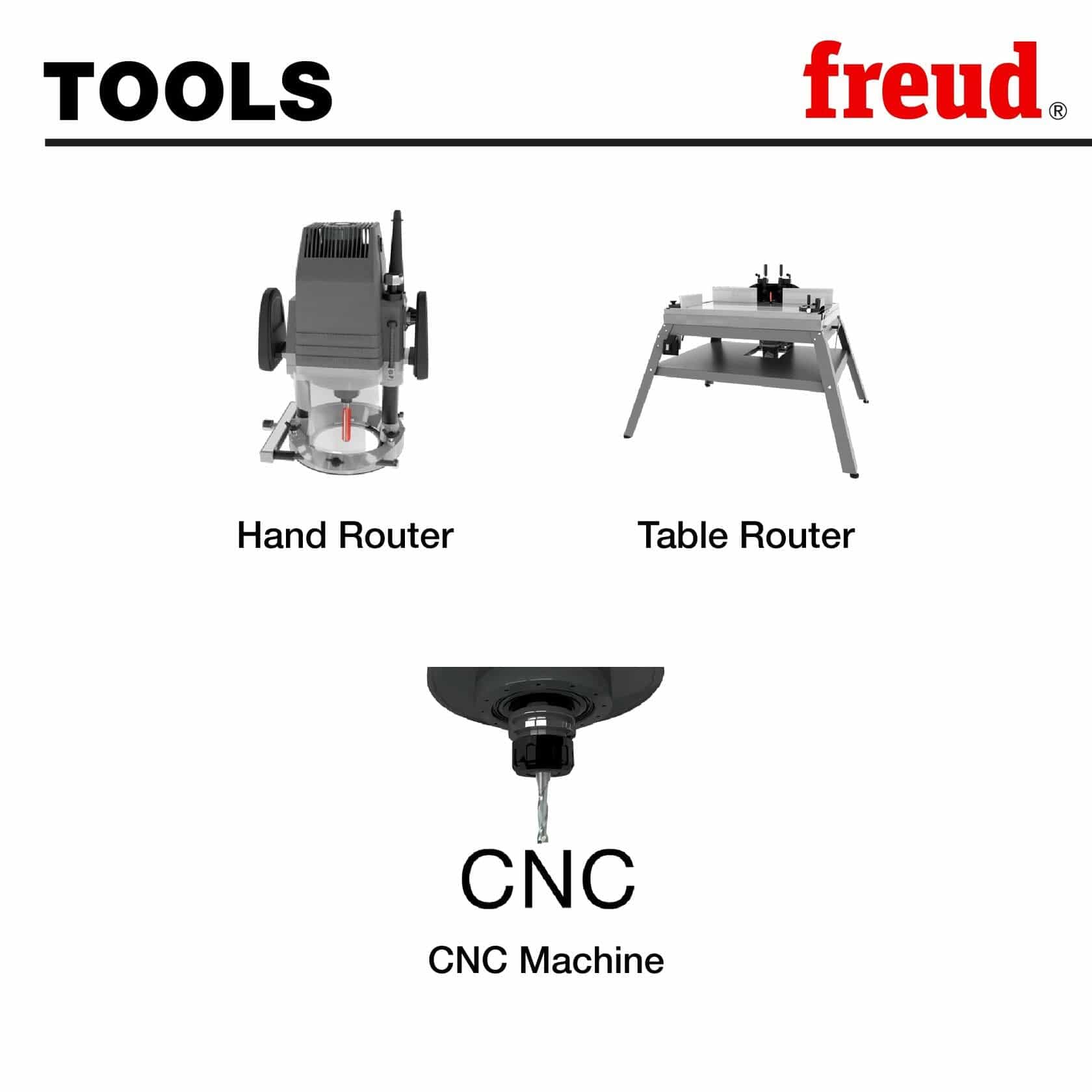

Images illustrating the types of routing machines compatible with the Freud 75-108 bit: Hand Router, Table Router, and CNC Machine.

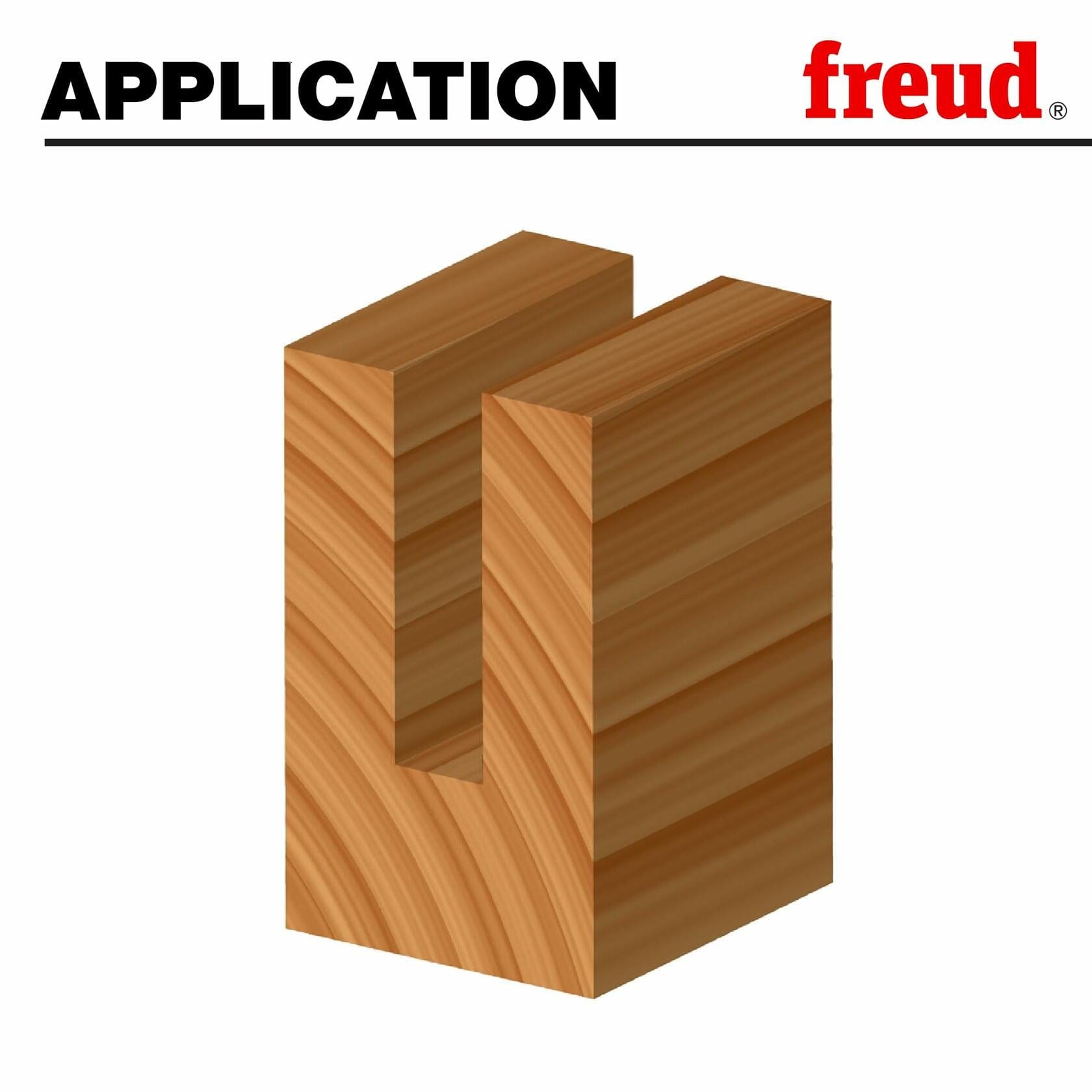

Rendered diagram illustrating the U-shaped groove (dado or mortise) cut profile produced by the Freud 75-108 up spiral router bit in a block of wood.

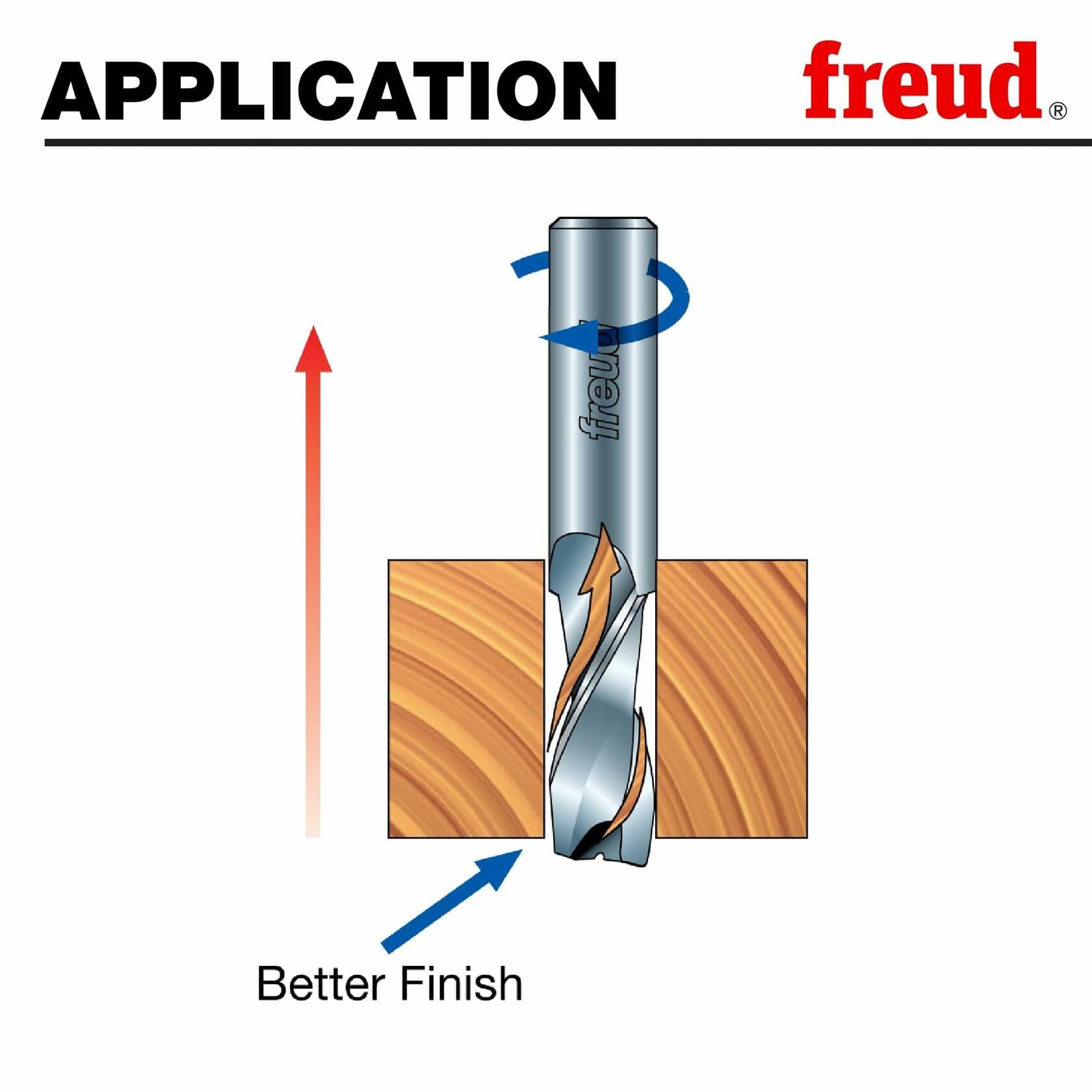

Diagram illustrating the up spiral cutting action of the bit, showing chips being directed upward and away from the cut, resulting in a "Better Finish" on the bottom of the material.
Vertical view of the Freud 75-108 solid carbide up spiral router bit, showing the dark Black I.C.E. coating and the spiral flutes.
Diagram showing the technical dimensions of the cut profile created by the Freud 75-108 bit: 1/2 inch diameter and 1-1/4 inch cutting height.
Images showing the material types suitable for the Freud 75-108 bit: Veneered Plywood, Hardwoods, Softwoods, and Composites.
Images illustrating the types of routing machines compatible with the Freud 75-108 bit: Hand Router, Table Router, and CNC Machine.
Rendered diagram illustrating the U-shaped groove (dado or mortise) cut profile produced by the Freud 75-108 up spiral router bit in a block of wood.
Diagram illustrating the up spiral cutting action of the bit, showing chips being directed upward and away from the cut, resulting in a "Better Finish" on the bottom of the material.
Freud

Freud 75-108 Solid Carbide Up Spiral Router Bit: 1/2" Diameter 3" Length Cutter with Black I.C.E. Coating for Production Mortising and Through-Cuts

Only 1 left
SKU: 75-108
$50.00
Description

Production Grade Routing: Superior Chip Evacuation and Flawless Finish on Bottom Edges

The Freud 75-108 Up Spiral Bit is the ultimate tool for high-volume production applications demanding precision and longevity. This Solid Carbide bit combines aggressive chip removal with a finish quality far superior to standard straight bits. The up spiral design pulls chips upward, ensuring the best cut quality on the bottom surface of your material, making it ideal for through-cuts, mortises, and deep blind holes. Featuring Freud’s advanced Black I.C.E. coating, this bit provides a cool cutting edge and superior chip evacuation, delivering up to 2X increased life and performance over uncoated bits.

Key Features

  • Superior Chip Removal: Up spiral design efficiently pulls chips and dust up and out of the cut, ideal for mortises and deep blind holes in high-volume settings.
  • Extended Life: Black I.C.E. Coating and TiCo™ Hi-Density Carbide provide up to 2X increased life and performance by resisting heat and pitch buildup.
  • Flawless Bottom Cut: Provides the best cut quality on the bottom surface of the material, essential for CNC through-cuts and production dados/grooves.
  • Robust Dimensions: Features a 1/2" Overall Diameter and 1-1/4" Carbide Height for deep, consistent cutting across various stock thicknesses.
  • Universal Compatibility: Designed for maximum performance in CNC, hand-held, and table-mounted routers.
  • Material Versatility: Excellent for grooves and dadoes in all composite materials, plywoods, hardwoods, and softwoods.

What's Included

  • (1) Freud 75-108 Solid Carbide Up Spiral Bit (1/2" Shank)

Specifications

Attribute Value
Overall Diameter (D) 1/2 Inch
Shank Diameter (A) 1/2 Inch
Carbide Height (h) 1-1/4 Inches
Overall Length (H) 3 Inches
Max RPM 24,000
Number of Cutters 2
Bit Type Solid Carbide Up Spiral
Coating Black I.C.E. Anti-Friction Coating
Technology Freud Premier Solid Carbide
Application Through-cuts, Mortises, Dados
