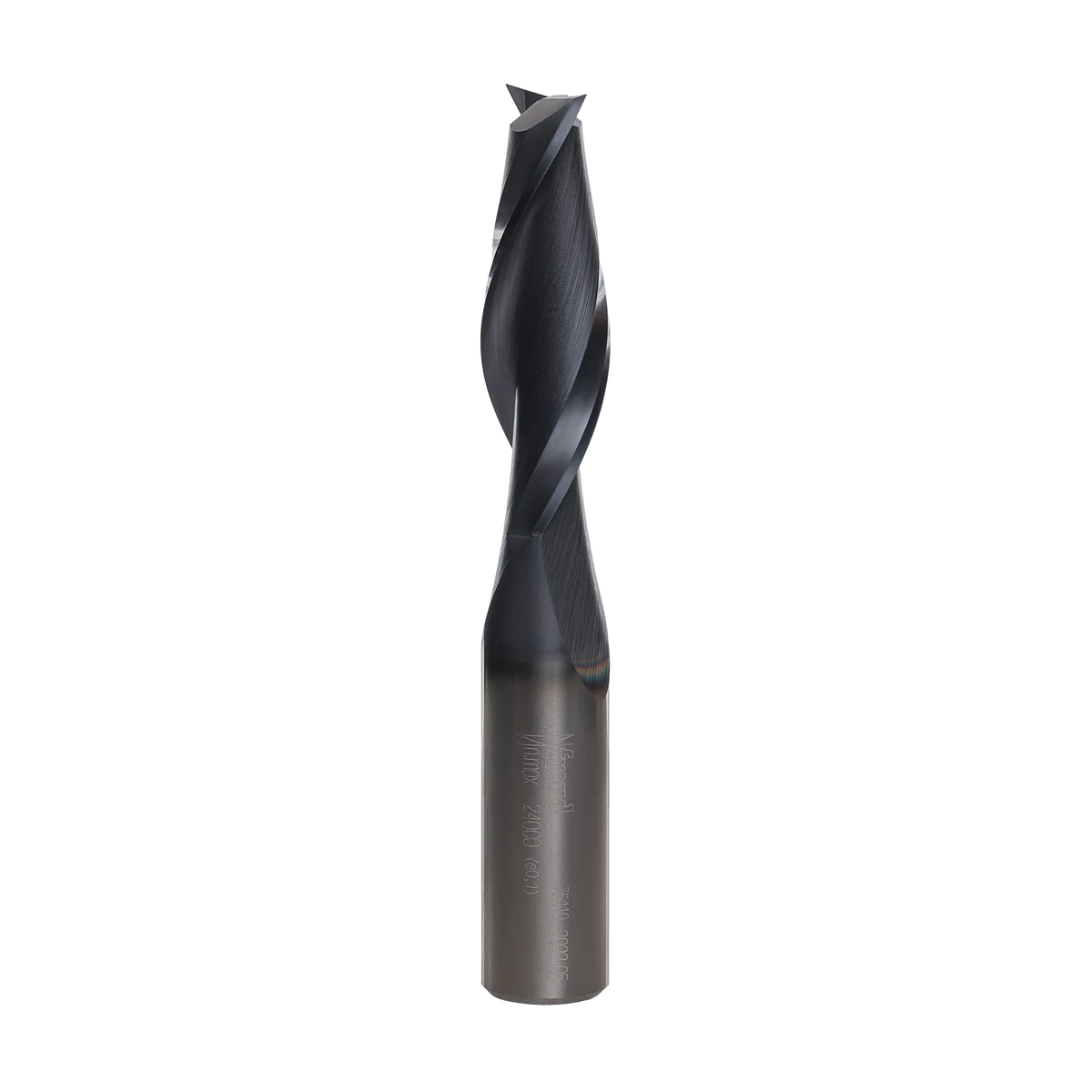

A studio product shot of the Freud 75-110 up spiral router bit, featuring a solid carbide construction with a polished silver shank and a dark blue-black coated spiral cutting edge.

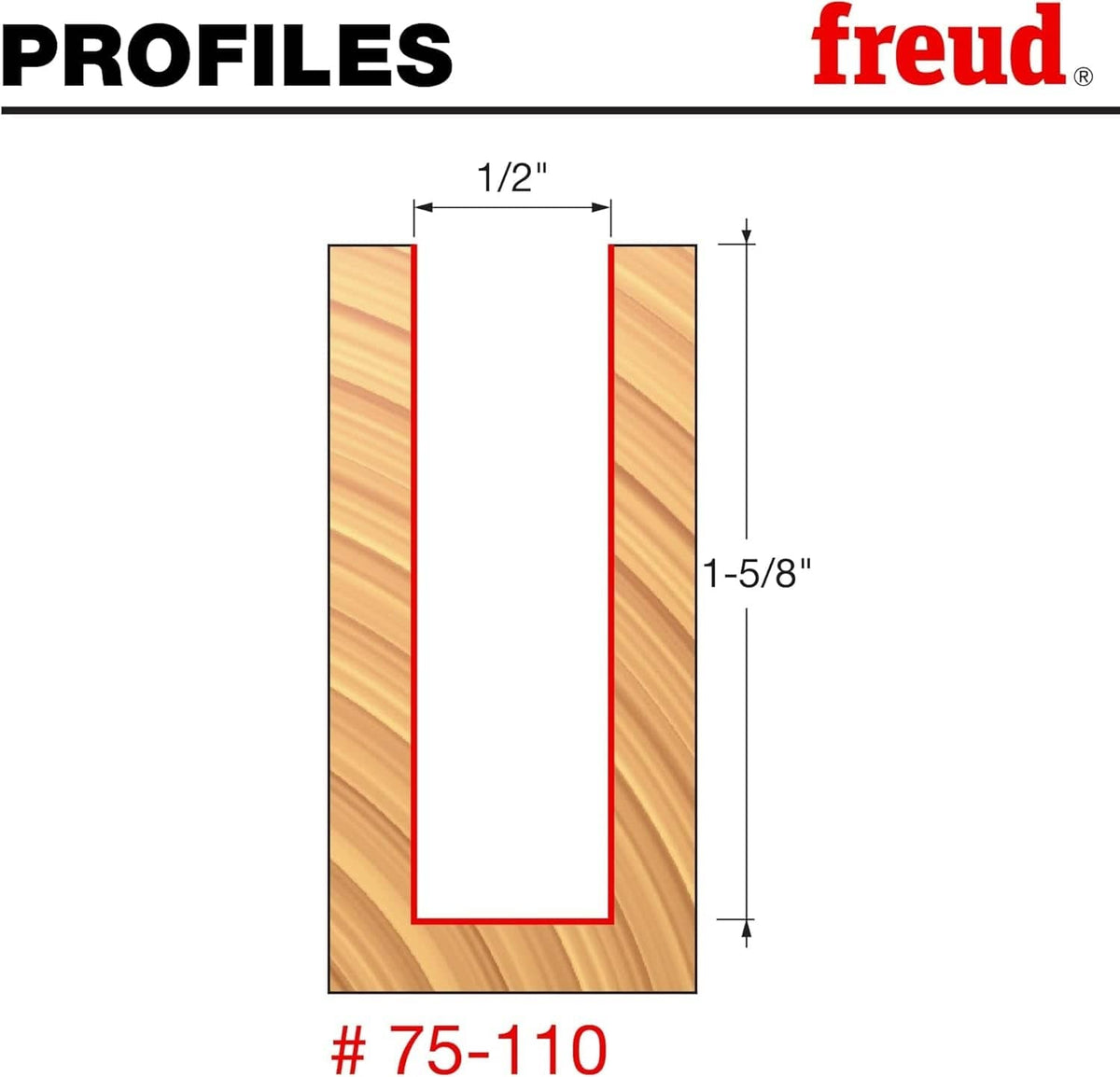

A technical diagram of a wood profile created by the Freud 75-110 bit, illustrating a 1/2-inch cutting width and a 1-5/8-inch deep vertical mortise cut.

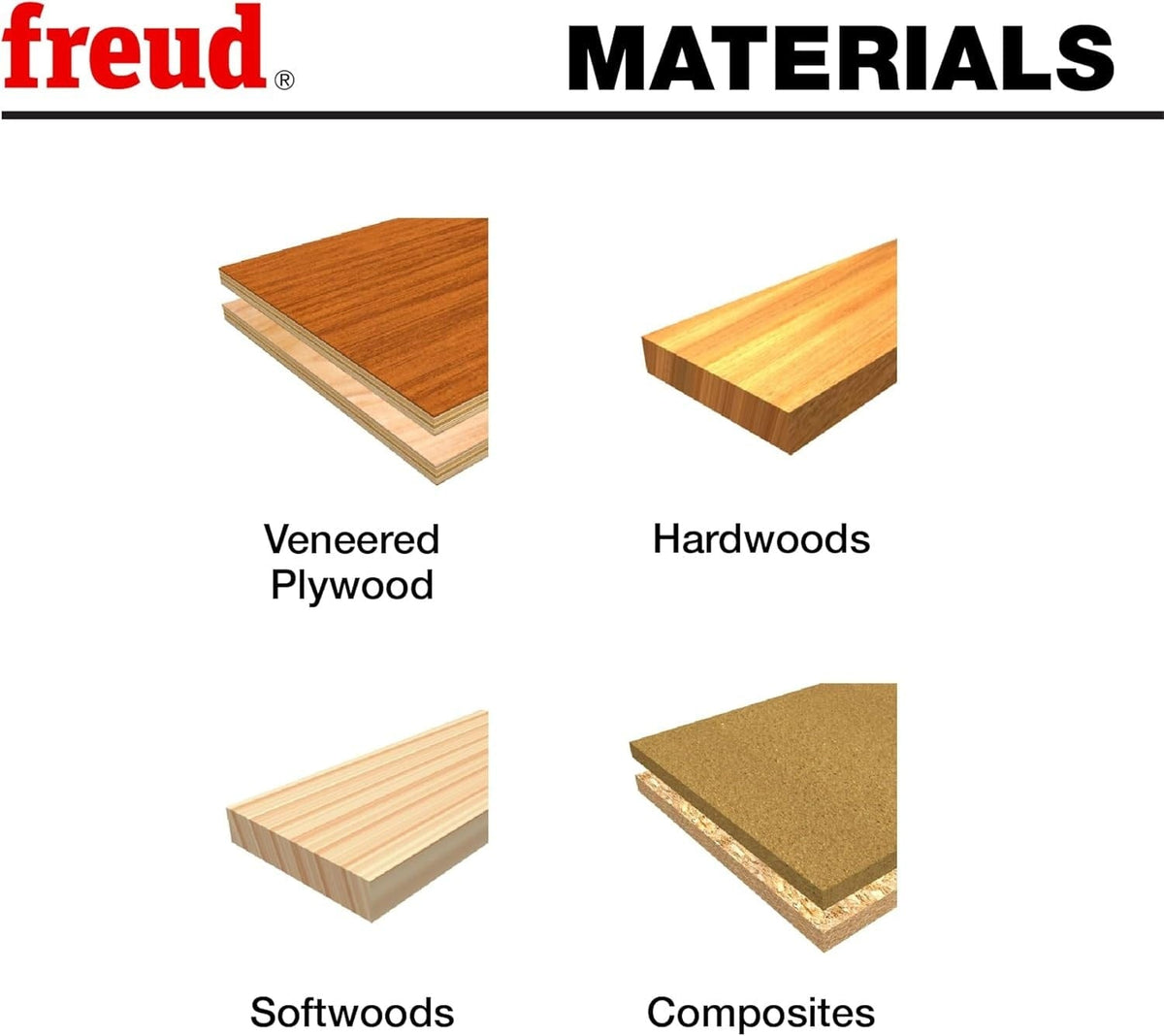

An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, and composites to indicate the compatible surfaces for this up spiral router bit.

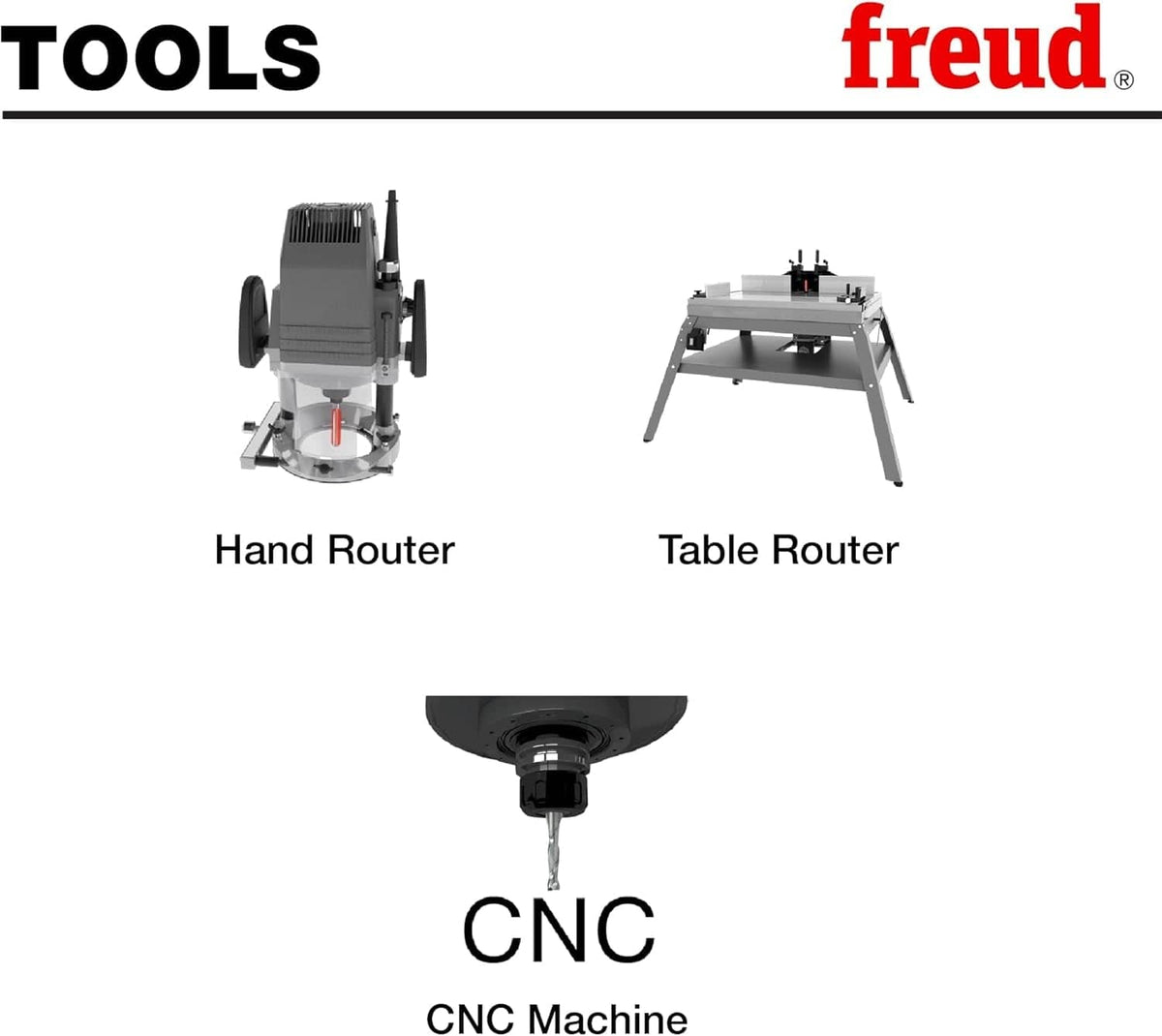

An informational graphic titled Tools, showing a handheld router, a table-mounted router, and a CNC machine spindle to demonstrate the different equipment compatible with this bit.
A studio product shot of the Freud 75-110 up spiral router bit, featuring a solid carbide construction with a polished silver shank and a dark blue-black coated spiral cutting edge.
Freud Black Ice CNC Bits promotional how to video
A studio product shot of the Freud 75-110 up spiral router bit, featuring a solid carbide construction with a polished silver shank and a dark blue-black coated spiral cutting edge.
A technical diagram of a wood profile created by the Freud 75-110 bit, illustrating a 1/2-inch cutting width and a 1-5/8-inch deep vertical mortise cut.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, and composites to indicate the compatible surfaces for this up spiral router bit.
An informational graphic titled Tools, showing a handheld router, a table-mounted router, and a CNC machine spindle to demonstrate the different equipment compatible with this bit.
A studio product shot of the Freud 75-110 up spiral router bit, featuring a solid carbide construction with a polished silver shank and a dark blue-black coated spiral cutting edge.
Freud Black Ice CNC Bits promotional how to video
Freud

Freud Up Spiral Router Bit 75-110 1/2 Inch Solid Carbide Core (24000 Max RPM 2 Cutter Design Black ICE CNC Wood Joint Deep Mortising Cutter)

Only 1 left
SKU: 75-110
$49.97 USD

Description

Freud precisely the best logo Logout

Industrial TiCo Carbide Up Spiral Tooling for Rapid CNC Chip Evacuation and Deep Mortising

The Freud 75-110 1/2-Inch Up Spiral Solid Carbide Router Bit delivers professional-grade machining efficiency for automated CNC mortising, heavy through-routing, and high-volume pocket extraction. Engineered with an aggressive up-shear spiral geometry, this premium wood cutting tool mechanically draws chips upward away from the processing pocket to eliminate tool heat spikes at up to 24,000 RPM. The solid cutter core is manufactured from specialized TiCo high-density carbide to maintain crucial structural edge sharpness up to twice as long as standard tooling. Treated with a proprietary Black I.C.E. non-stick thermal coating, this single-piece industrial bit reduces drag forces and maximizes continuous material feed rates in dense hardwoods, softwoods, and composite panels.

Best Used For:

  • Deep Blind Mortising: Plunging into thick structural joints and furniture components to form clean paths without packed debris blockages.
  • Flawless Bottom Edging: Machining nested parts out of sheet stock where the upward shearing force ensures crisp edges on the underside of the panel.
  • High-Speed CNC Profiling: Running automated cabinet pocketing and deep perimeter cuts through plywood, MDF, and natural timber products.

Key Performance & Safety Features

  • Up Spiral Flute Geometry: Advanced mechanical helix path forces waste chips vertically upward out of deep cavities to stop localized friction burning.
  • TiCo High-Density Carbide: Heavy-duty micro-grain carbide formulation delivers 2X the tool durability and edge preservation of standard untreated bits.
  • Black I.C.E. Coating: Advanced non-stick barrier layer limits overall operational heat build-up and prevents localized wood resin accumulation.
  • Dual-Flute Architecture: Micro-balanced two-cutter setup provides vibration-free feed stability on automated CNC arrays, handheld routers, or heavy table mounts.
  • Premium Substrate Finish: Designed to continually pull workpieces firmly down against the tool bed to achieve flat floor routing profiles.

What's Included

  • (1) Freud 75-110 1/2" Up Spiral Solid Carbide Router Bit

Technical Specifications

Specification Value
Brand Freud
Model Number 75-110
Bit Type Up Spiral
Material Premier Solid Carbide
Overall Diameter 0.5 in
Shank Diameter 0.5 in
Carbide Height 1.625 in
Overall Length 3.5 in
Number of Cutters 2
Maximum Speed 24,000 RPM

Pro-Tip: Because an up-spiral flute shears upward, ensure your workpiece is securely clamped or held by a vacuum grid to prevent material lifting. When using a handheld router, always complete an initial shallow pass or use a guide template to control tool pull and prevent tear-out along the delicate top surface of the grain.
