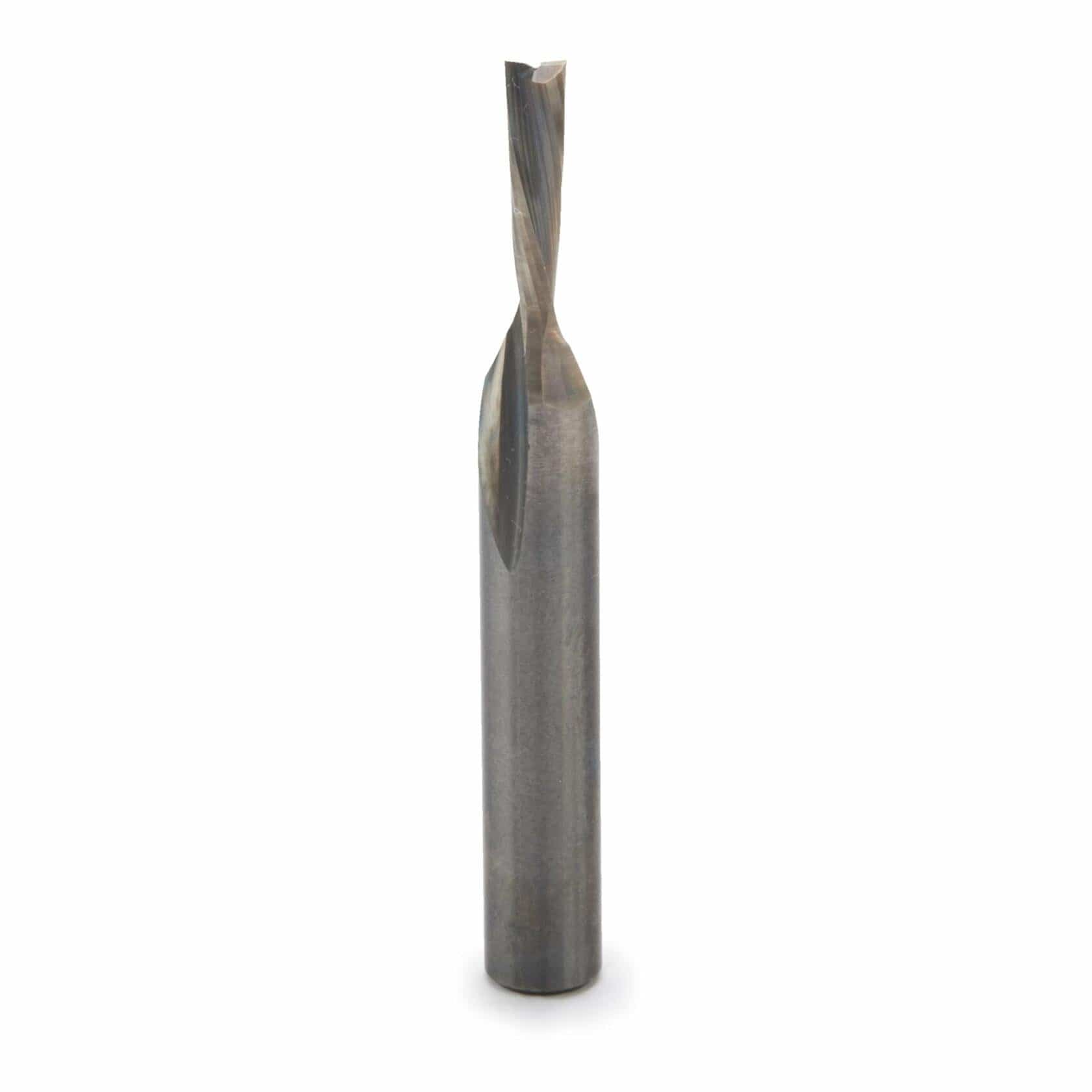

This is a close-up, eye-level shot of a long, metallic gray drill bit, standing upright against a plain white background. The bottom two-thirds of the bit are smooth and cylindrical, while the top third transitions into a distinct spiral cutting edge that appears to twist upwards.
Freud

Freud 76-100: 1/8" (Dia.) Down Spiral Bit with 1/4" Shank

In stock
SKU: 76-100
$16.00
$32.26 Sale $16.00
Description

Freud 76-100: 1/8" (Dia.) Down Spiral Bit with 1/4" Shank


About this item


• Specs: Number of Cutters 2, Overall Dia. 1/8", Overall Length 2", Shank Dia. 1/4", Carbide Height 1/2"

• Chip free cuts on top surface of laminates and veneer panels
Use in CNC, hand-held and table-mounted routers

• Black I.C.E. coating for cool cutting edge and superior chip evacuation

• Freud Premier Solid Carbide

• Black I.C.E. + Freud TiCo Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits

Item details

Brand Name: Freud
Global Trade Identification Number: 00008925016793
UPC: 008925016793
UNSPSC Code: 27111701
ASIN: B0002TUD4M
Item Type Name: 1/8-Inch X 1/2-Inch Down Spiral Bit
Included Components: Down Spiral Router Bit
Item Height: 1 inches
Manufacturer: Freud
Unit Count: 1.0 Count
Warranty Description: Freud Limited Tooling Warranty. Contact Freud customer service for more details. 800-334-4107
Size Name: One Size
Cutting Length: 0.5 Inches
Item Weight: 1.92 Ounces
Cutting Diameter: 0.13 Inches
Item Diameter: 0.13 Inches
Cut Type: Straight Cut
Number of Flutes: 2
