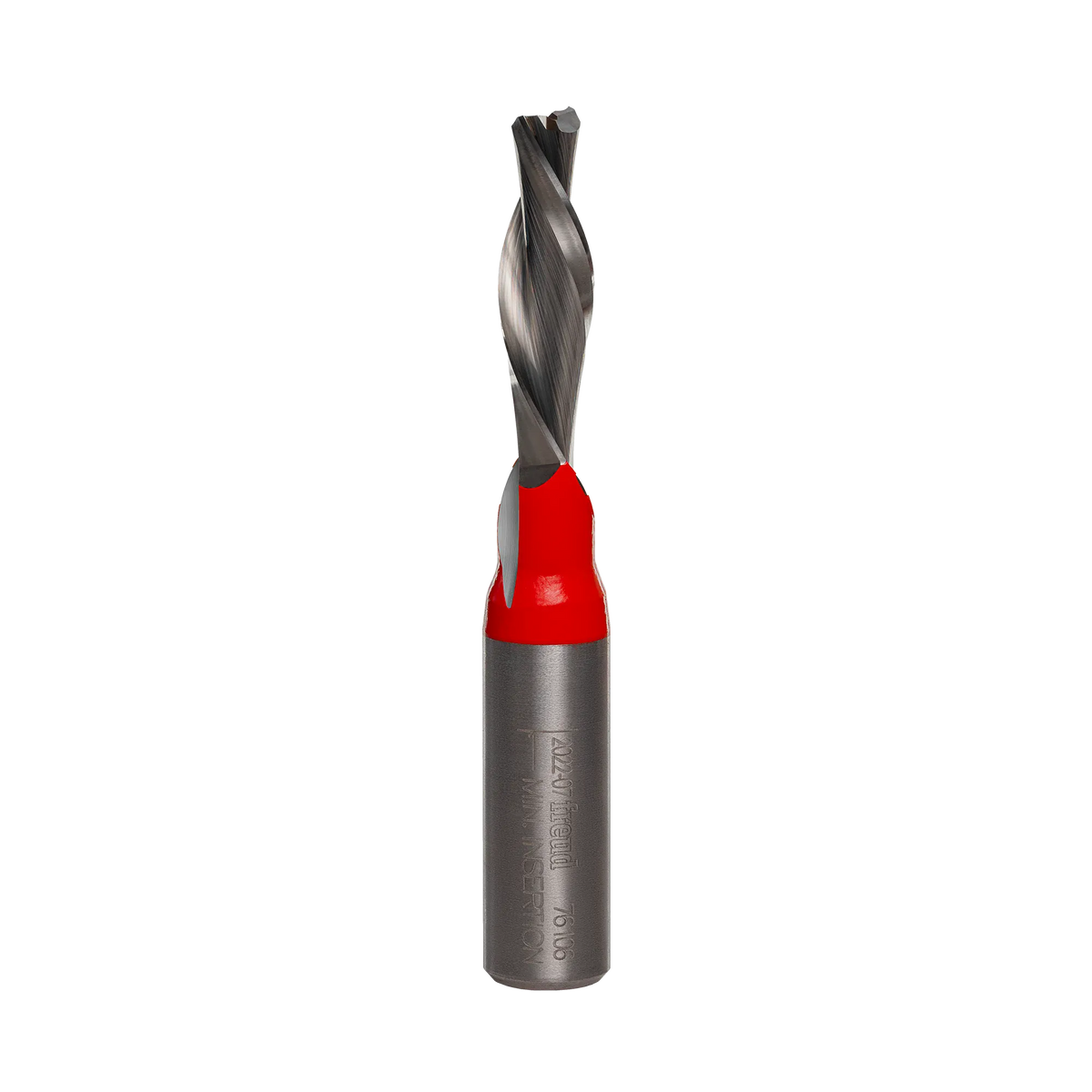

A studio product shot of the Freud 76-106 down-spiral router bit, featuring a solid carbide construction with a polished gunmetal finish on the shank and a sharp silver spiral cutting edge.
A technical diagram of a wood profile created by the Freud 76-106 bit, illustrating a 3/8-inch wide and 1-1/4-inch deep vertical groove.
A 3D architectural sample of solid wood featuring a wide vertical groove cut into the center of the block.
An instructional graphic demonstrating the downward cutting action of the down-spiral bit, using a blue arrow to show rotation and a red arrow to show downward pressure for a better finish on the top surface.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, and composites to indicate the compatible surfaces for this 4-wing slotting cutter.
An informational graphic titled Tools, showing a handheld router, a table-mounted router, and a CNC machine spindle to demonstrate the different equipment compatible with this mortise bit.
A studio product shot of the Freud 76-106 down-spiral router bit, featuring a solid carbide construction with a polished gunmetal finish on the shank and a sharp silver spiral cutting edge.
A studio product shot of the Freud 76-106 down-spiral router bit, featuring a solid carbide construction with a polished gunmetal finish on the shank and a sharp silver spiral cutting edge.
A technical diagram of a wood profile created by the Freud 76-106 bit, illustrating a 3/8-inch wide and 1-1/4-inch deep vertical groove.
A 3D architectural sample of solid wood featuring a wide vertical groove cut into the center of the block.
An instructional graphic demonstrating the downward cutting action of the down-spiral bit, using a blue arrow to show rotation and a red arrow to show downward pressure for a better finish on the top surface.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, and composites to indicate the compatible surfaces for this 4-wing slotting cutter.
An informational graphic titled Tools, showing a handheld router, a table-mounted router, and a CNC machine spindle to demonstrate the different equipment compatible with this mortise bit.
A studio product shot of the Freud 76-106 down-spiral router bit, featuring a solid carbide construction with a polished gunmetal finish on the shank and a sharp silver spiral cutting edge.
Freud

Freud 76-106 3/8 Inch Down Spiral Router Bit 1/2 Inch Shank Solid Carbide TiCo High-Density Bit for Clean Grooves Dadoes and CNC Woodworking

Only 1 left
SKU: 76-106
$45.97 USD

Description

Freud precisely the best logo Logout

Achieve Flawless Chip-Free Top Surfaces on Single-Sided Veneers and Laminates

The Freud 76-106 3/8" Down Spiral Router Bit is engineered for woodworkers who demand a superior finish on the visible face of their project. By utilizing a downward spiral action, this bit pushes wood fibers down as it cuts, effectively eliminating the surface splintering and fuzzing common with standard straight bits. It is the perfect choice for routing precise grooves, dadoes, and through-cuts in single-sided veneers, laminates, and solid wood where the top-edge quality is the highest priority.

Constructed from Freud Premier Solid Carbide and featuring TiCo™ High-Density Carbide, this bit is built for maximum performance and a significantly longer cutting life. The down-spiral design also helps to hold the workpiece securely against the router table or CNC bed, providing added stability during high-speed operations. While optimized for the precision of CNC machinery, the 76-106 is equally effective in handheld and table-mounted routers, provided the workpiece is properly secured for the downward pressure.

Key Features

  • Surface Perfection: Delivers chip-free cuts on the top surface of laminates and veneer panels.
  • TiCo™ High-Density Carbide: Specialized carbide formulation provides maximum performance and extended tool life.
  • Stability: Downward cutting action helps keep the workpiece pressed firmly against the template or table.
  • Multi-Machine Use: Engineered for use in CNC, handheld, and table-mounted routers.
  • Versatile Applications: Ideal for grooves, dadoes, and through-cuts in any single-sided material or solid wood.

What's Included

  • (1) Freud 76-106 3/8" Down Spiral Solid Carbide Router Bit

Specifications

Model Number 76-106
Overall Diameter (D) 0.375 in (3/8")
Shank Diameter (A) 0.5 in (1/2")
Carbide Height (h) 1.25 in (1-1/4")
Overall Length (H) 3 in
Number of Cutters 2
Maximum RPM 24,000
Material Freud Premier Solid Carbide
Bit Type Down Spiral
Best For Single-Sided Veneer/Laminates

Pro-Tip: Because down-spiral bits push chips deep into the cut, they are most effective for shallow grooves or through-cuts where the chips can fall through. If you are routing deep dadoes, increase your feed rate slightly or make multiple passes to prevent chip pack-up and heat friction.
