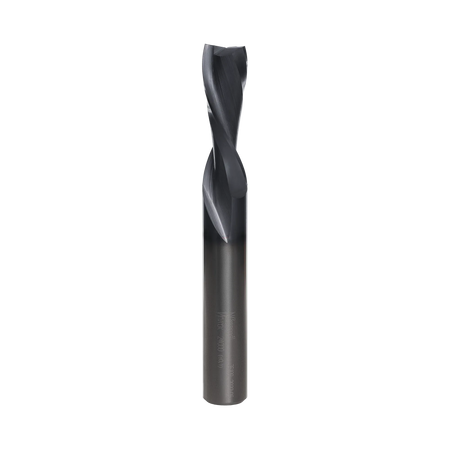

A studio product shot of the Freud 76-109 down-spiral router bit, featuring a solid carbide body with a polished silver shank and a dark blue-black coated spiral cutting edge.

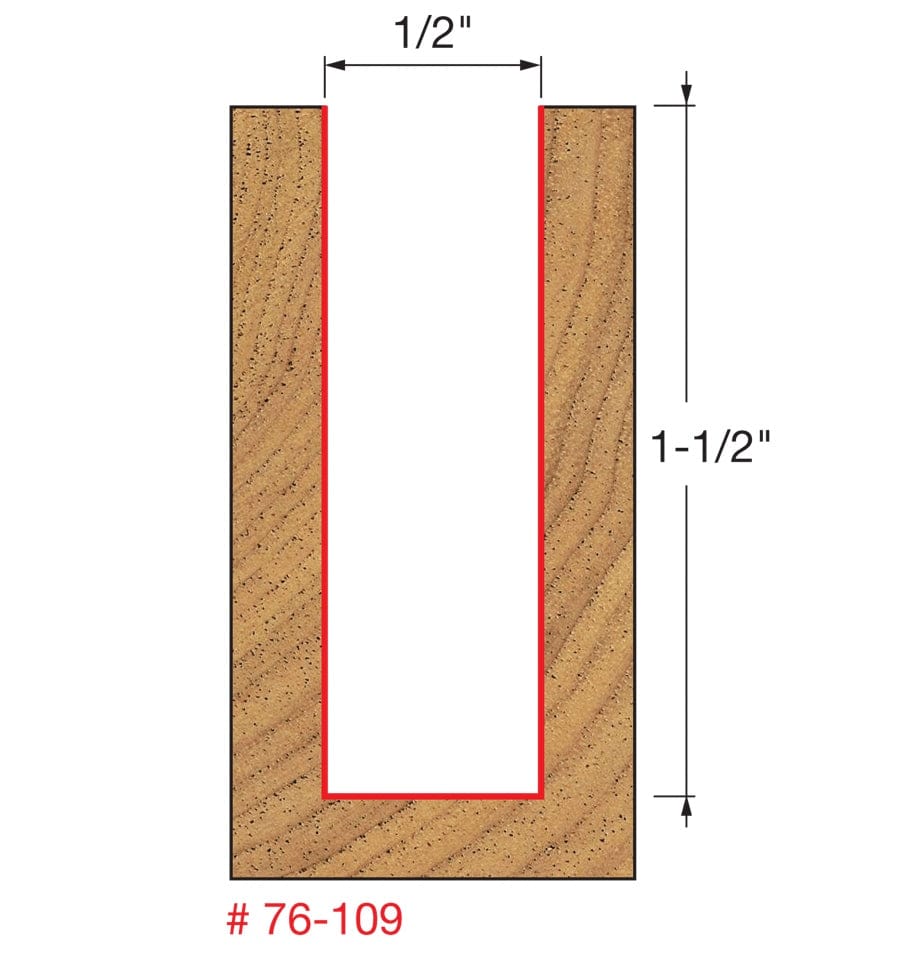

A technical diagram illustrating the cutting profile of the Freud 76-109 bit, showing a 1/2-inch wide and 1-1/2-inch deep vertical groove cut into a wood block.
A 3D architectural sample of solid wood featuring a wide vertical groove cut into the center of the block.
An instructional graphic demonstrating the downward cutting action of the down-spiral bit, using a blue arrow to show rotation and a red arrow to show downward pressure for a better finish on the top surface.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, and composites to indicate the compatible surfaces for this 4-wing slotting cutter.
An informational graphic titled Tools, showing a handheld router, a table-mounted router, and a CNC machine spindle to demonstrate the different equipment compatible with this mortise bit.
A studio product shot of the Freud 76-109 down-spiral router bit, featuring a solid carbide body with a polished silver shank and a dark blue-black coated spiral cutting edge.
Freud Black Ice CNC Bits promotional how to video
A studio product shot of the Freud 76-109 down-spiral router bit, featuring a solid carbide body with a polished silver shank and a dark blue-black coated spiral cutting edge.
A technical diagram illustrating the cutting profile of the Freud 76-109 bit, showing a 1/2-inch wide and 1-1/2-inch deep vertical groove cut into a wood block.
A 3D architectural sample of solid wood featuring a wide vertical groove cut into the center of the block.
An instructional graphic demonstrating the downward cutting action of the down-spiral bit, using a blue arrow to show rotation and a red arrow to show downward pressure for a better finish on the top surface.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, and composites to indicate the compatible surfaces for this 4-wing slotting cutter.
An informational graphic titled Tools, showing a handheld router, a table-mounted router, and a CNC machine spindle to demonstrate the different equipment compatible with this mortise bit.
A studio product shot of the Freud 76-109 down-spiral router bit, featuring a solid carbide body with a polished silver shank and a dark blue-black coated spiral cutting edge.
Freud Black Ice CNC Bits promotional how to video
Freud

Freud 76-109 1/2 Inch Down Spiral Router Bit 1/2 Inch Shank Solid Carbide Black ICE Coating for Clean Grooves Dadoes and CNC Woodworking Projects

Only 1 left
SKU: 76-109
$53.99 USD

Description

Freud precisely the best logo Logout

Achieve Flawless Chip-Free Top Surfaces on Single-Sided Veneers and Laminates

The Freud 76-109 1/2" Down Spiral Router Bit is the professional's choice for projects where the top surface finish is the ultimate priority. By utilizing a downward spiral action, this bit pushes wood fibers down as it cuts, effectively eliminating the surface splintering and "fuzzing" common with standard straight bits. It is the ideal solution for routing precise grooves, dadoes, and through-cuts in single-sided veneers, laminates, and solid wood where a crisp, clean top edge is required.

Constructed from Freud Premier Solid Carbide and enhanced with TiCo™ High-Density Carbide, this bit delivers 2X the cutting life and performance of standard uncoated bits. The innovative Black I.C.E. (Industrial Cooling Element) coating keeps the cutting edge cool and facilitates superior chip evacuation, protecting the bit from heat damage and resin buildup. Whether you are operating a high-speed CNC machine or using a handheld or table-mounted router, the 76-109 provides the stability and industrial-grade durability needed for flawless results in hardwood, softwood, plywood, and composites.

Key Features

  • Surface Perfection: Downward spiral action delivers chip-free cuts on the top surface of laminates and veneer panels.
  • Black I.C.E. Technology: Advanced coating reduces heat and ensures superior chip evacuation for a cleaner cutting environment.
  • Industrial Carbide: Features Freud Premier Solid Carbide and TiCo™ High-Density Carbide for double the tool life.
  • Multi-Machine Compatible: Engineered for peak performance in CNC routers, handheld routers, and router tables.
  • Versatile Applications: Specifically designed for grooves, dadoes, and through-cuts in any single-sided material or solid wood.

What's Included

  • (1) Freud 76-109 1/2" Down Spiral Solid Carbide Router Bit

Specifications

Brand Freud
Model Number 76-109
Overall Diameter (D) 0.5 in (1/2")
Shank Diameter (A) 0.5 in (1/2")
Carbide Height (h) 1.5 in (1-1/2")
Overall Length (H) 4 in
Number of Cutters 2
Maximum RPM 24,000
Material Construction Solid Carbide
Coating Black I.C.E.

Pro-Tip: Because down-spiral bits push chips deep into the cut, they are most effective for shallow grooves or through-cuts where the chips can fall through. For deep grooves in handheld routers, use multiple shallow passes and a steady feed rate to prevent chip pack-up and unnecessary heat friction.
