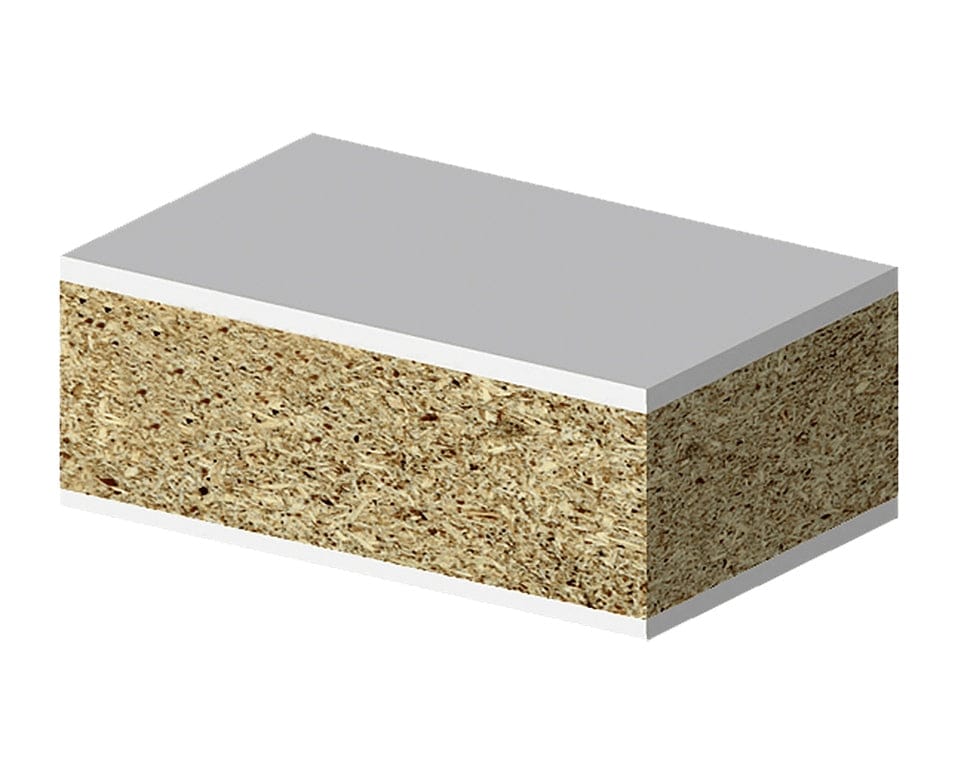

A cross-section view of a double-sided melamine panel with a light grey laminated top and bottom surface over a particle board core, illustrating the type of material the compression router bit is designed to cut.

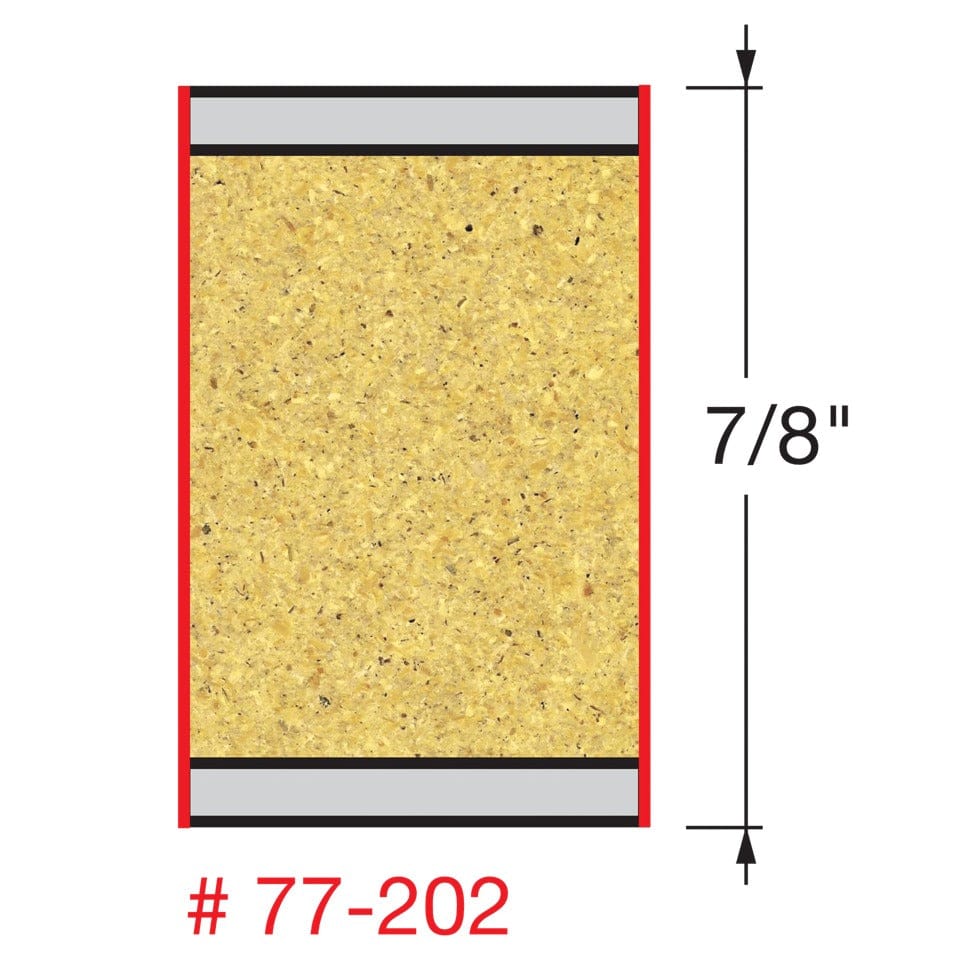

Technical diagram for Freud 77-202 showing a vertical cross-section of double-sided material with a 7/8 inch height measurement indicated by a dimension line, highlighting the bit's compression cutting zone.

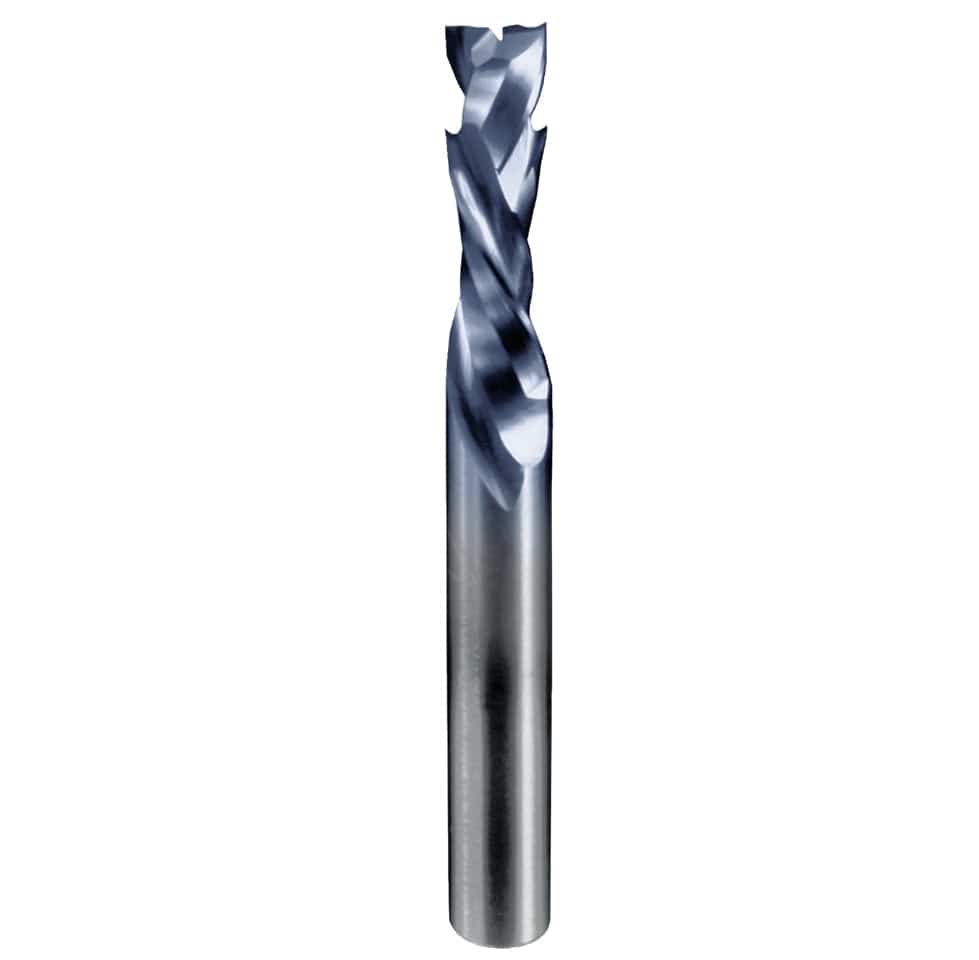

A professional studio shot of the Freud 77-202 solid carbide double compression spiral router bit, showing the polished silver finish and the complex opposing spiral flute geometry designed for chip-free cuts.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, composites, and melamine or laminate to indicate the compatible surfaces for this compression router bit.
Freud Black Ice CNC Bits promotional video
A cross-section view of a double-sided melamine panel with a light grey laminated top and bottom surface over a particle board core, illustrating the type of material the compression router bit is designed to cut.
Technical diagram for Freud 77-202 showing a vertical cross-section of double-sided material with a 7/8 inch height measurement indicated by a dimension line, highlighting the bit's compression cutting zone.
A professional studio shot of the Freud 77-202 solid carbide double compression spiral router bit, showing the polished silver finish and the complex opposing spiral flute geometry designed for chip-free cuts.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, composites, and melamine or laminate to indicate the compatible surfaces for this compression router bit.
Freud Black Ice CNC Bits promotional video
Freud

Freud Double Compression Router Bit 77-202 1/4 Inch Solid Carbide Spiral (2 Flute 24000 Max RPM Two Sided Melamine Plywood Cabinet Joinery)

Only 1 left
SKU: 77-202
$56.99 USD

Description

Freud precisely the best logo Logout

Industrial Two-Flute Black I.C.E. Compression Tooling for Splinter-Free Double-Sided Laminated Panels

The Freud 77-202 1/4-Inch Double Compression Spiral Router Bit delivers industrial-grade machining accuracy for processing double-sided materials where structural surface integrity is critical. Engineered with a 0.344-inch upcut length, this solid carbide cutter combines upward and downward shearing forces to compress aggregate fibers toward the core, preventing top and bottom edge chip-out at speeds up to 24,000 RPM. The premium micro-grain TiCo high-density solid carbide core provides double the operating life of standard steel bits, while a proprietary non-stick Black I.C.E. industrial coating forms a critical thermal protective shield that accelerates chip evacuation and lowers localized friction temperatures. This heavy-duty production tool ensures clean tracking and a chatter-free finish across high-speed CNC machinery, table-mounted configurations, and portable handheld platforms.

Best Used For:

  • Double-Sided Melamine Milling: Grooving, dadoing, and sizing delicate laminate panels without edge chipping or flaking on either finish face.
  • Cabinet Component Fabrication: Routing clean joints and dados in high-grade veneered plywood sheet goods without structural tear-out.
  • High-Feed CNC Nesting: Cutting through dense composite materials and laminates at rapid travel rates while maintaining premium edge quality.

Key Performance & Safety Features

  • Precision Compression Design: Advanced up-shear and down-shear geometry traps wood fibers between cuts, preventing face splintering on thin stock coatings.
  • Two-Flute Architecture: Micro-balanced dual cutter configuration stabilizes cuts, balancing rapid chip clearing with high edge smoothness.
  • Black I.C.E. Coating: Industrial Cooling Element surface limits mechanical heat build-up and blocks localized wood adhesive resin accumulation.
  • TiCo High-Density Carbide: Specialized tungsten micro-grain carbide structural core offers 2X the tool durability and wear resistance of untreated bits.
  • Multi-Platform Adaptability: Dynamic balance optimization allows safe deployment in automated CNC centers, portable handheld routers, and fixed shaper tables.

What's Included

  • (1) Freud 77-202 1/4" x 7/8" Double Compression Bit
  • (1) Protective Storage Case

Technical Specifications

Specification Value
Brand Freud
Model Number 77-202
Bit Type Double Compression Spiral
Material Construction Premier Solid Carbide / TiCo
Cutter Diameter 0.25 in
Shank Diameter 0.25 in
Carbide Height 0.875 in
Upcut Length 0.344 in
Overall Length 2.5 in
Number of Cutters 2
Coating Type Black I.C.E.
Maximum Speed 24,000 RPM

Pro-Tip: To ensure absolute chip-out protection on both faces during profiling, ensure your first pass plunge depth completely matches or exceeds the 0.344-inch upcut section. This forces the opposing downward flutes to engage the top surface laminate sheet immediately, forcing waste fibers down into the cut core instead of tearing them upward.
