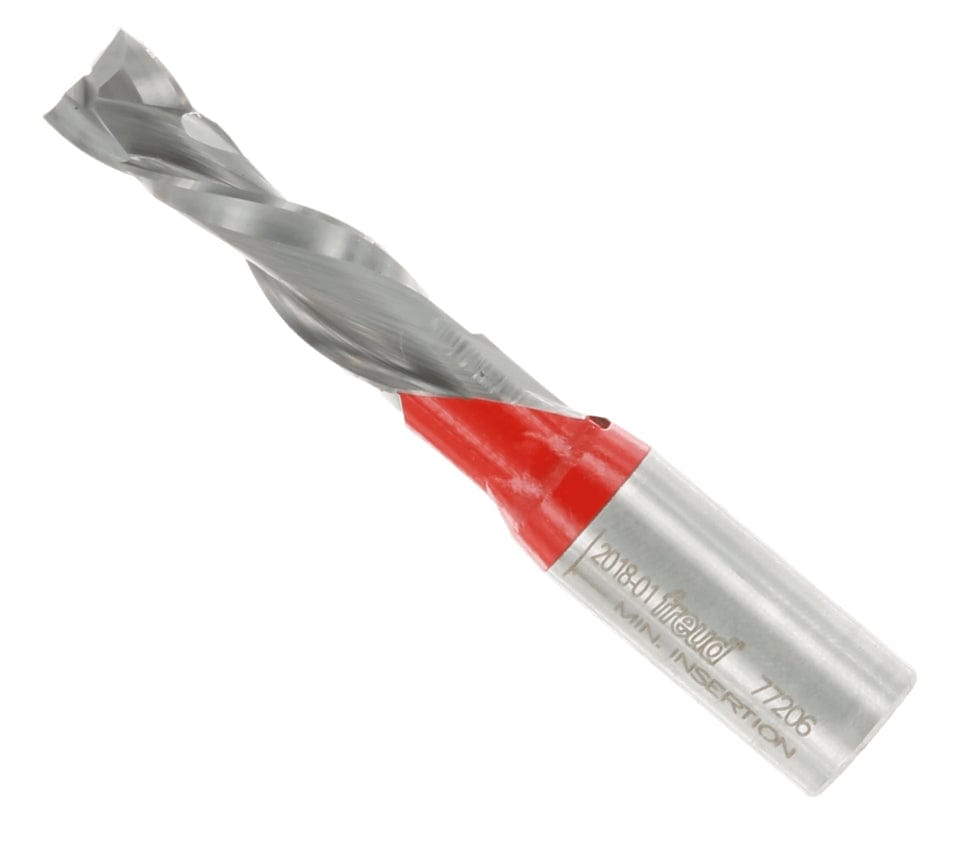

A close-up view of the Freud 77-206 double compression spiral router bit at an angle, featuring a silver carbide body, a red-coated neck section, and laser-etched model information on the shank.

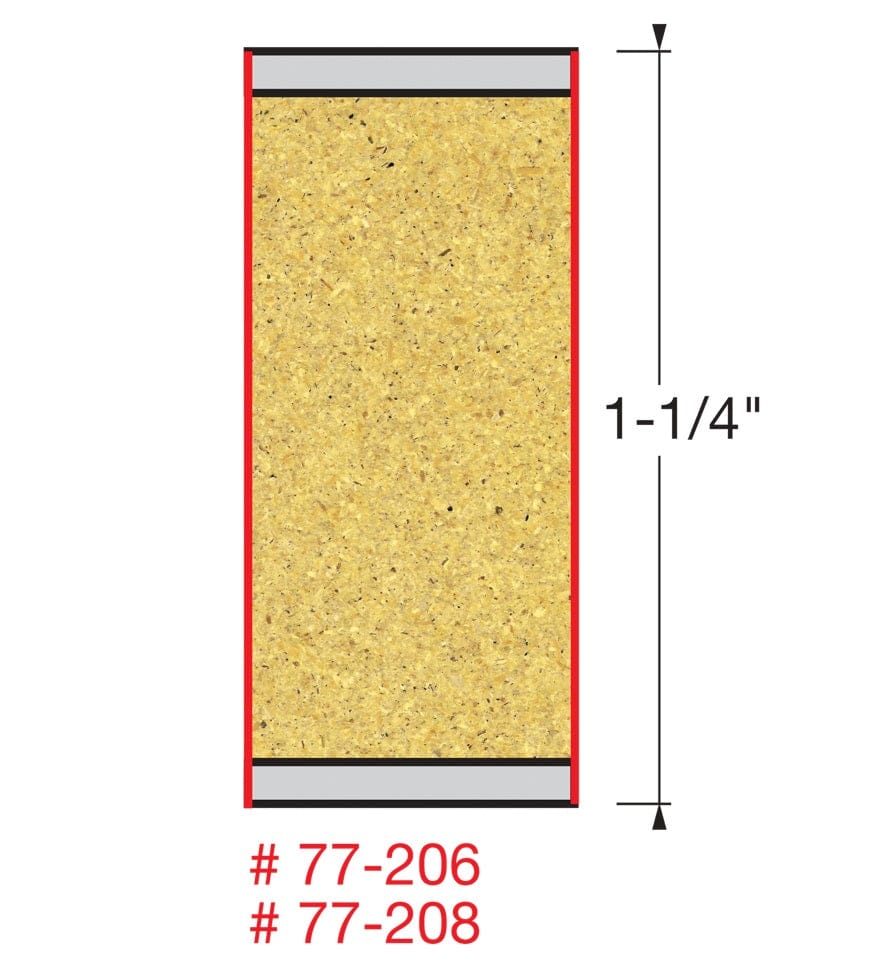

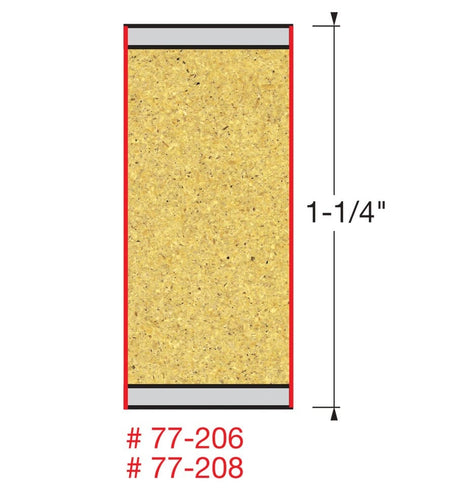

A technical illustration of a material cross-section with a 1-1/4-inch height dimension indicated, specifically labeled for Freud bit models 77-206 and 77-208 to show their maximum material thickness capacity.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, composites, and melamine or laminate to indicate the compatible surfaces for this compression router bit.

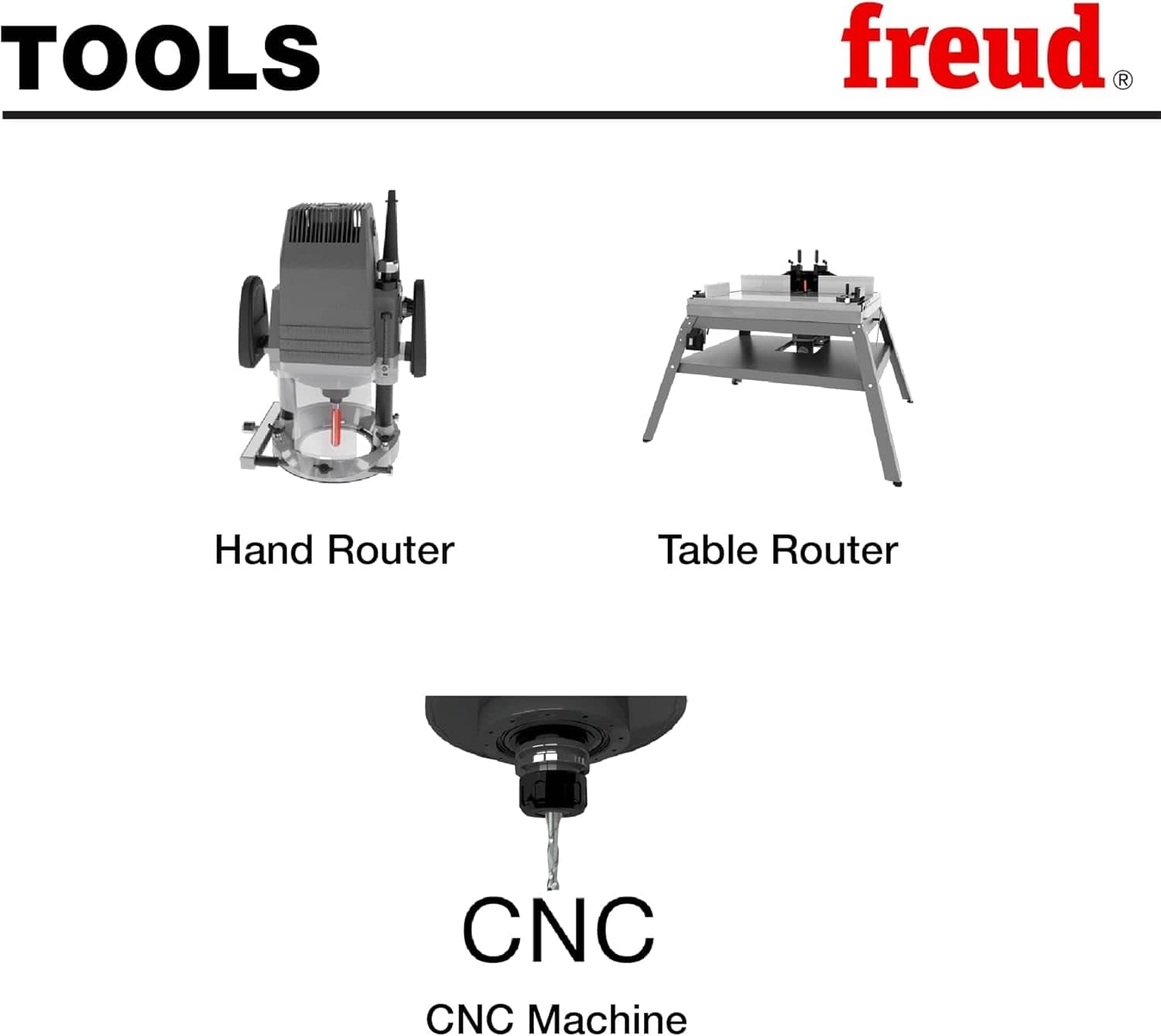

An informational graphic titled Tools, showing a handheld router, a table-mounted router, and a CNC machine spindle to demonstrate the different equipment compatible with this mortise bit.
A close-up view of the Freud 77-206 double compression spiral router bit at an angle, featuring a silver carbide body, a red-coated neck section, and laser-etched model information on the shank.
A technical illustration of a material cross-section with a 1-1/4-inch height dimension indicated, specifically labeled for Freud bit models 77-206 and 77-208 to show their maximum material thickness capacity.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, composites, and melamine or laminate to indicate the compatible surfaces for this compression router bit.
An informational graphic titled Tools, showing a handheld router, a table-mounted router, and a CNC machine spindle to demonstrate the different equipment compatible with this mortise bit.
Freud

Freud 77-206 3/8 Inch Double Compression Spiral Router Bit 1/2 Inch Shank Solid Carbide CNC Tool for Chip-Free Melamine Plywood and Laminated Veneer

Only 2 left
SKU: 77-206
$65.39

Description

Flawless Finishes on Every Surface: The Ultimate Double-Sided Cutting Solution

The Freud 77-206 Double Compression Bit is engineered for woodworkers who demand perfection when working with delicate or high-performance materials. This bit utilizes a sophisticated combination of up-shear and down-shear flutes that compress the material fibers toward the center of the board. This action effectively eliminates the chipping and tear-out often seen on the top and bottom edges of double-sided veneers and laminated panels. Whether you are a professional shop or a dedicated enthusiast, this bit provides the finest finish possible on challenging surfaces.

Crafted from Freud Premier Solid Carbide, the 77-206 is built for extreme durability and long-term sharpness. It is the ideal choice for routing high-pressure laminates, double-sided melamine panels, and various types of plywood, hardwoods, and softwoods. Designed for maximum versatility, it performs exceptionally well in CNC machines, table-mounted routers, and hand-held routing applications. With its 1/2-inch shank and 3/8-inch cutting diameter, this tool provides the stability and precision required for heavy-duty production environments.

Key Features

  • Advanced compression design for clean, chip-free cuts on both sides of the material.
  • Dual cutting action combines up-shear and down-shear flutes to prevent tear-out.
  • Premium Solid Carbide construction ensures a longer life and superior edge retention.
  • Perfectly suited for double-sided melamine, laminated veneers, and premium plywood.
  • Compatible with CNC, hand-held, and table-mounted router systems.

What's Included

  • (1) Freud 77-206 3/8" x 1-1/4" Double Compression Bit

Specifications

Product Model 77-206
Cutting Diameter (D) 0.375 in.
Carbide Height (h) 1.25 in.
Shank Diameter (A) 0.5 in.
Overall Length (H) 3.0 in.
Upcut Length 0.344 in.
Number of Cutters 2
Maximum RPM 24,000
Material Composition Solid Carbide
Bit Type Compression Spiral

Pro-Tip: To ensure the best performance from your compression bit, set your depth of cut so that the transition point between the up-shear and down-shear flutes is buried within the material. This ensures that the downward pressure is applied to the top surface, resulting in perfectly clean edges on both sides!
