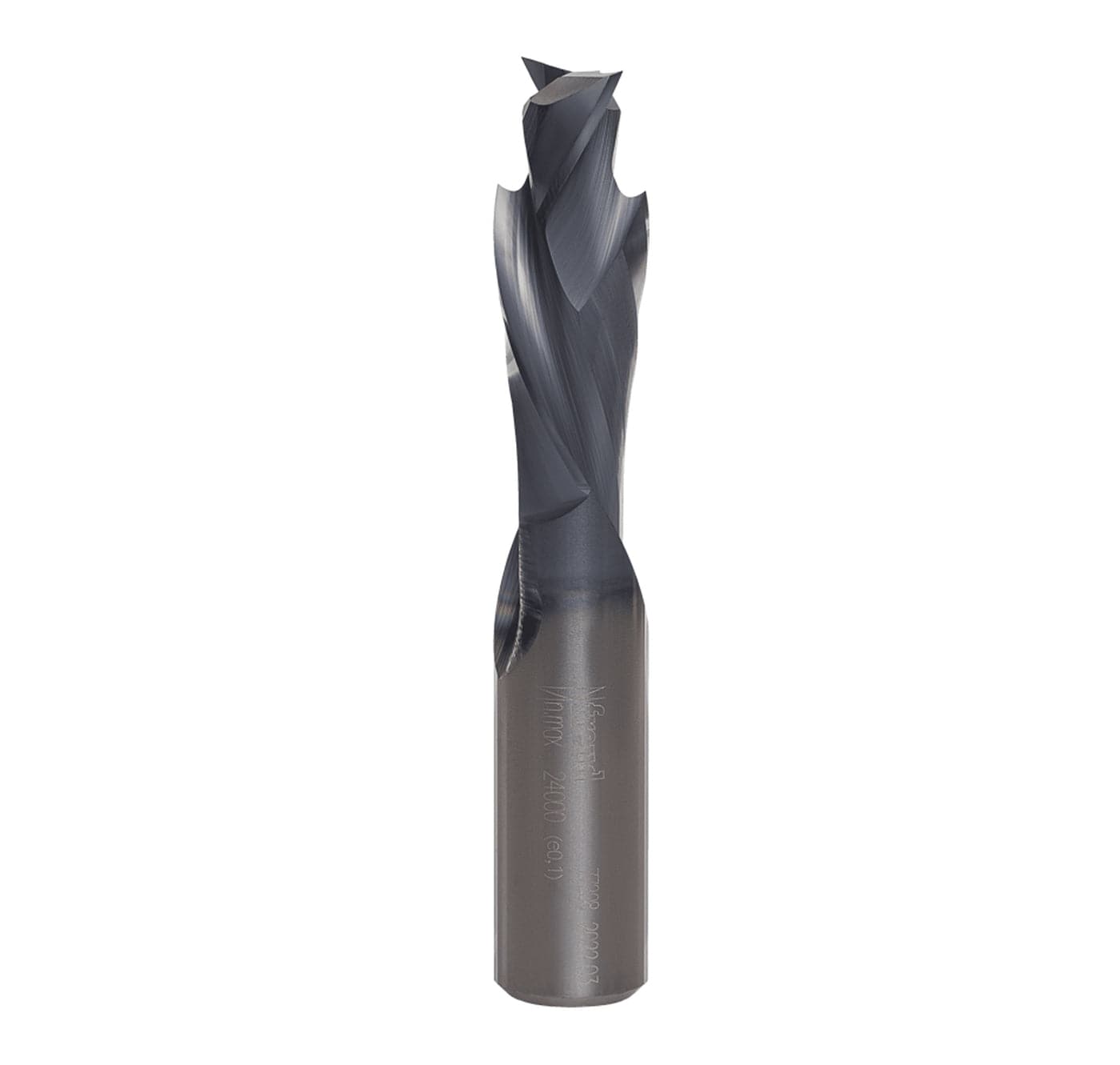

Straight profile view of the Freud 1/2-inch double compression solid carbide router bit highlighting the up-shear and down-shear spiral flute design.

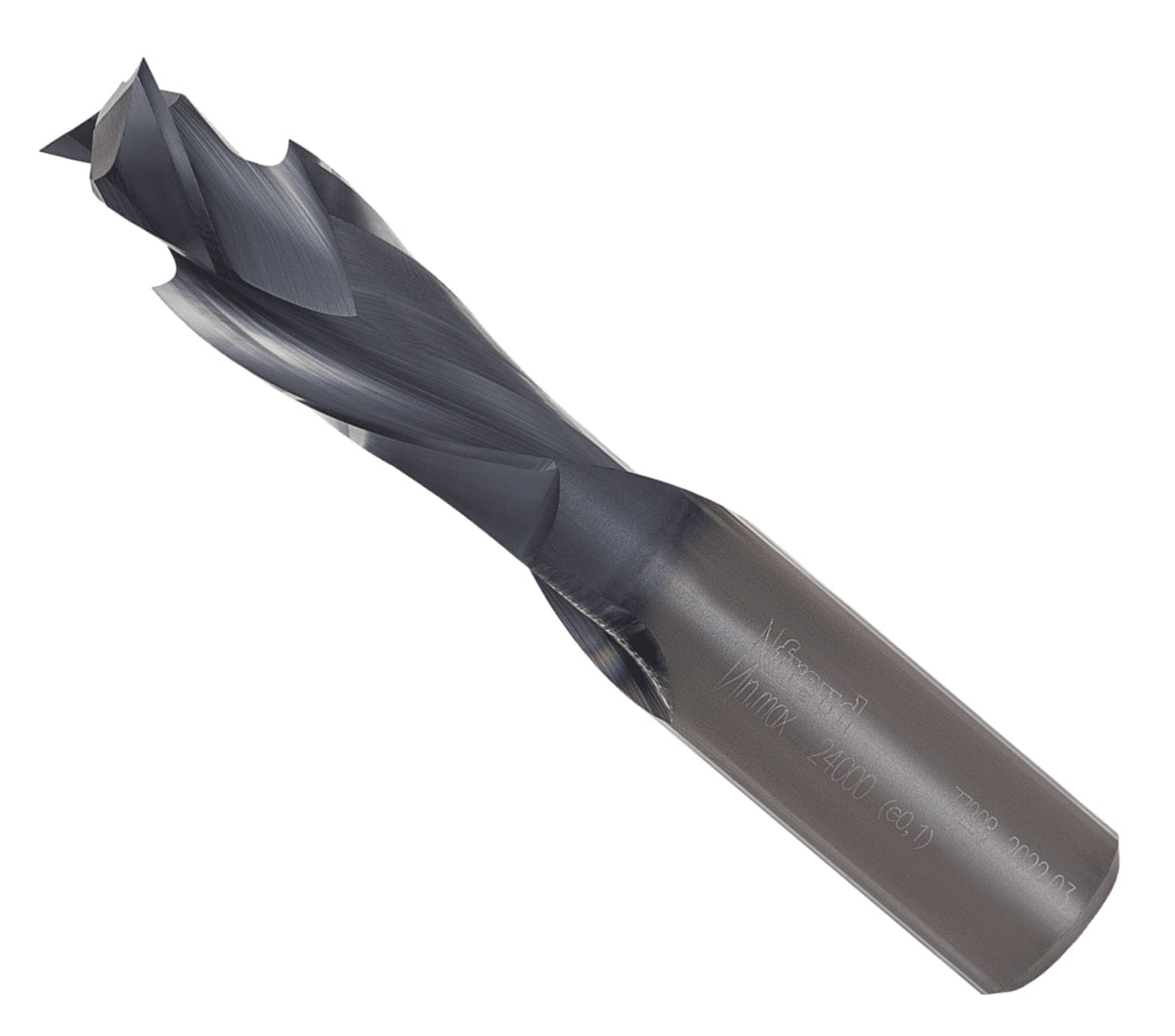

Freud 77-208 1/2-inch double compression solid carbide router bit featuring a 1/2-inch shank and Black I.C.E. coating for CNC woodworking.
Straight profile view of the Freud 1/2-inch double compression solid carbide router bit highlighting the up-shear and down-shear spiral flute design.

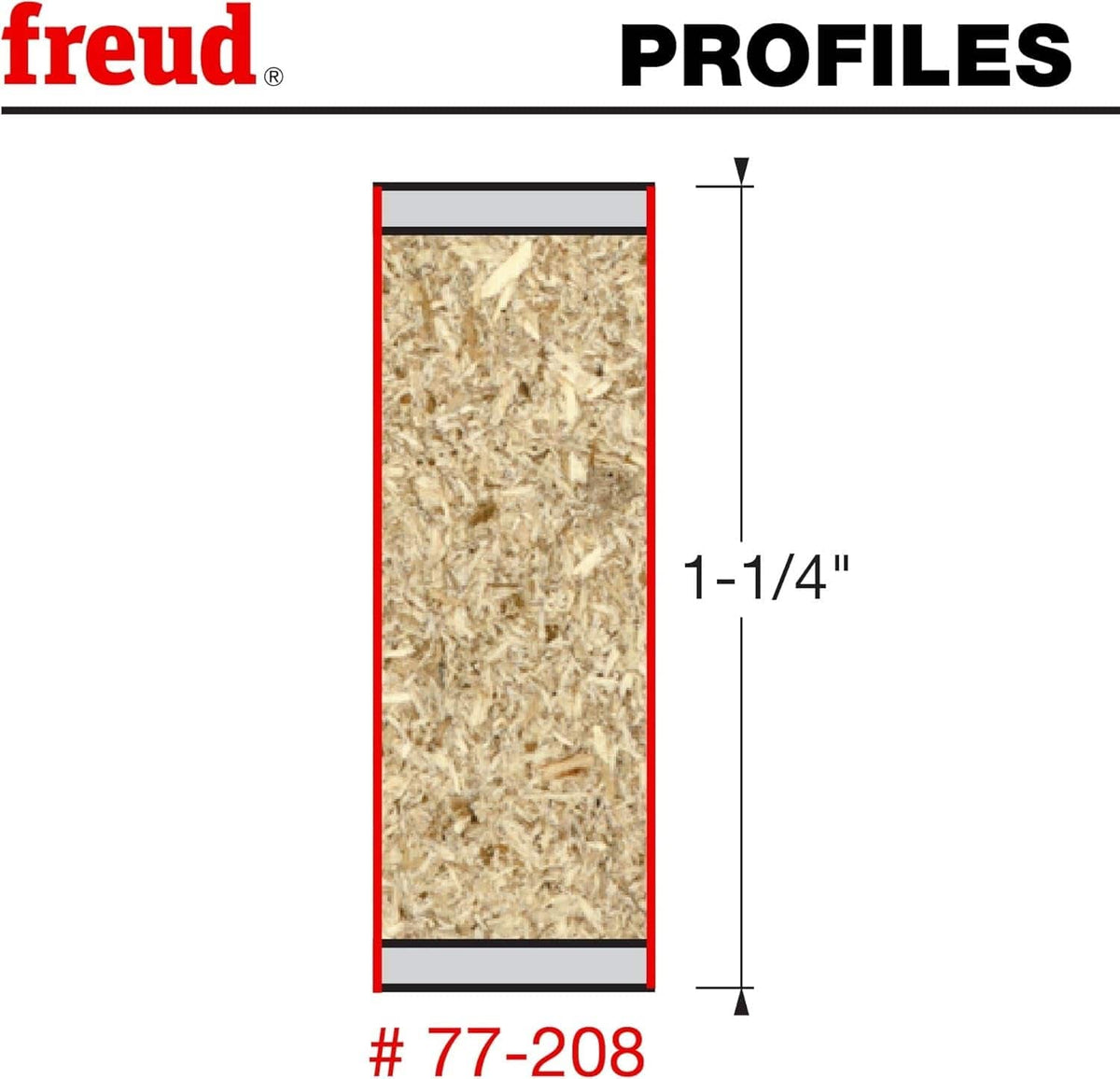

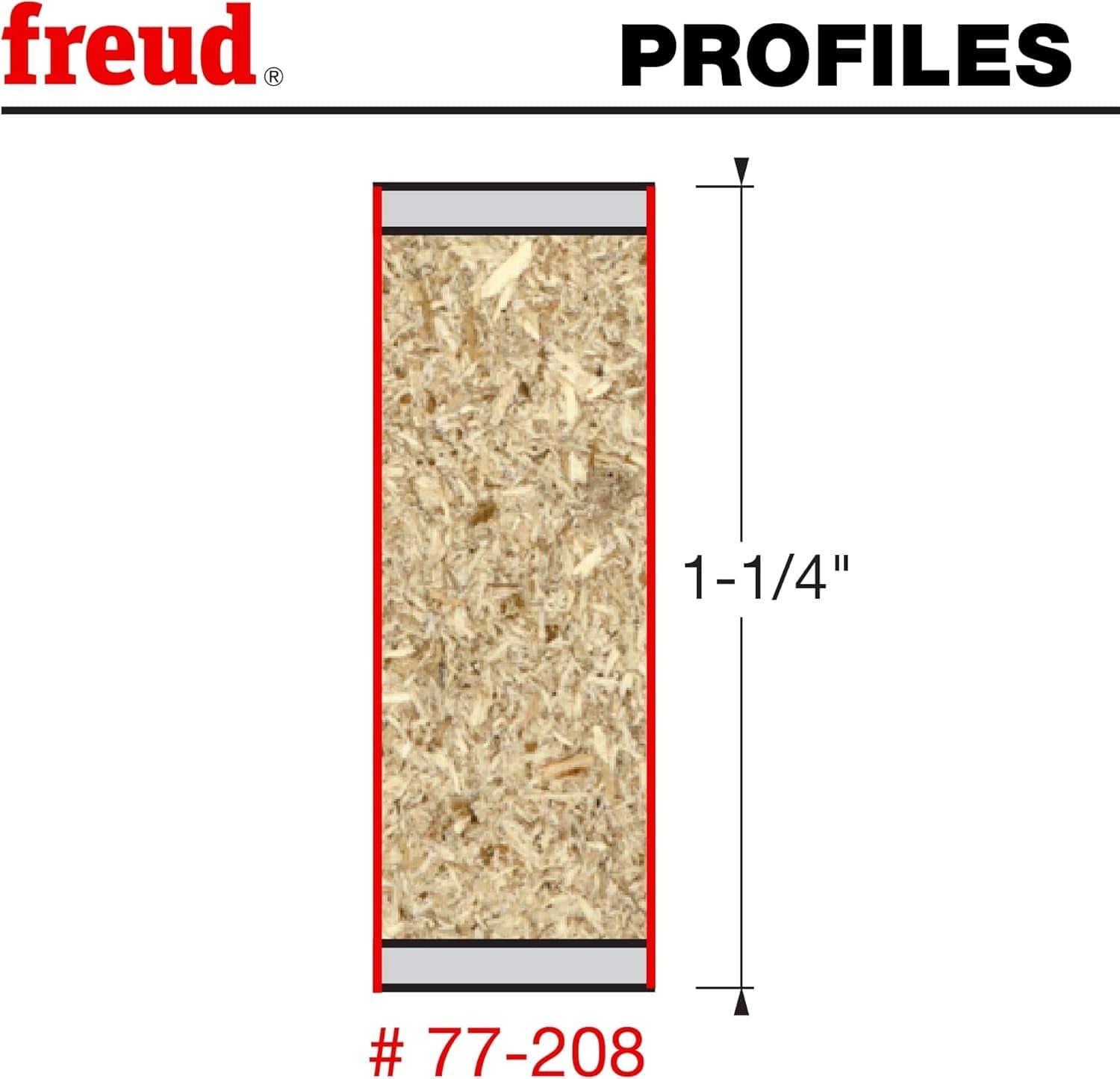

Woodworking profile diagram illustrating the 1-1/4-inch maximum cutting height of the Freud 77-208 double compression router bit in composite material.

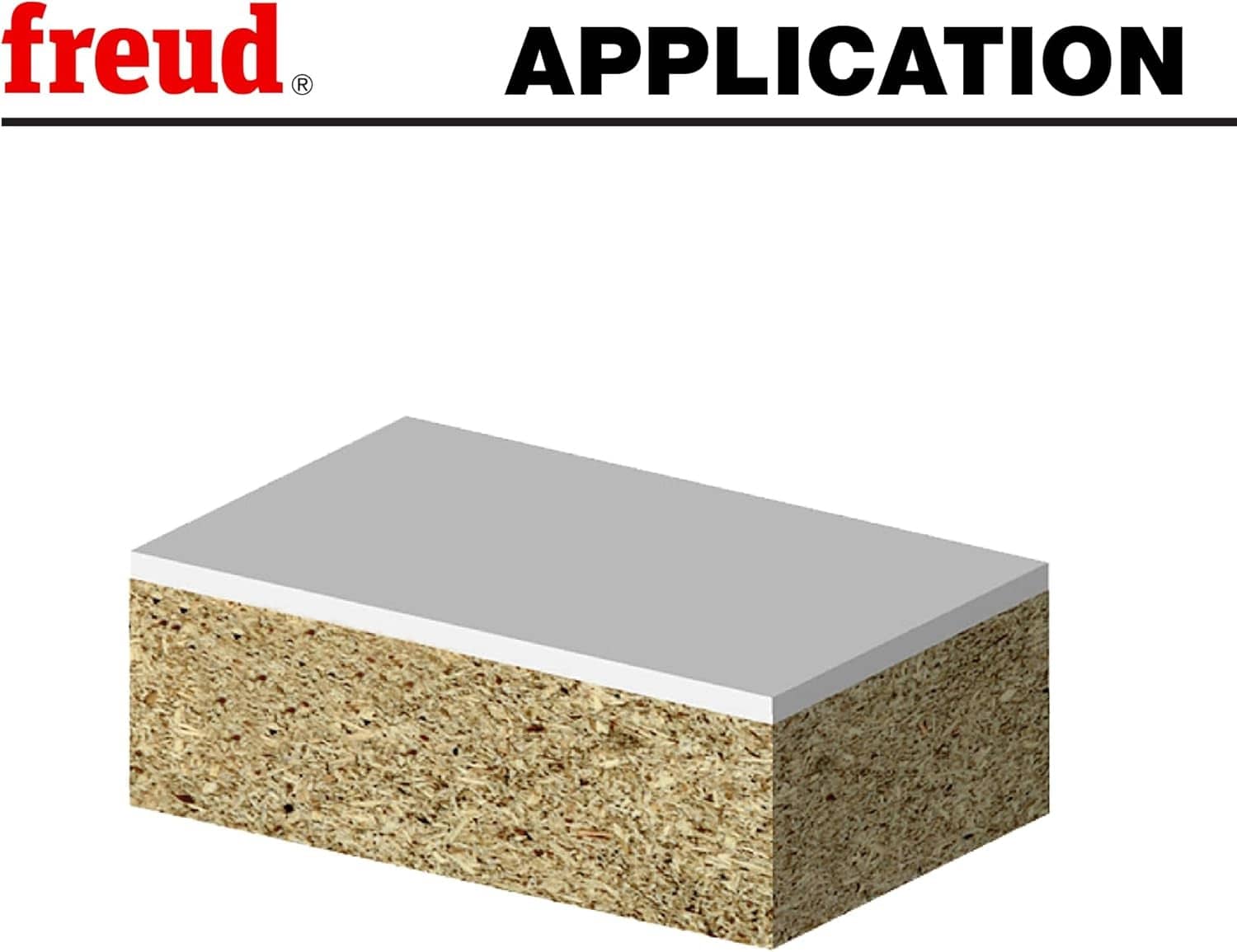

Application graphic demonstrating the Freud double compression solid carbide router bit producing a clean, chip-free edge on double-sided melamine laminate.
3D rendering showing the flawless, tear-out-free finish created by the Freud 1/2-inch double compression router bit on a laminate-faced composite board.

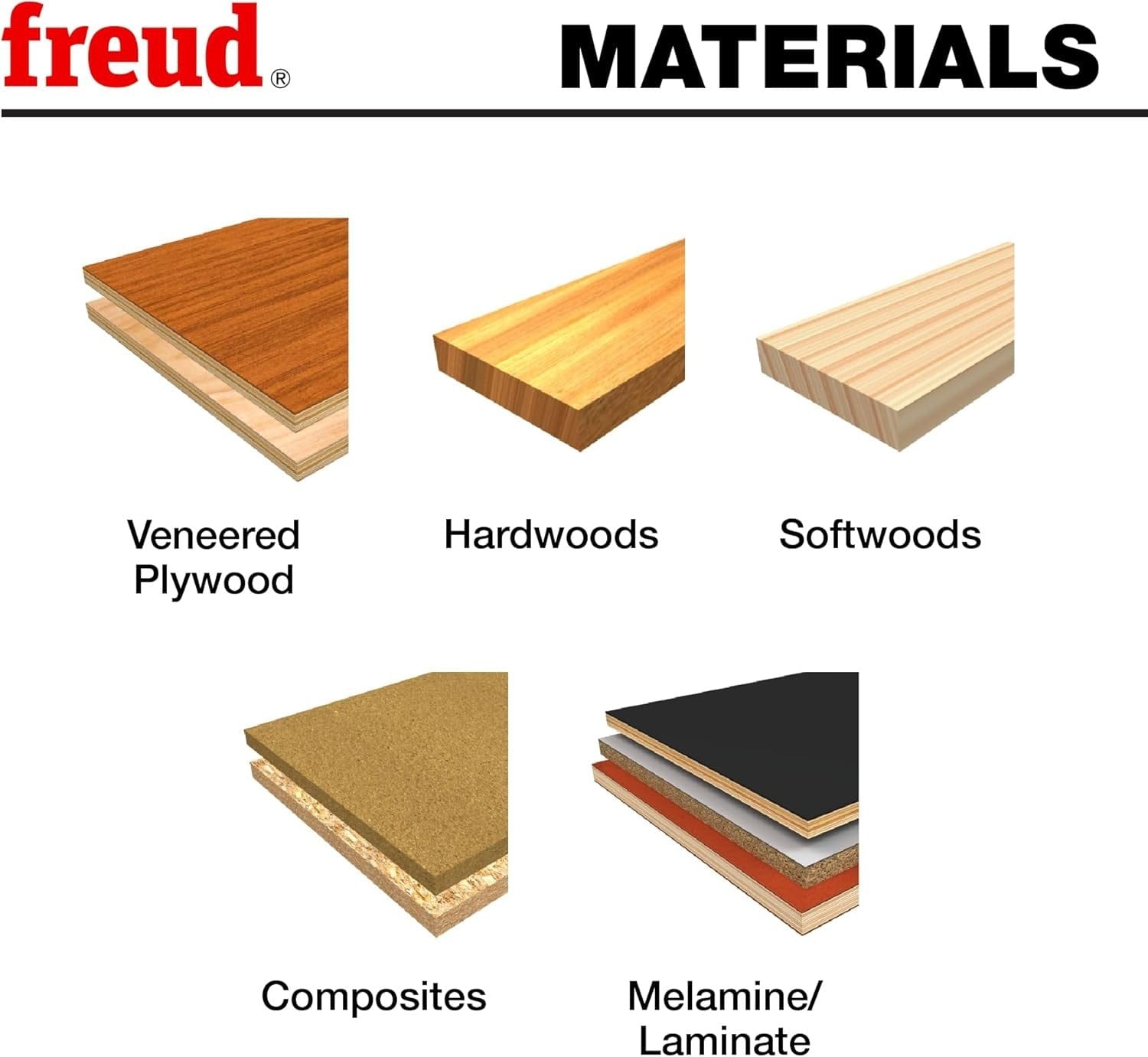

Material compatibility chart showing the Freud double compression router bit is ideal for safely milling double-sided melamine, laminate, veneered plywood, hardwoods, softwoods, and composites.

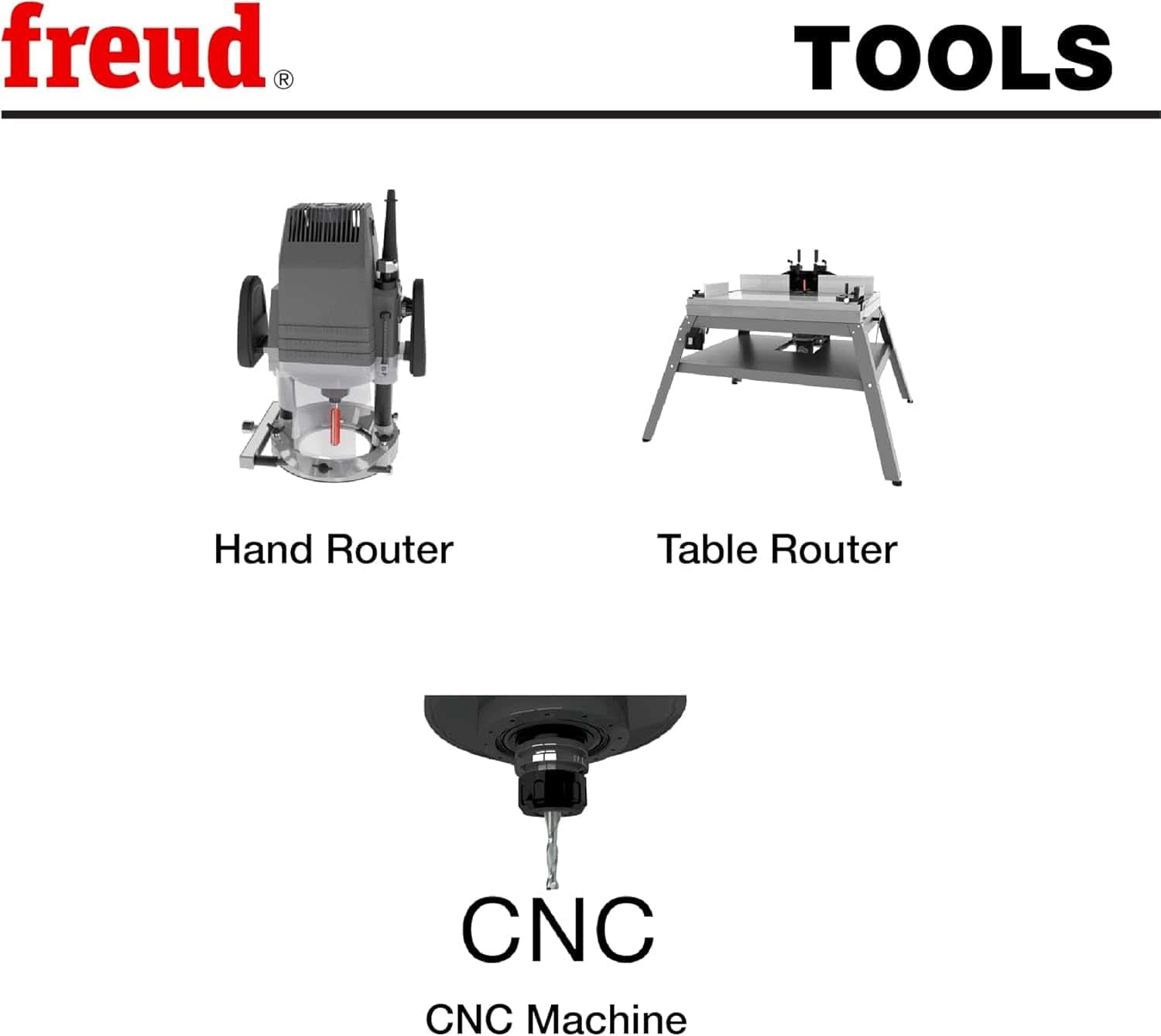

Tool compatibility guide indicating the Freud 1/2-inch shank solid carbide router bit is optimized for use with CNC machines, table-mounted routers, and hand-held routers.
Freud Black Ice CNC Bits promotional how to video
Straight profile view of the Freud 1/2-inch double compression solid carbide router bit highlighting the up-shear and down-shear spiral flute design.
Freud 77-208 1/2-inch double compression solid carbide router bit featuring a 1/2-inch shank and Black I.C.E. coating for CNC woodworking.
Straight profile view of the Freud 1/2-inch double compression solid carbide router bit highlighting the up-shear and down-shear spiral flute design.
Woodworking profile diagram illustrating the 1-1/4-inch maximum cutting height of the Freud 77-208 double compression router bit in composite material.
Application graphic demonstrating the Freud double compression solid carbide router bit producing a clean, chip-free edge on double-sided melamine laminate.
3D rendering showing the flawless, tear-out-free finish created by the Freud 1/2-inch double compression router bit on a laminate-faced composite board.
Material compatibility chart showing the Freud double compression router bit is ideal for safely milling double-sided melamine, laminate, veneered plywood, hardwoods, softwoods, and composites.
Tool compatibility guide indicating the Freud 1/2-inch shank solid carbide router bit is optimized for use with CNC machines, table-mounted routers, and hand-held routers.
Freud Black Ice CNC Bits promotional how to video
Freud

Freud Router Bit 77-208 1/2 Inch Shank Solid Carbide (Double Compression Melamine Laminate Woodworking Tool Slicing Accessory Assembly)

In stock
SKU: 77-208
$54.95 USD

Description

Freud precisely the best logo Logout

Freud 77-208 1/2" Double Compression Solid Carbide Router Bit

The Freud 77-208 1/2-inch double compression solid carbide router bit eliminates veneer tear-out on dual-sided melamine panels, expensive hardwood laminates, and plywood sheets during automated CNC milling and table routing. Engineered with a proprietary TiCo hi-density carbide blend protected by a friction-reducing Black I.C.E. coating, this 2-flute spiral bit combines up-shear and down-shear flutes to press wood fibers inward toward the center cut. Outfitted with a sturdy 1/2-inch shank rated up to 24,000 maximum RPM, it equips professional woodworkers and cabinet makers with sand-free, pristine top and bottom edge finishes.

Best Used For:

  • Double-Sided Melamine and Laminate Cabinetry: Milling precision dados, rabbets, and flush trims in delicate double-sided melamine without chipping the top or bottom decorative surfaces.
  • Hardwood Veneer and Plywood Sizing: Cutting expensive architectural plywood and hardwood veneers cleanly without requiring secondary sanding passes.
  • High-Volume CNC Production Milling: Executing high-speed routing operations on automated CNC centers while resisting resin buildup and thermal wear.

Key Performance & Safety Features

  • Double Compression Spiral Geometry: Dual up-shear and down-shear flutes simultaneously pull wood fibers toward the center to prevent surface tear-out.
  • TiCo Hi-Density Solid Carbide: Proprietary carbide metallurgy delivers razor-sharp cutting edges and up to 2X extended tool life compared to uncoated bits.
  • Black I.C.E. Thermal Coating: Advanced coating shields the cutting edge against friction, heat buildup, and pitch adhesion while improving chip evacuation.
  • Rigid 1/2-Inch Shank Design: Heavy-duty shank diameter minimizes tool deflection and chatter during high-torque routing operations.
  • High-Speed 24,000 Maximum RPM: Dynamically balanced body supports safe, high-efficiency material removal across CNC machines and stationary routers.

What's Included

  • (1) Freud 77-208 1/2-Inch Diameter Double Compression Solid Carbide Router Bit with 1/2-Inch Shank

Technical Specifications

Manufacturer Freud America Inc. (Bosch Group)
Model Number 77-208
Product Classification Double Compression Solid Carbide Router Bit
Overall Bit Diameter 0.500 inches (1/2 in / 12.7 mm)
Shank Diameter Size 0.500 inches (1/2 in / 12.7 mm)
Overall Bit Length 3.00 inches (3 in / 76.2 mm)
Carbide Cutting Height 1.25 inches (1-1/4 in / 31.75 mm)
Upcut Length Profile 0.344 inches (11/32 in / 8.73 mm)
Number of Flute Cutters 2-Flute Spiral Design
Maximum Rotational Speed 24,000 RPM
Carbide Material Blend TiCo Hi-Density Solid Carbide
Coating Technology Black I.C.E. Friction-Reducing Coating
Compatible Tool Platforms CNC Machines, Hand-Held Routers, & Table-Mounted Routers

Pro-Tip: When routing double-sided melamine or veneered panels with a compression bit, ensure your first pass depth engages the upcut portion of the flute fully into the waste stock; this guarantees clean downward compression shearing across both top and bottom laminate surfaces.
