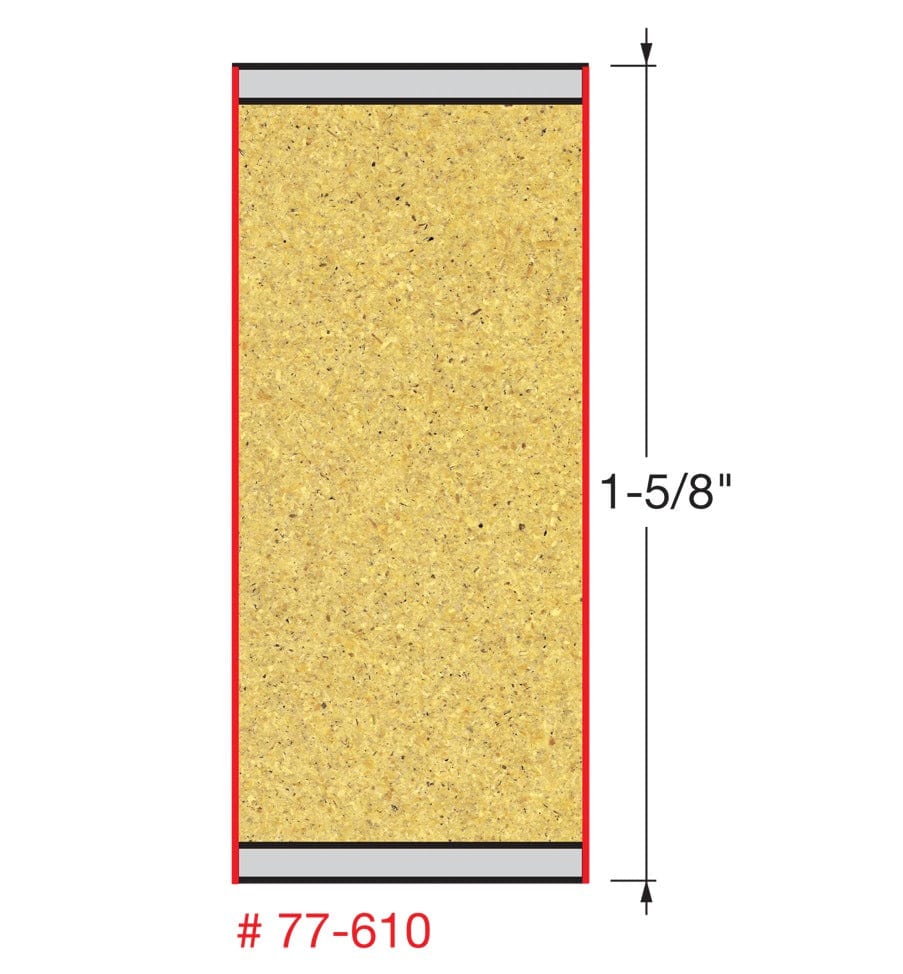

A technical diagram illustrating the cutting profile of the Freud 77-610 bit, showing a 1-5/8-inch deep vertical cut through a composite material core with grey laminate surfaces.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, composites, and melamine or laminate to indicate the compatible surfaces for this compression router bit.
An informational graphic titled Tools, showing a handheld router, a table-mounted router, and a CNC machine spindle to demonstrate the different equipment compatible with this mortise bit.
A studio product shot of the Freud 77-610 two-flute mortise compression spiral router bit, featuring a solid carbide body with a polished silver shank and a dark blue-black coated spiral cutting tip with distinctive compression notches.
Freud Black Ice CNC Bits promotional how to video
A studio product shot of the Freud 77-610 two-flute mortise compression spiral router bit, featuring a solid carbide body with a polished silver shank and a dark blue-black coated spiral cutting tip with distinctive compression notches.
A technical diagram illustrating the cutting profile of the Freud 77-610 bit, showing a 1-5/8-inch deep vertical cut through a composite material core with grey laminate surfaces.
An informational graphic titled Materials, displaying 3D samples of veneered plywood, hardwoods, softwoods, composites, and melamine or laminate to indicate the compatible surfaces for this compression router bit.
An informational graphic titled Tools, showing a handheld router, a table-mounted router, and a CNC machine spindle to demonstrate the different equipment compatible with this mortise bit.
A studio product shot of the Freud 77-610 two-flute mortise compression spiral router bit, featuring a solid carbide body with a polished silver shank and a dark blue-black coated spiral cutting tip with distinctive compression notches.
Freud Black Ice CNC Bits promotional how to video
Freud

Freud 77-610 1/2 Inch Two Flute Mortise Compression Spiral Router Bit 1/2 Inch Shank Solid Carbide Black ICE Coating for Melamine Plywood and Hardwood

Only 1 left
SKU: 77-610
$82.99 USD

Description

Freud precisely the best logo Logout

Achieve Flawless Chip-Free Finishes on Double-Sided Materials with Precision Mortise Compression Technology

The Freud 77-610 1/2" Mortise Compression Spiral Bit is a high-performance solution engineered for woodworkers who demand perfection when routing delicate, double-sided materials. Unlike standard compression bits, this mortise-specific design features a shorter up-shear length of 11/32", making it the premier choice for milling grooves, mortises, and through-cuts in thin materials 5/8" thick or less. By combining up-cut and down-cut action, this bit compresses the fibers of the material toward the center, ensuring a splinter-free finish on both the top and bottom surfaces of melamine, veneered plywood, and laminates.

Built for industrial durability, the 77-610 is manufactured from Freud Premier Solid Carbide and enhanced with TiCo™ High-Density Carbide to provide 2X the cutting life and performance of standard uncoated bits. The bit is finished with Freud’s proprietary Black I.C.E. (Industrial Cooling Element) coating, which maintains a cool cutting edge and facilitates superior chip evacuation to prevent burning and resin buildup. Optimized for high-speed use in CNC machines, handheld routers, and table-mounted setups, this two-flute bit provides a balance of speed and finish quality in hardwoods, softwoods, and composites.

Key Features

  • Precision Mortising: Short up-shear length is specifically designed for perfect grooves and mortises in delicate materials.
  • Multi-Material Excellence: Expertly routs melamine, veneer plywood, hardwood, softwood, and wood composites.
  • Black I.C.E. Coating: Innovative coating keeps the cutting edge cool and ensures superior chip evacuation for a cleaner finish.
  • TiCo™ High-Density Carbide: Specialized Freud carbide provides 2X increased life and performance versus standard bits.
  • Industrial Versatility: Ideal for through-cuts in thin double-sided materials and professional-grade mortising tasks.
  • Universal Compatibility: Engineered for use in CNC, hand-held, or table-mounted router applications.

What's Included

  • (1) Freud 77-610 1/2" Two Flute Mortise Compression Spiral Bit

Specifications

Brand Freud
Model Number 77-610
Overall Diameter (D) 0.5 in (1/2")
Shank Diameter (A) 0.5 in (1/2")
Carbide Height (h) 1.625 in (1-5/8")
Upcut Length 0.34375 in (11/32")
Overall Length (H) 4 in
Number of Cutters 2
Maximum RPM 24,000
Material Construction Premier Solid Carbide
Coating Type Black I.C.E.

Pro-Tip: To ensure a perfectly clean finish on both the top and bottom surfaces, make sure your cutting pass is deep enough to allow the down-shear portion of the compression bit to engage the top surface of the board. A depth of cut greater than the 11/32" upcut length is essential to activate the compression action that prevents surface chipping on delicate veneers and melamine.
