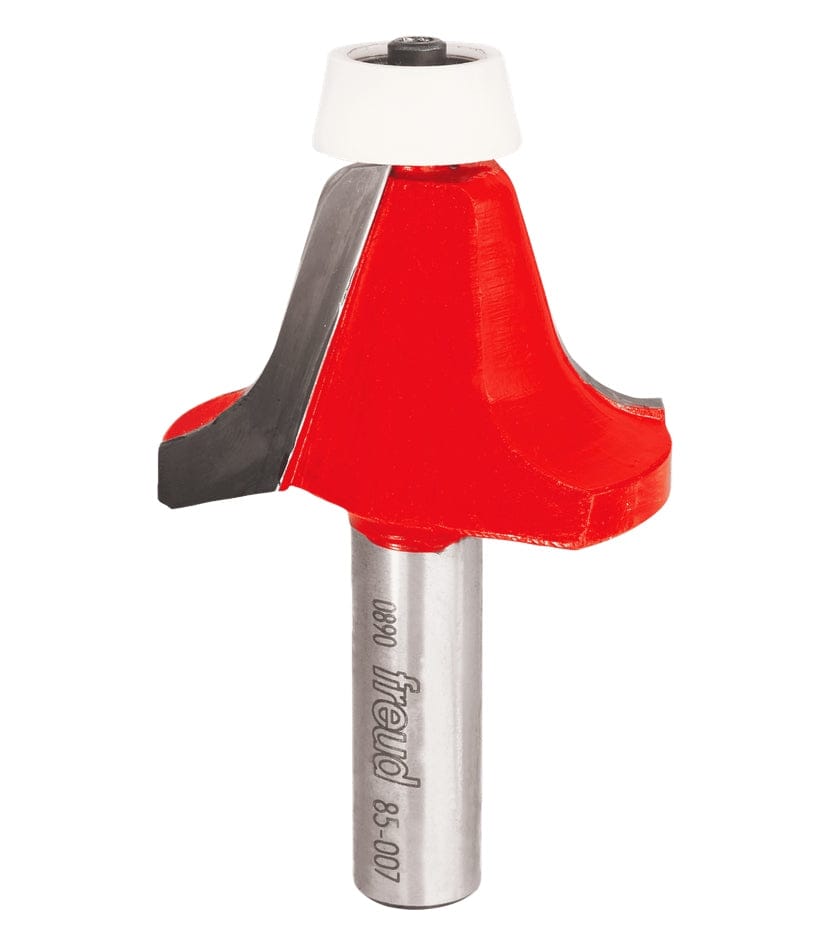

Studio shot of the Freud 85-007 Ogee Bowl Router Bit. It features a red coated body, a 1/2-inch shank, and a white non-marring synthetic conical bearing at the top.

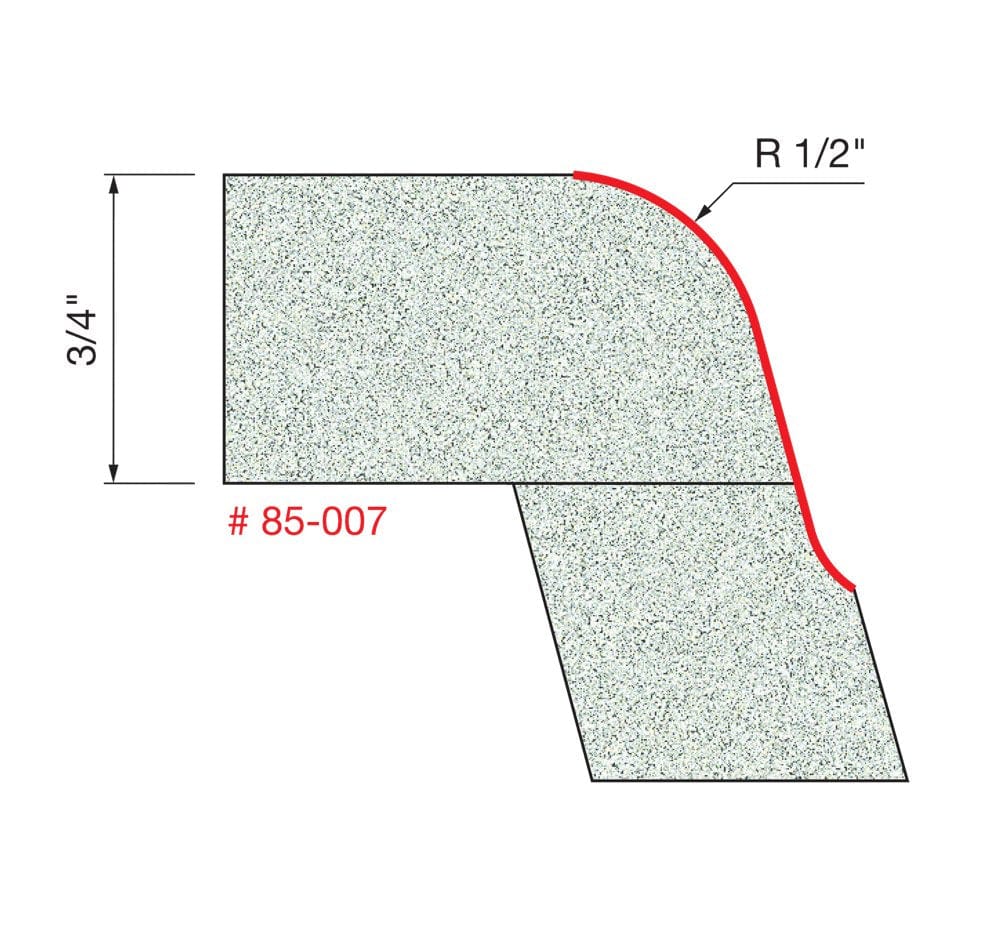

Technical drawing of the cut profile for model #85-007 on a 3/4-inch thick material. A red line traces an ogee profile with a 1/2-inch radius curving into the material.

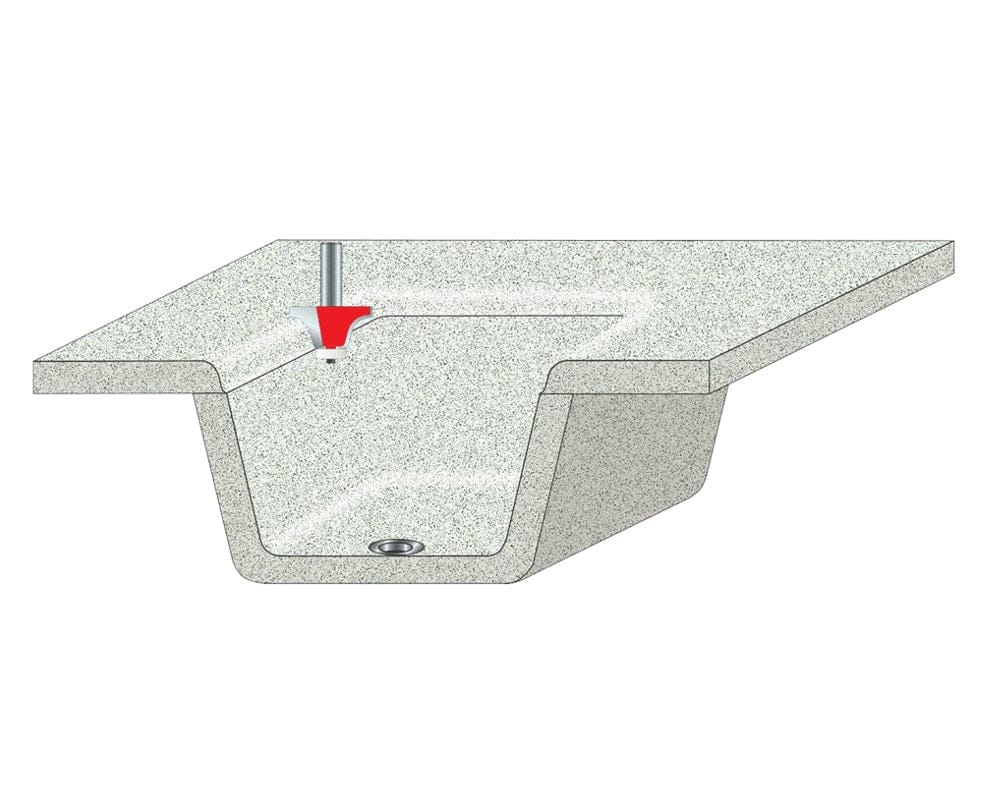

Illustration showing the Freud 85-007 router bit trimming the joint between a solid surface countertop and an undermount sink bowl. The bit is positioned to round the top edge and flush trim the bowl face.
Studio shot of the Freud 85-007 Ogee Bowl Router Bit. It features a red coated body, a 1/2-inch shank, and a white non-marring synthetic conical bearing at the top.
Studio shot of the Freud 85-007 Ogee Bowl Router Bit. It features a red coated body, a 1/2-inch shank, and a white non-marring synthetic conical bearing at the top.
Technical drawing of the cut profile for model #85-007 on a 3/4-inch thick material. A red line traces an ogee profile with a 1/2-inch radius curving into the material.
Illustration showing the Freud 85-007 router bit trimming the joint between a solid surface countertop and an undermount sink bowl. The bit is positioned to round the top edge and flush trim the bowl face.
Studio shot of the Freud 85-007 Ogee Bowl Router Bit. It features a red coated body, a 1/2-inch shank, and a white non-marring synthetic conical bearing at the top.
Freud

Freud Ogee Bowl Router Bit 85-007 1/2 Inch Shank 1/2 Radius (2 Dia 1-1/4 Carbide Height Non Marring Bearing Solid Surface Countertop Sink Trim)

Only 1 left
SKU: 85-007
$89.79 USD

Description

Freud precisely the best logo Logout

High-Density 1/2 Inch Radius Ogee Bowl Router Bit for Solid Surface Countertop Sink Fabrication

The Freud 85-007 1/2 Inch Radius Ogee Bowl Router Bit delivers an industrial architectural profiling solution engineered to trim and shape seam lines where undermount sink bowls meet solid surface countertops. Utilizing high-density TiCo titanium cobalt carbide cutting edges, this 1/2-inch shank tool operates smoothly on handheld portable routers running at speeds up to 16,000 RPM across dense composite materials including Corian, Avonite, and acrylic polymers. The 2-inch overall diameter cutter provides a 1-1/4-inch carbide height with a 15-degree tapered angle and incorporates a non-marring synthetic guide bearing to glide along polished bowl walls without surface scratching or thermal burning.

Best Used For:

  • Undermount Sink Rim Profiling: Trimming solid surface countertop cutout edges flush with undermount sink bowls while creating a seamless decorative Ogee radius edge.
  • Solid Surface Edge Shaping: Milling decorative rounded convex profiles on acrylic composite kitchen, lavatory, and commercial vanity surfaces.
  • Crevice-Free Hygiene Trimming: Slicing joint lines flush to eliminate gaps and micro-crevices where dirt and water accumulate around sink cutouts.

Key Performance & Safety Features

  • Non-Marring Synthetic Bearing: Tapered synthetic guide roller glides cleanly along finished acrylic and composite bowls without scratching polished surfaces.
  • Dual-Action Ogee Geometry: Rounds off the top edge while dipping slightly into the bowl face for an integrated, custom transition.
  • TiCo Hi-Density Carbide: Custom micro-grain titanium cobalt carbide formula withstands abrasive composite resins to maintain edge sharpness.
  • Portable Router Optimization: Balanced 2-flute construction engineered specifically for stable, chatter-free operation in handheld routers.
  • Heavy-Duty Steel Shank: Solid 1/2-inch shank delivers high torsional rigidity to prevent bit flex during continuous commercial fabrication.

What's Included

  • (1) Freud 85-007 1/2 Inch Radius Ogee Bowl Router Bit with 1/2 Inch Shank

Technical Specifications

Brand Name Freud Tools
Manufacturer Part # 85-007
Tool Classification Ogee Undermount Bowl Router Bit
Shank Diameter Track 0.50 in. (1/2 in.)
Profile Radius Dimension 0.50 in. (1/2 in.)
Profile Taper Angle 15°
Overall Cutter Diameter 2.00 in. (2 in.)
Carbide Cutting Height 1.25 in. (1-1/4 in.)
Overall Tool Length 3.125 in. (3-1/8 in.)
Number of Cutting Flutes 2 Flutes
Guide Bearing Assembly Non-Marring Synthetic Tapered Bearing
Maximum Operating Speed 16,000 RPM
Equipment Compatibility Handheld Portable Routers
Material Applications Corian®, Avonite®, Acrylics, Solid Surface Composites

Pro-Tip: Keep the synthetic guide bearing clean and free of abrasive composite dust before starting each pass around solid surface sink cutouts. Wiping the bearing clean prevents trapped resin particles from rubbing against the bowl face, guaranteeing a smooth, scratch-free finish.
