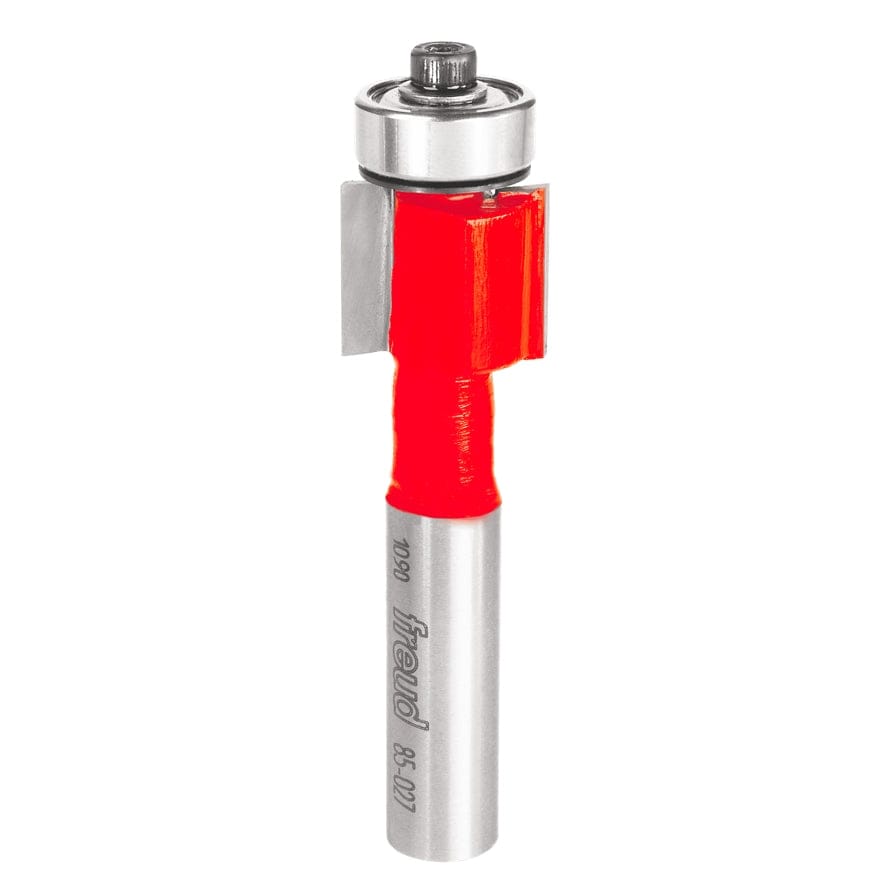

Studio shot of the Freud 85-027 inlay router bit standing upright, featuring a red Perma-SHIELD body, straight carbide cutters, and a top-mounted ball bearing guide on a 1/2 inch shank.

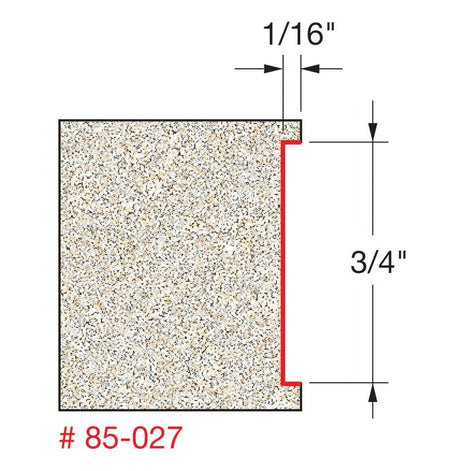

Technical diagram illustrating the cross-section profile created by the Freud 85-027 bit, indicating a 1/16 inch cut depth and a 3/4 inch cut height.
Illustration demonstrating the application of the inlay bit, showing a groove being routed into the edge of speckled solid surface material and a decorative strip being inserted.
Studio shot of the Freud 85-027 inlay router bit standing upright, featuring a red Perma-SHIELD body, straight carbide cutters, and a top-mounted ball bearing guide on a 1/2 inch shank.
Technical diagram illustrating the cross-section profile created by the Freud 85-027 bit, indicating a 1/16 inch cut depth and a 3/4 inch cut height.
Illustration demonstrating the application of the inlay bit, showing a groove being routed into the edge of speckled solid surface material and a decorative strip being inserted.
Freud

Freud 85-027 Solid Surface Inlay Router Bit 7/8 Inch Diameter 1/2 Shank Carbide Decorative Edge Cutter for Countertops

Only 1 left
SKU: 85-027
$36.79 USD

Description

Elevate Your Countertops: Freud 85-027 Solid Surface Inlay Bit for Custom Edge Detailing

Transform standard solid surface countertops into custom works of art with the Freud 85-027 Inlay Router Bit. This specialized tool is designed to route precise, shallow grooves along the edges of solid surface materials like Corian®, Wilsonart®, and Avonite®. By creating a 1/16-inch deep recess, you can easily inlay contrasting strips of wood, metal, or colored solid surface material, adding a sophisticated, high-end accent that distinguishes your fabrication projects from the competition.

Fabricating solid surface materials requires tooling that can withstand highly abrasive composition without dulling prematurely. The 85-027 features Freud’s specially formulated TiCo™ Hi-Density Carbide, engineered to maintain a razor-sharp edge longer than standard bits. Equipped with a non-marring bearing guide, this bit traces the edge of your workpiece smoothly, ensuring a consistent depth of cut perfect for hand-held routing applications. Whether you are a professional fabricator or a dedicated DIYer, this tool provides the accuracy needed for seamless, professional-grade inlays.

Key Features

  • Decorative Inlays: Creates a precise 1/16" deep groove for adding accent strips to solid surface edges.
  • Specialized Carbide: Features formulation specifically designed to cut abrasive solid surface materials cleanly.
  • Bearing Guide: Includes a 3/4" bearing to track the edge of the material for uniform cutting depth.
  • Versatile Compatibility: Designed for use with hand-held portable routers.
  • Material Flexibility: ideal for use on all major brands of solid surface composites.

What's Included

(1) Freud 7/8" Diameter Solid Surface Inlay Bit with 1/2" Shank (85-027)

Specifications

Brand Freud
Model Number 85-027
Application Solid Surface Inlay
Overall Diameter (D) 7/8 in
Shank Diameter (A) 1/2 in
Carbide Height (h) 3/4 in
Overall Length (H) 3-5/16 in
Cut Depth (C) 1/16 in
Bearing Diameter (B) 3/4 in
Number of Cutters 2
Max RPM 24,000

Pro-Tip: When creating inlays, it is often best to cut your groove slightly shallower than the thickness of your inlay material (or conversely, make your inlay strip slightly thicker than the groove depth). This allows the inlay to sit slightly "proud" of the surface. Once the adhesive cures, you can sand the inlay flush for a seamless, smooth transition that looks like a single piece of material.
