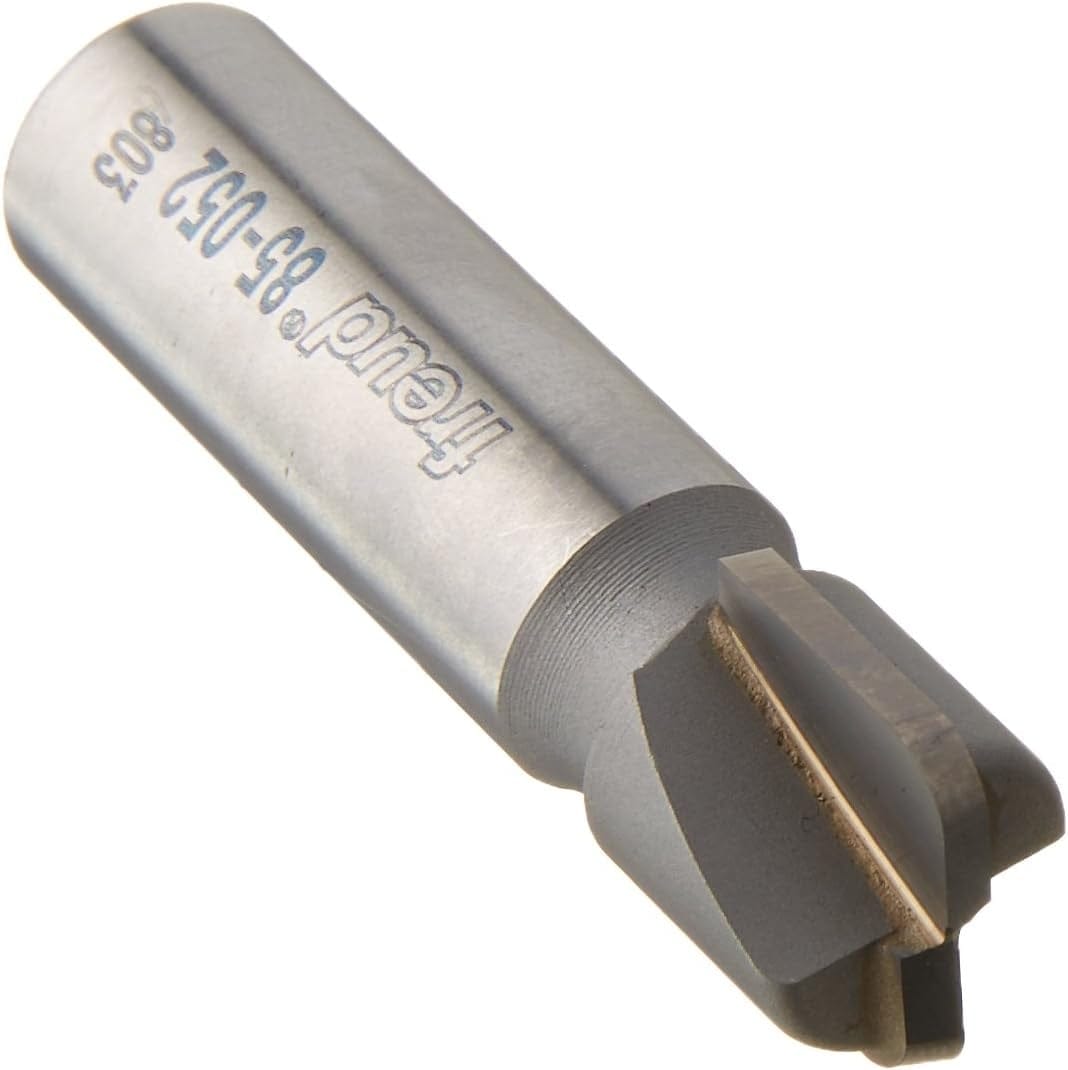

Close-up angled view of the Freud 85-052 drainboard router bit, showing the laser-etched model number on the 1/2-inch shank and the carbide-tipped cutting flutes.

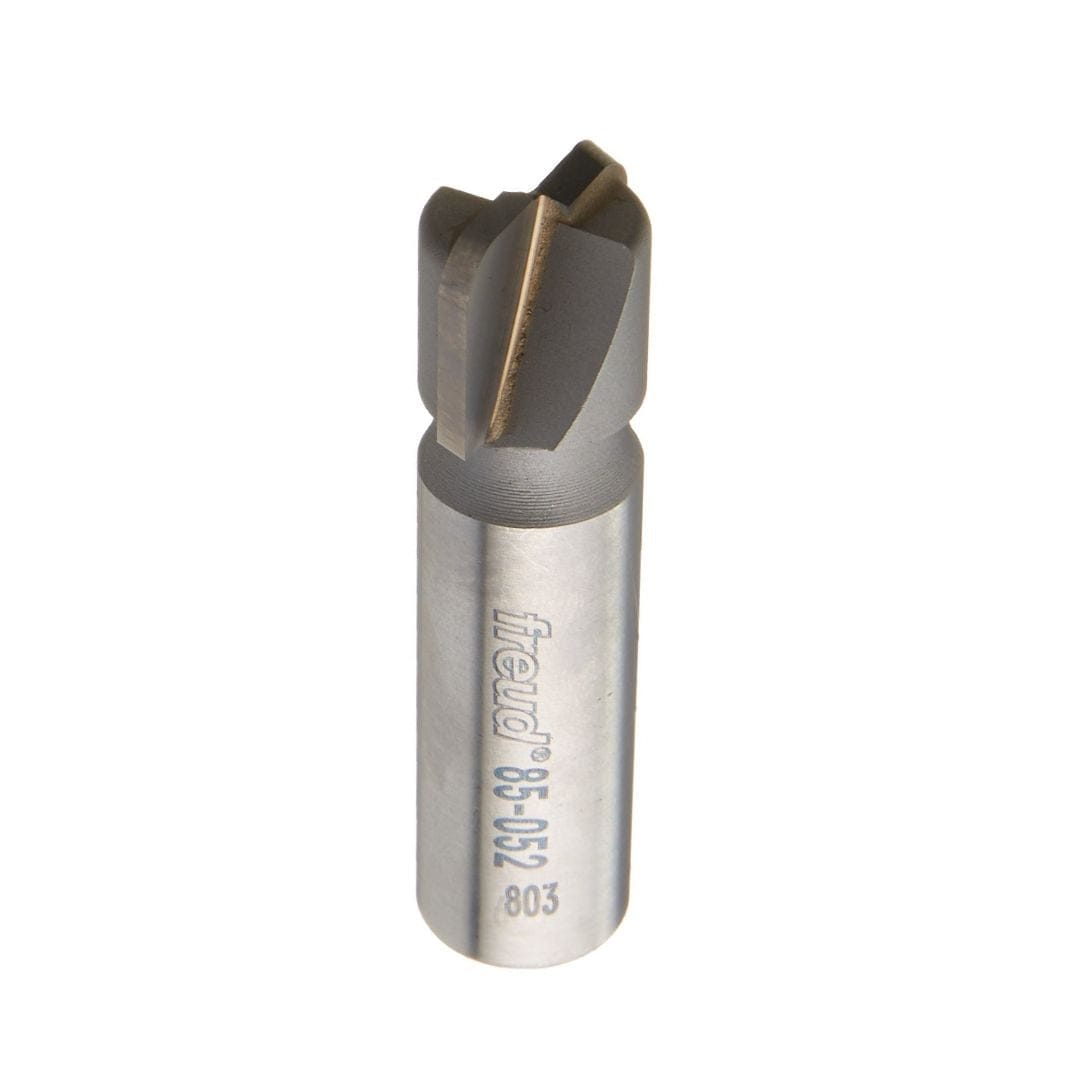

Studio shot of the Freud 85-052 router bit standing upright, displaying the 5/8-inch diameter cutting head and 1/8-inch radius profile designed for solid surface fabrication.
Close-up angled view of the Freud 85-052 drainboard router bit, showing the laser-etched model number on the 1/2-inch shank and the carbide-tipped cutting flutes.
Studio shot of the Freud 85-052 router bit standing upright, displaying the 5/8-inch diameter cutting head and 1/8-inch radius profile designed for solid surface fabrication.
Freud

Freud 85-052 Drainboard Router Bit 5/8 Inch Diameter 1/2 Inch Shank 1/8 Radius Carbide for Solid Surface Countertop Sinks

Only 1 left
SKU: 85-052
$21.79 USD

Description

Fabricate Custom Solid Surface Drainboards with Professional Precision

Create functional and elegant drainboards in your solid surface countertops with the Freud 85-052 Drainboard Router Bit. Designed specifically for the unique demands of materials like Corian®, Avonite®, and other composites, this bit allows you to route gently sloping grooves that direct water back into the sink. The 1/8-inch radius produces a smooth, rounded groove bottom that is easy to clean and aesthetically pleasing, adding a high-end custom touch to any kitchen installation.

Engineered for flawless performance, this bit features Freud's specialized TiCo™ Hi-Density Carbide, formulated to withstand the abrasive nature of solid surface materials without dulling prematurely. Crucially, the 85-052 is equipped with a non-marring synthetic bearing. This feature ensures that the bit follows your template or jig without leaving scratches, burn marks, or indentations on the finished countertop surface. Whether you are a professional fabricator or a serious DIYer, this tool provides the control and finish quality needed for superior results using hand-held portable routers.

Key Features

  • Specialized Application: Specifically designed to rout run-off grooves for drainboards in solid surface countertops.
  • Surface Protection: Features a non-marring synthetic bearing to protect finished surfaces from scratches and burns.
  • Extended Life: Constructed with Freud's TiCo Hi-Density Carbide for maximum durability in abrasive composite materials.
  • Clean Cuts: The 1/8-inch radius creates smooth, easy-to-clean grooves that prevent water buildup.
  • Versatile Compatibility: Safe and effective for use in all major brands of solid surface materials.
  • Tool Suitability: Optimized for use with hand-held portable routers for flexible on-site or shop work.

What's Included

(1) Freud 85-052 5/8" Diameter Drainboard Router Bit with 1/2" Shank

Specifications

Brand Freud
Manufacturer Part # 85-052
Bit Type Drainboard Router Bit
Overall Diameter (D) 5/8"
Carbide Height (h) 1/2"
Radius (R) 1/8"
Shank Diameter (A) 1/2"
Overall Length (H) 2-7/8"
Bearing Type Non-Marring Synthetic
Material Compatibility Solid Surface (Corian, etc.)
Tool Compatibility Hand-Held Routers
UPC 8925059110

Pro-Tip: To achieve a professional slope that properly drains water into the sink, use this bit with a tapered jig or template. Start the cut shallow at the far end of the drainboard and gradually increase depth as you approach the sink bowl.
