Freud Router Bit Set 97-154 3 Piece Premier Cabinet Door (1/2 Inch Shank Adjustable Round Over Ogee Woodworking Cutters)
Couldn't load pickup availability

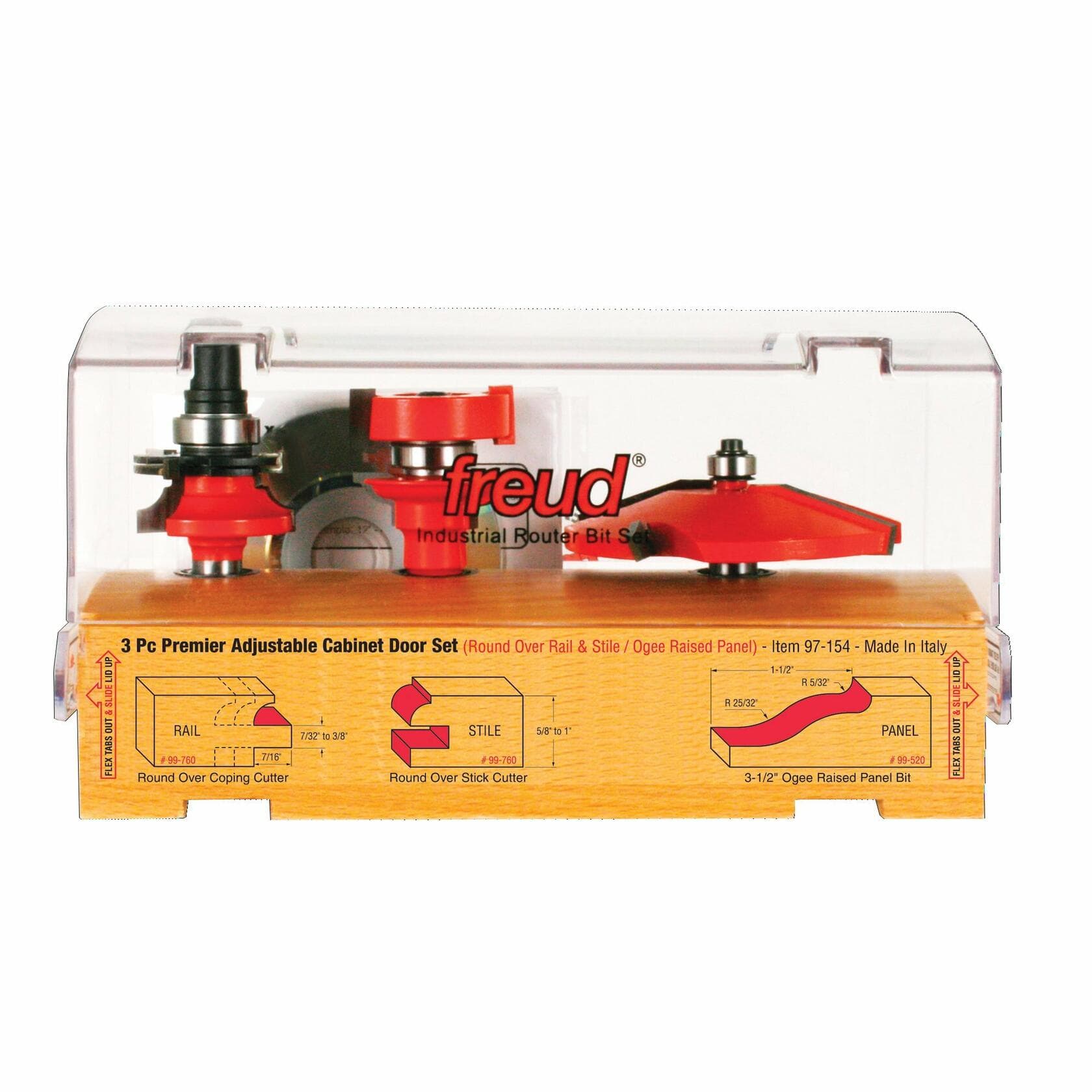

Freud 97-154 3-Piece Premier Adjustable Cabinet Door Making Router Bit Set 1/2-Inch Shank
The Freud 97-154 3-Piece Premier Adjustable Cabinet Door Making Router Bit Set machines heirloom-grade raised panel cabinet doors and interior passage doors in solid hardwood, softwood, and plywood stock. Engineered with micro-grain TiCo High-Density Carbide cutters and a Perma-SHIELD non-stick thermal coating, this 1/2-inch shank set accommodates material thicknesses from 5/8-inch to 1-1/4 inches. Featuring an adjustable round-over rail and stile system capable of milling extended long-tenon joinery and an innovative 2+2 wing ogee raised panel bit with an integrated backcutter, this woodworking cutter set guarantees rattle-free panel grooves and glass-smooth profiles across table-mounted router setups.
Best Used For:

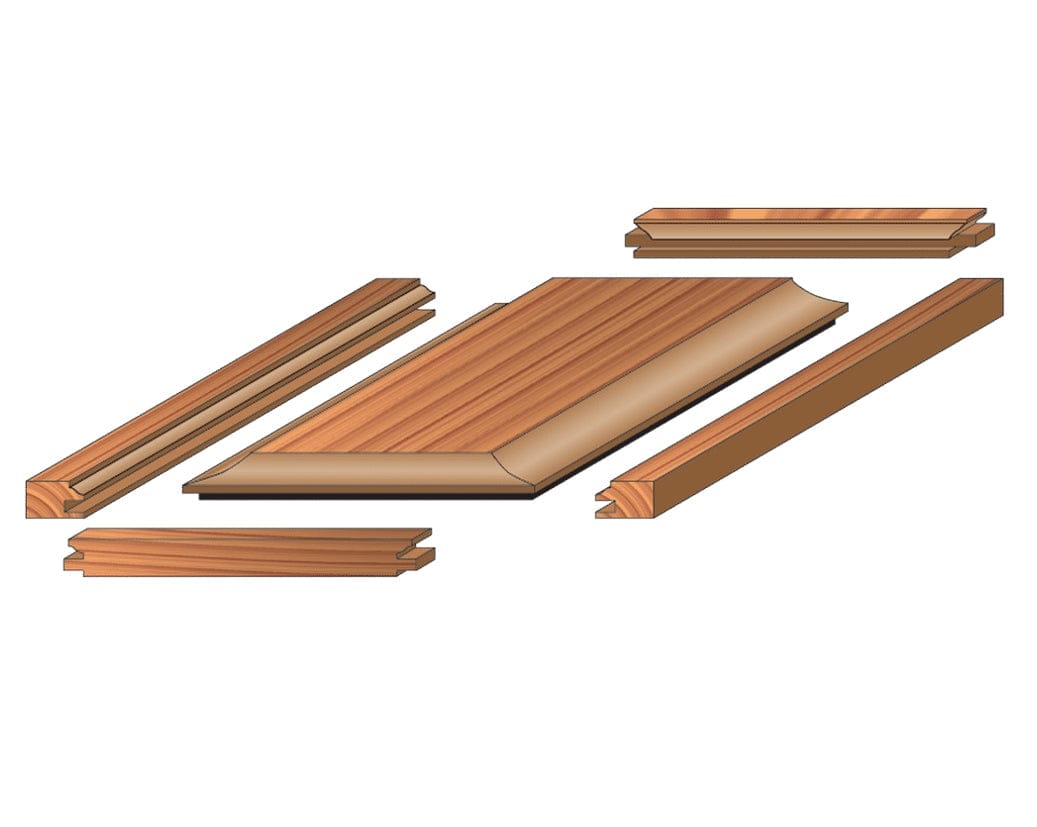

- Custom Cabinet & Passage Door Construction: Milling interlocking rail and stile frames with decorative round-over profiles for 5/8-inch to 1-1/4-inch lumber.
- Tearout-Free Raised Panel Shaping: Carving ogee field profiles into delicate figured hardwoods and cross-grain panels using 2+2 wing cutter geometry.
- High-Strength Long Tenon Joinery: Milling extended structural tenons to maximize glue surface contact for heavy-use kitchen cabinet doors.
Key Performance & Safety Features
- Premier Adjustable Interlocking System: Interlocking shims allow fine-tuning of panel slot widths from 7/32-inch (5.5 mm) to 1/4-inch (6.35 mm) to eliminate panel rattle.
- 2+2 Wing Raised Panel Technology: Two downward-shearing and two upward-shearing carbide wings cut cross-grain wood fibers without splintering or tearout.
- Integrated Flush Backcutter: Sizes the rear tongue and face profile simultaneously in a single pass to leave raised panels flush with the frame.
- TiCo High-Density Carbide: Specialized formulation of titanium and cobalt micro-grain carbide retains razor sharpness through extended production runs.
- Perma-SHIELD Protective Coating: Non-stick red thermal barrier prevents heat friction, pitch accumulation, and corrosion during continuous table routing.
What's Included
- (1) Premier Adjustable Rail and Stile Bit Set (99-760) - Round Over Profile
- (1) 2+2 Raised Panel Router Bit with Backcutter (99-520) - Ogee Profile
- (1) Precision Micro-Adjustment Shim Pack
- (1) Comprehensive Instructional Poster & Setup Guide
- (1) Fitted Wooden Storage Box
Technical Specifications
| Specification | Detail |
|---|---|
| Model Number / Part ID | 97-154 (Door Making Bit Set) |
| Set Piece Count | 3 Pieces (Rail, Stile & Panel Bits) |
| Router Shank Diameter | 0.50 in (1/2 in / 12.7 mm) |
| Stock Thickness Range | 0.625 in to 1.25 in (5/8 in to 1-1/4 in) |
| Panel Groove Adjustability | 7/32 in to 1/4 in (5.5 mm to 6.35 mm) |
| Frame Joint Architectural Profile | Round Over Profile (Model 99-760) |
| Raised Panel Face Profile | Ogee Profile with Backcutter (Model 99-520) |
| Cutting Edge Composition | TiCo™ High-Density Micro-Grain Carbide |
| Thermal Coating Technology | Perma-SHIELD® Non-Stick Coating |
| Recommended Tool Mounting | Table-Mounted Portable & Stationary Routers |
| Target Application Materials | Hardwoods, Softwoods, Plywood, Cabinet Stock |
Pro-Tip: Always run the large-diameter 99-520 raised panel bit on a table-mounted router equipped with variable speed control dialed down between 12,000 and 14,000 RPM; reduced rotational speed combined with multiple shallow passes delivers a chatter-free finish across cross-grain cuts.
