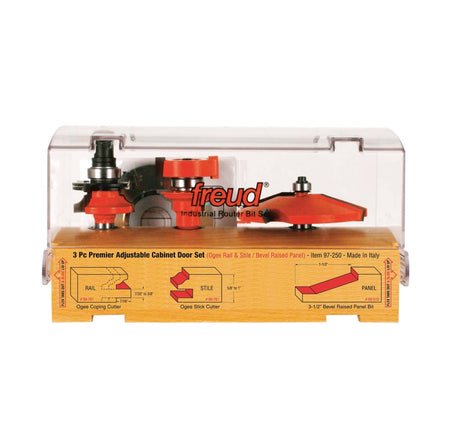

Freud 97-250 adjustable cabinet door bit set organized in a premium wooden storage case with a clear cover, featuring detailed profile diagrams for ogee coping, stick cutters, and bevel raised panel bits.

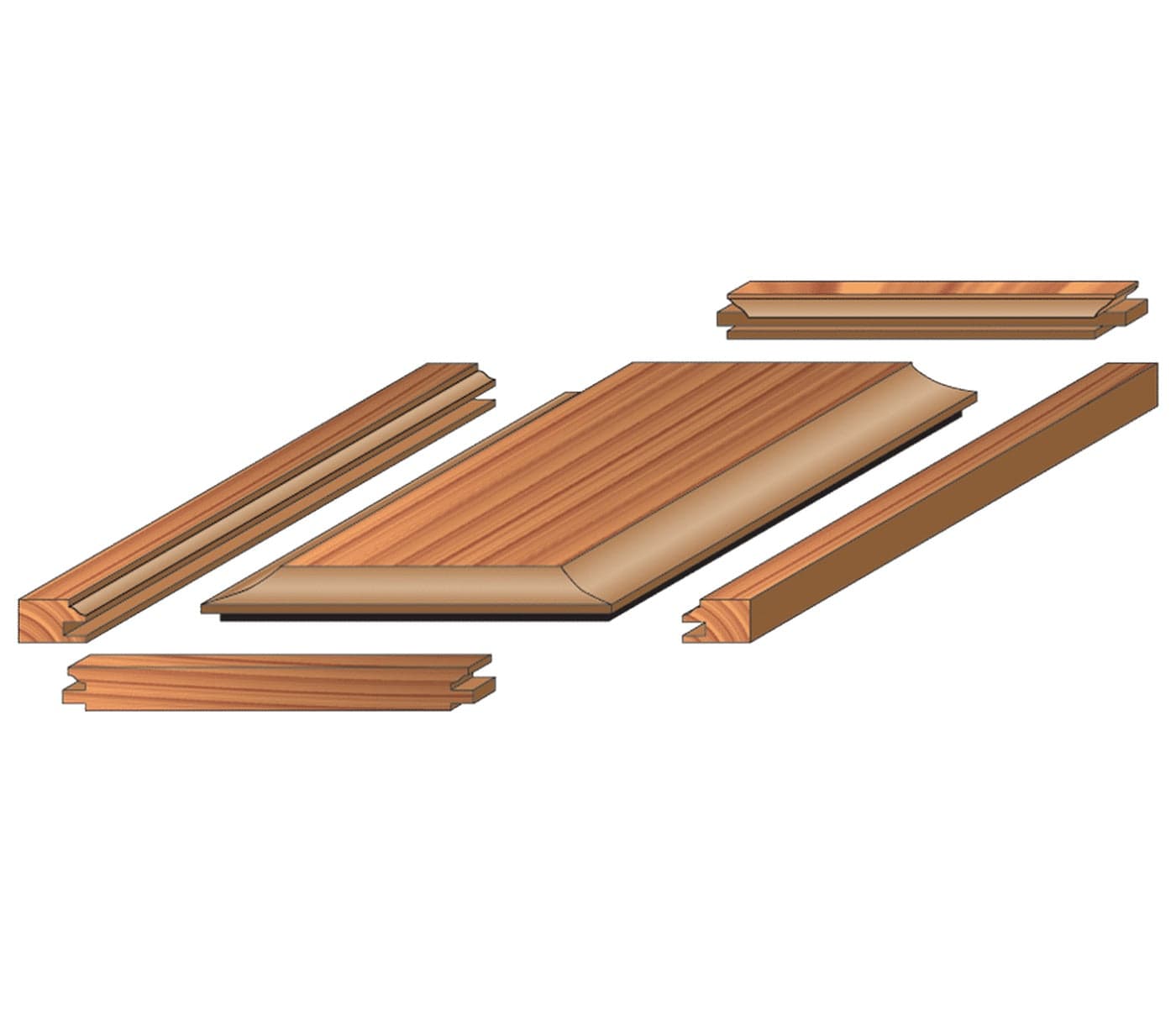

Exploded view diagram of a raised panel cabinet door illustrating the precise ogee rail and stile joinery and the bevel panel profile created by the Freud 97-250 router bit set.
Architectural illustration of high-quality interior and entry doors with decorative panels, showcasing the professional-grade results achieved with the Freud ogee and bevel profile cabinet bit system.
Material compatibility chart indicating the Freud cabinet bit set is optimized for cleanly milling veneered plywood, hardwoods, softwoods, and composite materials for door construction.

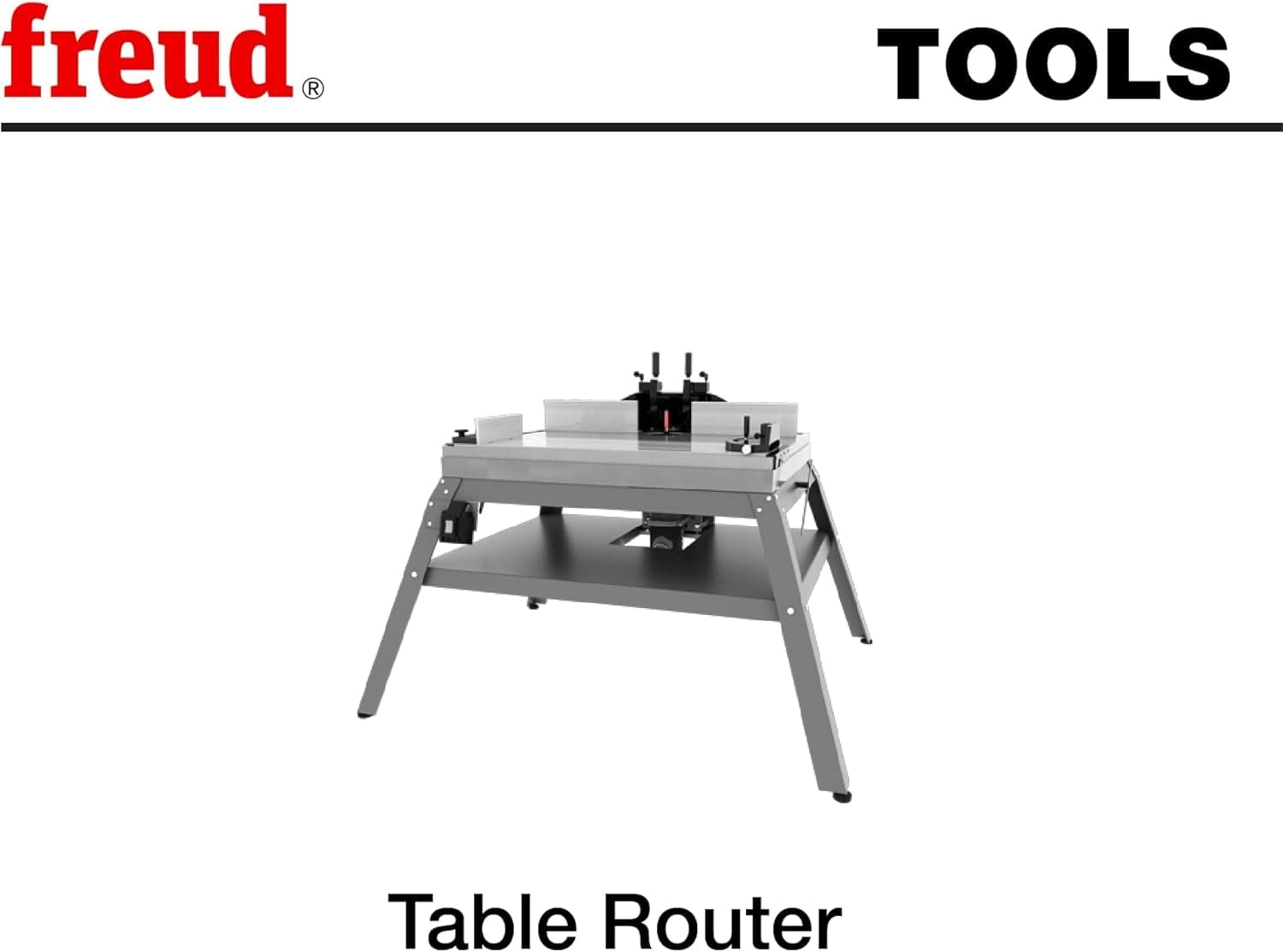

Illustration of a professional table-mounted router, the recommended tool for safely and accurately using the Freud 97-250 3-piece premier adjustable cabinet bit set.
Freud Quadra Cut Router Bits promotional how to video
Freud 97-250 3-piece premier adjustable cabinet door router bit set featuring red Perma-SHIELD coating, including an ogee rail and stile bit set and a 3-1/2-inch bevel profile Quadra-Cut raised panel bit.
Freud 97-250 adjustable cabinet door bit set organized in a premium wooden storage case with a clear cover, featuring detailed profile diagrams for ogee coping, stick cutters, and bevel raised panel bits.
Exploded view diagram of a raised panel cabinet door illustrating the precise ogee rail and stile joinery and the bevel panel profile created by the Freud 97-250 router bit set.
Architectural illustration of high-quality interior and entry doors with decorative panels, showcasing the professional-grade results achieved with the Freud ogee and bevel profile cabinet bit system.
Material compatibility chart indicating the Freud cabinet bit set is optimized for cleanly milling veneered plywood, hardwoods, softwoods, and composite materials for door construction.
Illustration of a professional table-mounted router, the recommended tool for safely and accurately using the Freud 97-250 3-piece premier adjustable cabinet bit set.
Freud Quadra Cut Router Bits promotional how to video
Freud

Freud Router Bit Set 97-250 3 Piece Premier Cabinet Door Kit (1/2 Inch Shank 3-1/2 Raised Panel 1-11/16 Rail Stile Ogee Bevel Carbide Wood Milling)

Only 3 left
SKU: 97 250
$189.99 USD

Description

Freud precisely the best logo Logout

Mill Raised Panels and Construct Adjustable Structural Rail Joint Connections Instantly with Four Cutter Quadra Cut Geometry

Shop the Freud 97-250 premier adjustable cabinet bit set engineered to mill perfectly matched rail and stile profiles across premium hardwood door frames. This 3-piece industrial woodworking system utilizes high-density TiCo carbide cutters with a 1/2-inch shank to shape profiles up to a 12,000 RPM maximum velocity limit on the raised panel assembly. Operating a patented four-cutter Quadra-Cut layout that leaves a glass-smooth finish across adjustable grooves, it resolves joint separation failures by cutting custom long-tenon bonds inside heavy cabinetry material.

Best Used For:

  • Raised Panel Production: Shifting the large 3-1/2 inch panel cutter to shape architectural beveled slopes on thick hardwood door centers.
  • Adjustable Stile Framework: Calibrating the 1-11/16 inch ogee matching profiles to establish structural frame channels matching variable plywood depths.
  • Long Tenon Architecture: Machining customized extended entry joints with high glue surface area metrics to ensure frame stability.

Key Performance & Safety Features

  • Quadra-Cut Four Flute Layout: Employs two large profile cutters and two secondary up-shear clearing knives to eliminate cross-grain splintering.
  • Premier Adjustable Grooving: Precision integrated shim system permits micrometric customization of groove paths to receive variable panel inserts.
  • Long Tenon Geometry: Integrated long-reach configuration mills deeper matching structural tenons for high-load cabinet door frames.
  • TiCo High-Density Carbide: Industrial-grade cobalt-tungsten formulation preserves maximum cutting edge sharpness across heavy production counts.
  • Perma-SHIELD Non-Stick Shielding: Signature red thermal coating layer lowers friction forces to avoid pitch accumulation and material burning.

What's Included

  • 3-1/2" Quadra-Cut Raised Panel Bit (Bevel Profile #99-515)
  • 1-11/16" Premier Adjustable Rail & Stile Bit Set (Ogee Profile #99-761)
  • Custom Setup and Shim Kit
  • Premium Wooden Storage Case

Technical Specifications

Shank Input Diameter: 1/2 Inch
Total Hardware Pieces: 3 Router Bits
Raised Panel Bit Diameter: 3-1/2 Inches
Rail & Stile Bit Diameter: 1-11/16 Inches
Milling Profile Geometries: Ogee and Bevel Details
Maximum Raised Panel Speed: 12,000 RPM Velocity Limit
Cutter Blade Chemistry: TiCo High-Density Titanium Cobalt Carbide Alloy
Coating Barrier Technology: Perma-SHIELD Non-Stick Wrap
Primary Construction Focus: Cabinet and Entry Door Production
Storage Box Assembly: Premium Wooden Enclosure Case
Manufacturer Protective Cover: Limited Lifetime Warranty
Pro-Tip: Always drop the spindle rotation speed down to 12,000 RPM maximum when operating the wide 3-1/2 inch panel bit on your router table; lowering rotational speed matches industrial safety specs and eliminates high-speed chatter waves.
