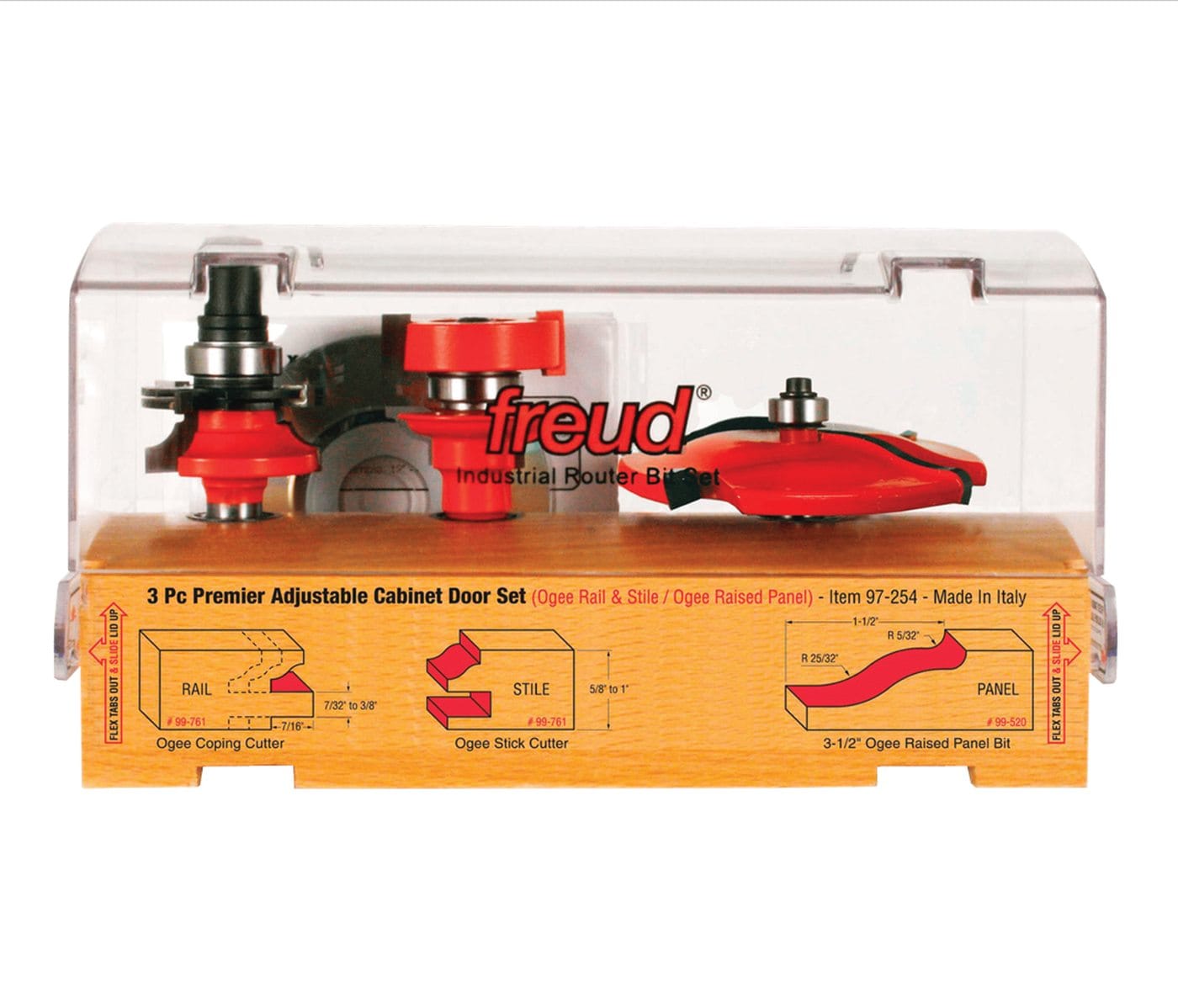

Freud Router Bit Set 97-254 3 Piece Premier Adjustable Cabinet (1/2 Inch Shank Ogee Profile Quadra Cut Carbide Door Cabinetry Making Kit Wooden Box)

Only 1 left
SKU: 97-254
$179.79 USD

Description

Freud precisely the best logo Logout

Mill Premium Ogee Raised Panel Cabinet Doors with Quadra-Cut Four-Cutter Stability
The Freud 97-254 3-piece Premier adjustable cabinet bit set delivers industrial-grade edge profiling and structural frame milling for custom architectural door manufacturing. Engineered with a large 3-1/2 inch panel raiser and matching rail and stile shaper bits, this carbide-tipped tooling kit utilizes patented Long Tenon Technology to increase internal joint glue surface area up to a 12,000 RPM maximum rated speed. The proprietary Quadra-Cut four-cutter geometry combines two down-shear and two up-shear wings to eliminate cross-grain face tearing, while a permanent Perma-SHIELD thermal defense coating insulates the solid tool steel bodies against performance-robbing friction heat inside stationary table-mounted routers.

Best Used For:

  • Cabinet Door Manufacturing: Machining interlocking rail and stile frames with adjustable panel slots to assemble custom kitchen and bathroom cabinetry.
  • Ogee Raised Panel Milling: Shaving deep classic decorative contours into the outer perimeter faces of solid wood doors and architectural paneling sheets.
  • Long Tenon Joint Fabrication: Milling structural deep-reach furniture joints on hardwoods, softwoods, plywood, and abrasive composition boards.

Key Performance & Safety Features

  • Quadra-Cut Technology: Advanced four-flute cutter configuration finishes profiles effortlessly, yielding glass-smooth surfaces that eliminate hand sanding.
  • Premier Adjustable Slotting: Interlocking cutter shims allow tight modifications to groove widths for custom ply center-panel thickness configurations.
  • Long Tenon Geometry: Integrated tongue extensions increase dowel depth inside frame recesses, supplying heavy-duty joint structural integrity.
  • TiCo High-Density Carbide: Custom-formulated tungsten cobalt matrix resists abrasive wear, ensuring excellent edge life across engineered materials.
  • Perma-SHIELD Non-Stick Coating: Thermal protective layer repels dynamic friction drag, jobsite moisture rust, and sticky pitch resin buildup.

What's Included

  • (1) #99-520: 3-1/2" Quadra-Cut Raised Panel Bit (Ogee Profile)
  • (1) #99-761: 1-11/16" Premier Adjustable Rail & Stile Bit Set (Ogee)
  • (1) Premium Wooden Storage Case

Technical Specifications

Brand Freud
Model Number 97-254
Shank Diameter 1/2 inch
Number of Pieces 3 Router Bits
Raised Panel Bit Diameter 3-1/2 inches
Rail & Stile Bit Diameter 1-11/16 inches
Profile Outline Type Ogee
Maximum RPM (Panel Bit) 12,000 RPM
Maximum RPM (Frame Bits) 18,000 RPM
Cutter Edge Material TiCo High-Density Carbide
Coating Technology Perma-SHIELD Non-Stick Coating
Tool Compatibility Table-Mounted Routers Only

Pro-Tip: Due to the massive 3-1/2 inch footprint of the ogee panel raising bit, you must operate your router tables down at a maximum speed of 12,000 RPM. Make multiple incremental depth passes rather than trying to clear the entire profile in a single rotation to keep the carbide tracking cool and avoid thermal stress markers on premium timbers.
