Freud

Freud Rail and Stile Router Bit 99-061 1/2 Inch Shank (1-1/2 Dia 3/8 Carbide Height 5/16 Radius Ogee Profile Cabinet Door Frame Cutter)

Only 1 left
SKU: 99-061
$46.99 USD

Description

Freud precisely the best logo Logout

Precision-Engineered 1/2 Inch Shank 1-1/2 Inch Diameter Ogee Rail and Stile Profile Router Bit

The Freud 99-061 Rail and Stile Profile Router Bit functions as a commercial-grade frame joinery cutter engineered to mill decorative ogee stickings on both rails and stiles for custom cabinet doors. Powered by micro-grain TiCo titanium cobalt carbide cutting flutes, this 1/2-inch shank tool operates on handheld and table-mounted routers at rotational speeds up to 16,000 RPM across solid hardwoods, softwoods, plywood, and composition materials. The 1-1/2-inch overall diameter bit features a 3/8-inch carbide cutting height with a 5/16-inch profile radius and non-stick red Perma-SHIELD finish, allowing woodworkers to pair it with modular groove cutters to fabricate precise tongue-and-groove frame assemblies.

Best Used For:

  • Ogee Cabinet Frame Profiling: Routing matching decorative ogee edge stickings on vertical stiles and horizontal rails for kitchen cabinet doors.
  • Modular Joinery Systems: Pairing with separate slotting cutters (such as the Freud 99-062) to machine custom-depth panel grooves on varied stock thicknesses.
  • Versatile On-Site & Shop Milling: Executing clean profile cuts using handheld plunge routers for jobsite trim fitting or table routers for batch door runs.

Key Performance & Safety Features

  • Single-Bit Ogee Profiling: Cuts matching decorative frame profiles on both rail and stile components to streamline door construction.
  • TiCo Micro-Grain Carbide Flutes: Custom titanium cobalt carbide formulation maintains razor-sharp cutting edges through heavy hardwood production.
  • Perma-SHIELD Non-Stick Coating: Thermal fluoropolymer red coating prevents pitch accumulation, reduces friction drag, and guards against rust.
  • Modular System Flexibility: Designed to work alongside standalone groove cutters to accommodate diverse panel joint configurations.
  • Dual Machine Compatibility: Computer-balanced construction enables vibration-free operation in both portable handheld and table-mounted routers.

What's Included

  • (1) Freud 99-061 1-1/2" Diameter Rail & Stile Profile Router Bit with 1/2" Shank

Technical Specifications

Brand Name Freud Tools
Model Number SKU 99-061
Tool Classification Rail & Stile Profile Router Bit
Shank Diameter Track 0.50 in. (1/2 in.)
Overall Cutter Diameter (D) 1.50 in. (1-1/2 in.)
Carbide Cutting Height (h) 0.375 in. (3/8 in.)
Overall Tool Length (H) 2.25 in. (2-1/4 in.)
Minor Height (m) 0.125 in. (1/8 in.)

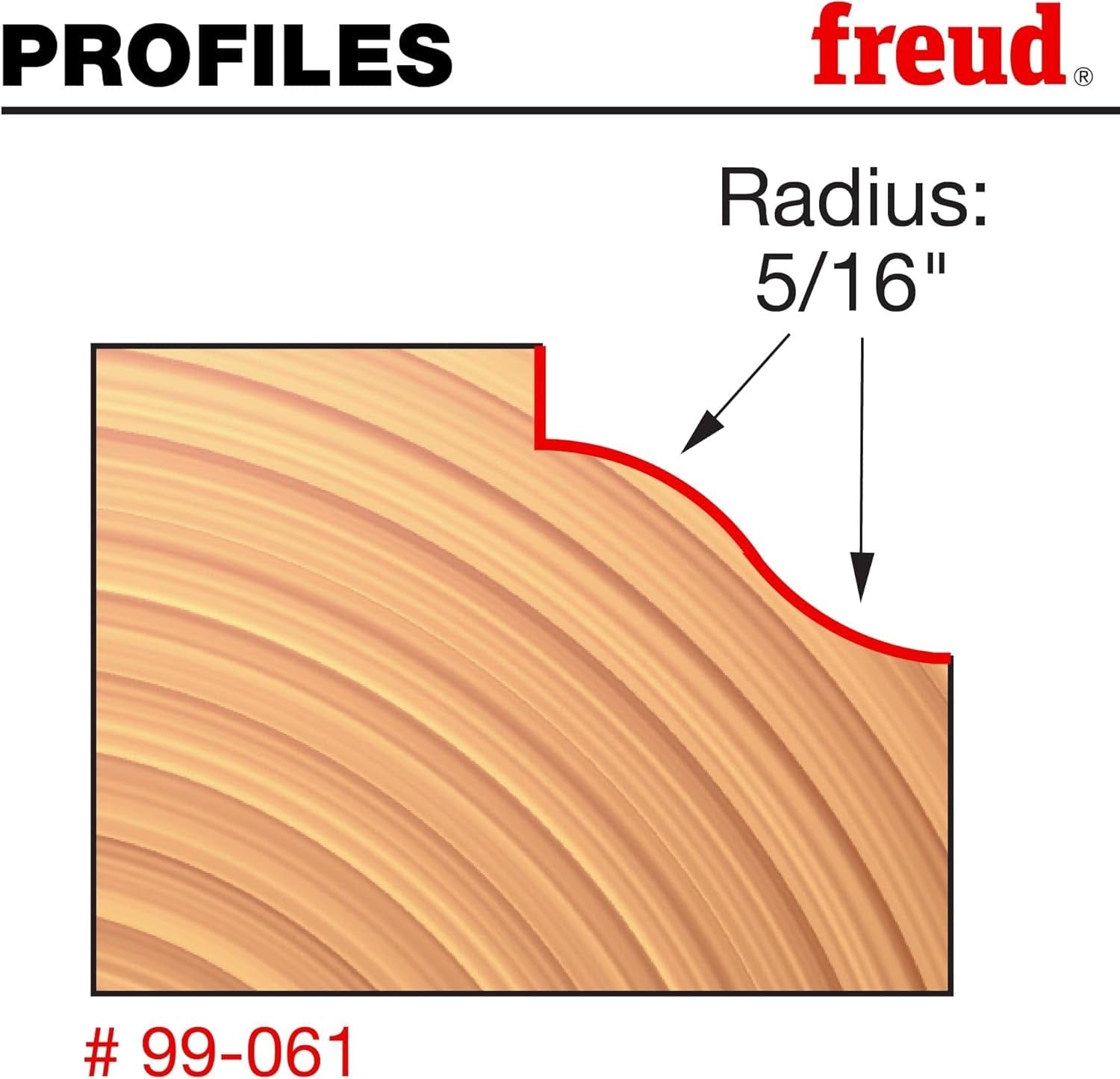

Profile Radius (R) 0.3125 in. (5/16 in.)
Profile Geometry Classic Ogee
Number of Cutters 2 Flutes
Maximum Operating Speed 16,000 RPM
Required Equipment Setup Handheld Portable Router or Router Table

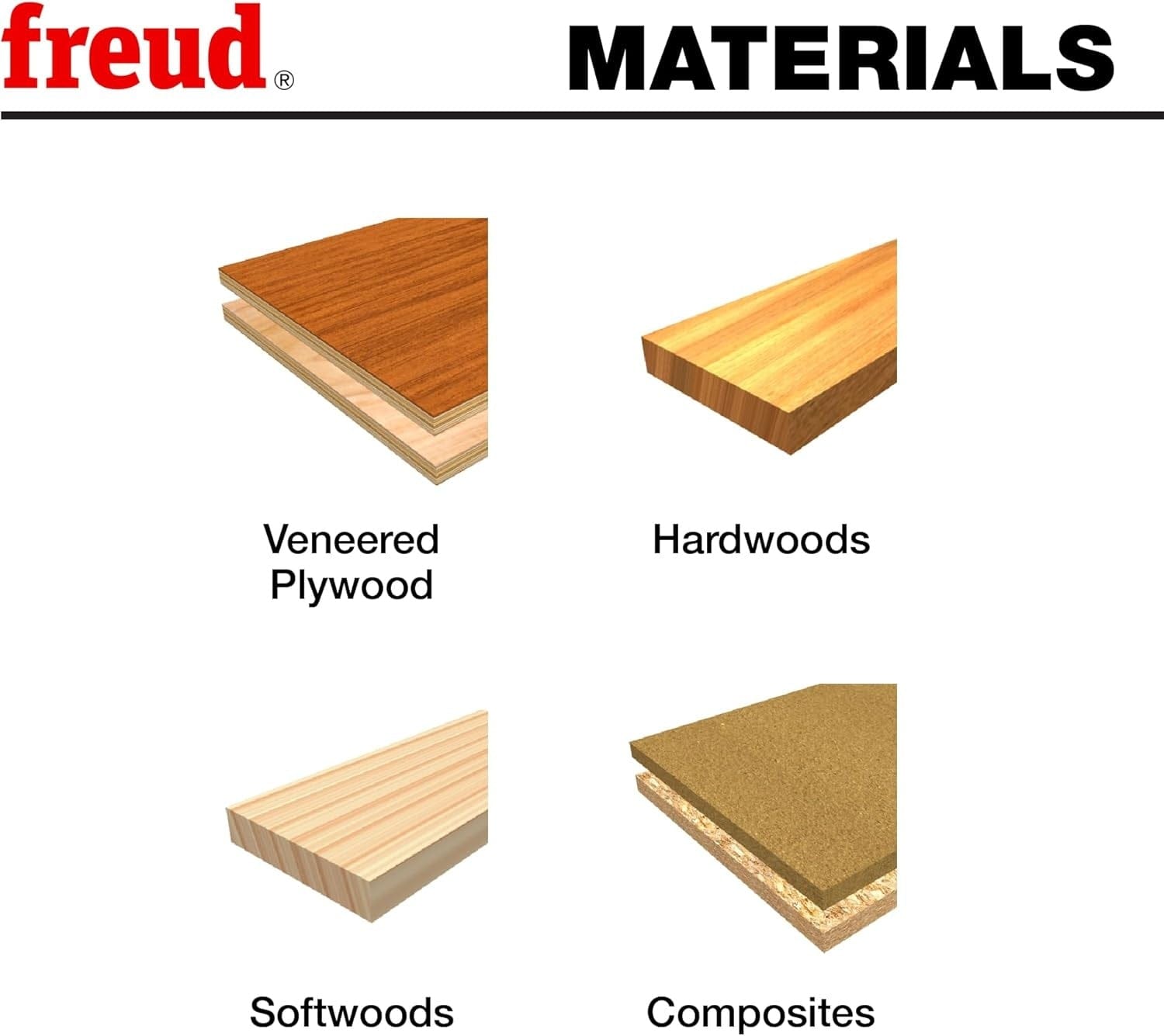

Material Applications Hardwood, Softwood, Plywood, Composition Wood

Pro-Tip: When routing cross-grain cope cuts on door rails, always use a backing block or coping sled behind the workpiece as it passes the bit. This prevents fragile end-grain fibers from blowing out, leaving a sharp, clean joint corner that mates seamlessly with the stile profile.
