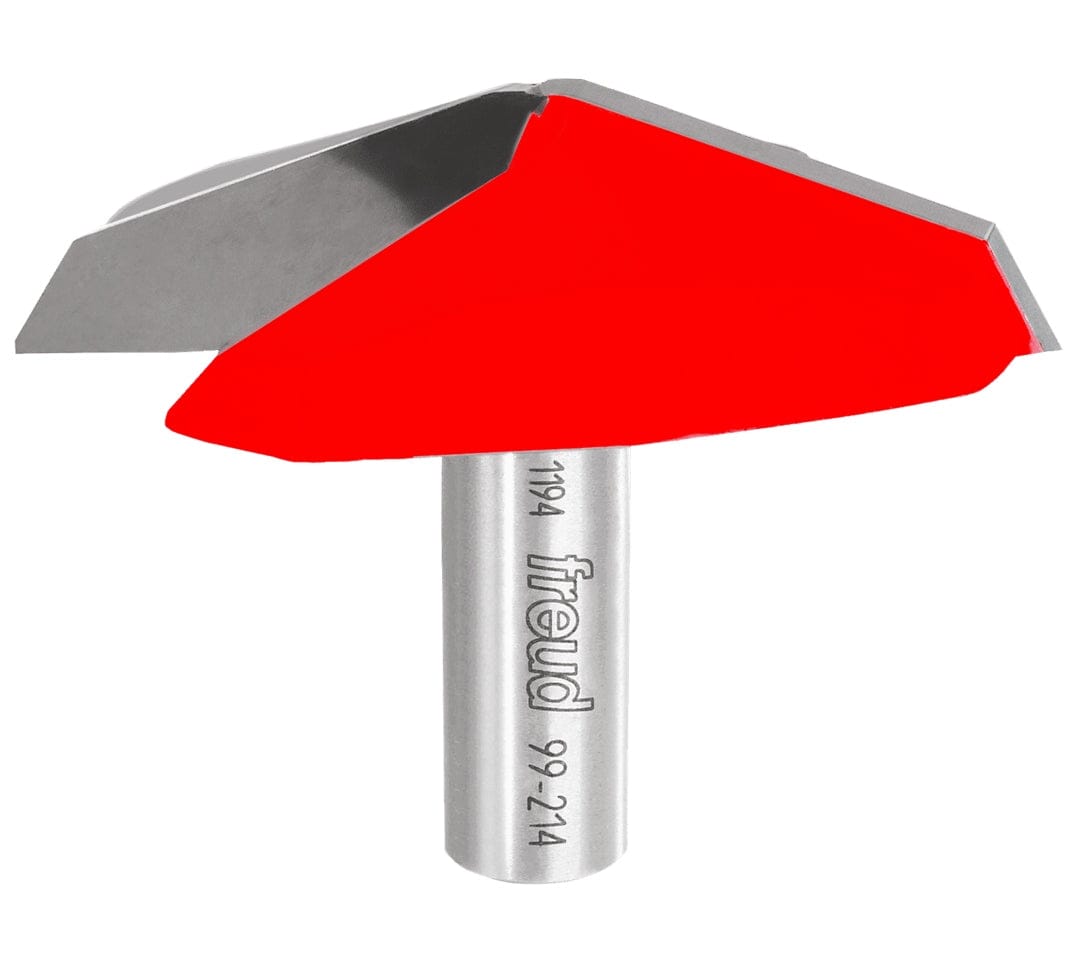

Studio shot of the Freud 99-214 French Provincial Raised Panel Router Bit featuring a large red Perma-SHIELD coated body and a 1/2-inch shank. The bit displays the wide, beveled cutting profile designed for raised panel doors.

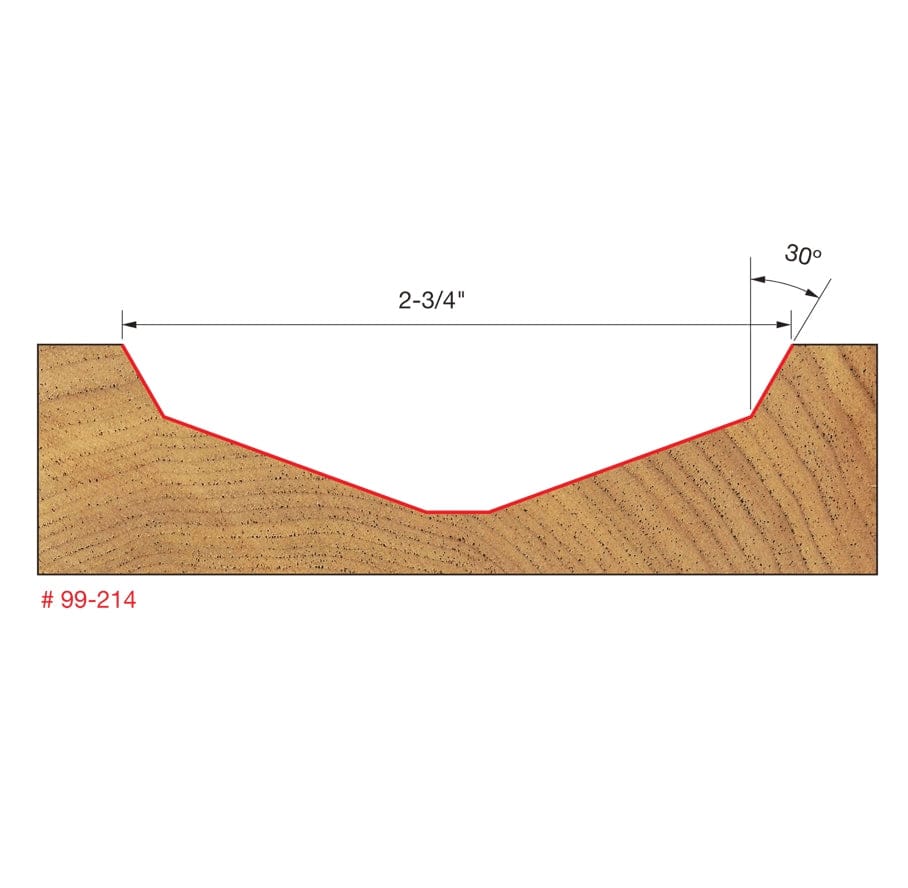

Technical profile diagram for model #99-214 showing the cut profile on a wood panel. A red line traces the wide raised panel bevel across a 2-3/4 inch width, indicating a 30-degree angle at the outer edge transition.
Studio shot of the Freud 99-214 French Provincial Raised Panel Router Bit featuring a large red Perma-SHIELD coated body and a 1/2-inch shank. The bit displays the wide, beveled cutting profile designed for raised panel doors.
Studio shot of the Freud 99-214 French Provincial Raised Panel Router Bit featuring a large red Perma-SHIELD coated body and a 1/2-inch shank. The bit displays the wide, beveled cutting profile designed for raised panel doors.
Technical profile diagram for model #99-214 showing the cut profile on a wood panel. A red line traces the wide raised panel bevel across a 2-3/4 inch width, indicating a 30-degree angle at the outer edge transition.
Studio shot of the Freud 99-214 French Provincial Raised Panel Router Bit featuring a large red Perma-SHIELD coated body and a 1/2-inch shank. The bit displays the wide, beveled cutting profile designed for raised panel doors.
Freud

Freud Router Bit 99-214 French Provincial 2.75 Inch Raised Panel 1/2 Shank TiCo Carbide 20 Degree Bevel Cabinet Door Wood Millwork Shaper Tool

Only 1 left
SKU: 99-214
$61.79 USD

Description

Freud precisely the best logo Logout

High-Density TiCo Carbide French Provincial Raised Panel Router Bit for Architectural Cabinet Doors

The Freud 99-214 French Provincial Raised Panel Router Bit delivers an industrial woodworking solution engineered to cut a classic 20-degree bevel profile on furniture panels, cabinet doors, and architectural millwork. Featuring a large 2-3/4 inch overall cutting diameter and a robust 1/2-inch shank, this high-performance bit creates precise, deep structural profiles that add depth to drawer fronts and wall paneling. Tipped with exclusive TiCo Hi-Density Carbide and protected by a heat-resistant non-stick coating, the dual-cutter head eliminates grain tear-out up to a maximum threshold of 12,000 RPM inside table-mounted routers or automated CNC machining centers.

Best Used For:

  • Cabinet Panel Raising: Machining classic French Provincial 20-degree beveled edges on custom kitchen cabinet door blanks.
  • Decorative Groove Milling: Adjusting the depth of cut to mill wide, flat-bottom decorative accent grooves on structural wall panels.
  • Adjustable Frame Fitting: Setting custom tongue lengths on panel edges by repositioning the machine fence for a perfect rail joint fit.

Key Performance & Safety Features

  • French Provincial Profile: Produces a distinct 20-degree main bevel paired with a 30-degree secondary angle for authentic historical millwork.
  • TiCo Hi-Density Carbide: Engineered micro-grain tungsten carbide blend maintains structural sharpness and prevents thermal dulling during extensive runs.
  • Perma-SHIELD Protective Layer: Proprietary red coating acts as an anti-friction thermal barrier to prevent rust and sticky pitch adhesion.
  • Adjustable Tongue Clearance: Simple variations in router table fence position allow custom configurations of the panel tongue length.
  • Table Mount Configuration: Engineered explicitly with a massive 2-3/4 inch profile for safe, guarded operation on a dedicated machine fence.

What's Included

  • (1) Freud 99-214 French Provincial Raised Panel Router Bit with 1/2" Shank

Technical Specifications

Brand Name Freud
Model Number 99-214
Profile Classification French Provincial
Overall Cutter Diameter 2.750 in. (2-3/4 in.)
Carbide Cutting Height 0.6875 in. (11/16 in.)
Shank Diameter 0.50 in. (1/2 in.)
Overall Length Profile 2.1875 in. (2-3/16 in.)
Primary Bevel Angle 20 Degrees
Secondary Relief Angle 30 Degrees
Minor Profile Height (m) 0.297 in. (19/64 in.)
Small Tip Diameter (n) 0.250 in. (1/4 in.)
Total Integrated Cutters 2 Flutes
Maximum Speed Rating 12,000 RPM

Pro-Tip: Due to the wide 2-3/4 inch cutting span of this shaper tool, divide your panel raising operations into multiple shallow incremental passes. Removing material sequentially ensures maximum edge longevity, reduces tear-out risks, and avoids putting severe strain on the router motor spindle.
