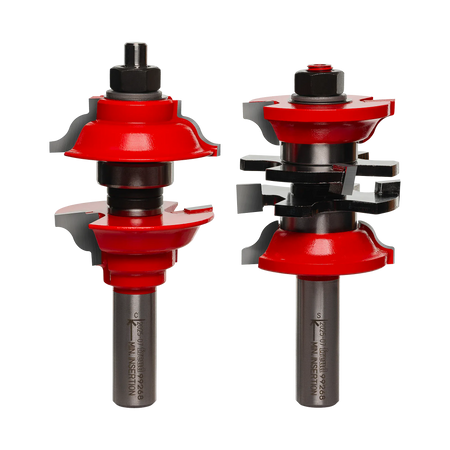

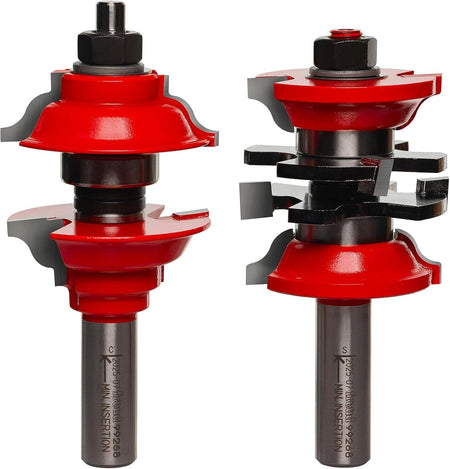

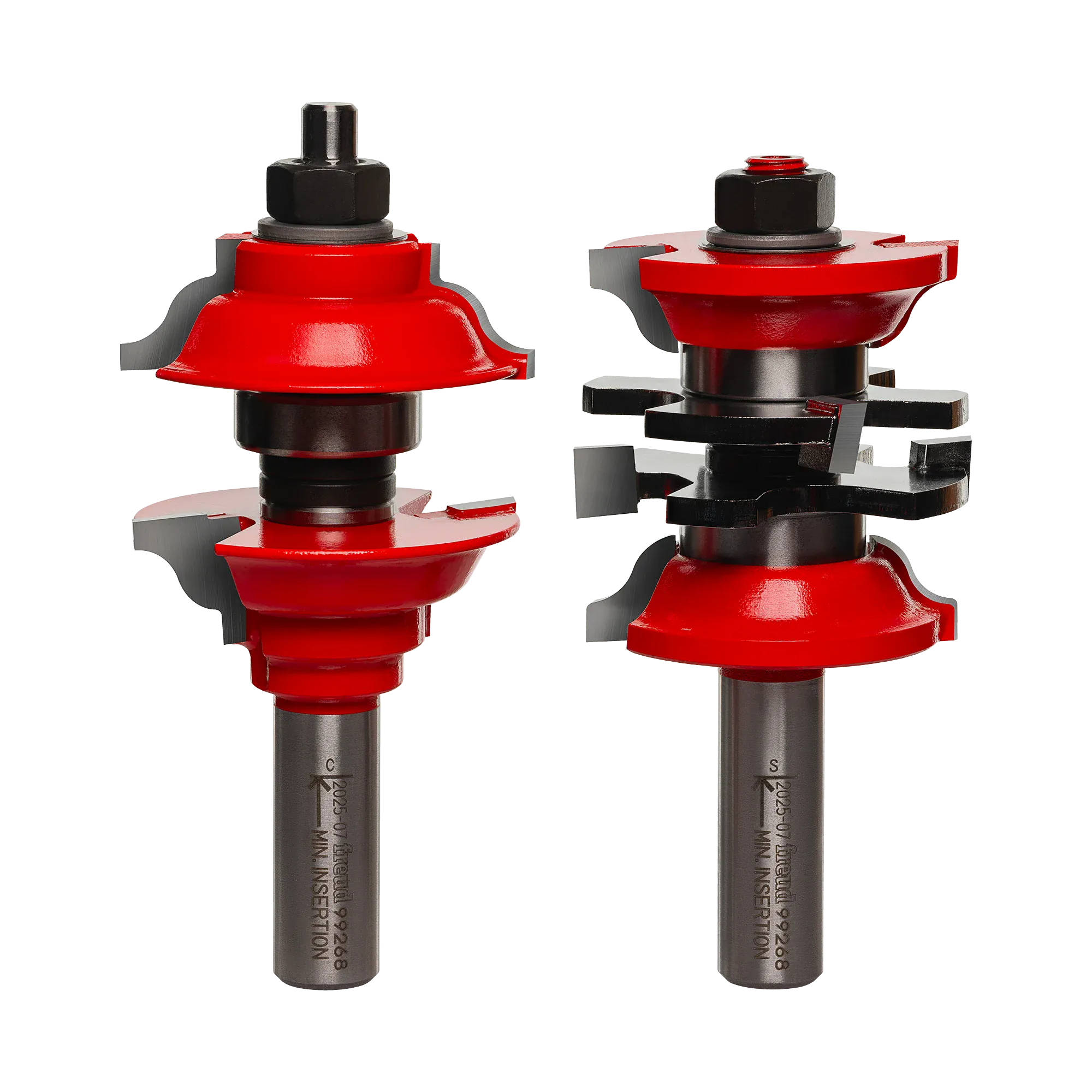

Freud 99-268 entry and interior door router bit set featuring red Perma-SHIELD coating and TiCo high-density carbide cutters for professional ogee profile door construction.

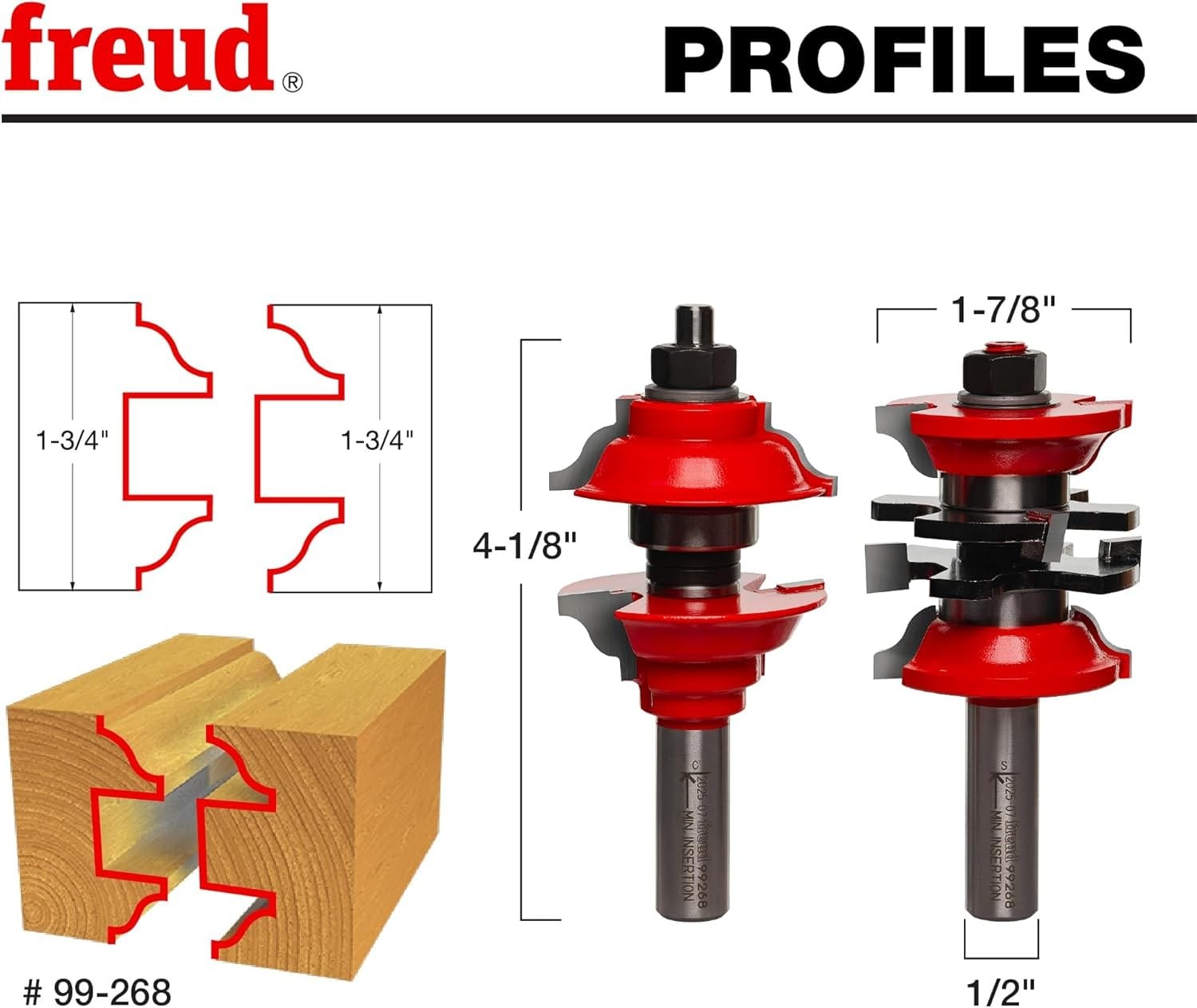

Technical profile diagram and dimensions for the Freud 99-268 door bit set showing the 1-7/8 inch diameter, 4-1/8 inch length, and 1/2 inch shank size for table-mounted routers.

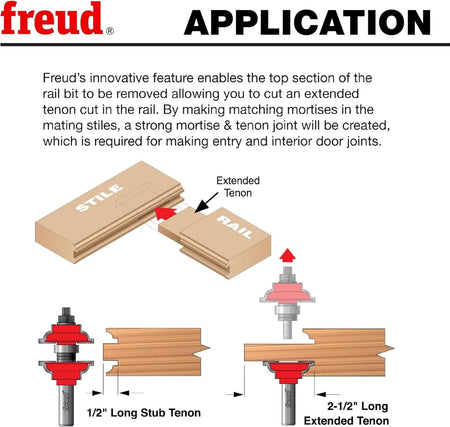

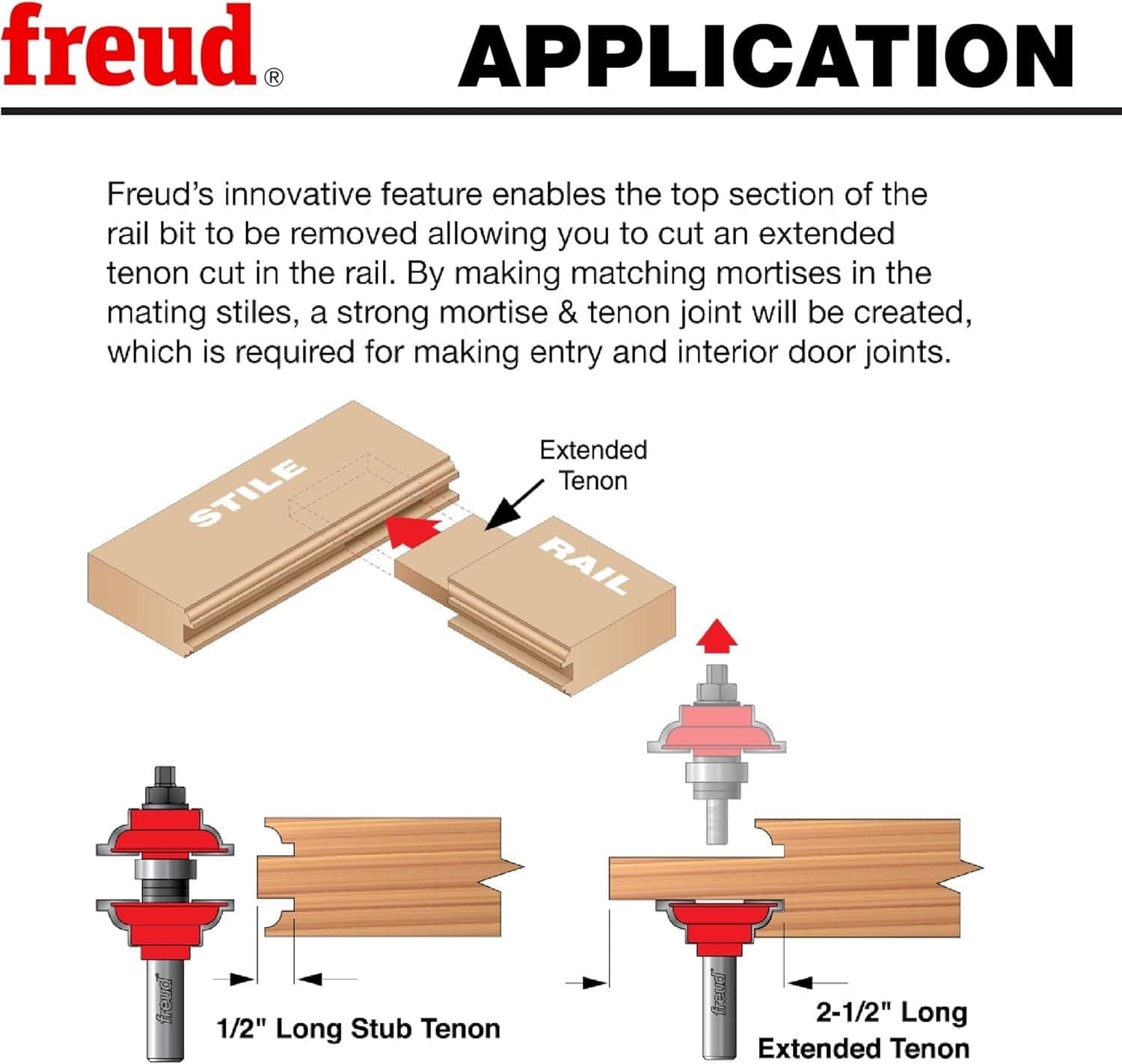

Application diagram demonstrating Freud’s innovative mortise and tenon joinery system which allows woodworkers to mill extended tenons for superior door joint strength.
Architectural illustration of high-quality entry and interior doors with decorative raised panels showcasing the professional results achieved with the Freud ogee door bit system.
Freud 99-268 2-piece entry and interior door bit set organized in a premium wooden storage box with a clear cover, instructional DVD, and detailed profile setup guides.
Material compatibility chart indicating the Freud ogee door bit set is optimized for cleanly milling veneered plywood, hardwoods, softwoods, and composite materials.

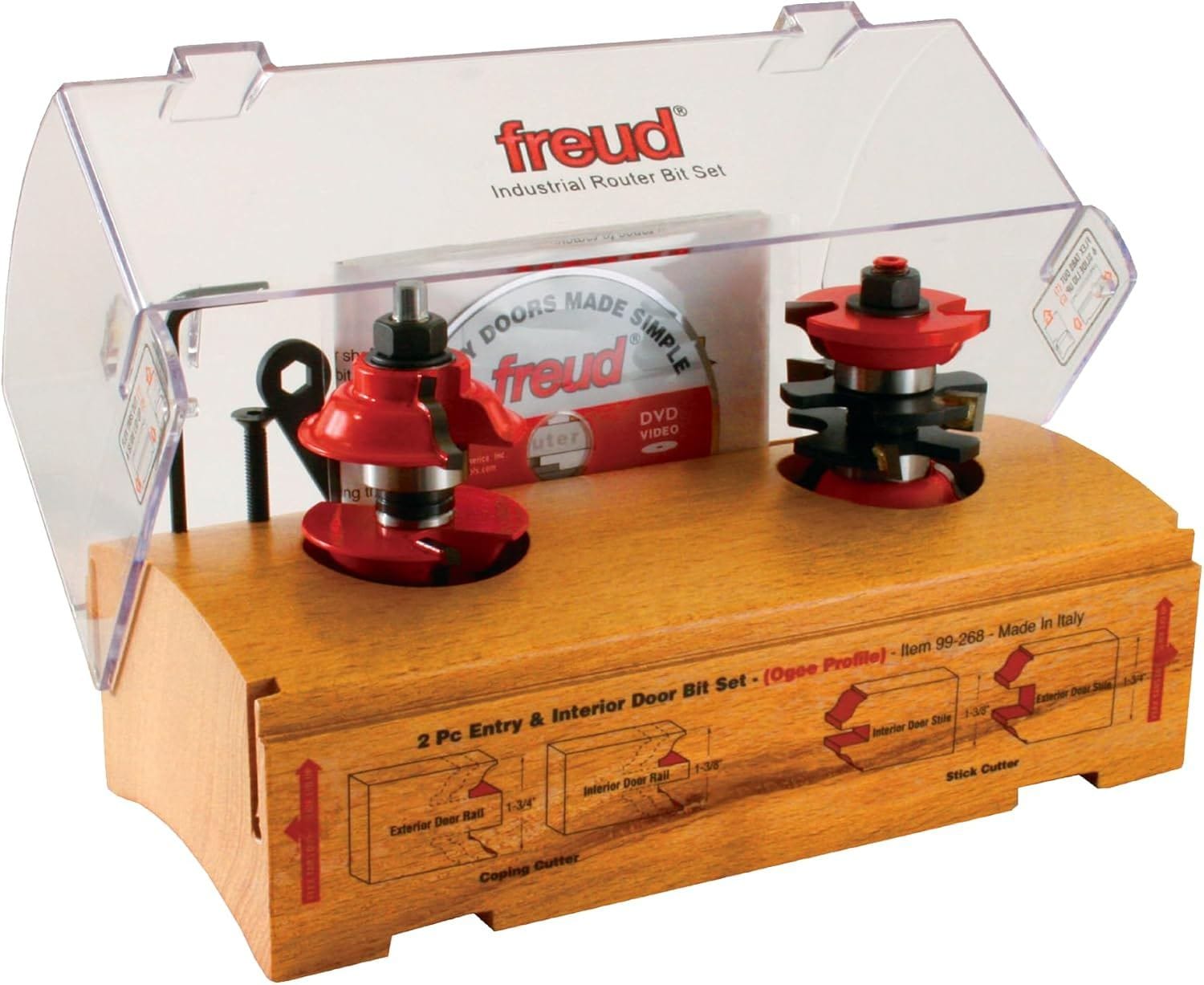

Product view of the Freud 99-268 industrial router bit set in its wooden display case highlighting the coping and stick cutters used for custom 1-3/4 inch thick door fabrication.
Freud 99-268 entry and interior door router bit set featuring red Perma-SHIELD coating and TiCo high-density carbide cutters for professional ogee profile door construction.
Entry Doors Made Simple Video promotional how to video
Freud 99-268 entry and interior door router bit set featuring red Perma-SHIELD coating and TiCo high-density carbide cutters for professional ogee profile door construction.
Technical profile diagram and dimensions for the Freud 99-268 door bit set showing the 1-7/8 inch diameter, 4-1/8 inch length, and 1/2 inch shank size for table-mounted routers.
Application diagram demonstrating Freud’s innovative mortise and tenon joinery system which allows woodworkers to mill extended tenons for superior door joint strength.
Architectural illustration of high-quality entry and interior doors with decorative raised panels showcasing the professional results achieved with the Freud ogee door bit system.
Freud 99-268 2-piece entry and interior door bit set organized in a premium wooden storage box with a clear cover, instructional DVD, and detailed profile setup guides.
Material compatibility chart indicating the Freud ogee door bit set is optimized for cleanly milling veneered plywood, hardwoods, softwoods, and composite materials.
Product view of the Freud 99-268 industrial router bit set in its wooden display case highlighting the coping and stick cutters used for custom 1-3/4 inch thick door fabrication.
Freud 99-268 entry and interior door router bit set featuring red Perma-SHIELD coating and TiCo high-density carbide cutters for professional ogee profile door construction.
Entry Doors Made Simple Video promotional how to video
Freud

Freud Router Bit Set 99-268 1-7/8 Inch Entry Interior Wood Milling (1/2 Shank TiCo Carbide Ogee Stile Rail Rail True Mortise Tenon System)

Only 1 left
SKU: 99-268
$212.89 USD

Description

Freud precisely the best logo Logout

Mill Structural Door Joint Profiles And Construct Long Extended Tenons Instantly With Micro Grain High Density Carbide Cutting Edges

Shop the Freud 99-268 entry and interior door router bit set engineered to mill perfectly matched rail and stile joints across heavy architectural millwork stock. This industrial woodworking bit system utilizes high-density carbide cutters with a 1/2-inch shank to shape profiles up to 16,000 RPM maximum velocity thresholds. Operating an adjustable modular profile framework that handles 1-3/8 inch and 1-3/4 inch stock thicknesses, it resolves joint separation failures by cutting custom structural mortise and extended tenon bonds inside heavy framing material.

Best Used For:

  • Structural Entry Frames: Cutting robust stile and rail intersections on 1-3/4 inch exterior entries to resist weather-induced panel stress over long operational periods.
  • Interior Woodwork Profiling: Shaping elegant decorative ogee edges on 1-3/8 inch solid wood panel partitions to establish consistent decorative alignment.
  • Custom Extended Tenons: Dismantling upper bit sections to mill extended structural tenon tongues of unlimited length for heavy load stability.

Key Performance & Safety Features

  • True Tenon Adaptability: Removable upper cutter array components enable custom extended tenon length configurations to pass industrial force specifications.
  • High-Density TiCo Carbide: Specialized cobalt-tungsten micro-grain cutting faces maintain sharpness over dense hardwood framing assemblies.
  • Perma-SHIELD Heat Barrier: Non-stick structural coating layer minimizes spindle friction to eliminate deep thermal burning marks and pitch buildup.
  • Pre-Assembled Matching Pairs: Paired stile and rail bit components are calibrated directly from production grids to produce tightly matched joints.
  • Stable Half-Inch Shank: Standard heavy-gauge shank profile maximizes structural routing balance and prevents cutter deflection during deep plunge steps.

What's Included

  • Freud 1-7/8" Ogee Profile Rail Router Bit
  • Freud 1-7/8" Ogee Profile Stile Router Bit
  • Custom Setup and Shim Kit

Technical Specifications

Shank Input Diameter: 1/2 Inch
Outer Cutting Diameter: 1-7/8 Inches
Carbide Cutter Height: 1-7/8 Inches
Hardware Overall Length: 4-1/8 Inches
Guide Bearing Diameter: 7/8 Inch
Active Cutting Flutes: 2 Face Cutters
Maximum Spindle Speed: 16,000 RPM Velocity Limit
Milling Profile Geometry: Classic Ogee Detail
Material Thickness Limits: 1-3/8" or 1-3/4" Wood Stock Only
Cutter Blade Chemistry: TiCo High-Density Titanium Cobalt Carbide Alloy
Universal Tracking Model: Freud Catalog Number 99-268
Pro-Tip: Always execute your door profiling passes on a heavy-duty table-mounted router system equipped with safety safety fences; due to the structural 1-7/8 inch profile width, feeding material manually via hand-held tools compromises edge alignment and control stability.
