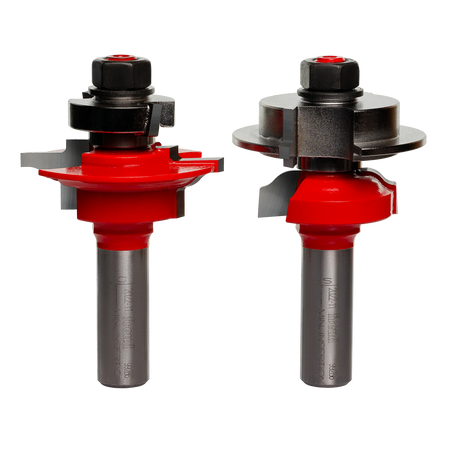

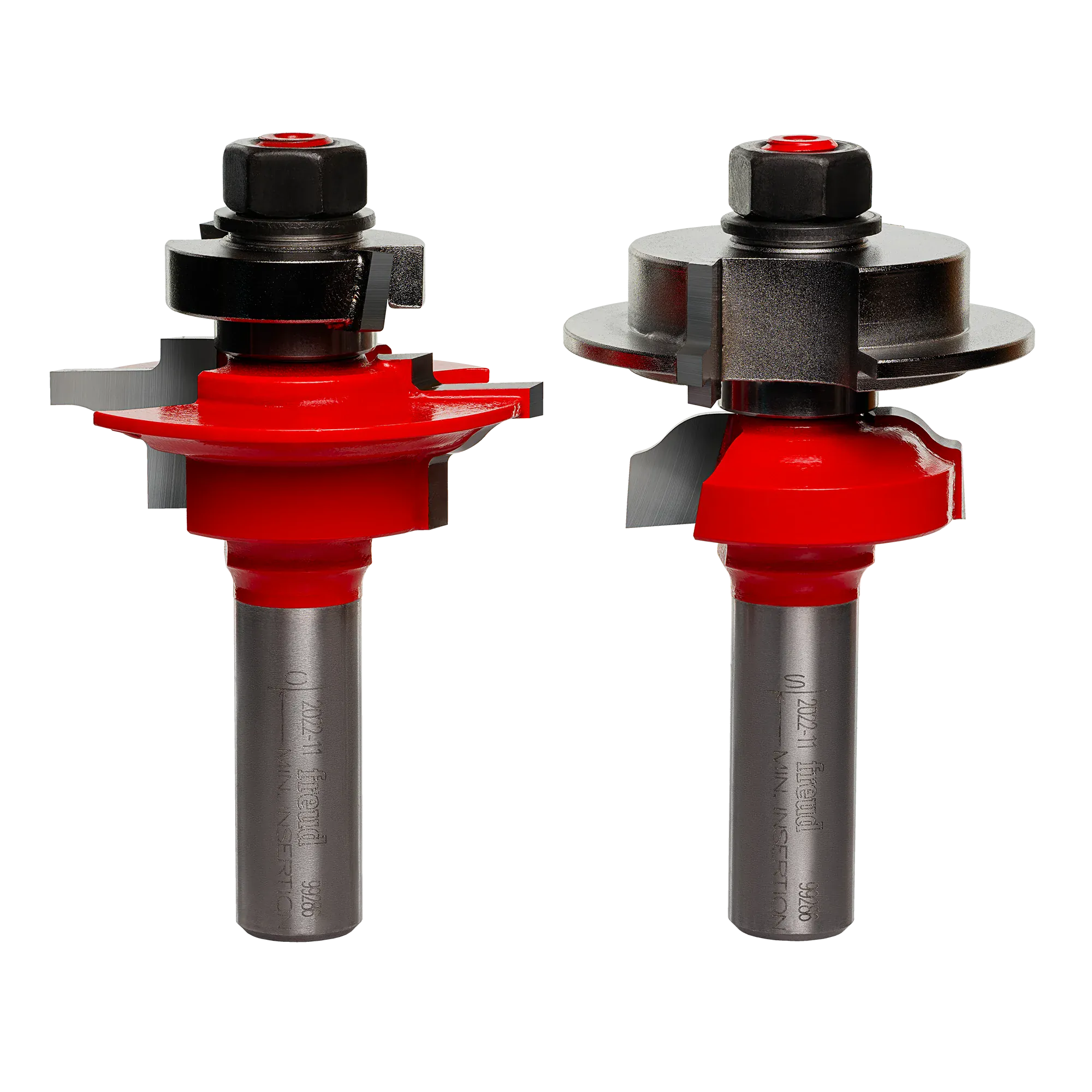

Studio shot of the two-piece Freud 99-286 router bit set standing upright, showing the red Perma-SHIELD bodies and matched cutter profiles.

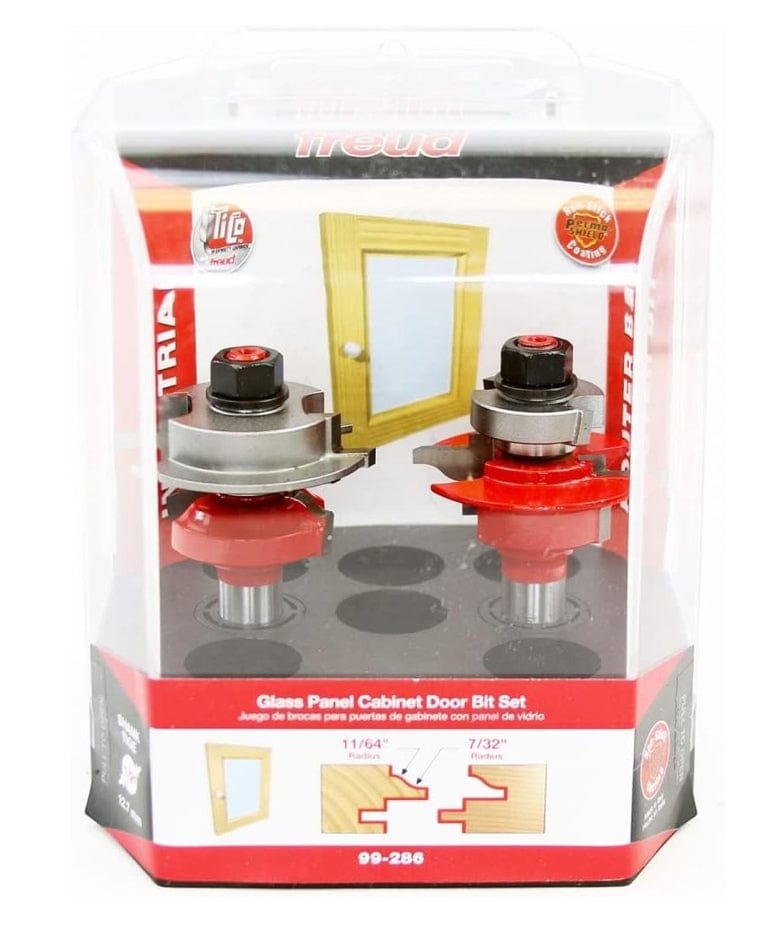

Front view of the product packaging containing the two router bits in a storage stand, with a graphic demonstrating the door frame assembly.

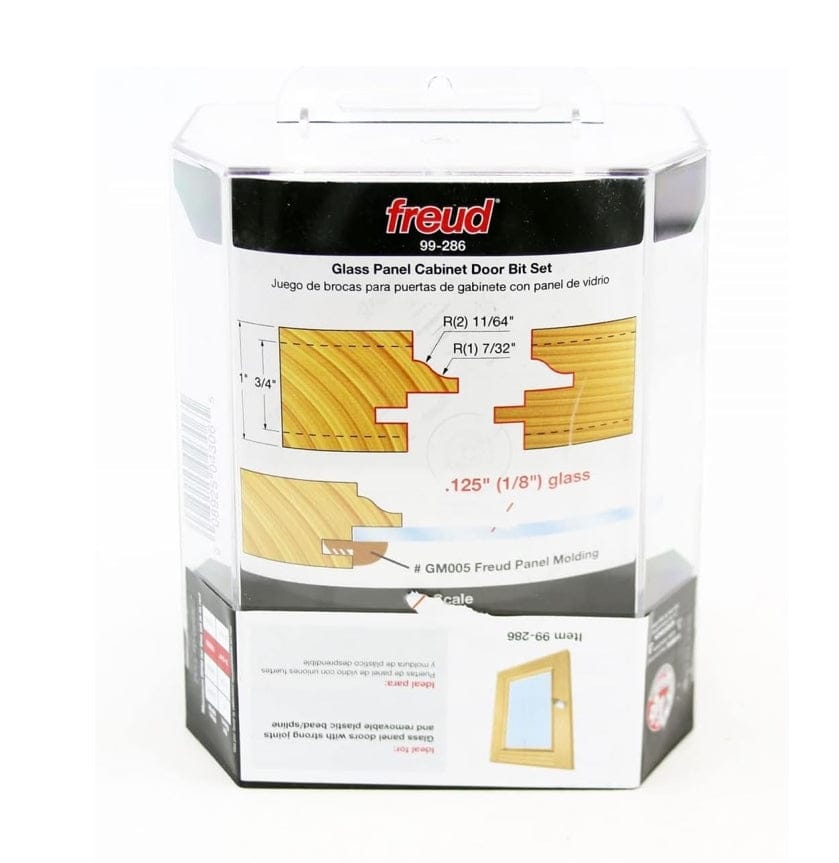

Retail packaging of the Freud 99-286 set, featuring a clear case with diagrams showing the rail and stile profile dimensions and glass panel application.

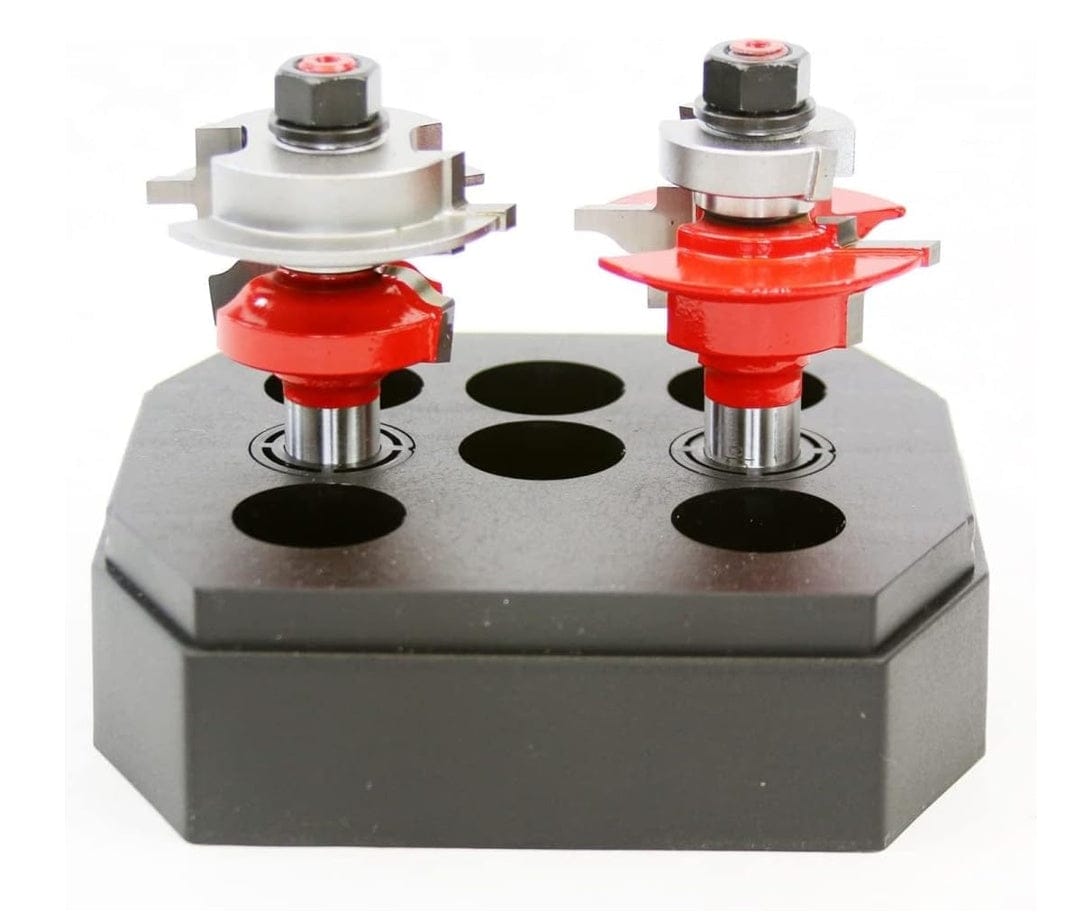

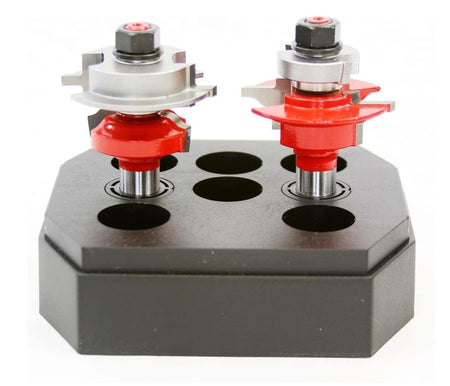

The two router bits displayed in a black storage stand, showing the difference in cutter height and profile geometry for the coping and sticking cuts.

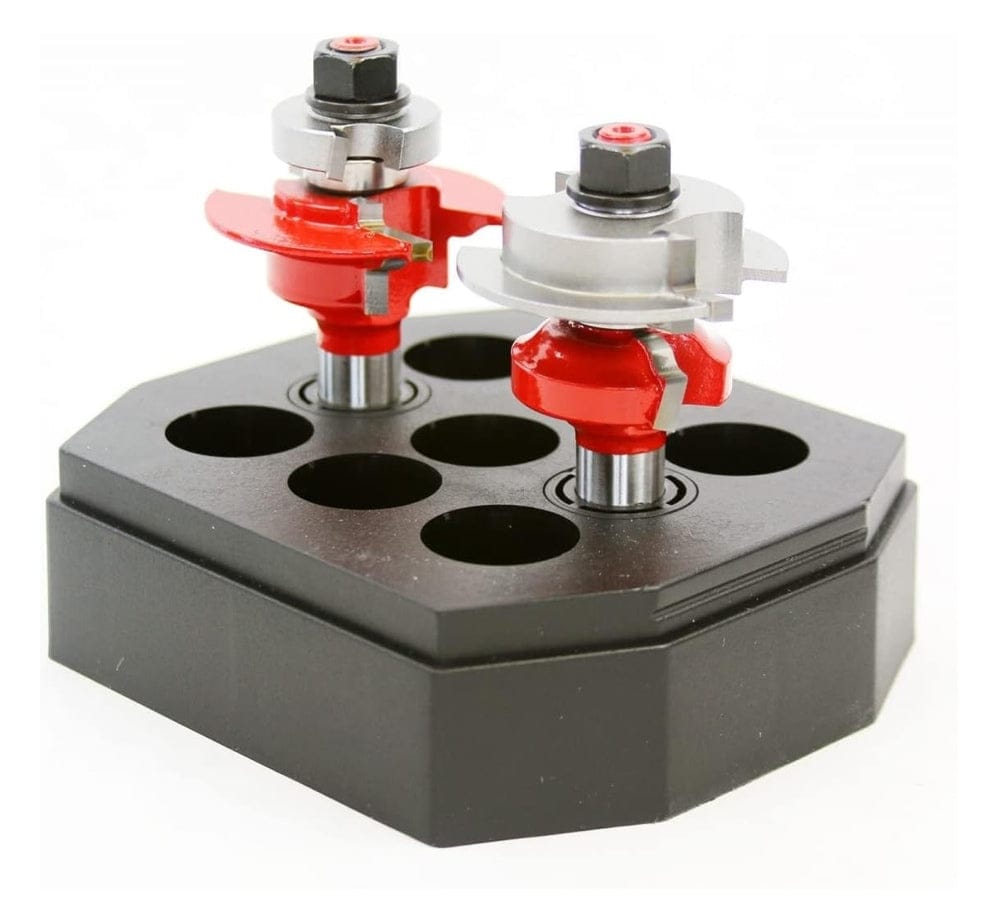

Angled view of the router bit set in a black holder, highlighting the carbide cutters and the top-mounted bearings.

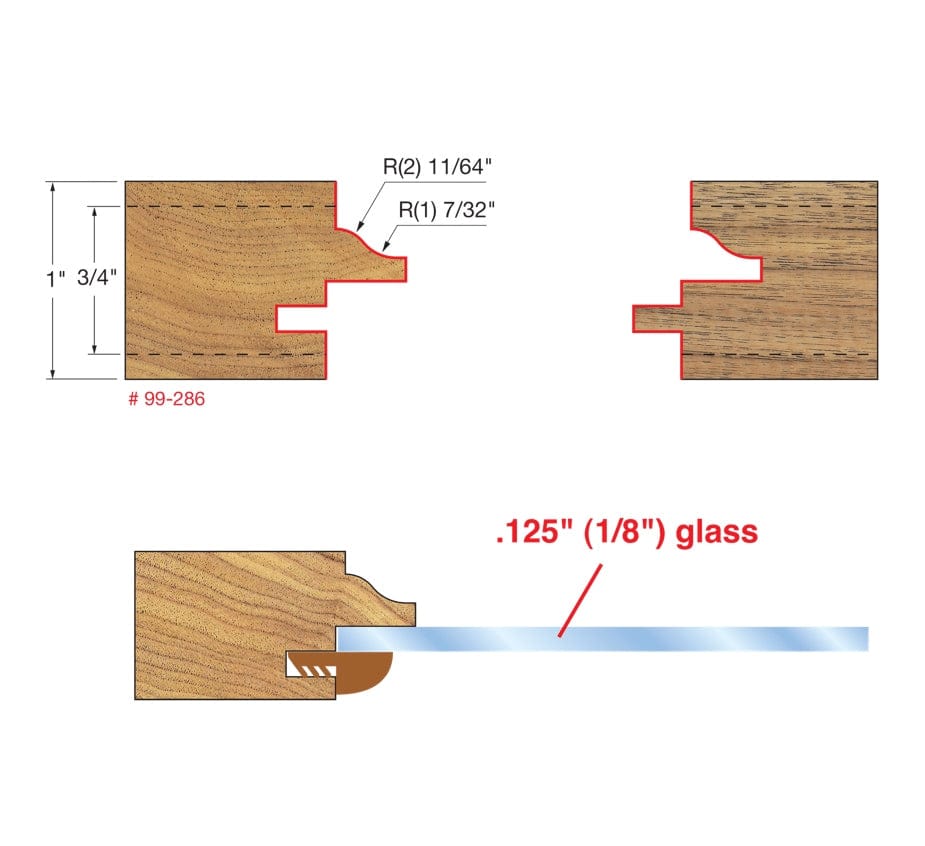

Technical drawing illustrating the rail and stile joint dimensions, profile radii, and the assembly of the wood frame with a 1/8 inch glass panel and spline.

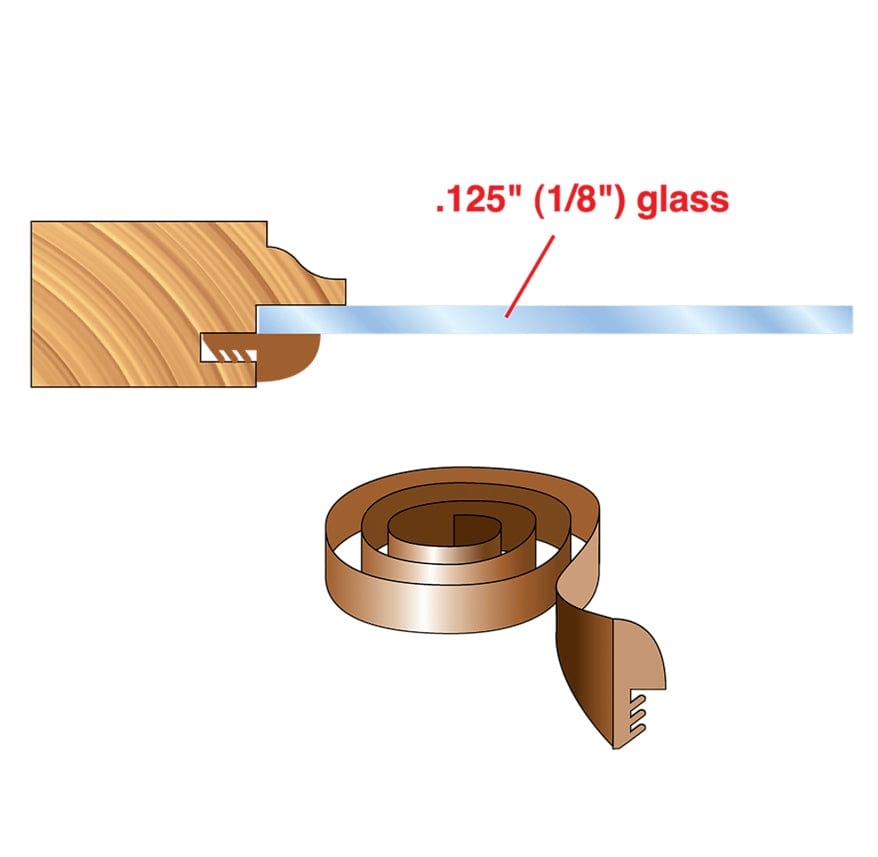

Illustration detailing the installation of a 1/8 inch glass panel into the routed wood frame using the rubber spline molding.
Premier Adjustable Rail & Stile Set for Perfect Doors promotional video
Studio shot of the two-piece Freud 99-286 router bit set standing upright, showing the red Perma-SHIELD bodies and matched cutter profiles.
Front view of the product packaging containing the two router bits in a storage stand, with a graphic demonstrating the door frame assembly.
Retail packaging of the Freud 99-286 set, featuring a clear case with diagrams showing the rail and stile profile dimensions and glass panel application.
The two router bits displayed in a black storage stand, showing the difference in cutter height and profile geometry for the coping and sticking cuts.
Angled view of the router bit set in a black holder, highlighting the carbide cutters and the top-mounted bearings.
Technical drawing illustrating the rail and stile joint dimensions, profile radii, and the assembly of the wood frame with a 1/8 inch glass panel and spline.
Illustration detailing the installation of a 1/8 inch glass panel into the routed wood frame using the rubber spline molding.
Premier Adjustable Rail & Stile Set for Perfect Doors promotional video
Freud

Freud 99-286 Glass Panel Cabinet Door Router Bit Set 2 Inch Diameter 1/2 Shank Carbide Rail and Stile Cutter

Only 1 left
SKU: 99-286
$155.99 USD

Description

Freud precisely the best logo Logout

Construct Elegant Glass Display Doors: Freud 99-286 Glass Panel Cabinet Door Bit Set

Elevate your cabinetry projects by building beautiful, high-strength glass panel doors with the Freud 99-286 Router Bit Set. This specialized tooling system is engineered to simplify the creation of strong, tight-fitting rail and stile joints specifically designed to hold glass panes. Unlike standard profile bits, the unique cutter shape in this set produces a distinct locking joint that significantly increases the gluing surface area. This innovation ensures your cabinet doors remain square and durable for years to come, making it the ideal solution for display cabinets, curios, and entertainment centers.

Designed for professional woodworkers and serious hobbyists, the 99-286 utilizes Freud’s exclusive TiCo™ Hi-Density Carbide to slice cleanly through hardwoods and softwoods. The bits are protected by the signature Perma-SHIELD® Non-Stick Coating, which reduces friction, prevents rust, and minimizes pitch buildup. This set is designed for use in table-mounted routers and cuts a slot that perfectly accepts the Freud GM005 Glass Panel Spline Molding (sold separately), allowing for a secure, rattle-free glass installation that looks professionally finished.

Key Features

  • Superior Joint Strength: Unique cutter geometry creates a locking rail and stile joint with increased glue surface area.
  • Glass Optimized: specifically designed to rout channels for glass panels using spline molding retention.
  • TiCo™ Hi-Density Carbide: Proprietary carbide blend stays sharper longer for a superior finish.
  • Perma-SHIELD® Coating: Distinctive red coating prevents corrosion, reduces drag, and resists resin accumulation.
  • Router Table Exclusive: Engineered for safe, controlled operation in table-mounted routers.
  • Versatile Materials: Cuts cleanly through hardwoods and softwoods.

What's Included

(1) Stick Cutter (Profile Bit)
(1) Cope Cutter (Matching Bit)
*Note: Glass Panel Spline Molding (GM005) sold separately.

Specifications

Brand Freud
Model Number 99-286
Application Glass Panel Cabinet Doors
Overall Diameter (D) 2 in
Shank Diameter (A) 1/2 in
Carbide Height (h) 1-3/32 in
Overall Length (H) 3-1/8 in
Large Radius (R1) 7/32 in
Small Radius (R2) 11/32 in
Bearing Diameter (B) 16mm (approx. 5/8 in)
Max RPM 16,000
Number of Pieces 2 (1 Set)

Pro-Tip: When cutting the glass for your new cabinet doors, sizing is critical to prevent breakage. Always cut your glass pane approximately 1/8-inch smaller than the actual opening in both height and width. This small gap allows for seasonal wood movement (expansion and contraction) without transferring stress to the glass, preventing cracks over time.
