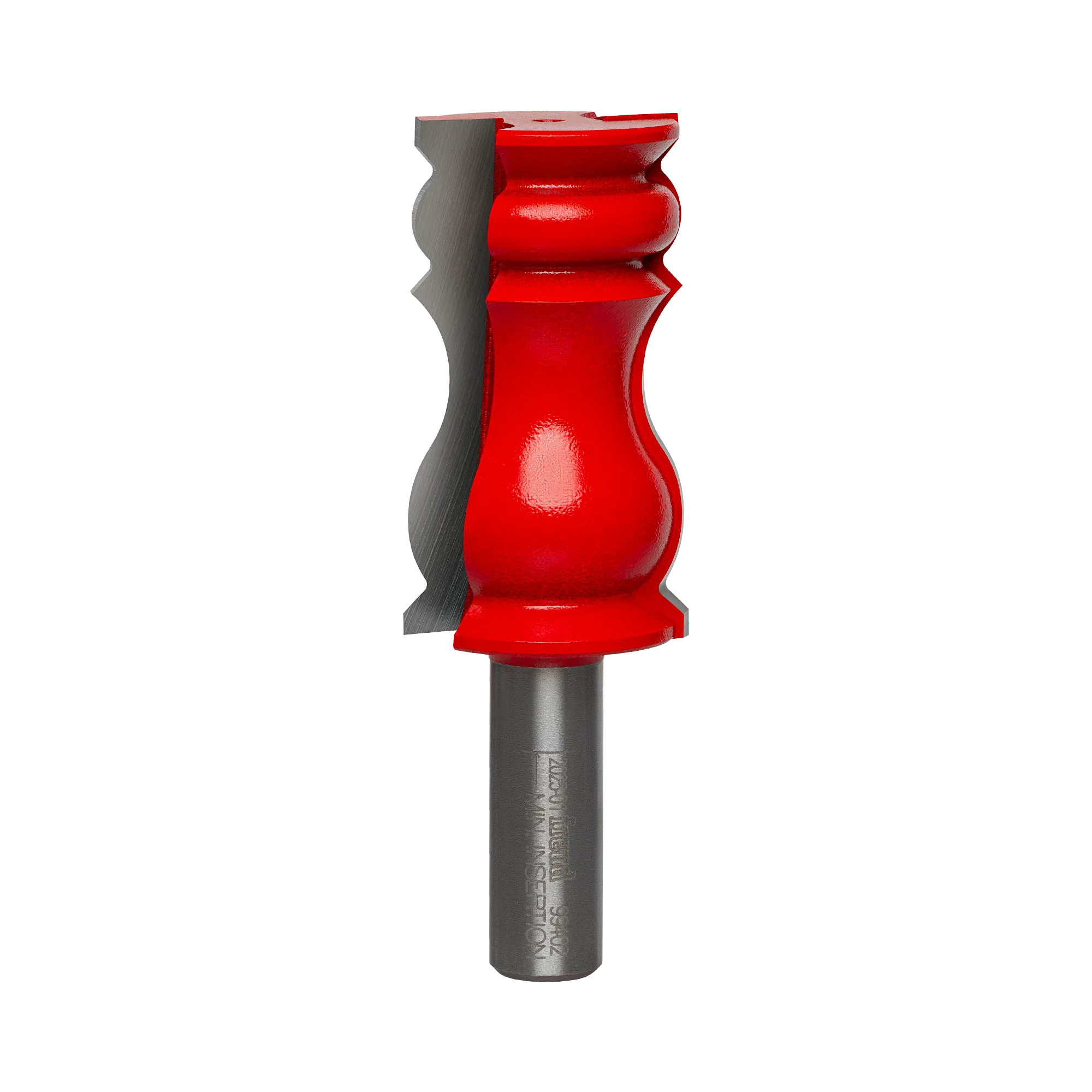

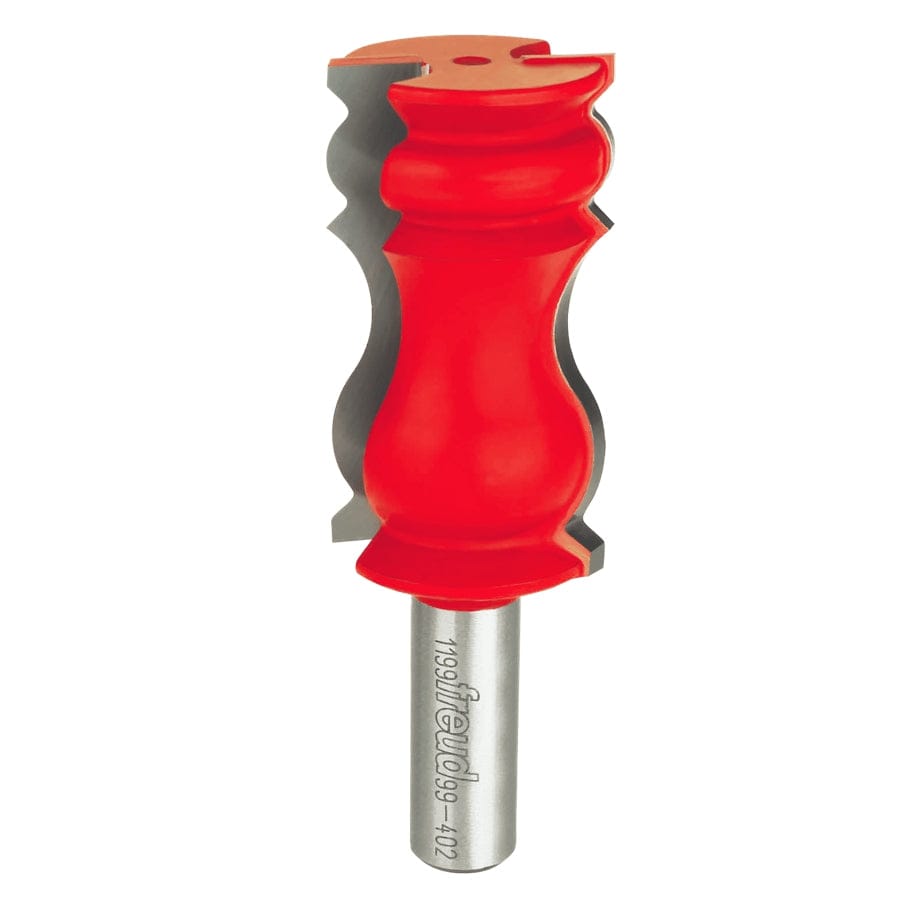

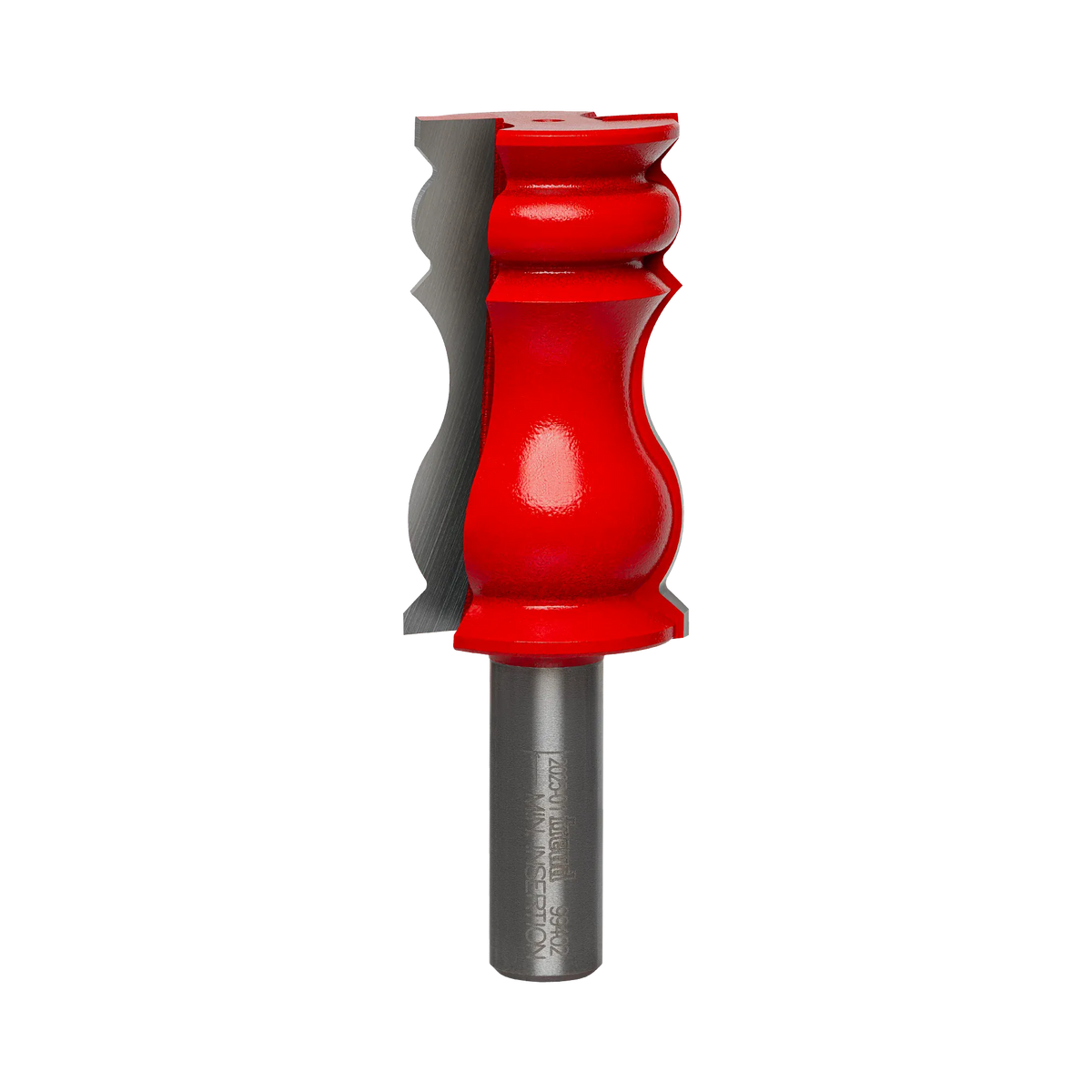

Freud 99-402 Crown Molding Router Bit 1-1/4 Inch Diameter 1/2 Shank Carbide Architectural Millwork Woodworking Cutter

Only 1 left
SKU: 99-402
Regular price $54.97 USD

Freud precisely the best logo Logout

Enhance Your Woodworking Projects: Freud 99-402 Crown Molding Router Bit for Custom Architectural Details

Elevate the aesthetic of any room or cabinetry project by crafting your own custom trim with the Freud 99-402 Crown Molding Router Bit. Designed for professional woodworkers and remodelers, this high-performance tool allows you to bypass the limited options at the lumberyard and create stunning, stain-grade crown moldings from your choice of hardwood or softwood. Whether you are adding elegance to a ceiling transition or finishing the top of a custom cabinet, this bit delivers the crisp, clean lines and smooth finish required for high-end architectural millwork.

Engineered for versatility and precision, the 99-402 features a tall 2-1/4 inch cutting height, making it ideal for creating substantial molding profiles. By adjusting your router table fence and the bit height, you can subtlely alter the profile to suit your specific design requirements. This bit is optimized for use with CNC and table-mounted routers and features Freud’s premium TiCo™ Hi-Density Carbide for superior edge retention. Additionally, the exclusive Perma-SHIELD® Non-Stick Coating minimizes friction, prevents heat buildup, and resists pitch accumulation, ensuring a burn-free cut that requires less sanding.

Key Features

  • Custom Millwork: Creates beautiful, professional-grade crown molding profiles for ceilings, furniture, and cabinetry.
  • Profile Versatility: The final shape can be customized by simply adjusting the bit height and fence position.
  • TiCo™ Hi-Density Carbide: Specially formulated carbide provides a sharper edge and longer tool life in hardwoods and softwoods.
  • Perma-SHIELD® Coating: Non-stick red coating protects the bit from rust, heat, and resin build-up for smoother operation.
  • Machine Compatibility: Designed specifically for safe use in table-mounted routers or CNC machines (not for hand-held use).
  • Precision Balanced: Computer-balanced to ensure vibration-free operation at high speeds, resulting in a chatter-free finish.

What's Included

(1) Freud 1-1/4" Diameter Crown Molding Router Bit with 1/2" Shank (99-402)

Specifications

Brand Freud
Model Number 99-402
Application Crown Molding
Overall Diameter (D) 1-1/4 in
Shank Diameter (A) 1/2 in
Carbide Height (h) 2-1/4 in
Overall Length (H) 3-3/4 in

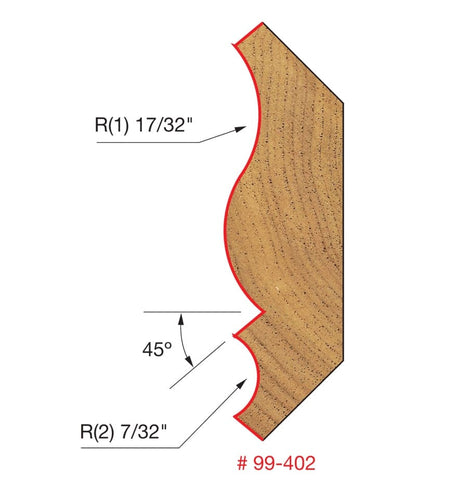

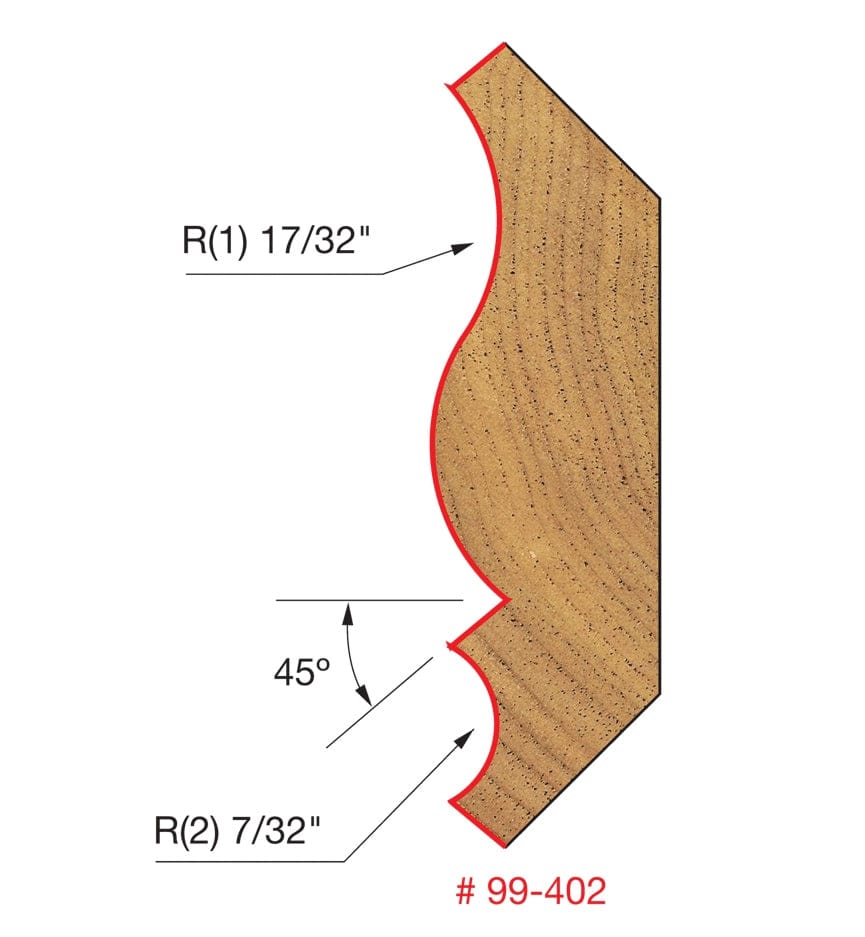

Large Radius (R1) 17/32 in
Small Radius (R2) 7/32 in
Angle (d) 45°
Number of Cutters 2
Max RPM 18,000

Pro-Tip: Due to the significant cutting height (2-1/4") and material removal of this bit, it is critical to use a lower RPM setting (around 16,000-18,000) and never attempt to cut the full profile in a single pass. Make multiple light passes to reduce stress on the router motor and ensure a smooth, burn-free finish.
